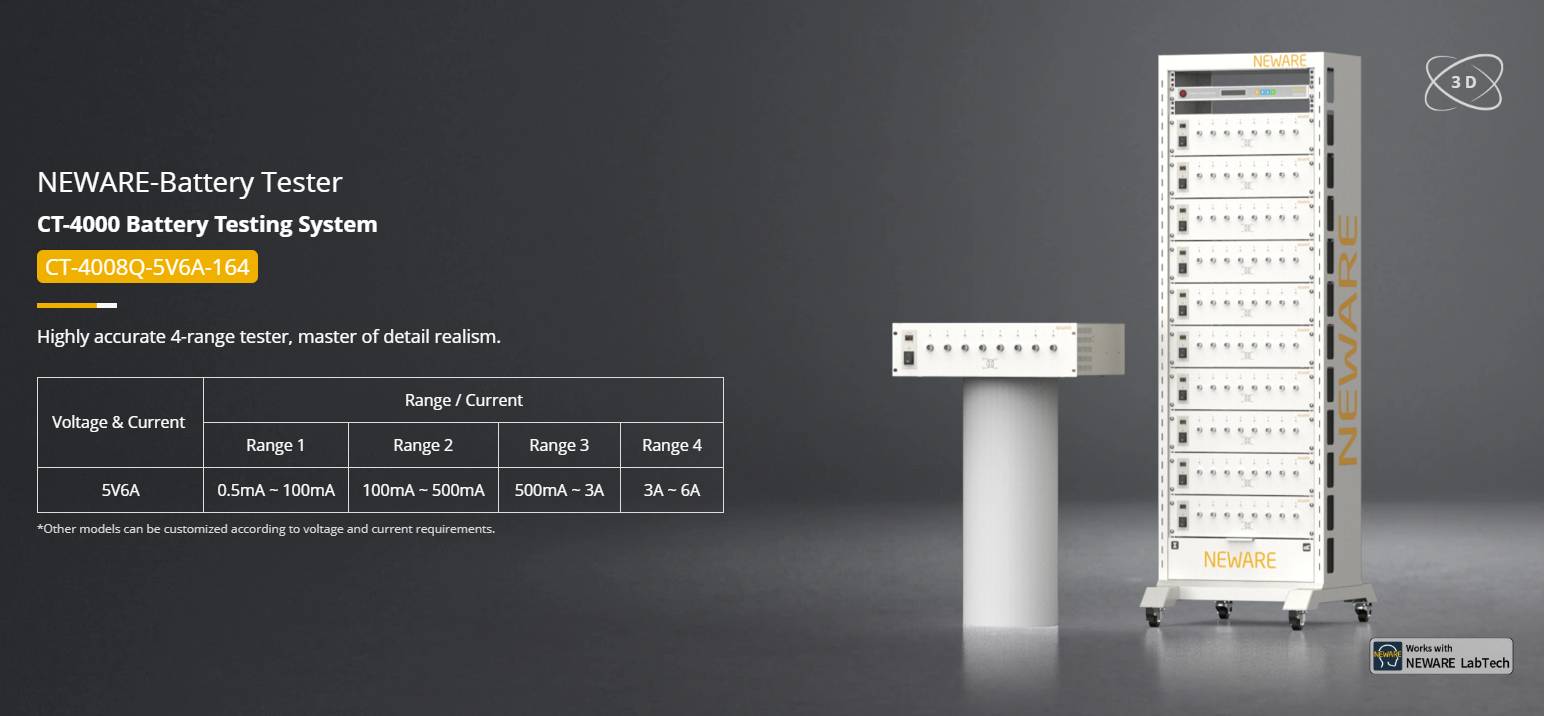

NEWARE CT-4008Q-5V6A-164 is a battery testing device meticulously engineered by NEWARE for the purpose of accurate battery testing. It is capable of testing a variety of battery types, encompassing button cells, pouch cells, and cylindrical cells. This precision instrument boasts four distinct measurement ranges, as indicated by its series model designation. It supports a maximum voltage of 5V and a maximum test current of 6A. The device's four testing ranges are meticulously calibrated to cover 0.5mA to 100mA, 100mA to 500mA, 500mA to 3A, and 3A to 6A. This segmentation from 0.5mA up to 6A into four distinct ranges ensures precise control over small current measurements, thereby fulfilling the stringent accuracy demands of battery testing.
NEWARE CT-4008Q-5V6A-164 is a battery testing device designed for precision testing of various battery types, including button cells, pouch cells, and cylindrical cells. This device is equipped with stable performance parameters that ensure the accuracy and reliability of test data. Additionally, it features a modular design, with each unit comprising 8 channels capable of independent data acquisition. The device supports up to 254 editable lines, maximizing the flexibility and capability of the testing process.
The current testing accuracy of the CT-4008Q-5V6A-164 can reach ±0.02% F.S, and the recording frequency can achieve 10Hz. The sampling time is as fast as 100ms, and the current response time can meet the requirement from 10% F.S to 90% F.S. Furthermore, the minimum pulse width is 500ms, which is essential for testing the performance of batteries under rapid changes in current and power.
The device's modular design and high-channel capacity make it an efficient tool for comprehensive battery testing, suitable for a wide range of applications in the battery and new energy industry. This precision instrument's capabilities are further enhanced by its ability to import, edit, and export DBC files, allowing for seamless communication with different battery pack protocols through simple code modifications, without the need for program upgrades

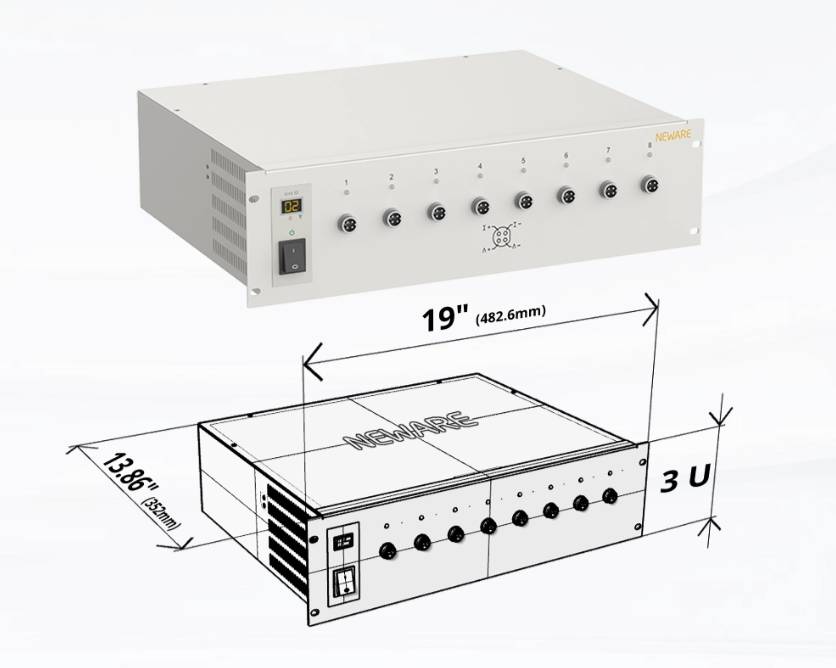

Each testing unit has a height of 3U, a length of 19 inches (482.6mm), and a width of 13.86 inches (352mm). It occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.

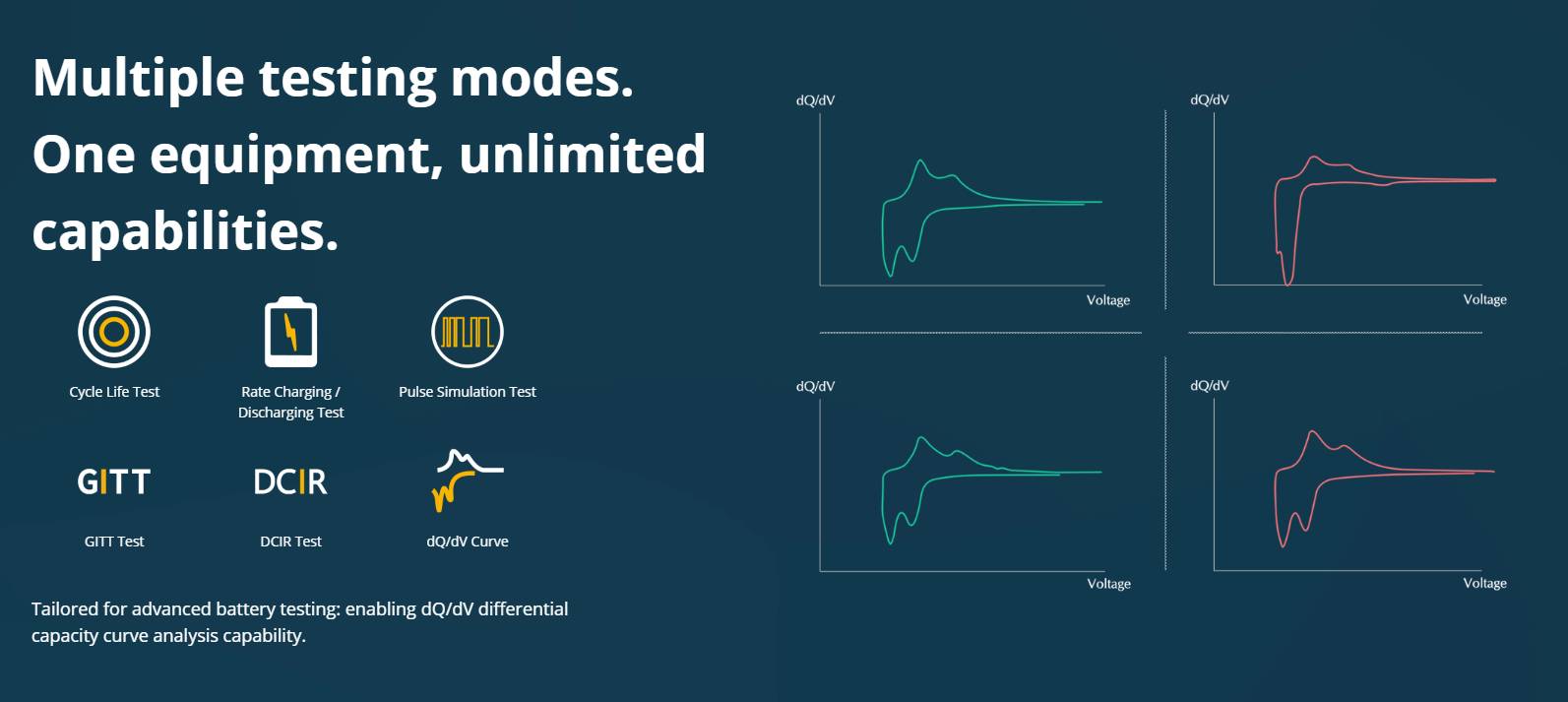

The battery testing equipment integrates multiple testing modes. In conjunction with the BTS software, which is developed by NEWARE, it facilitates a range of tests such as Cycle Life Test, Rate Charging/discharging test, pulse simulation test, GITT test, and DCIR test. With the integration of BTS software, users are enabled to measure and map out the battery's differential capacity curve, dQ/dV, thereby aiding in differential capacity curve analysis.
NEWARE BTS software is a powerful battery testing software that boasts powerful programmability, capable of meeting a variety of testing needs. The software is fully equipped with a range of work-step settings, recording, and data storage functions to accommodate a wide array of testing requirements. This comprehensive functionality ensures that users can tailor the software to fit their specific testing protocols and analyze the results effectively. The BTS software's powerful programmability allows it to handle diverse testing needs, making it a versatile tool in the battery testing industry.

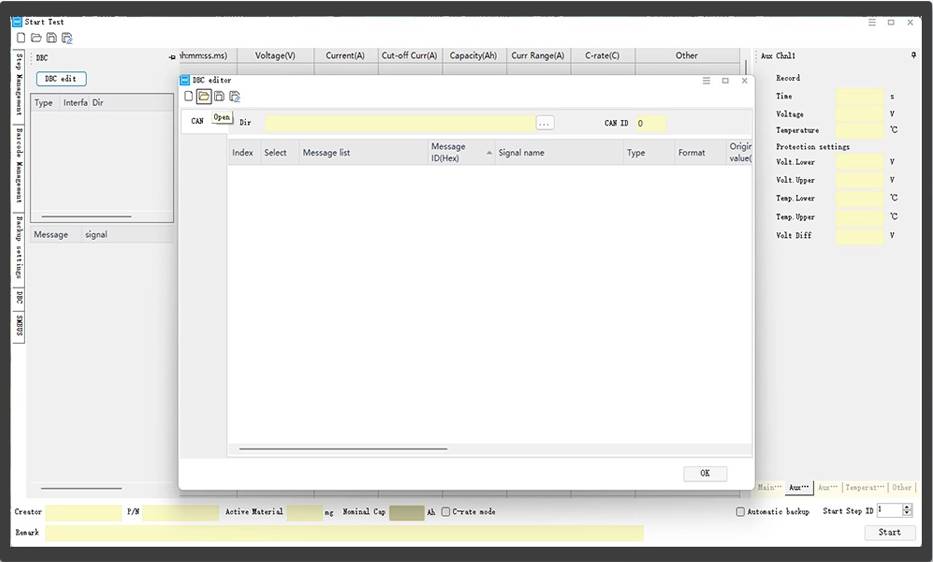

Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.

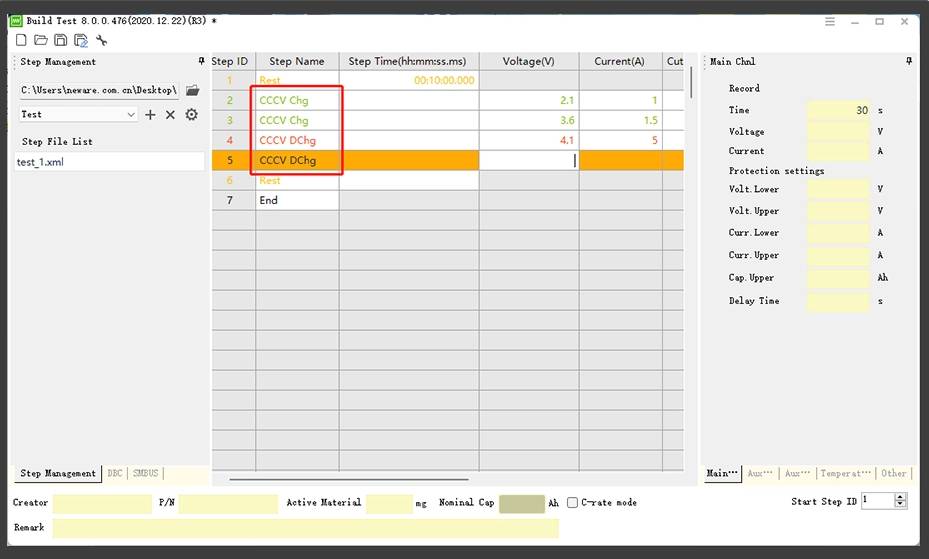

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

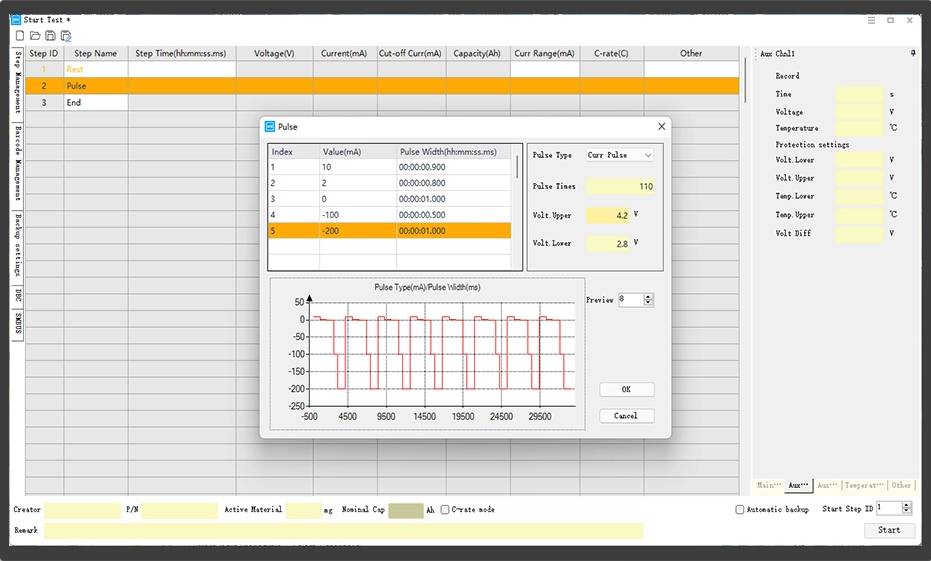

Testing the performance of the battery under fast changes in current/power.

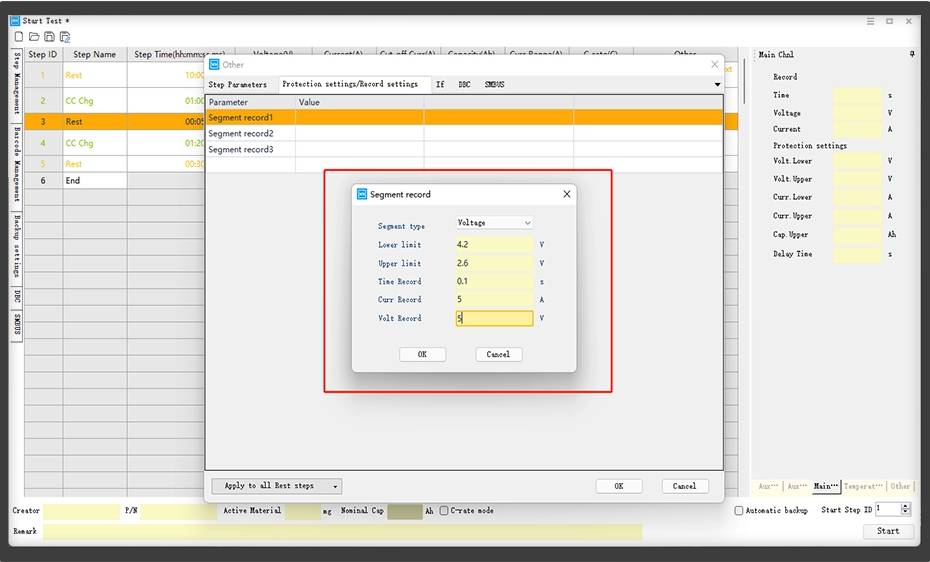

Allow to set up to 3 segment recording conditions per step, including voltage, current and time.

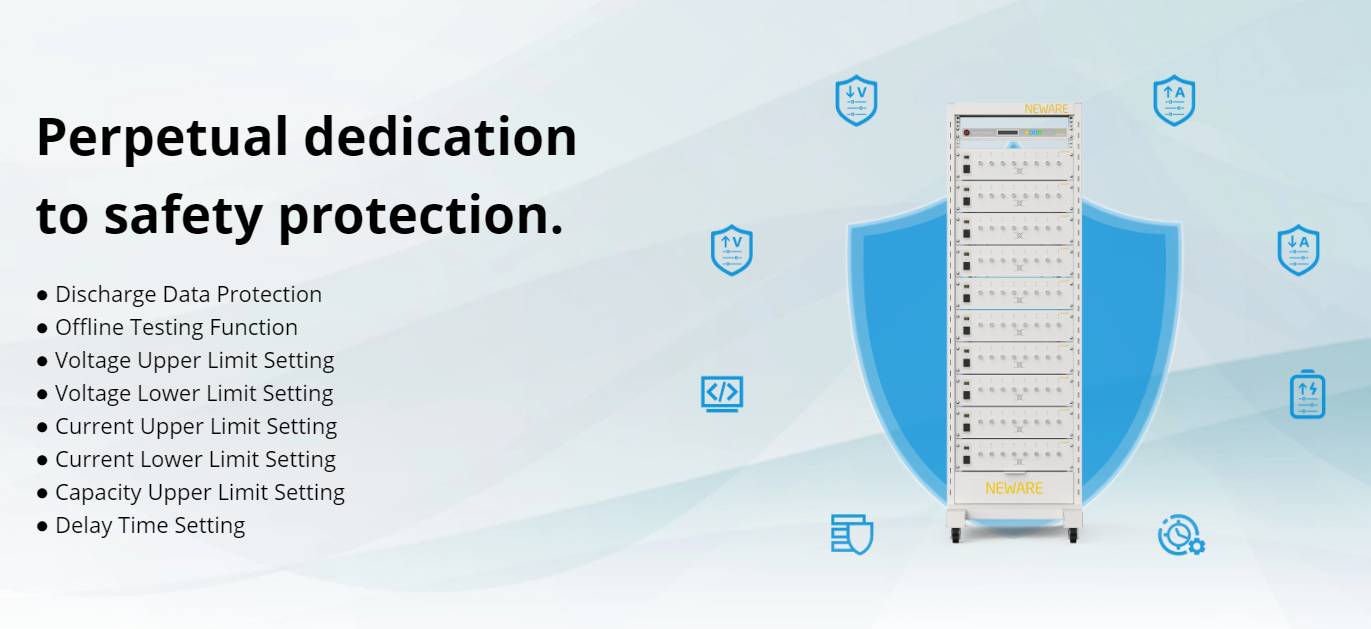

NEWARE places a strong emphasis on safety during battery testing through features such as Discharge Data Protection, Offline Testing Function, Voltage Upper Limit Setting, Voltage Lower Limit Setting, Current Upper Limit Setting, Current Lower Limit Setting, Capacity Upper Limit Setting, and Delay Time Setting. These functional settings ensure the security of the battery testing equipment during the testing process.

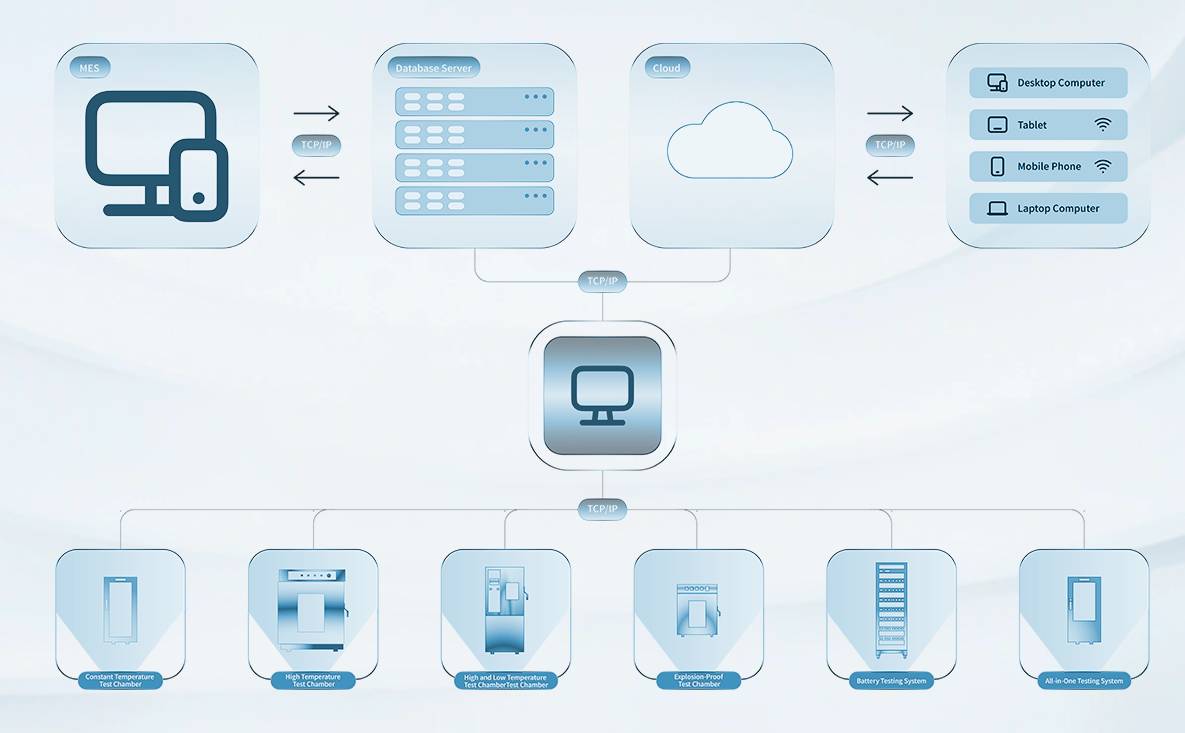

NEWARE has the capability to integrate with a variety of peripheral devices to create a multi-dimensional testing environment. By incorporating peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers, NEWARE offers comprehensive testing and evaluation solutions. This integration provides extensive and quantifiable support for the rigorous demands of battery mass production testing, ensuring accurate and reliable results.
NEWARE's extensive peripheral devices allow for the creation of a multi-dimensional testing environment, enhancing the capabilities of their battery testing solutions.
If this battery testing equipment does not meet your testing requirements, NEWARE also offers other models of testing equipment, such as the CT-4008Q-5V100mA-124, CT-4008Q-5V12A-S1, and CT-4008-5V20A-A. These are just a few examples from NEWARE's 4000 Series of battery testing equipment. In addition to the 4000 Series, NEWARE also includes the CT/CE 5000 Series, CE 6000 Series, CT/CE 8000 Series, and CT/CE 9000 Series. NEWARE also provides a variety of accessories for battery testing, such as battery clamps, probes, battery racks, battery materials, explosion-proof cabinets, constant temperature chambers, all-in-one battery testing systems, and safety test equipment.
NEWARE, with over 25 years of battery testing experience, strives for innovative designs and superior quality. The company is dedicated to providing support for global battery manufacturers, electric vehicle producers, energy storage battery manufacturers, enterprises, national quality inspection departments, universities, and research institutions.
If you have any requirements or ideas regarding battery testing, please feel free to contact us. We are able to provide customized services based on your specific needs.We provide the equipment needed for any battery testing need, with full customization.
