NEWARE Mini Constant Temperature Test Chamber-WHW-25L-S

Traditional battery testing equipment often faces practical issues such as large size, limited functionality, complex operation, and low testing efficiency. These issues can lead to laboratories having too many devices, overcrowding, and disorganized placement of various reagents. The size and appearance of the equipment have become important factors to consider in practical scientific research and experimentation. However, the most important aspect should not be compromised due to size constraints. Therefore, for laboratories, a mini yet practical test chamber is often the best choice.

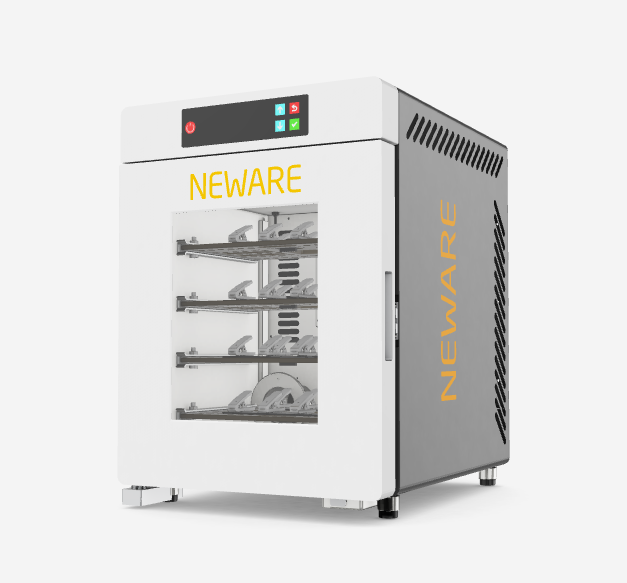

The NEWARE Mini Constant Temperature Test Chamber WHW-25L-S is a professional device developed by NEWARE for battery testing in the new energy industry. It provides the required constant temperature environment for charge-discharge and safety performance testing of button-type batteries and pouch batteries. It is widely applicable in electronic, electrical, instrumentation, materials, semiconductor production enterprises, as well as laboratories, research institutes, and more.

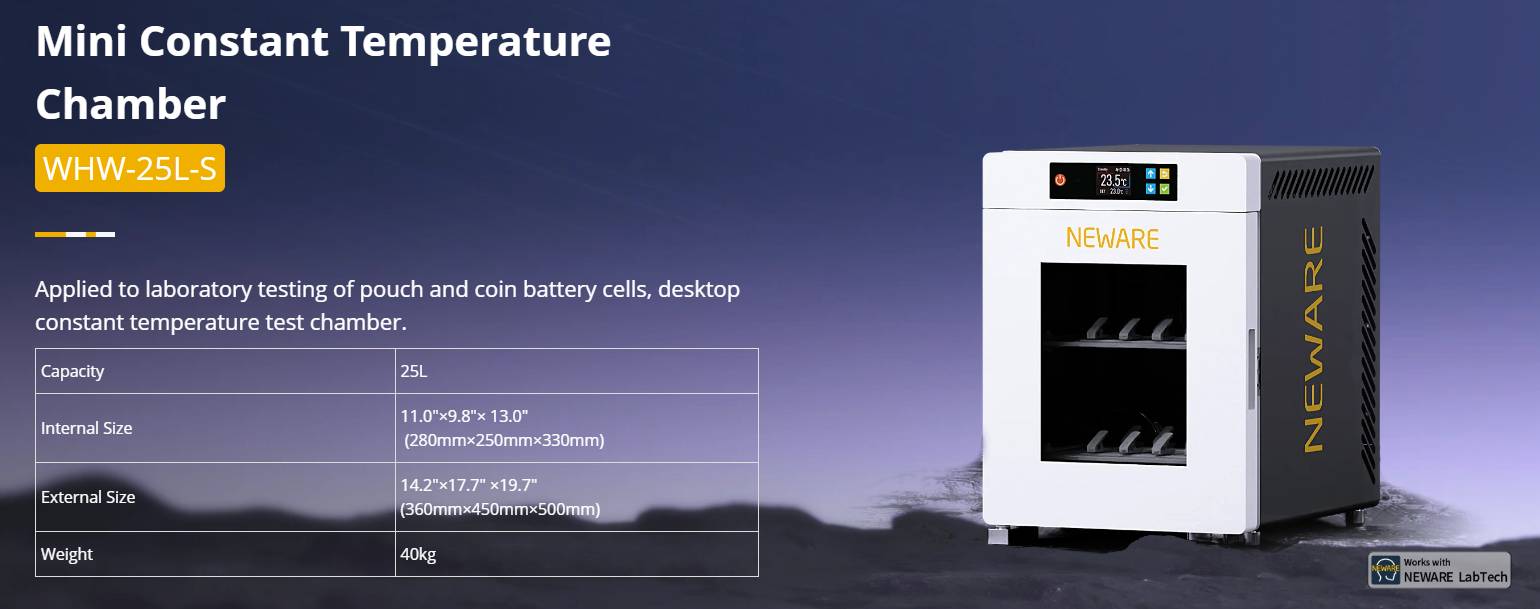

When discussing the "mini constant temperature test chamber," the first thing to mention is "mini." With dimensions of W360 mm × D450 mm × H500 mm, it is almost the same size as a typical microwave oven found on the market, greatly saving space in the laboratory. The benefits of being mini are not only reflected in visual neatness but also in practicality. Firstly, the mini size combined with a large-angle tempered glass design allows for easy observation of the experimental conditions inside the chamber. Secondly, the small size enables researchers to handle fixtures, battery clamps, and touch controls with less effort and time, eliminating the need for frequent lifting and repositioning. Additionally, routine maintenance of the test chamber, such as moisture-proof measures and regular cleaning, can be completed more quickly. Whether in a cramped laboratory corner or a compact production workshop, it can easily adapt and is particularly suitable for small-scale development and experimentation, occupying less than half a square meter and freeing up more desktop space.

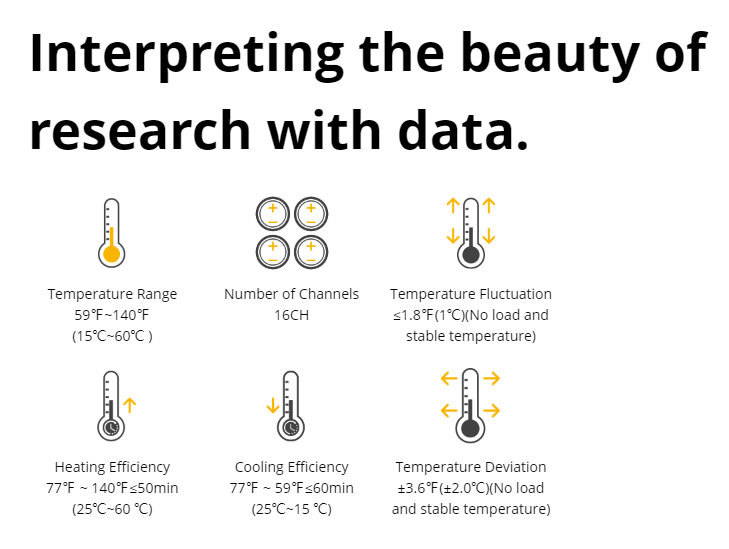

Despite its compact appearance, the constant temperature test chamber does not compromise on functionality. It takes less than 50 minutes to raise the temperature from 25°C to 60°C during operation. It has a wide operating temperature range, from 15°C to 60°C. The test environment can adapt to temperatures ranging from 5°C to 35°C, with temperature fluctuations of ≤1°C. It is worth mentioning that it is cost-effective as well. The test chamber can accommodate different fixtures and is compatible with commonly used sizes of button-type batteries and pouch batteries, meeting diverse testing requirements. It maximizes space utilization and can hold up to 16 button-type batteries. With its advanced technology, precise temperature control is achieved. The control system calculates the output of the cooling/heating module based on the set temperature value using PID control, achieving dynamic balance with a temperature deviation of only 2°C.

The test chamber boasts powerful data capabilities and ensures safety. The shell is made of high-quality cold-rolled steel plate with surface spraying and baking treatment, making it solid and durable. The fully transparent hollow anti-fog tempered glass with a stainless steel frame provides excellent insulation and a wide-angle display, ensuring the best observation angle. The internal insulation sample rack is made of high-temperature and electrically-insulating material, ensuring safety. It is equipped with an axial flow fan and an air inlet for ventilation in the chamber. These measures guarantee the safety of battery testing, preventing hazards such as fires or small explosions.

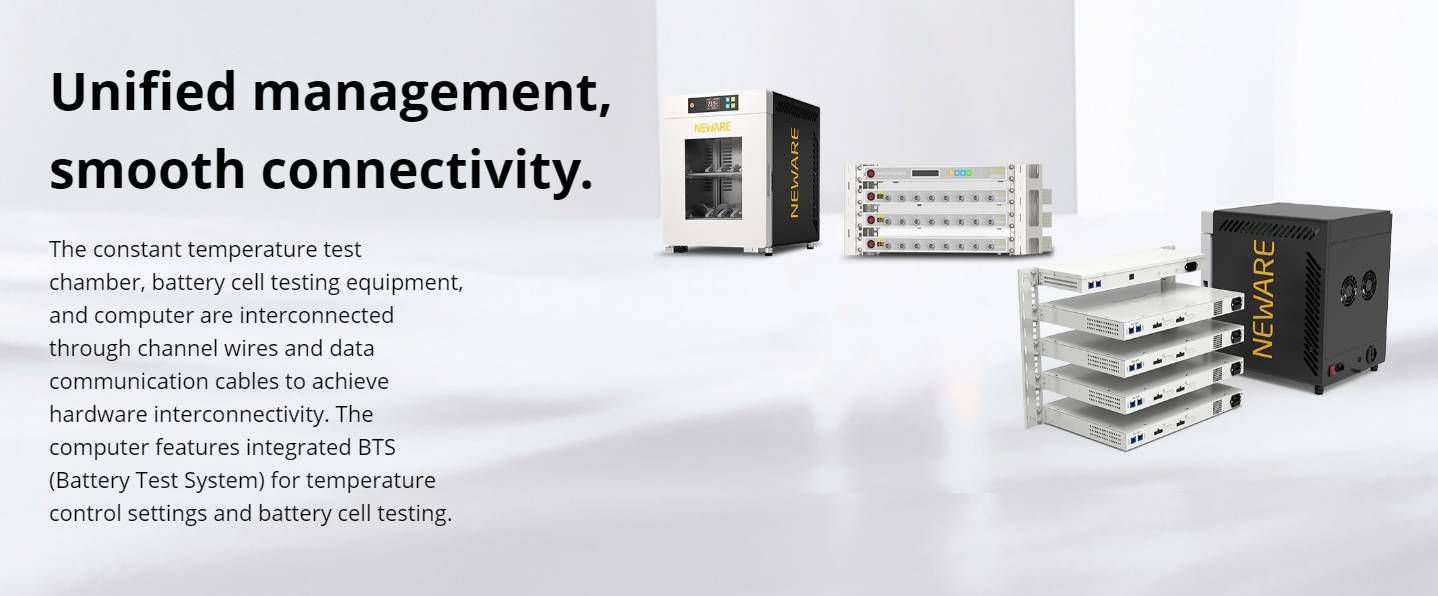

In addition to the above points, the "online" unified collaboration can also maximize the functionality of the battery and improve overall testing efficiency. The NEWARE Mini Constant Temperature Test Chamber WHW-25L-S can be connected to the BTS host computer and used in conjunction with the CT-4008Q-5V100mA Battery Testing System for battery charge-discharge testing. With NEWARE's BTS host computer control system (BTS software), it enables integrated operation and collaborative control, helping enterprises, laboratories, research institutes, and others achieve batch and precise control of battery testing.

---
