Safety Battery Tester: The NEWARE WFB-220L-2K Explosion-Proof Chamber

In the rapidly evolving world of technology, battery safety remains a paramount concern for manufacturers, researchers, and consumers alike. The quest for more powerful, longer-lasting batteries has led to innovations that, while impressive, come with their own set of challenges. Among these, the risk of battery explosions stands out as a significant hazard, especially when testing under extreme conditions. This is where the NEWARE WFB-220L-2K Explosion-Proof Chamber steps in, offering a revolutionary solution to ensure safety during the battery testing process.

The critical need for battery safety

Batteries power our world, from the cell phones in our pockets to the electric vehicles on our roads. However, incidents of battery explosions, often resulting from overcharging, over-discharging, or short-circuiting, have underscored the critical need for stringent safety measures. Battery safety performance testing, therefore, becomes not just a protocol but a necessity.

Introducing the NEWARE WFB-220L-2K

At the heart of addressing these safety concerns is the NEWARE WFB-220L-2K, an explosion-proof chamber designed to provide a secure environment for battery testing. This state-of-the-art equipment comes equipped with features that ensure the safety of testing personnel and the integrity of the tests being conducted.

Innovative design for maximum safety

The NEWARE WFB-220L-2K boasts a robust design tailored to mitigate risks associated with battery testing. The chamber's dimensions — 30in×26.8in×8.7in for the internal size, and 37.4in×38.6in×46.5in for the external size — provide ample space for conducting tests on various battery types, including button batteries, watch batteries, cell phone batteries, and 3C batteries.

Explosion-proof features

A unique aspect of the WFB-220L-2K is its explosion-proof capabilities. The chamber is constructed with high-quality cold-rolled steel plate for the external walls, complete with surface spray coating and paint treatment for durability. The internal walls are made of 0.06" stainless steel plate, reinforced with epoxy insulation boards to enhance safety. Moreover, the chamber is equipped with three explosion-proof bars, strategically placed to offer maximum protection.

Visibility and monitoring

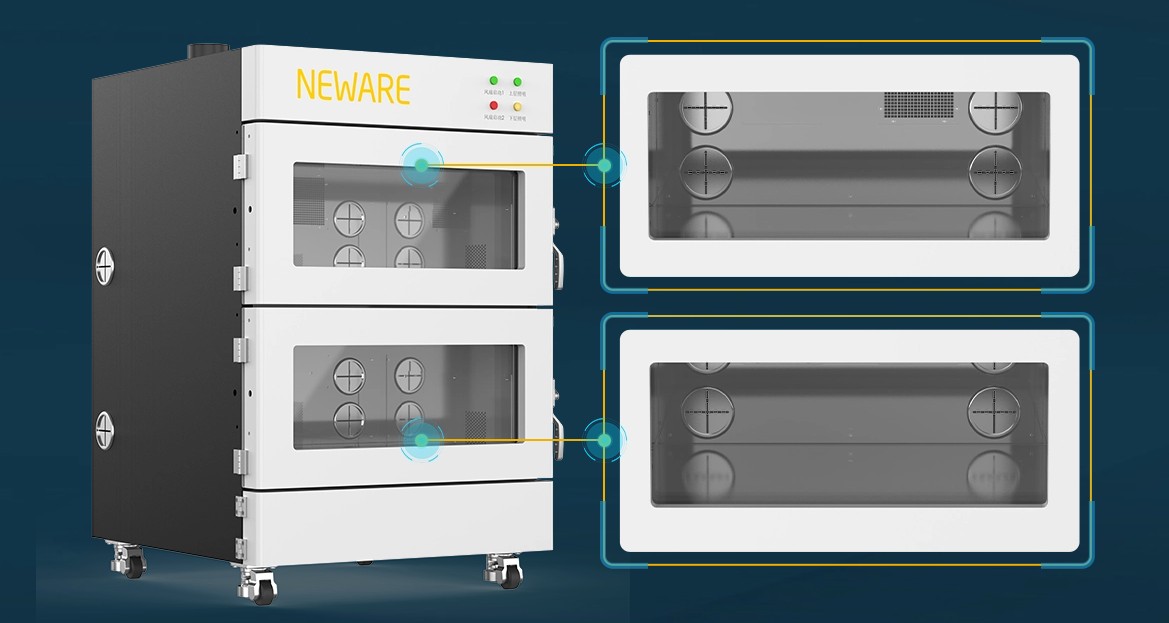

Understanding the importance of real-time monitoring, the chamber includes an explosion-proof transparent window fitted with three-layer explosion-proof glass. This allows for dynamic observation of the testing process, enabling testing personnel to monitor conditions inside the chamber closely.

Efficient heat dissipation and ventilation

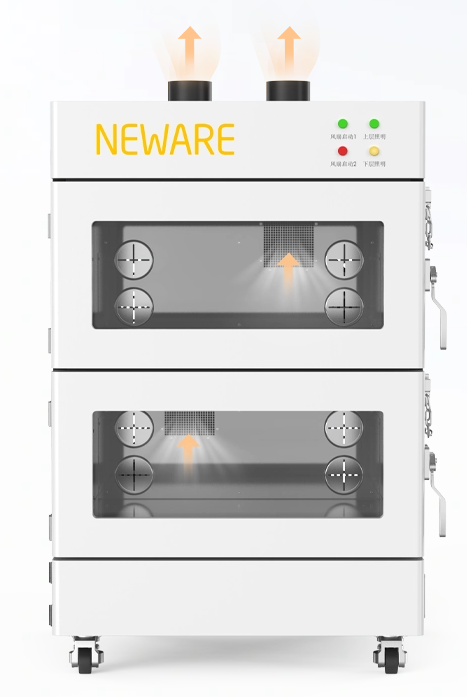

Batteries under test can generate significant heat, necessitating effective heat dissipation mechanisms. The WFB-220L-2K addresses this with its well-designed ventilation system. Ventilation ducts connect to external air ducts at the top of the enclosure, equipped with exhaust fans to facilitate heat dissipation. This feature ensures a stable testing environment, reducing the risk of overheating-related incidents.

Safeguarding against electrical hazards

The chamber's design incorporates several features to protect against electrical hazards, including a protective ground wire and short circuit protection. The inclusion of an explosion-proof light further enhances safety, ensuring visibility in all testing scenarios.

Simplified connectivity

Acknowledging the complexities often associated with battery testing setups, the WFB-220L-2K features a unique connector aperture design. Each enclosure is equipped with two connector holes on the left and right sides externally, and two 90mm diameter lead holes on the rear wall internally. This design simplifies wiring and ensures a secure connection,mitigating risks associated with loose or improper wiring.

The role of atmospheric pressure and humidity

Battery testing is not done in isolation from environmental factors. The NEWARE WFB-220L-2K is designed to operate within an atmospheric pressure range of 86kPa-106kPa, simulating real-world conditions. This is crucial for testing batteries intended for use in various climates and altitudes. Additionally, the chamber's design considers the impact of relative humidity on battery performance, ensuring that tests account for moisture-related factors.

Applications and impact

The NEWARE WFB-220L-2K finds its application across a wide range of industries, from consumer electronics to automotive. Its ability to provide a safe, controlled environment for battery testing makes it an invaluable tool for manufacturers, research institutions, and quality assurance teams. By mitigating the risks associated with battery explosions, the chamber not only protects personnel and property but also contributes to the development of safer, more reliable battery technologies.

A step towards safer battery technologies

The NEWARE WFB-220L-2K Explosion-Proof Chamber represents a significant advancement in the field of battery safety testing. Its comprehensive design, focusing on safety, efficiency, and reliability, addresses the critical need for secure testing environments. As the demand for batteries continues to grow, innovations like the WFB-220L-2K play a crucial role in ensuring that safety remains at the forefront of technological progress.

---
