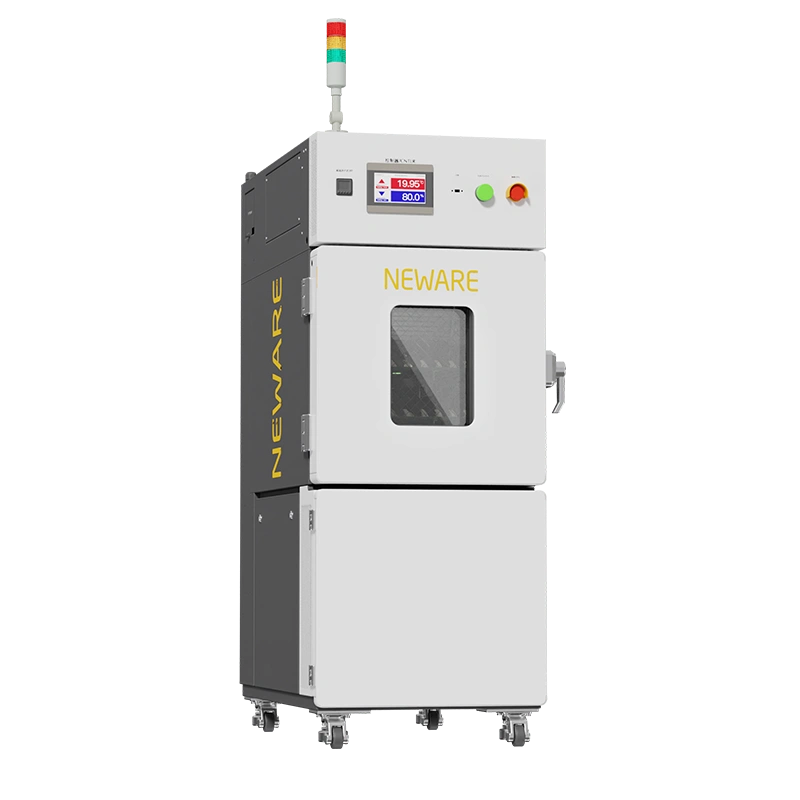

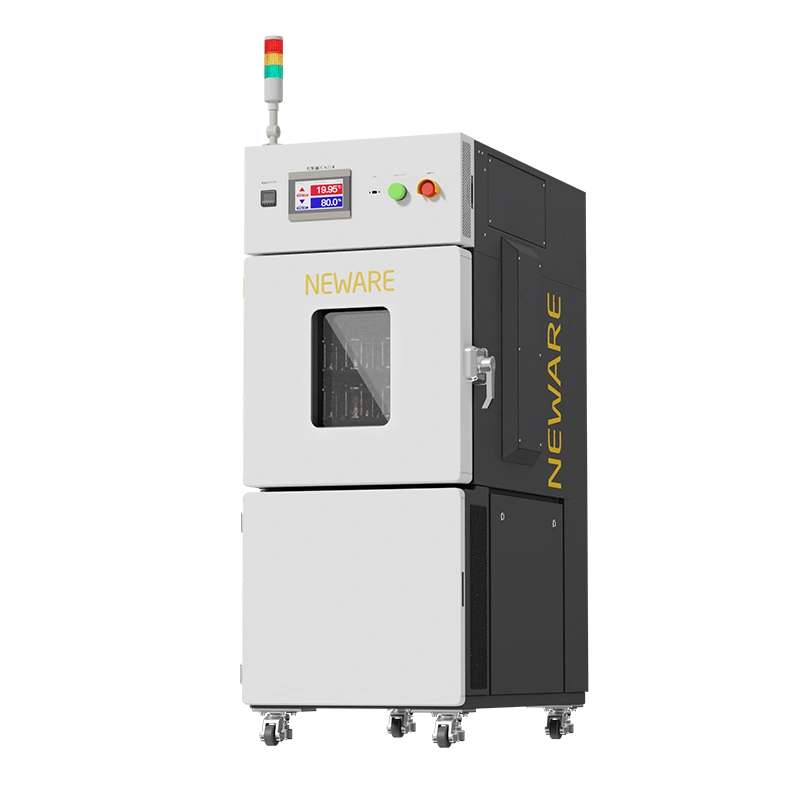

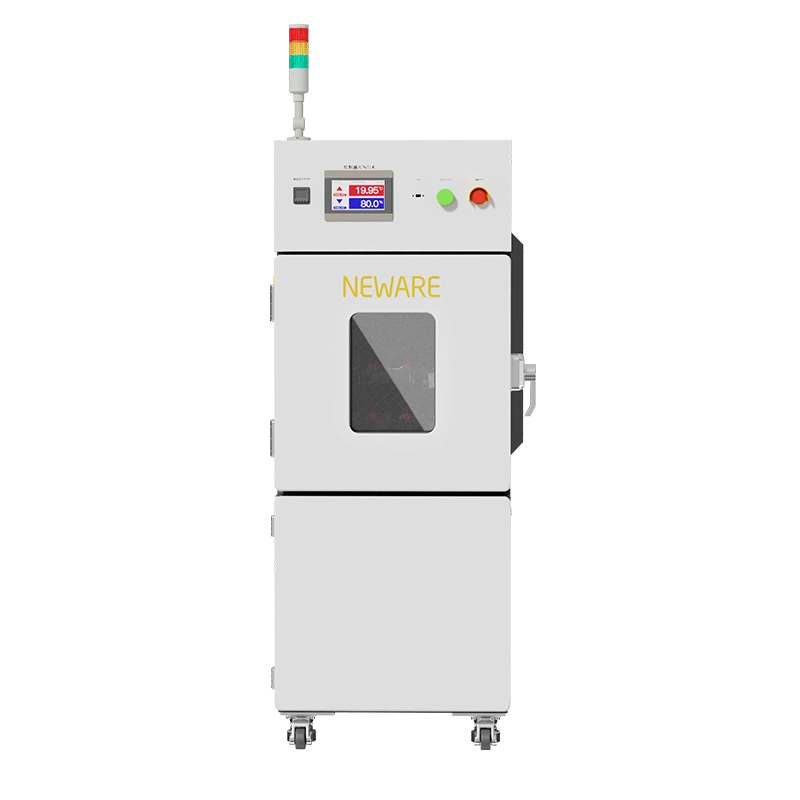

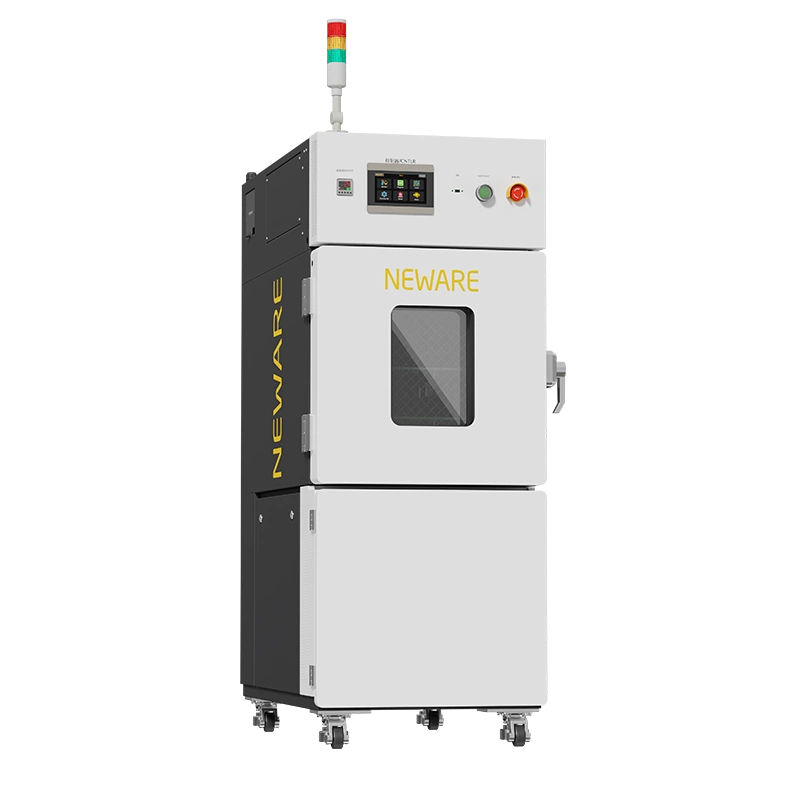

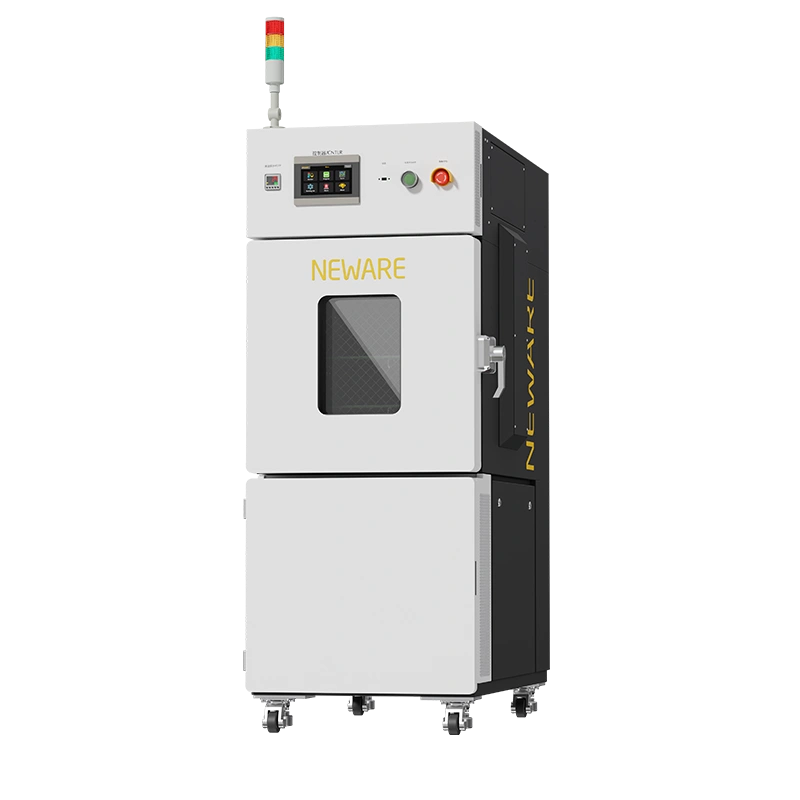

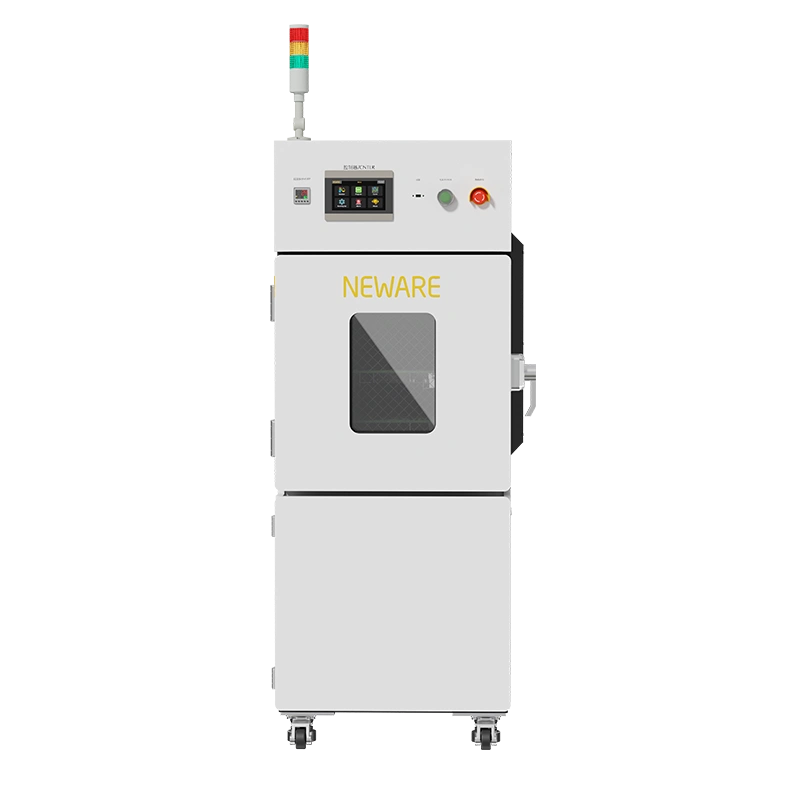

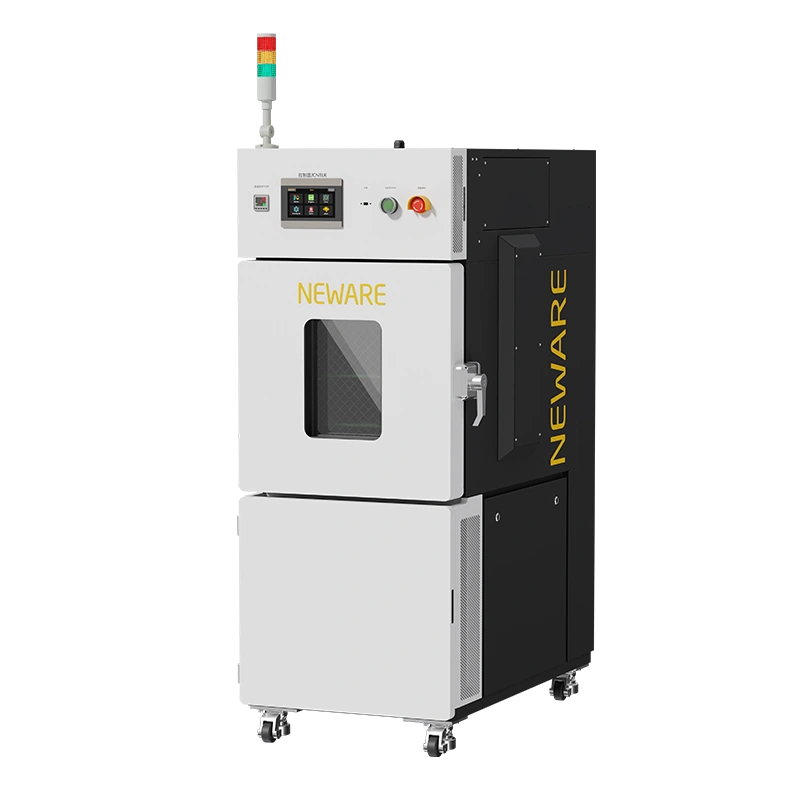

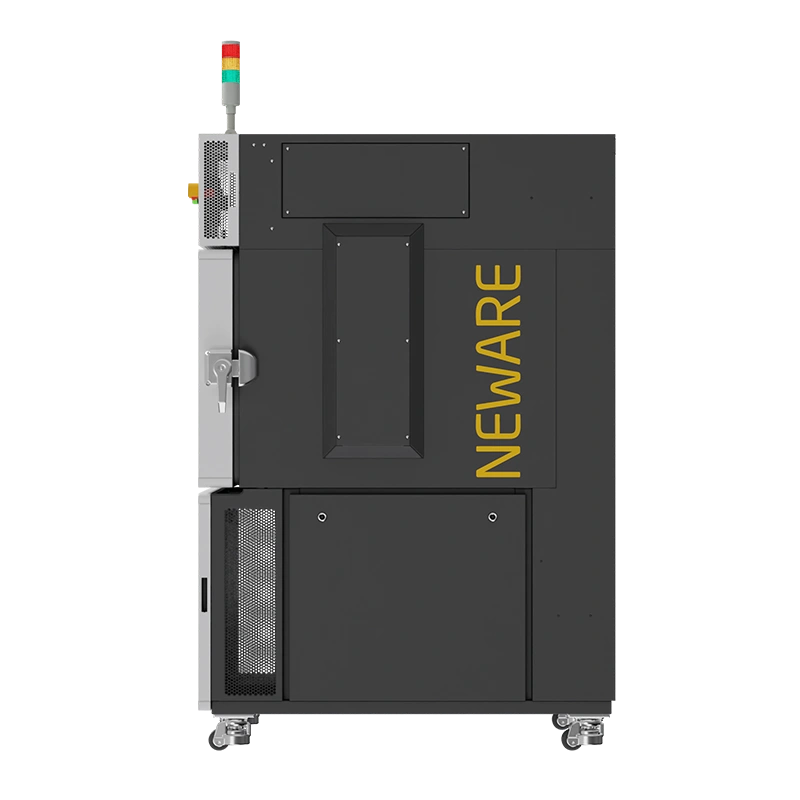

NEWARE-Environmental Test Chamber

Environment Simulation and Performance Testing Dual-Function Integration

Integrated high-low temperature test chamber and battery charge/discharge equipment, supporting a temperature control range of -70℃ to 150℃ and 3C battery cell testing, enables synchronized control of temperature cycling and charge/discharge conditions to meet diverse demands in battery R&D and quality inspection.

Key Specifications (Icon Content)

Current & Voltage Accuracy: ±0.05% F.S.

Data Logging Frequency: 10Hz

Temperature Range & Deviation: -70℃~150℃ ±2℃

Temperature Fluctuation: ≤0.5℃

Heating Time: 20℃ → 150℃ ≤60min

Cooling Time: 20℃ → -70℃ ≤75min

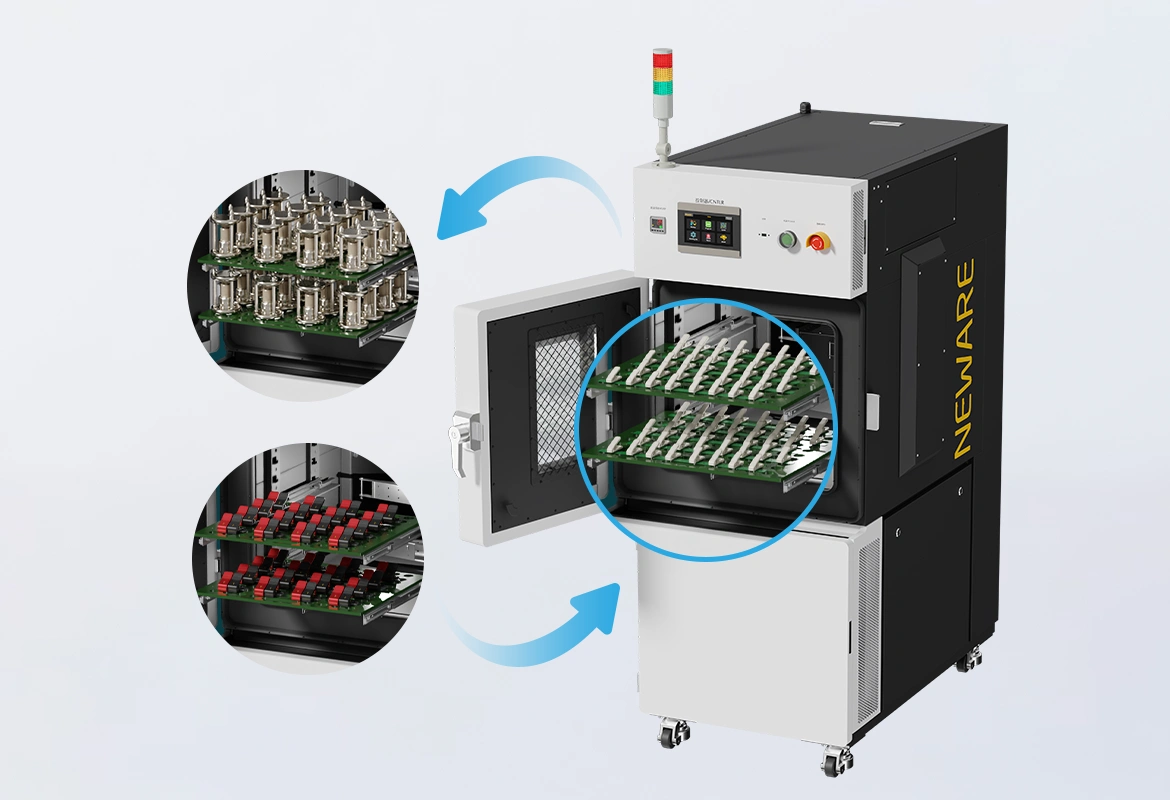

Modular Lower Computer Replacement Solution

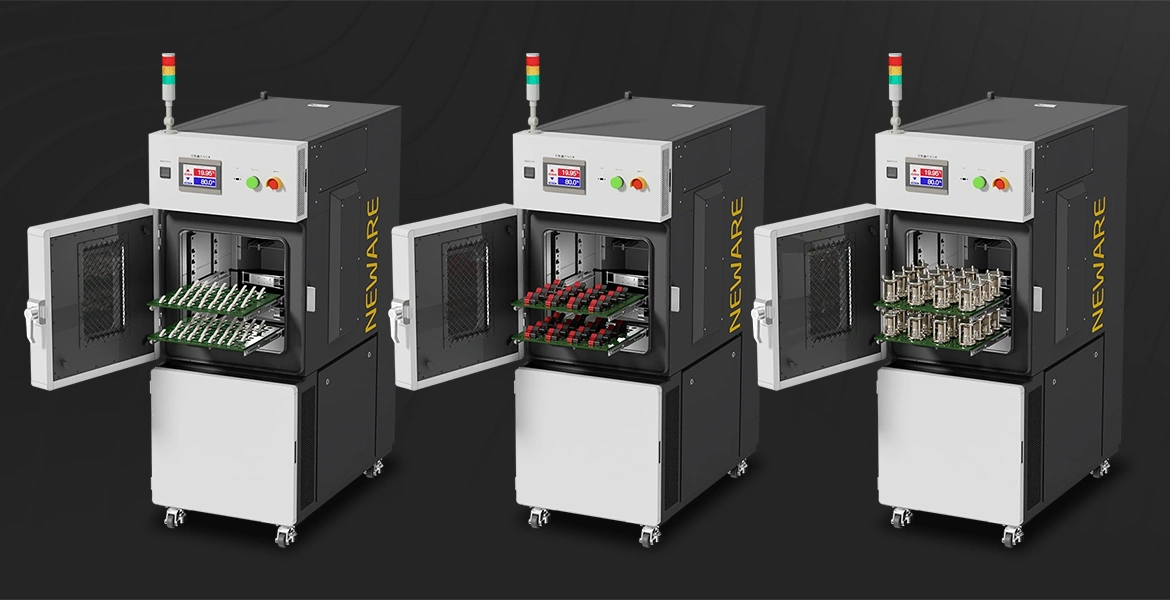

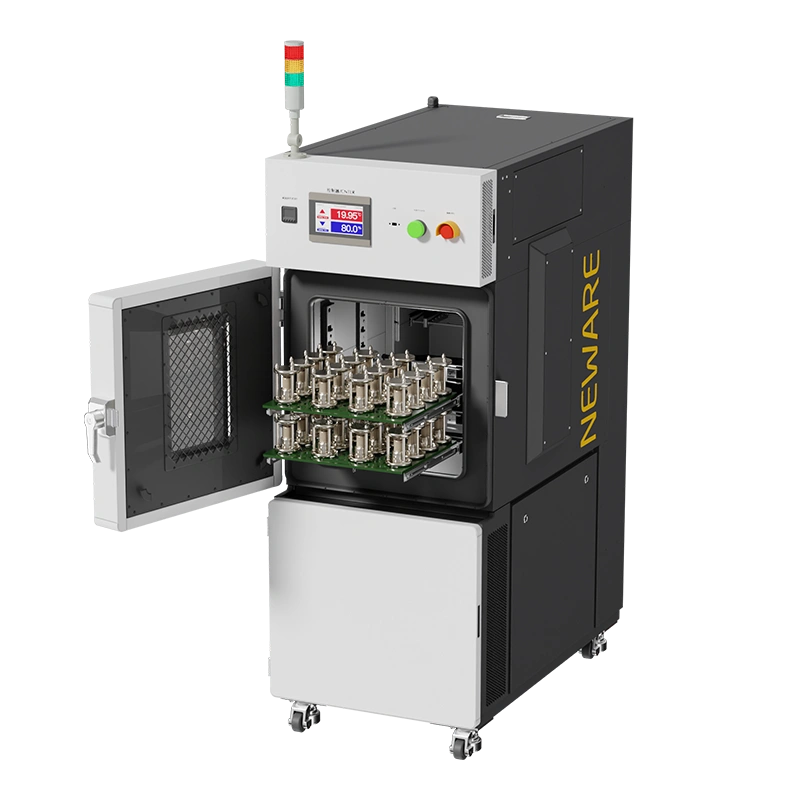

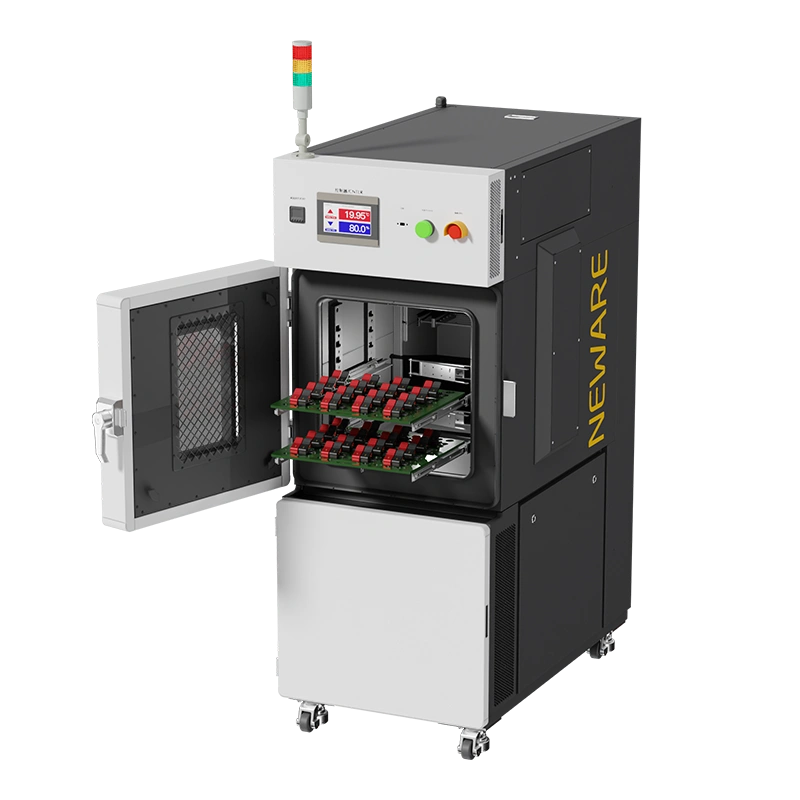

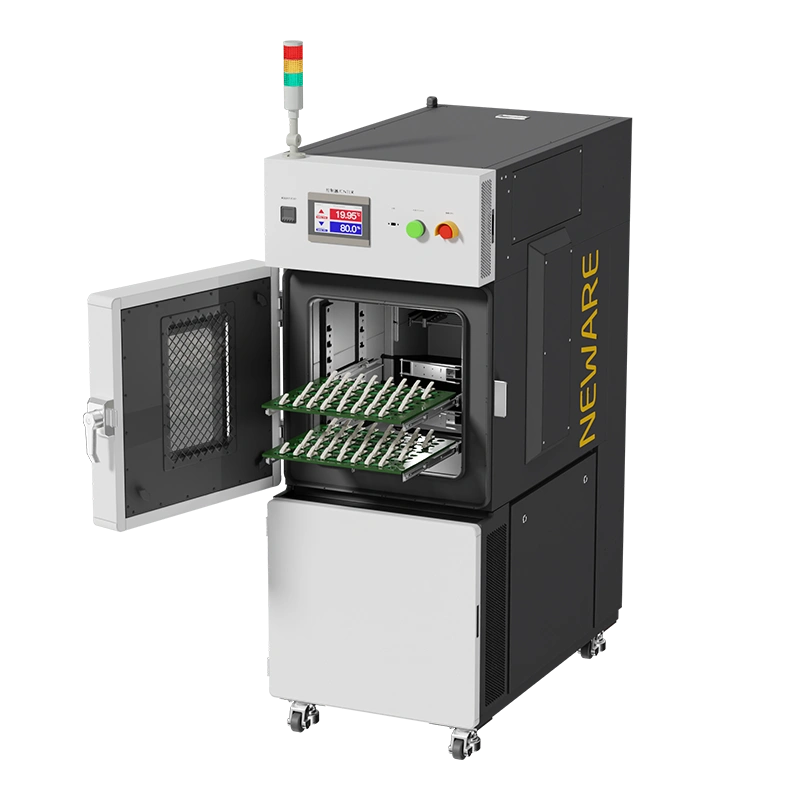

Users can independently replace internal lower computer modules to customize current ranges (6A/12A/15A/20A/30A) and test channel layouts, adapting to pouch cells or cylindrical cells of varying specifications.

Efficient Operation & Enhanced Testing Efficiency

· Supports CC/CV/CP charge/discharge modes with built-in pulse steps (minimum 100ms pulse width) and simulation.

· Compatible with battery cycle life, rate performance, and other testing standards.

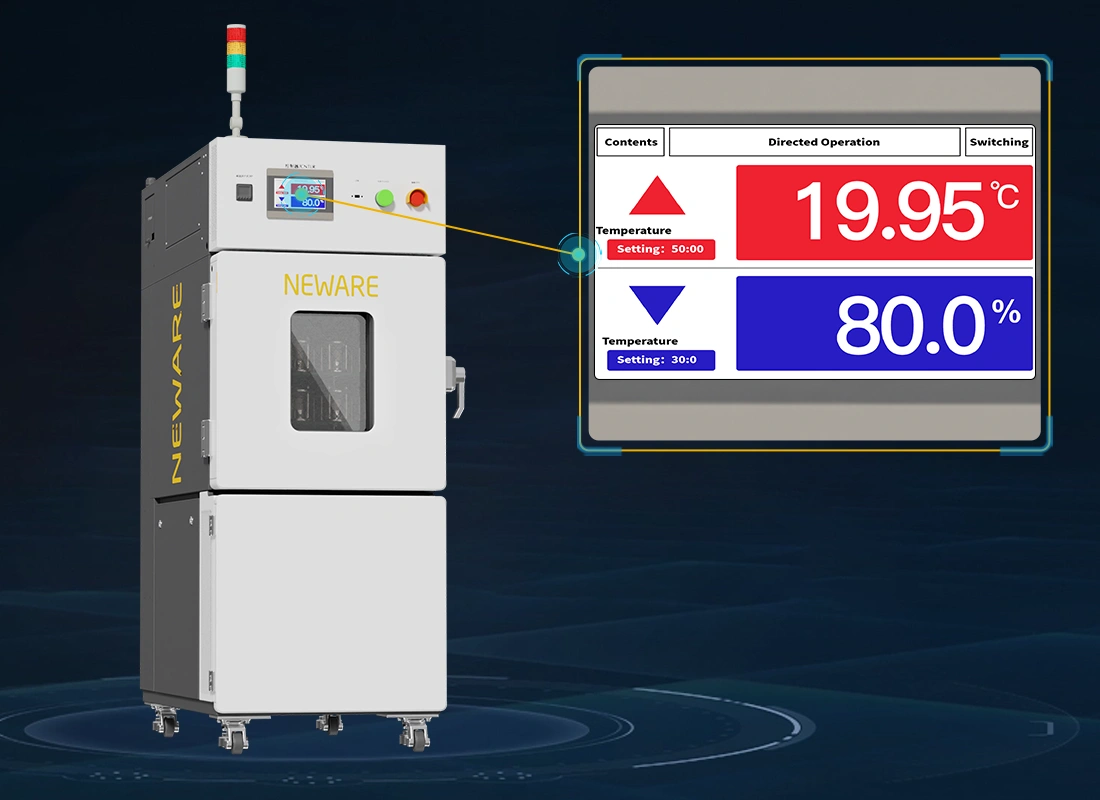

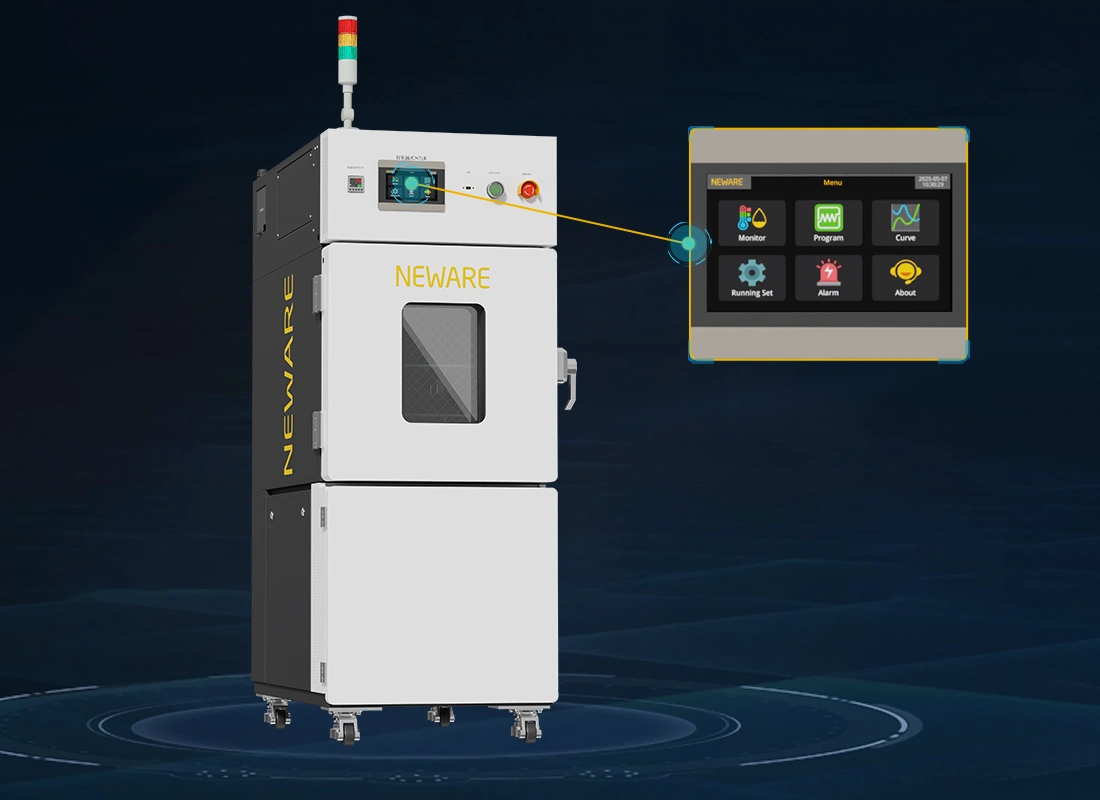

· Features a high-resolution touchscreen with English interfaces and programmable test scripts.

· Remote monitoring via Ethernet (TCP/IP protocol) for real-time device status tracking.

Precise Temperature Control & Environmental Adaptability

· Wide Temperature Range with High Stability:

-70℃~150℃, fluctuation ≤±0.5℃, uniformity ±2.0℃, meeting extreme environment simulation requirements.

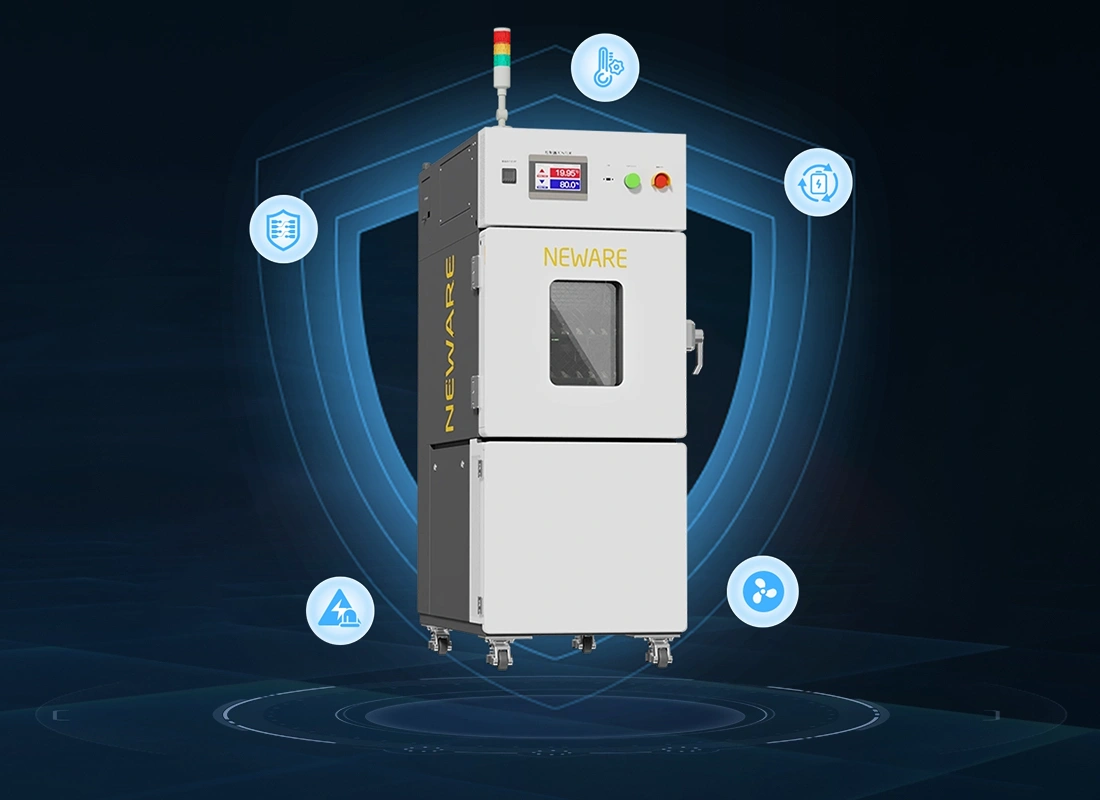

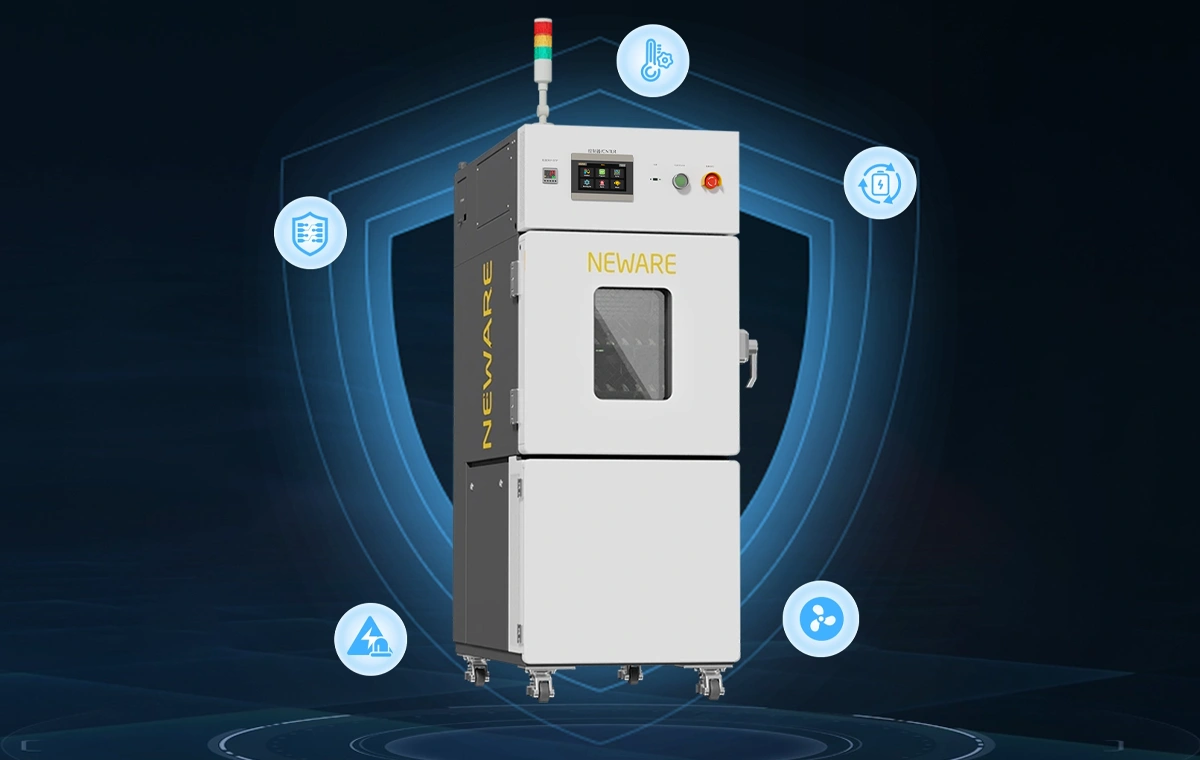

· Upgraded Safety Protections:

 - Independent overtemperature alarm + compressor overload protection.

 - Power recovery, leakage protection, and emergency mechanisms to prevent equipment damage.

 - Optional explosion-proof design for high-risk testing scenarios.
