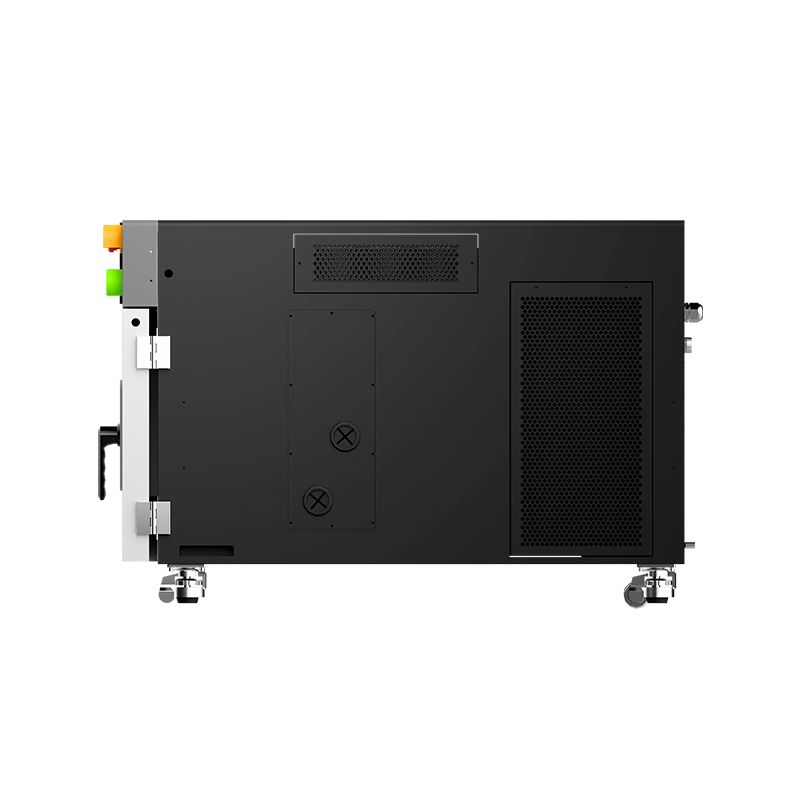

3C battery testing, high and low-temperature test chamber.

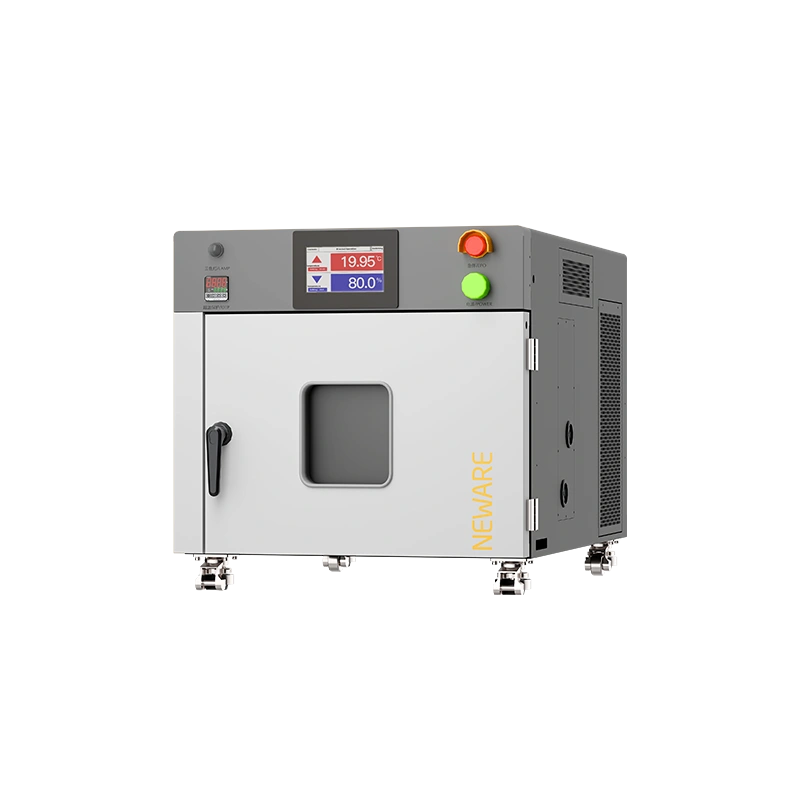

| Nominal Specification | 50L |
| Internal Size (W×D×H) | 17.7"×13.8"×12.6" (450mm×350mm×320mm) |
| External Size (W×D×H) | 28.0"×39.4"×27.8" (710mm×1000mm×700mm) |
| Net Weight | 120kg |
| Voltage & Current | 5V30A |
| Number of Channels | 16CH |

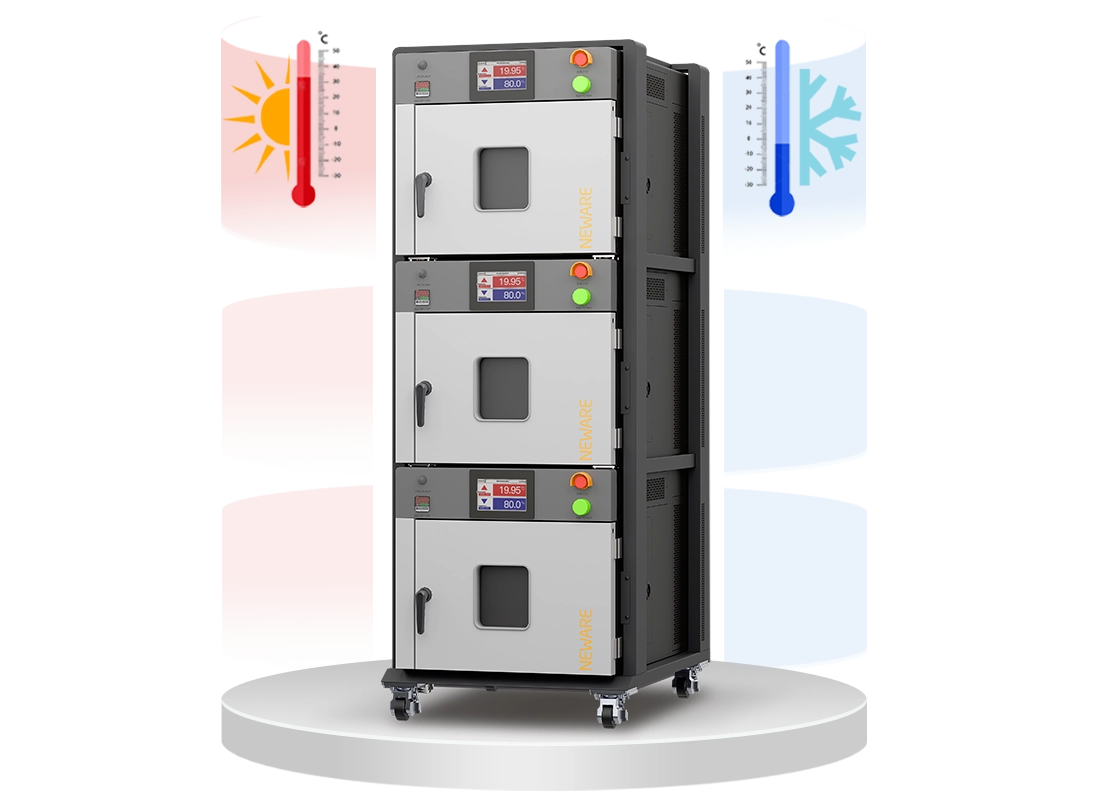

WGDW-400L-40BC-5V30A96CH not only connects to BTS testing systems, efficiently processes large-scale data and complex computational tasks, meeting various high-performance computing requirements, but also provides high and low temperature experimental temperatures. Test battery performance changes at different temperatures. The explosion-proof feature creates a safe testing environment for battery cell testing,

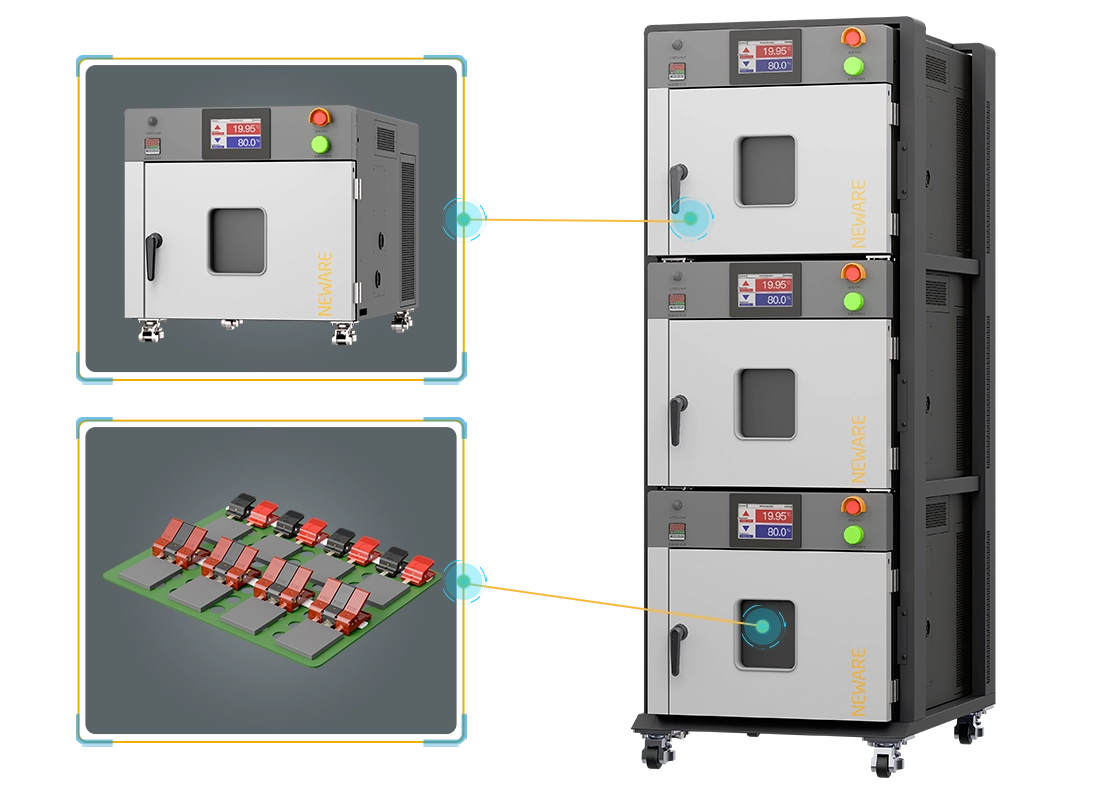

Battery trays adopt high-temperature resistant insulation material, ensuring compatibility with a wide range of batteries. The height, orientation, and placement position can be adjusted accordingly, making it suitable for various sizes and specifications of square cells testing requirements.

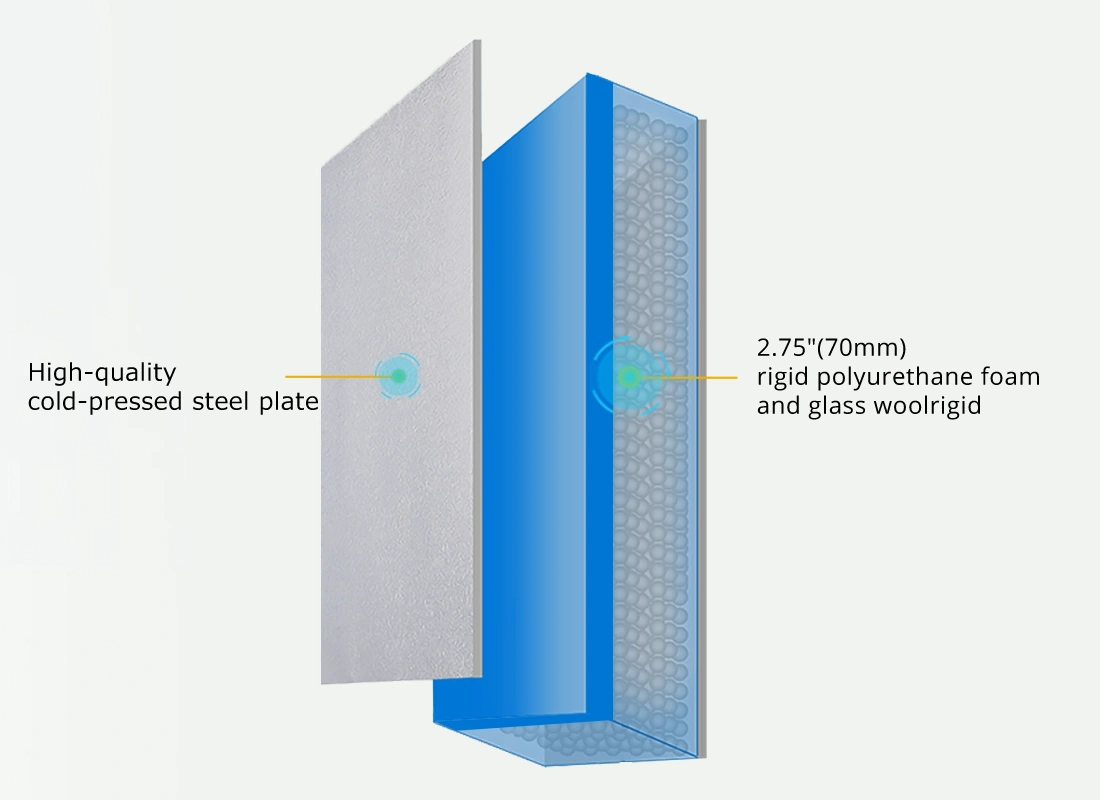

The exterior wall material is made of high-quality cold-pressed steel plate, and the insulation structure consists of a 2.75"(70mm) insulation layer composed of rigid polyurethane foam and glass wool. This insulation layer effectively isolates the internal and external environments, preventing heat exchange and keeping temperature fluctuations within the range of ±0.9℉(±0.5℃).
Integrating the charging and discharging detection equipment with the high and low temperature environmental test chamber, this integrated testing system not only saves valuable laboratory space but also significantly improves the efficiency of equipment use. By connecting to the BTS battery testing system, it achieves unified control over battery testing and temperature conditions, making the operation more convenient.
By adopting a mechanical compression folding refrigeration method and equipping a fully enclosed piston refrigeration compressor, the system operates in an environmentally friendly manner with low noise. The self-developed temperature control module has undergone reliable performance testing for high and low-temperature impact, vibration, EMC, and other related reliability aspects, exhibiting a robust and sensitive temperature control capability.

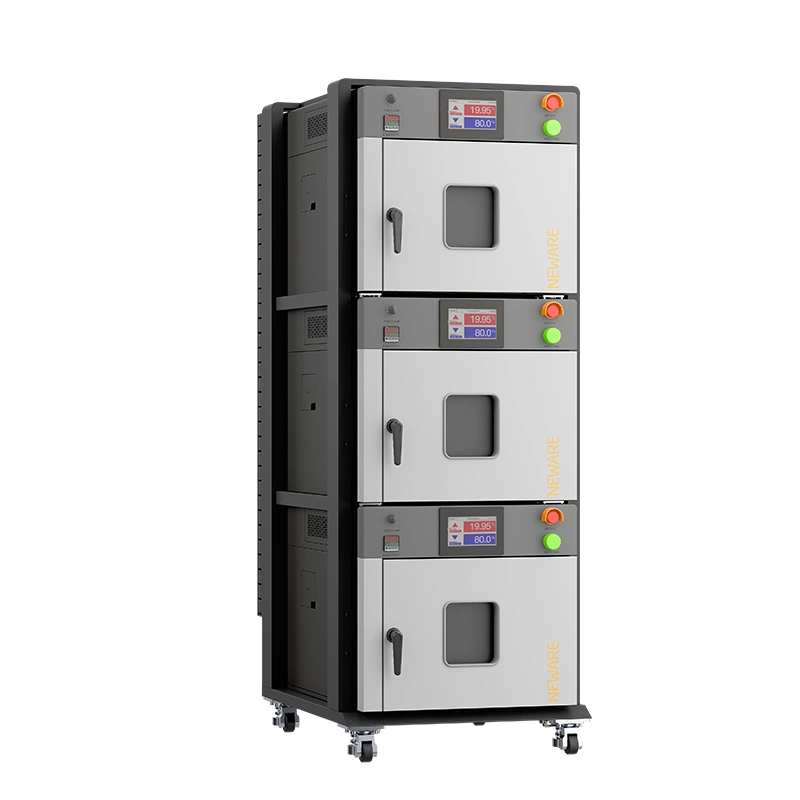

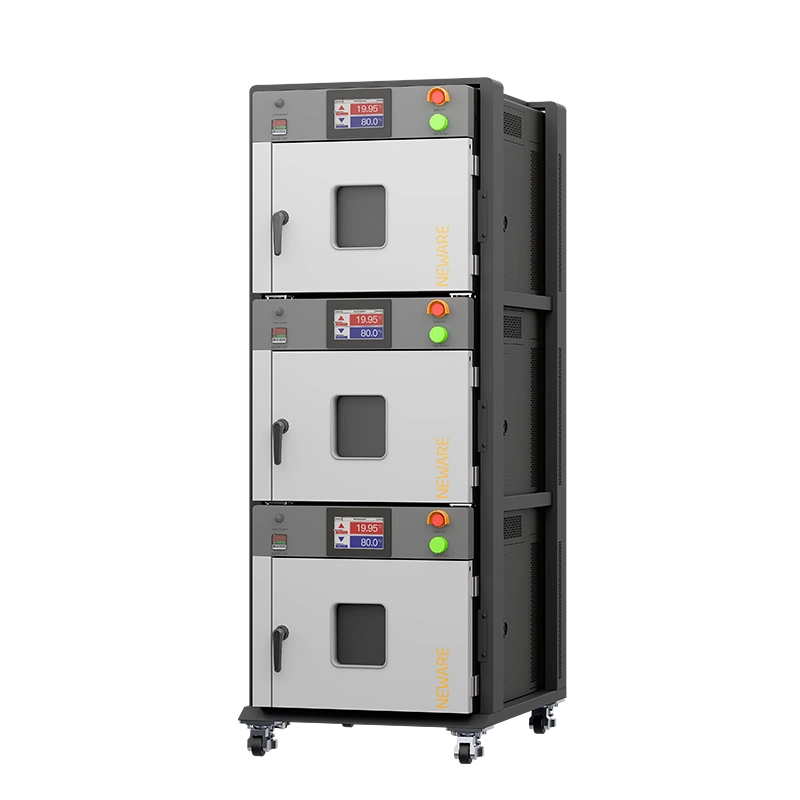

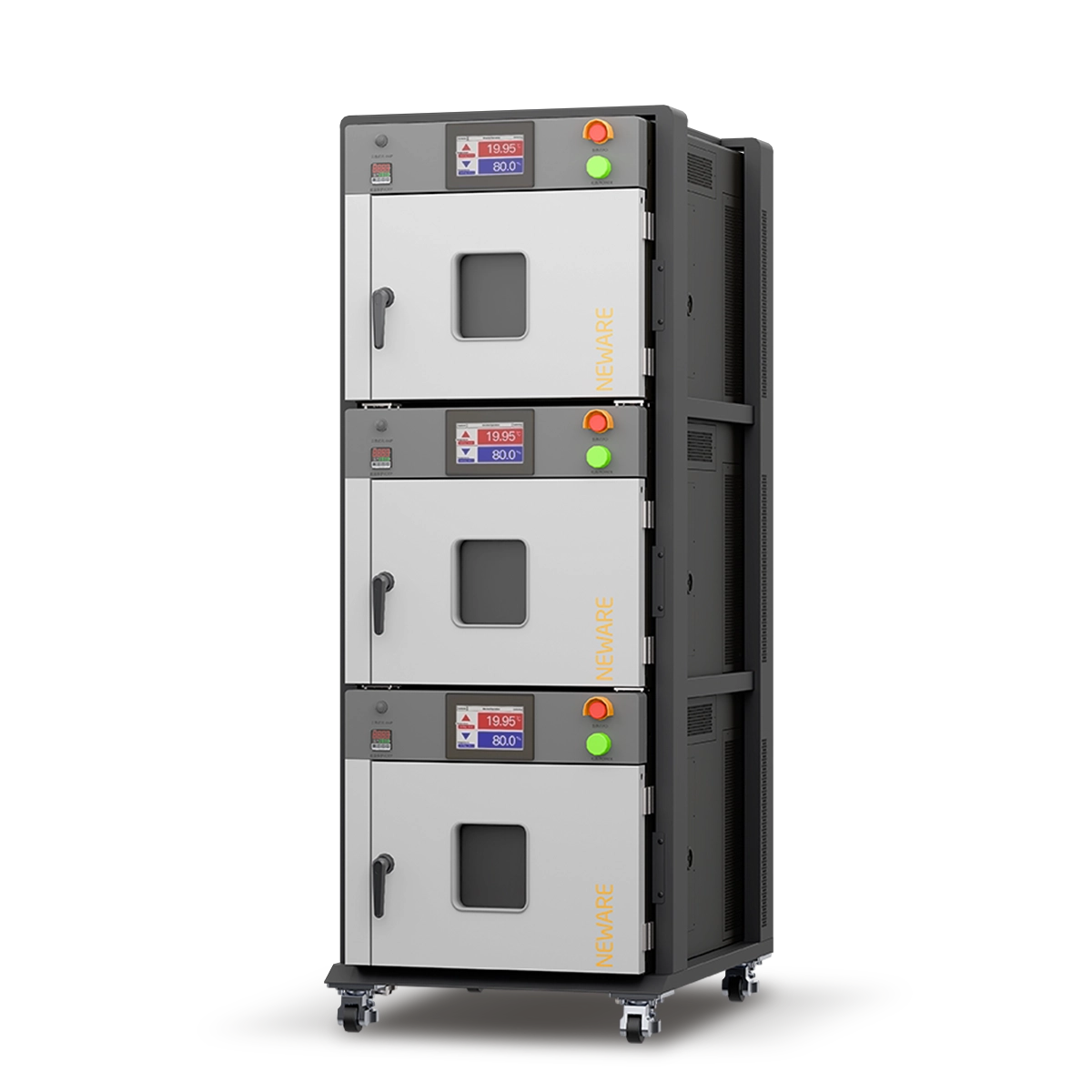

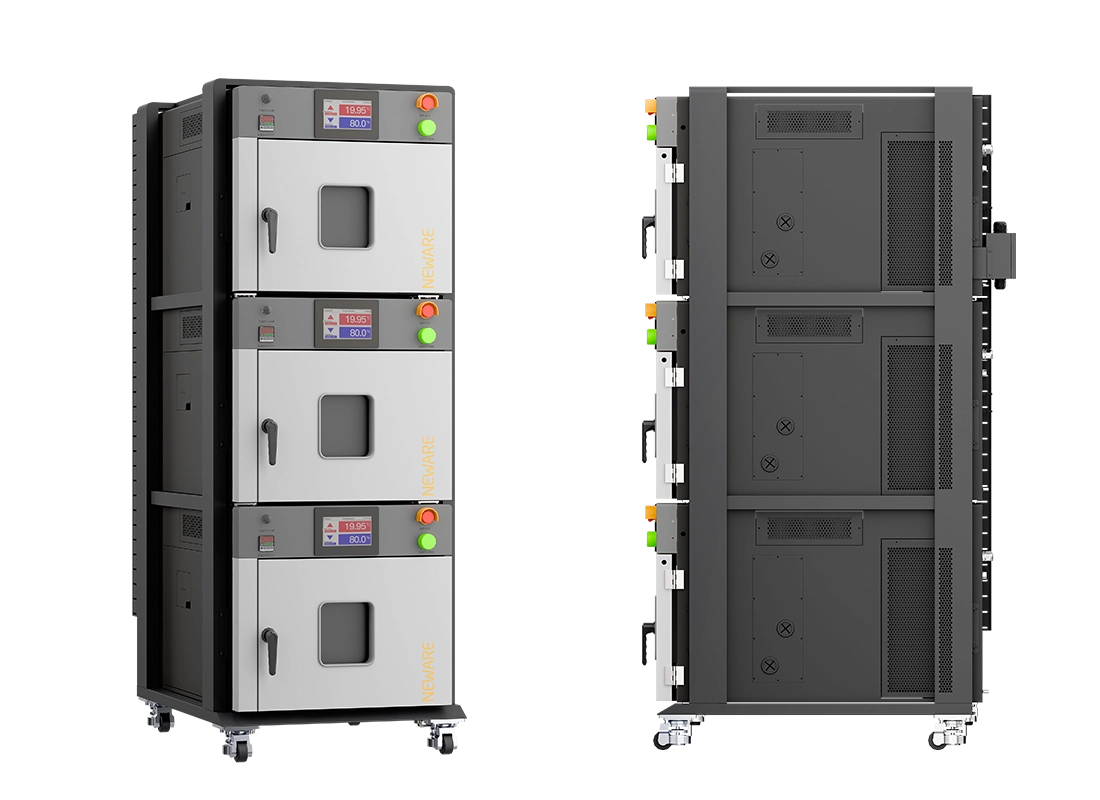

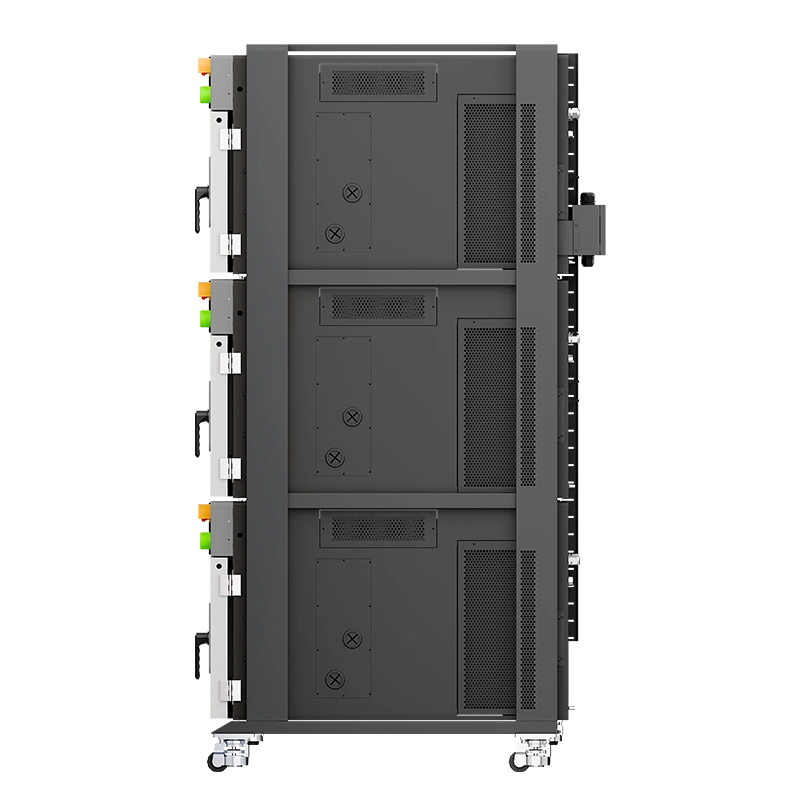

Building upon the WGDW-50L-40-5V30A16CH, we have introduced a tri-combined casing unit, where each individual chamber is equipped with a temperature control system allowing for independent temperature regulation to meet various testing requirements. This multi-zone battery testing solution offers greater flexibility for battery researchers, enabling more accurate and comprehensive performance assessments of batteries under different temperature conditions.

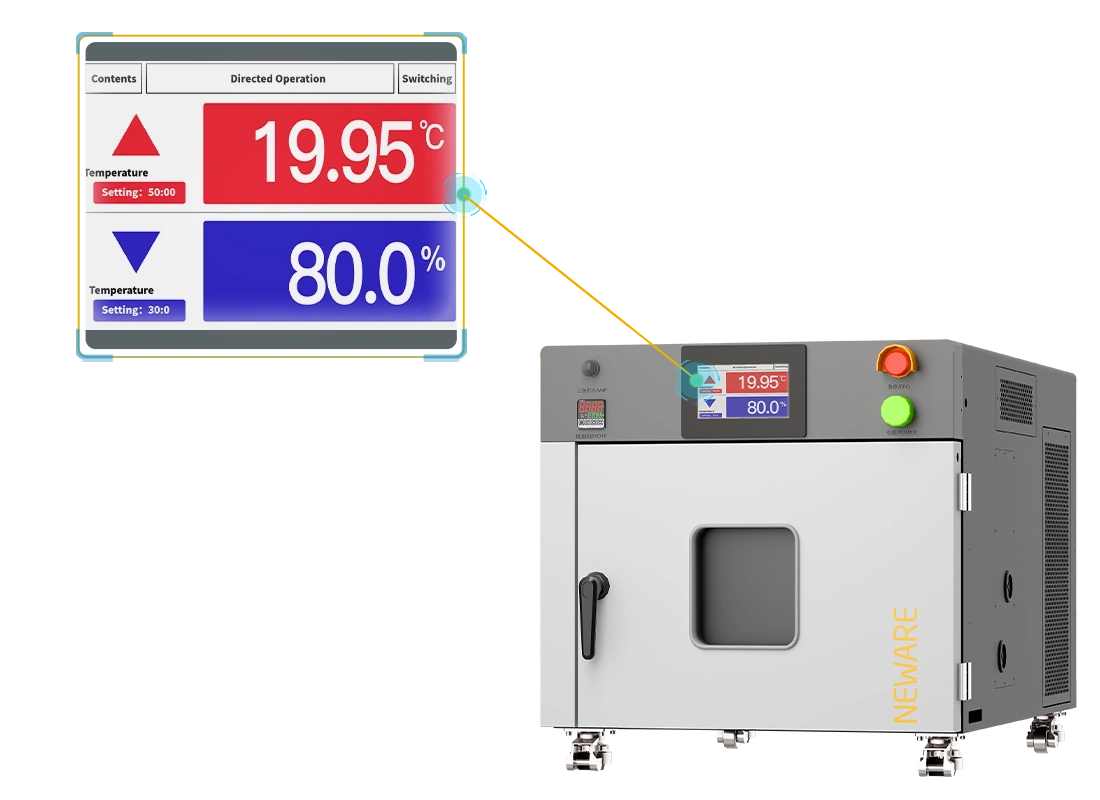

The WGDW-50L-40-5V30A16CH focuses on user experience, featuring a touch liquid crystal display design with a friendly graphical user interface and flexible configuration options, allowing users to easily set up and manage the device. It also has an independent over-temperature protector that will shut down the system and send an alarm signal when the temperature in the working chamber exceeds the set limit.

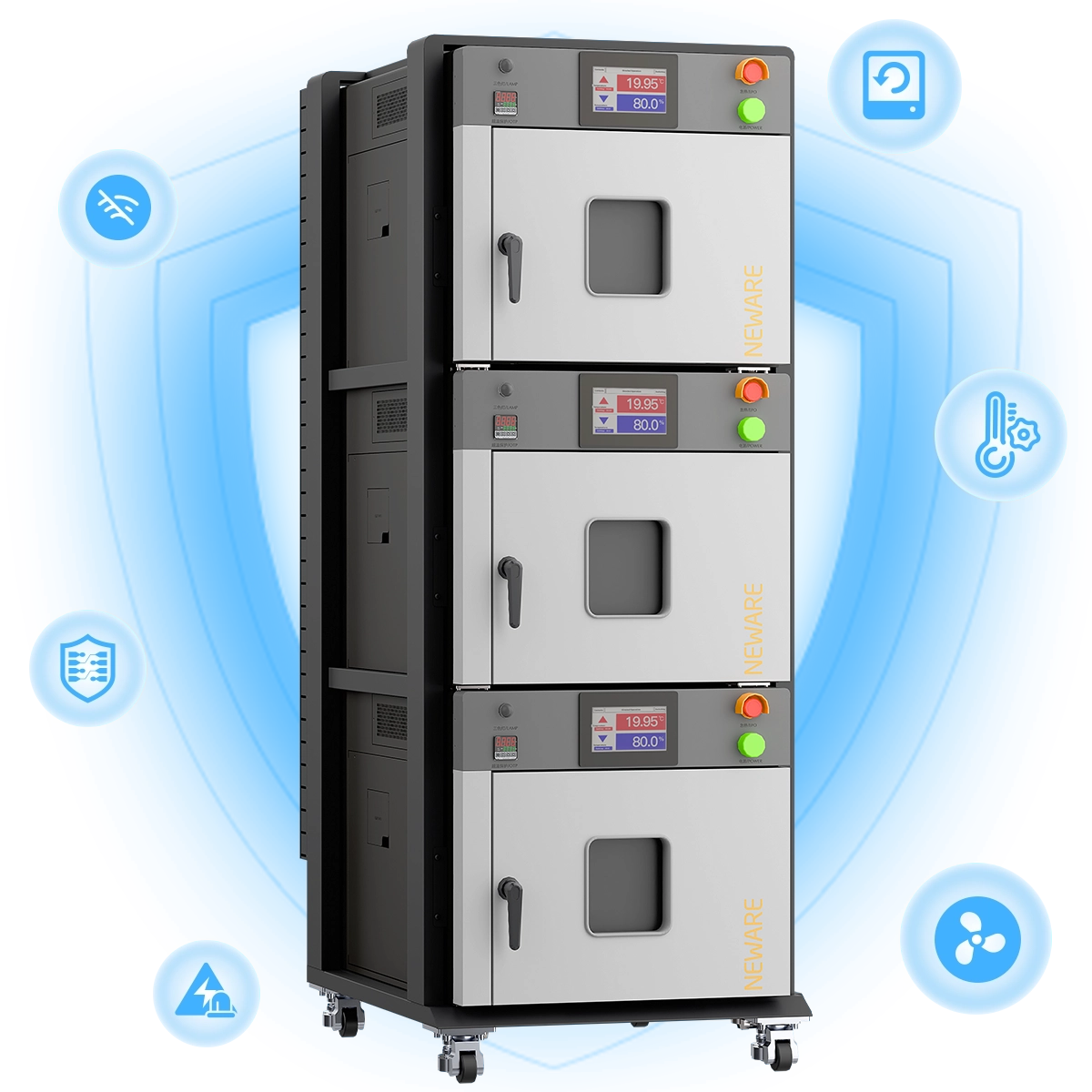

● Leakage protection
● Short circuit protection
● Offline testing
● Power failure recovery protection
● Adjustable over-temperature protection
● Abnormal operation protection for circulating fans
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

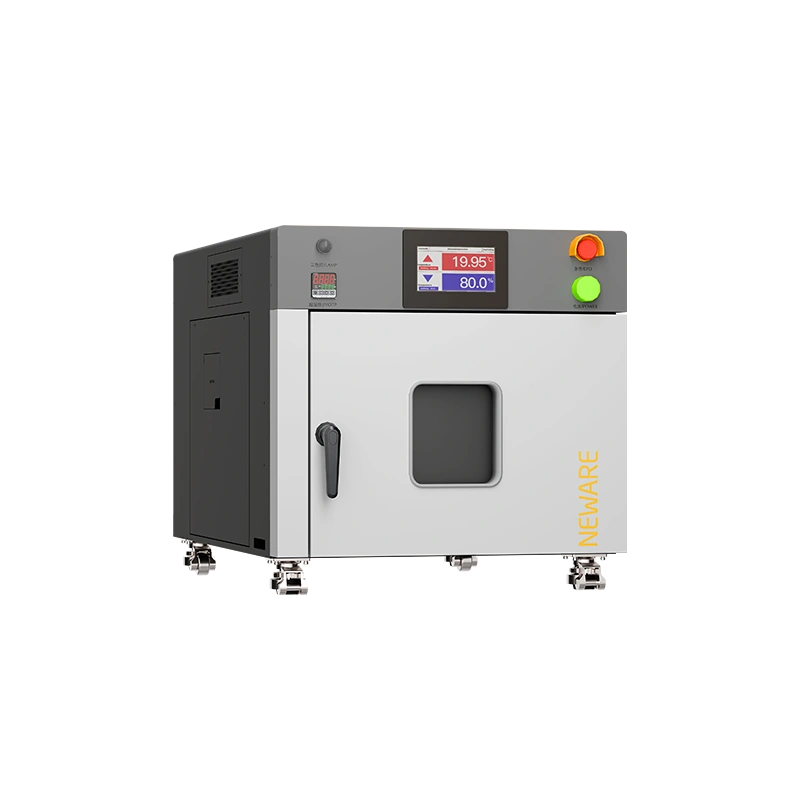

| Equipment name | WGDW-50L-40-5V30A16CH |
|---|---|
| Nominal content product | 50L |
| Inner box size | 17.7"×13.8"×12.6" (450mm×350mm×320mm) |
| Overall dimensions | 28.0"×39.4"×27.8" (710mm×1000mm×700mm) |
| Net weight of the equipment | About 120kg |
| Test the environmental conditions | Ambient temperature at +25°C, relative humidity ≤85%, with no specimen inside the test chamber (idle condition) |
| Temperature range | -40℃～100℃ |
| Temperature fluctuation degree | ≤±0.5℃ (when no load, temperature is stable) |
| Temperature deviation | ±2.0℃ (when no load and temperature is stable) |
| Heat-up time | +20℃ → +100℃ 40 min (no load, average nonlinear) |
| Cooling time | +20℃ → -40℃ 60 min (no load, average nonlinear) |
| Meet the test method | GB / T 2423.1-2008 Low-temperature test method Ab GB / T 2423.2-2008 High-temperature test method Bb GJB 150.3A-2009 High-temperature test GJB 150.4A-2009 Low-temperature test GB / T 10592-2008, technical conditions of high and low temperature test box (Load is not greater than heat capacity of 35 kg/m³ steel, no active humidity and thermal load during damp heat test) |
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage Accuracy：±0.02% F.S.
● Current Accuracy：±0.05% F.S.
● Resolution Ratio AD/DA：16bit
● Current Response Time：≤1ms
● Minimum Pulse Width：100ms
● Off-Line Test：1GB/CH
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Current Conversion Time：≤6ms
● Current Response Time：≤3ms
● Minimum Pulse Width：100ms
● Feedback Efficiency (Max) ：75%
● Voltage & Current Accuracy：±0.02% F.S.
● Voltage & Current Stability：±0.01% F.S.
● Recording Frequency：1000Hz
● Resolution AD：16bit
● Current Response Time：≤100μs
● Off-Line Test： 1GB
