Integrating charge-discharge and temperature testing into one.
| Voltage & Current | Range 1 | Range 2 | Range 3 |
| 5V6A | 0.5mA~0.1A | 0.1A~3A | 3A~6A |
| 5V12A | 5mA~1A | 1A~6A | 6A~12A |
*Other models can be customized according to voltage and current requirements.
WHW-500L-5V6A80CH-380V is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications. The All-in-One 3C battery tester is custom-tailored for the research and development, quality assurance, and production monitoring of batteries used in portable electronic devices such as smartphones, tablets, and laptops. Suitable for battery manufacturers, electronic design enterprises, and scientific research institutions, this device offers two range options: 5V6A and 5V12A, ensuring comprehensive coverage of testing requirements for various 3C battery models and capacities.

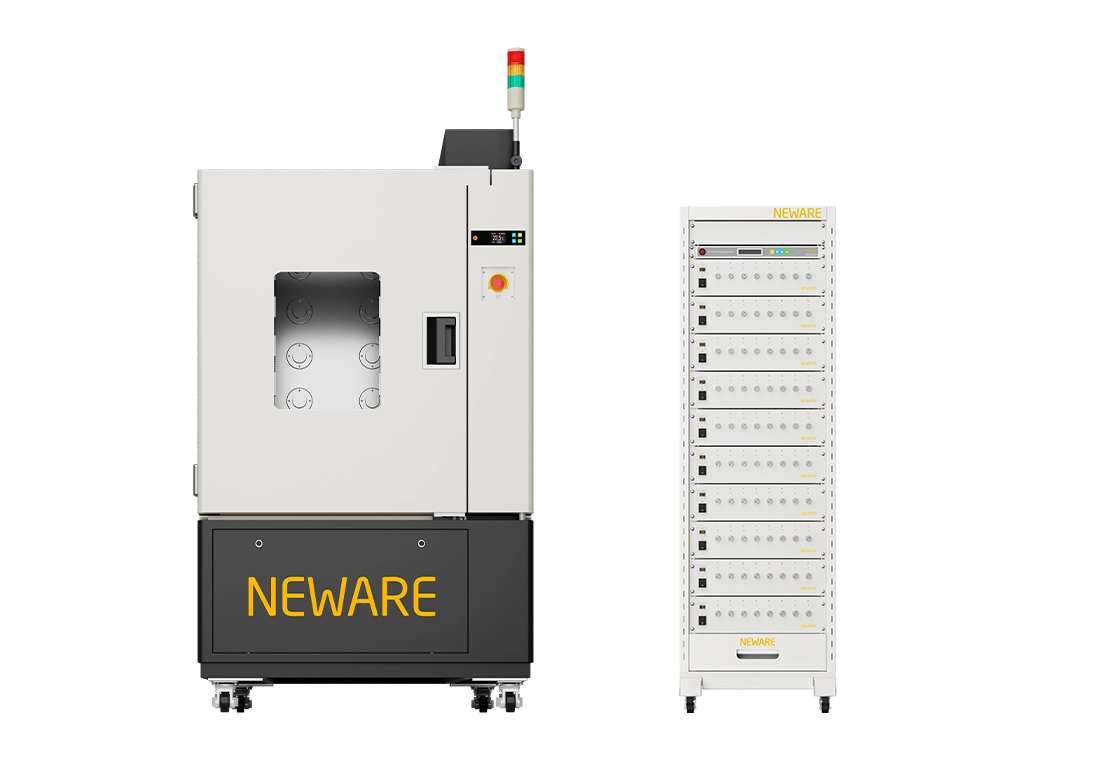

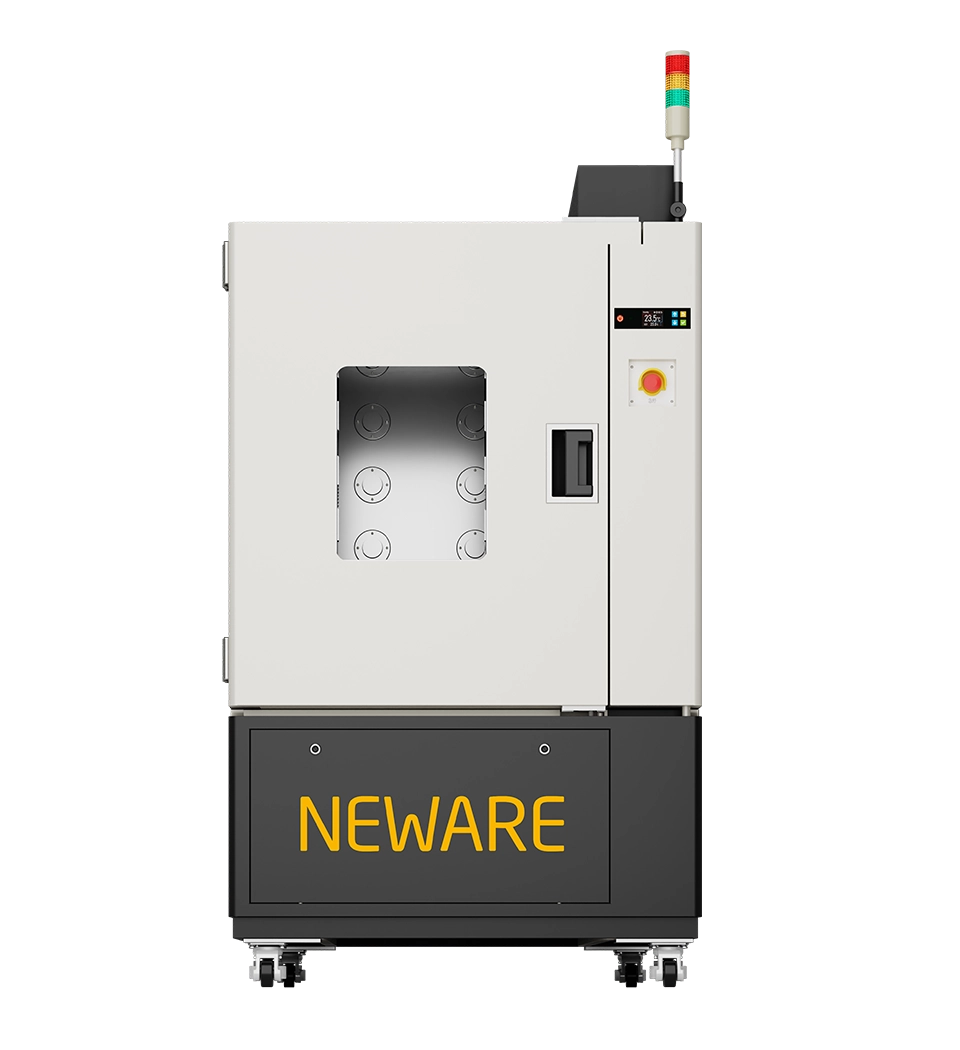

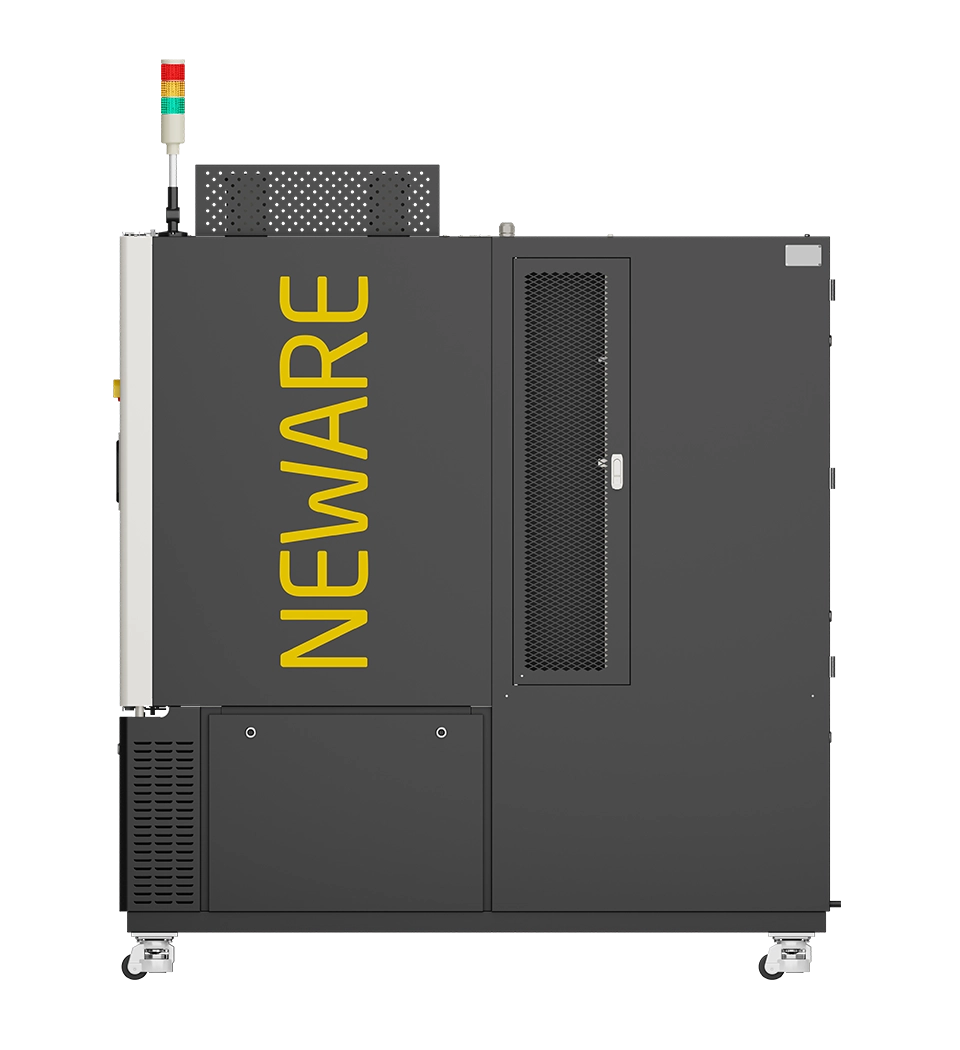

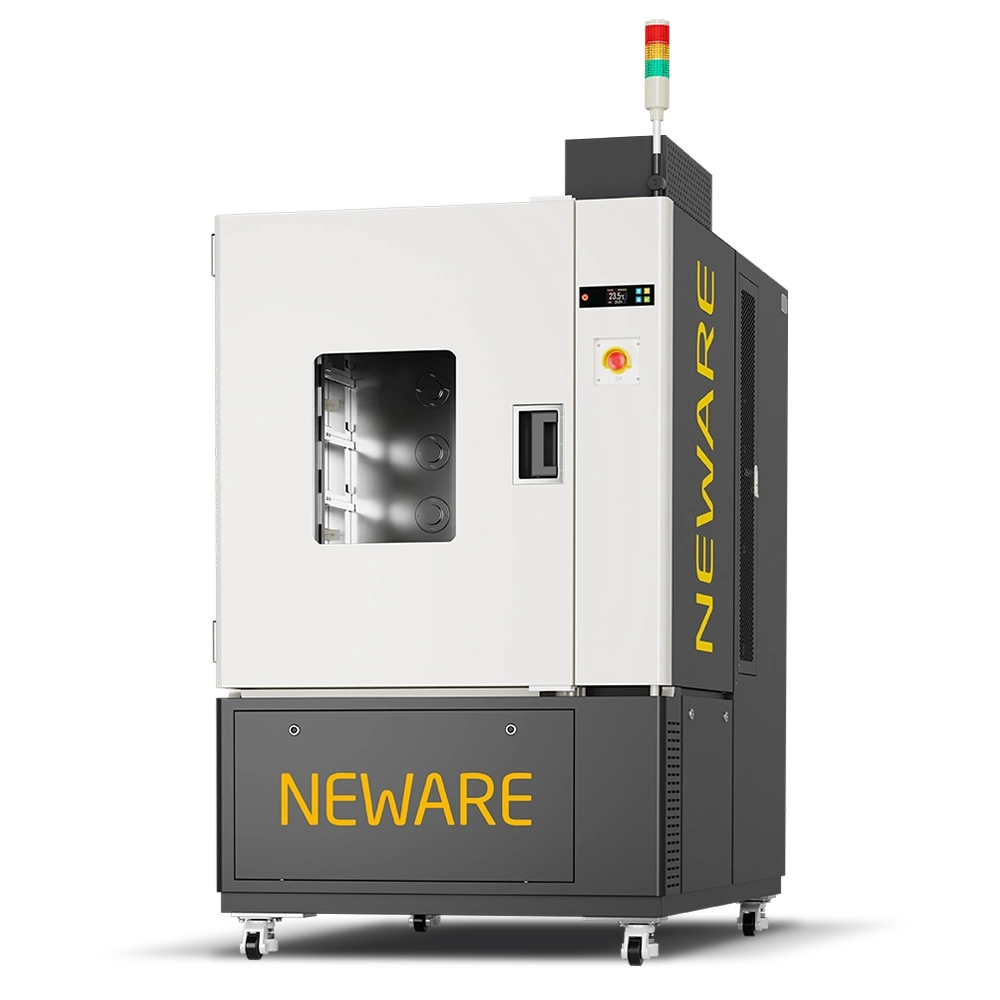

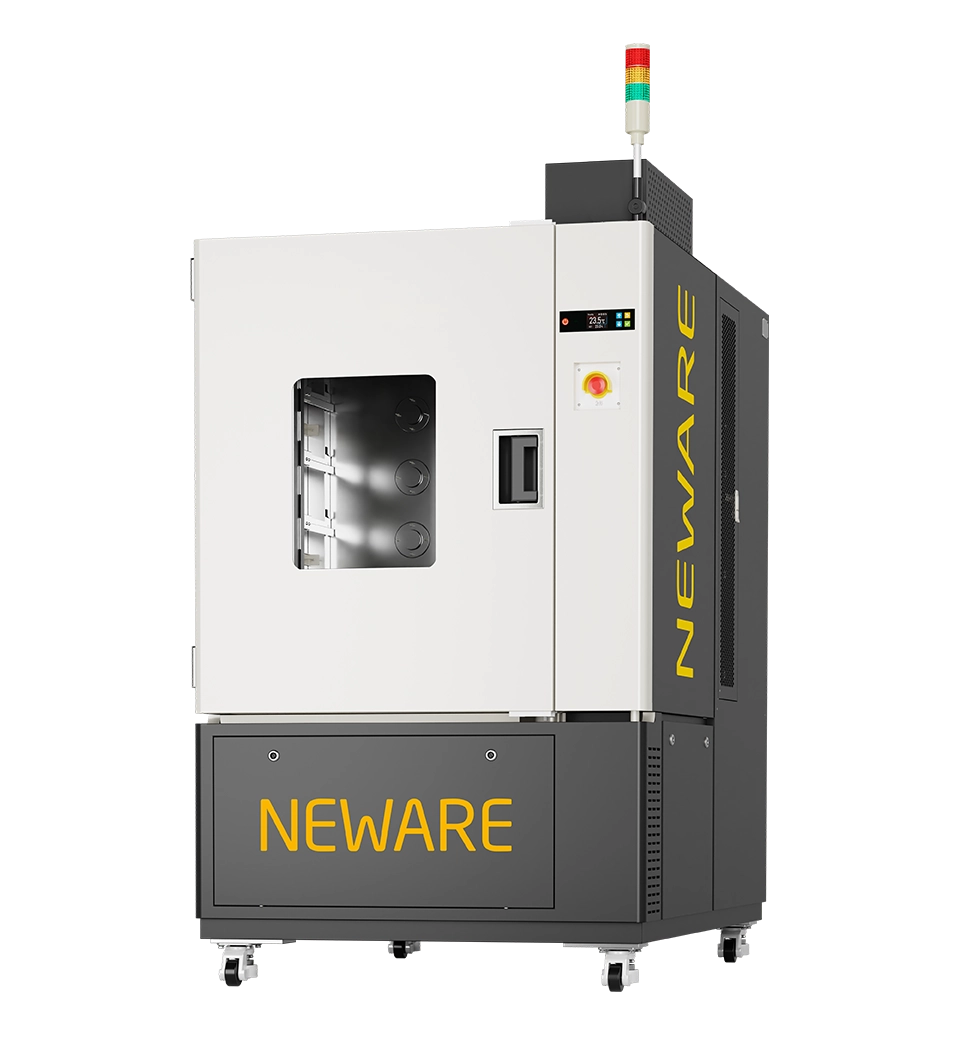

All-around product tour.Combining the functionalities of compatible charge-discharge detection equipment and environmental test chambers into one cleverly designed solution, our product maximizes space utilization and enhances equipment efficiency.

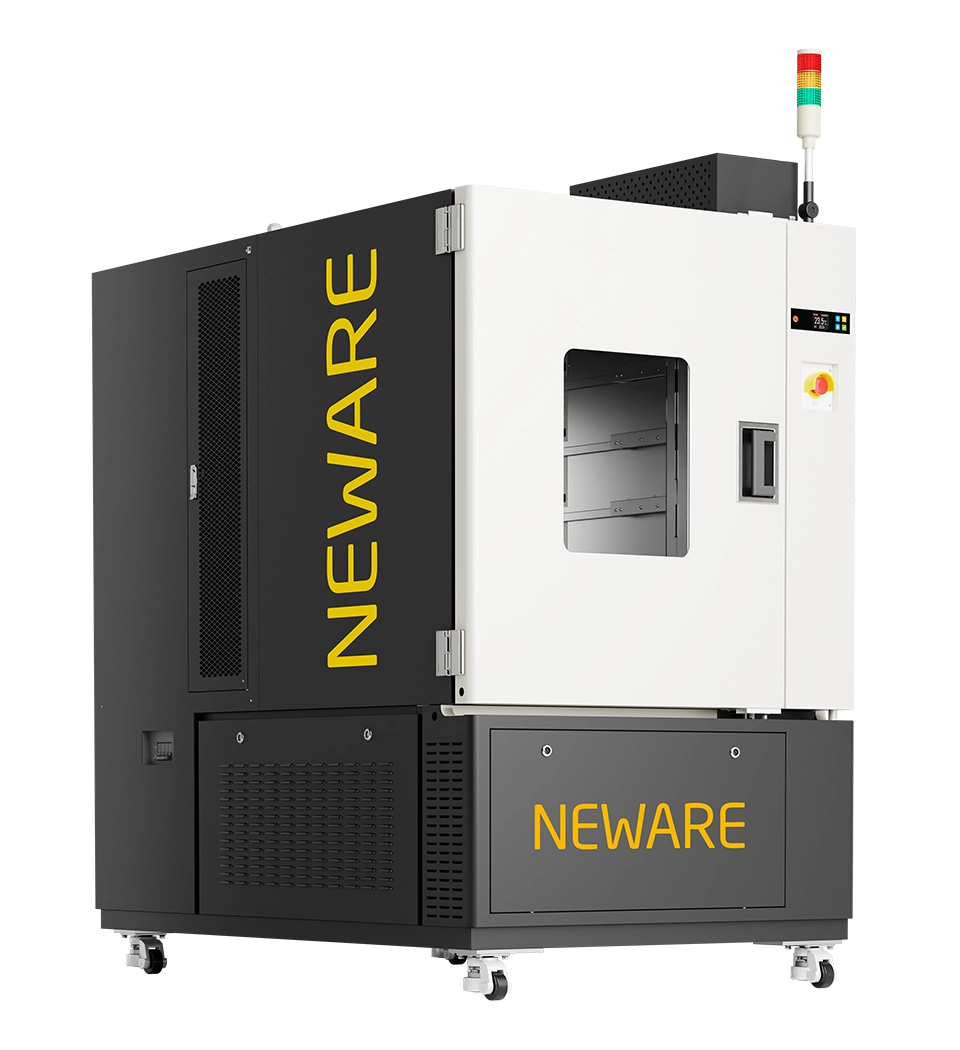

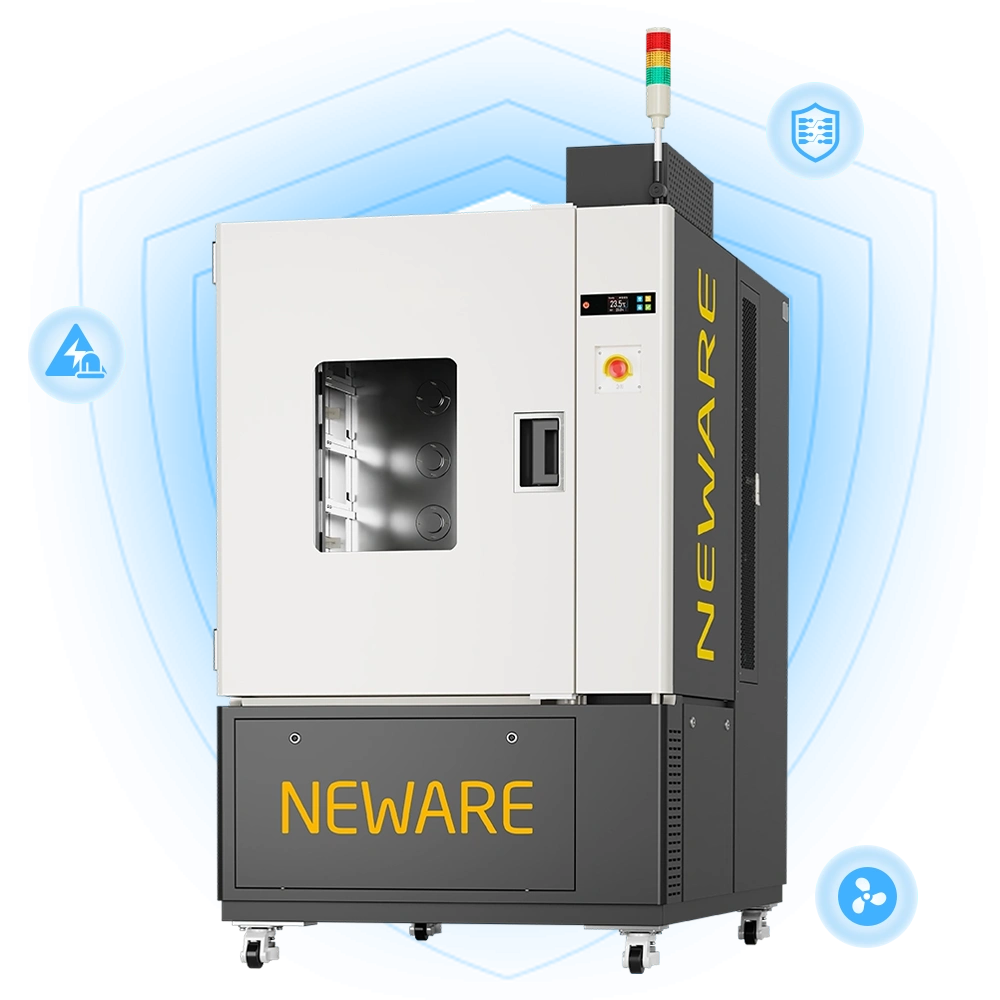

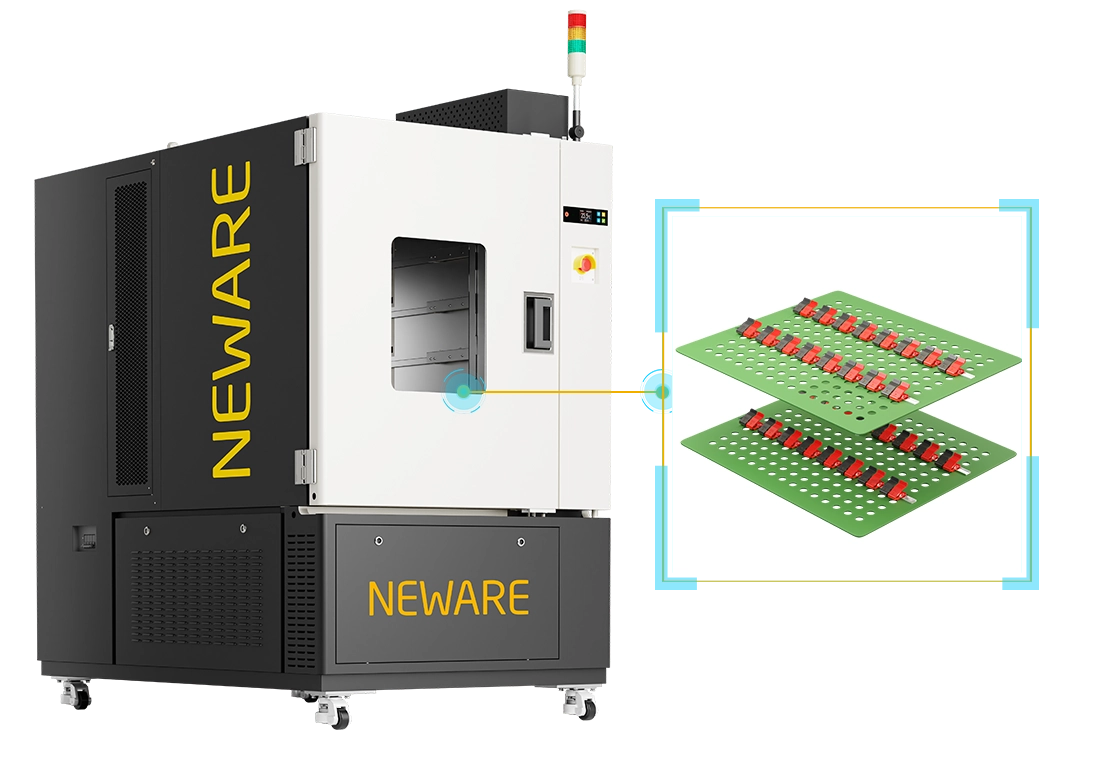

Dual-function integrated constant temperature test chamber, with a large capacity of 500 liters, equipped with 80 testing channels, capable of simultaneously handling multiple input and output signals. It can accommodate 5 layers of pouch cells or cylindrical cells, with each layer capable of accommodating 16 pieces (battery I≤6A).The battery cell tray is made of insulating material, ensuring testing safety, and can be customized according to specific requirements.

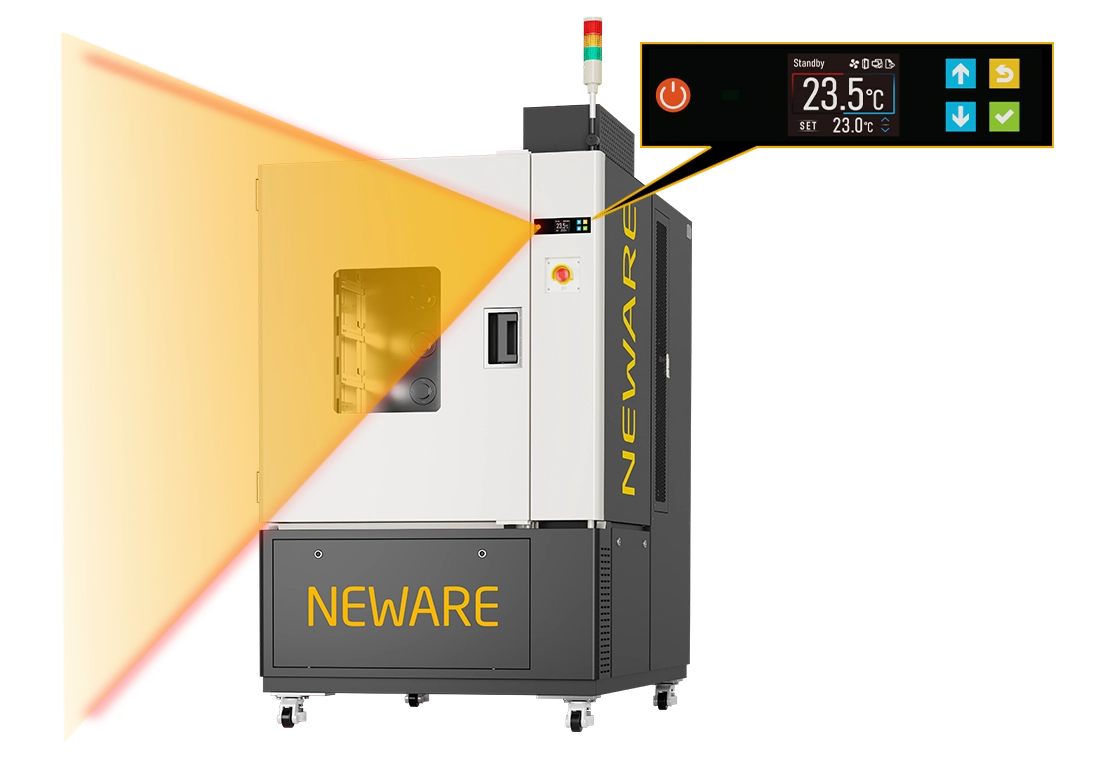

WHW-500L-5V6A120CH-380V prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.
Connect the back of the charging and discharging equipment to the inside of the temperature box. Four channels are connected using a single channel wire, with each unit only requiring 2 wires to reduce the number of channel wires and effectively reduce temperature fluctuations.
● Power-down data protection
● Short circuit protection
● Abnormal monitoring of circulating fan operation

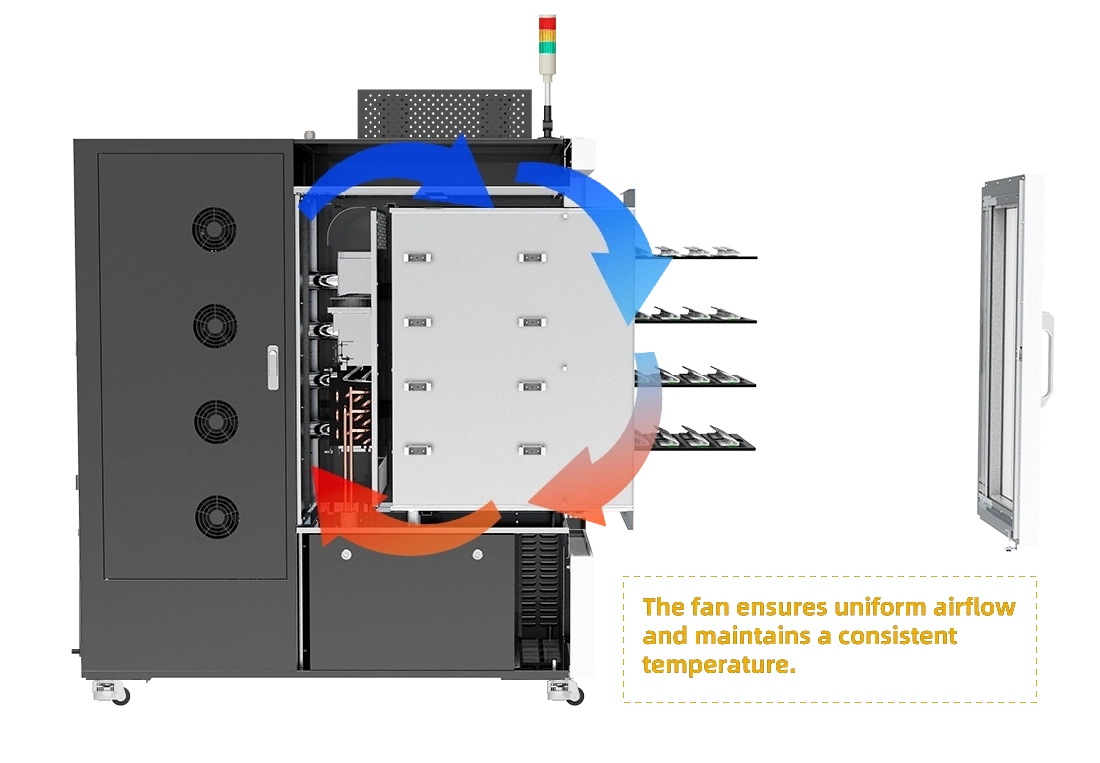

It features a closed piston refrigeration compressor for eco-friendly and quiet operation. The independently developed temperature control module has reliable performance and excellent temperature control capabilities. The fan ensures uniform airflow and maintains a consistent temperature.
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
| Equipment name | WHW-500L-5V6A80CH-380V |
|---|---|
| Nominal content product | 500L |
| Inner box size | W700mm × D700mm × H1000mm |
| Overall dimensions | W1100mm × D1700mm × H1950mm (without a bulge) |
| Net weight of the equipment | About 420kg |
| Test the environmental conditions | Ambient temperature is +25℃, relative humidity is 85%, with no sample in the test box (no load) |
| Temperature range | 10~85℃ |
| Temperature fluctuation degree | ≤1℃ (equivalent to ± 0.5℃, with no load and stable temperature) |
| Temperature deviation | ± 2.0℃ (when no load and temperature is stable) |
| Product application | · Thermostatic test of the polymer cells · Electronic, electrical, instrument, materials, semiconductor and other production enterprises to non-flammable, non-explosive items for constant temperature test · Environmental protection, agricultural and livestock, aquatic scientific research institutions and production of water analysis, bacteria, mold, microbial culture, preservation, plant cultivation, breeding test of constant temperature test |
| Limit the sample | This test equipment is prohibited by: · Test or storage of samples of inflammable, explosive and volatile substances · Test or storage of test samples of corrosive substances · Test or storage of samples of strong electromagnetic emission sources · Test and storage of test samples of radioactive substances · Test and storage of test samples of highly toxic substances · Testing or storage of tests or specimens that may produce such substances or objects |
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage Accuracy：±0.02% F.S.
● Current Accuracy：±0.05% F.S.
● Resolution Ratio AD/DA：16bit
● Current Response Time：≤1ms
● Minimum Pulse Width：100ms
● Off-Line Test：1GB/CH
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Current Conversion Time：≤6ms
● Current Response Time：≤3ms
● Minimum Pulse Width：100ms
● Feedback Efficiency (Max) ：75%
● Voltage & Current Accuracy：±0.02% F.S.
● Voltage & Current Stability：±0.01% F.S.
● Recording Frequency：1000Hz
● Resolution AD：16bit
● Current Response Time：≤100μs
● Off-Line Test： 1GB
