Precision measurement of AC / DC current and calibration of ammeters.

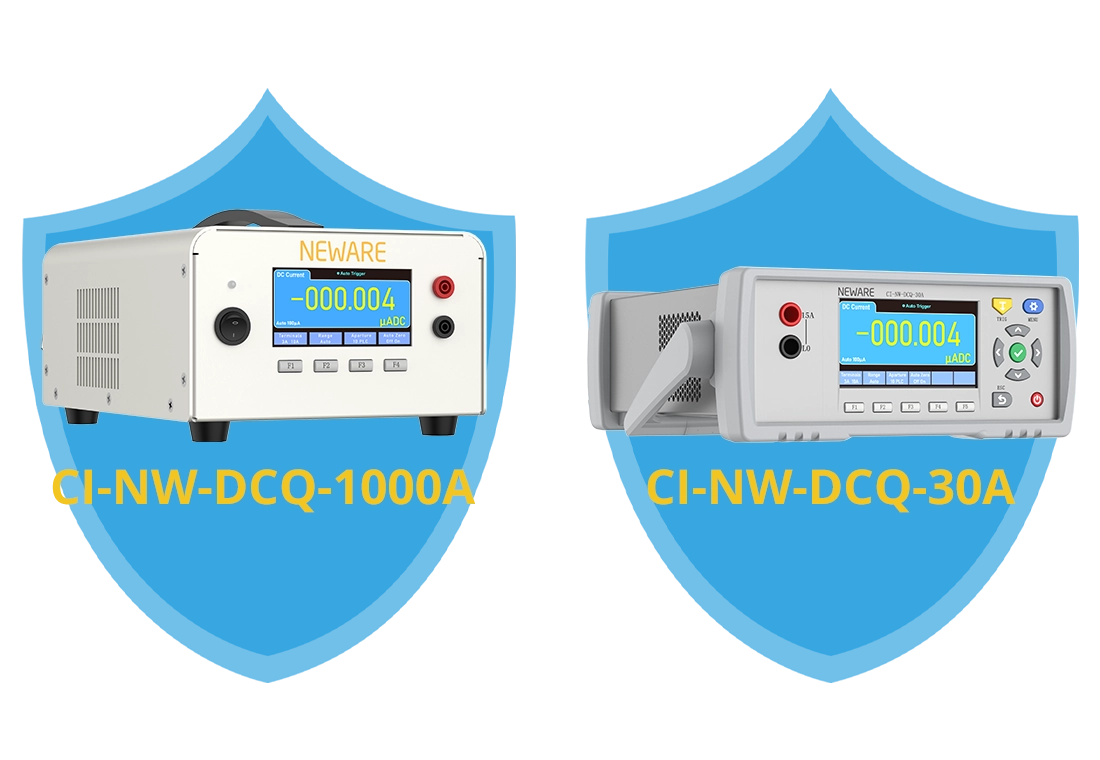

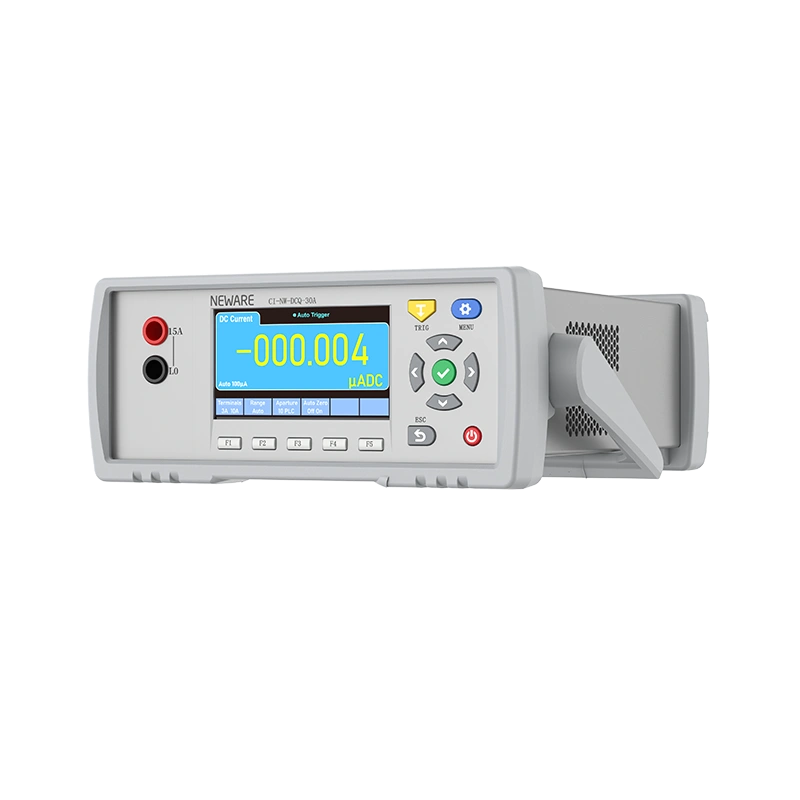

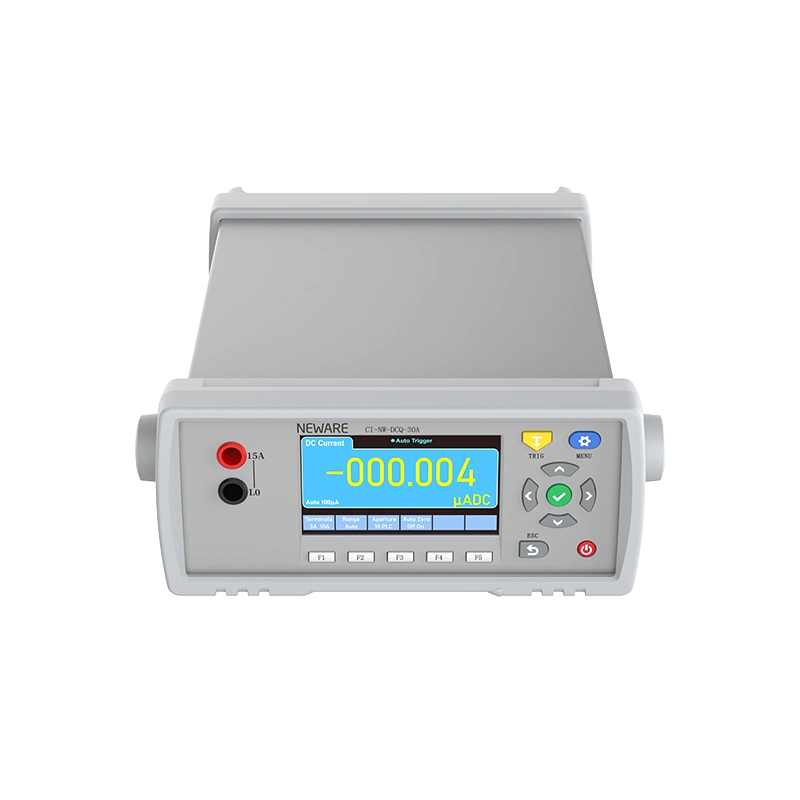

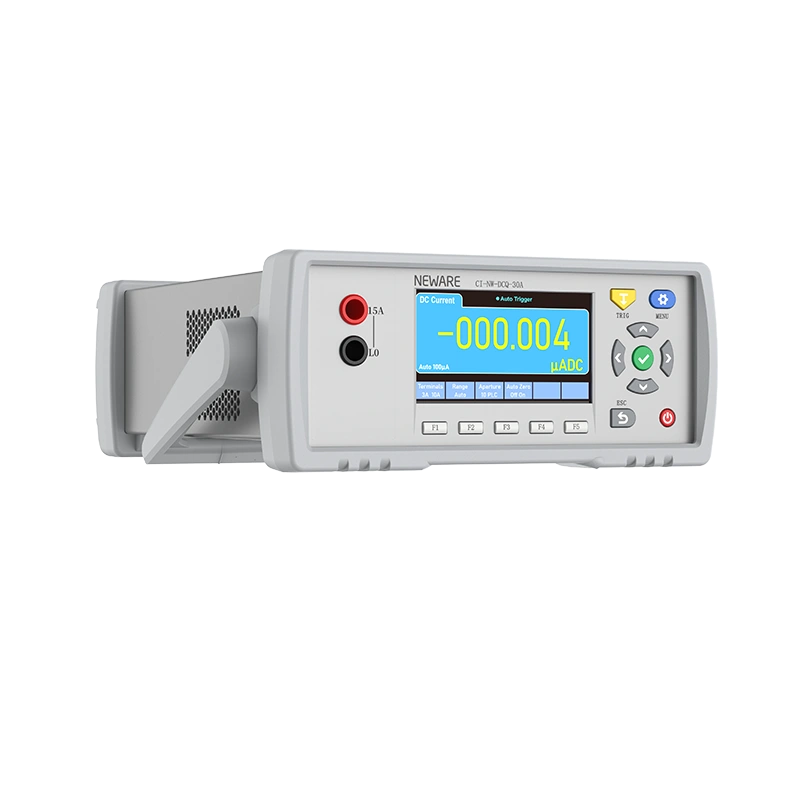

| CI-NW-DCQ-30A | Range | 1A、7.5A、15A、30A |
| Accuracy | ±0.001% | |

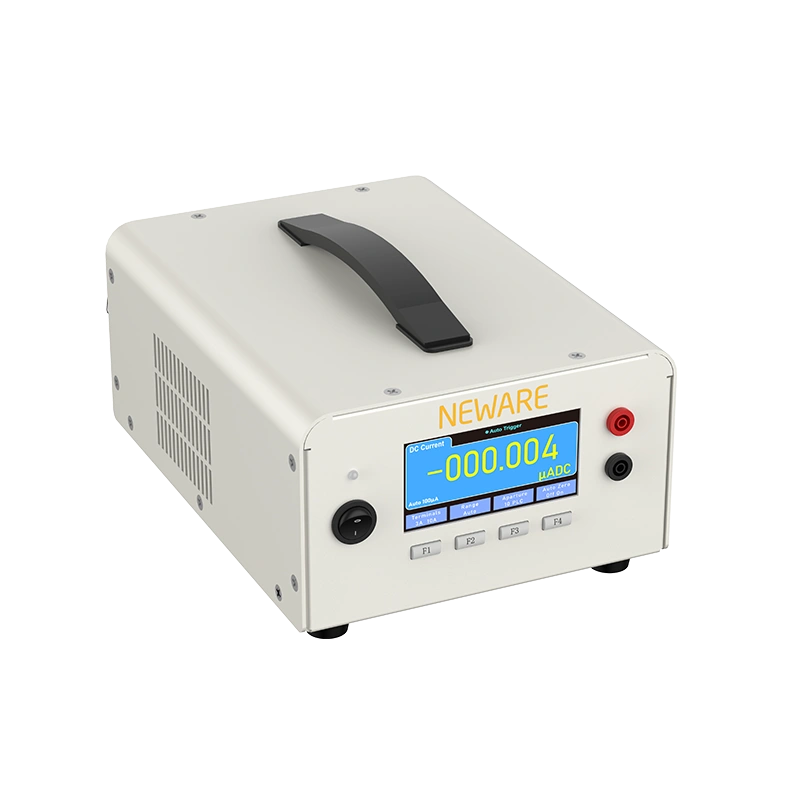

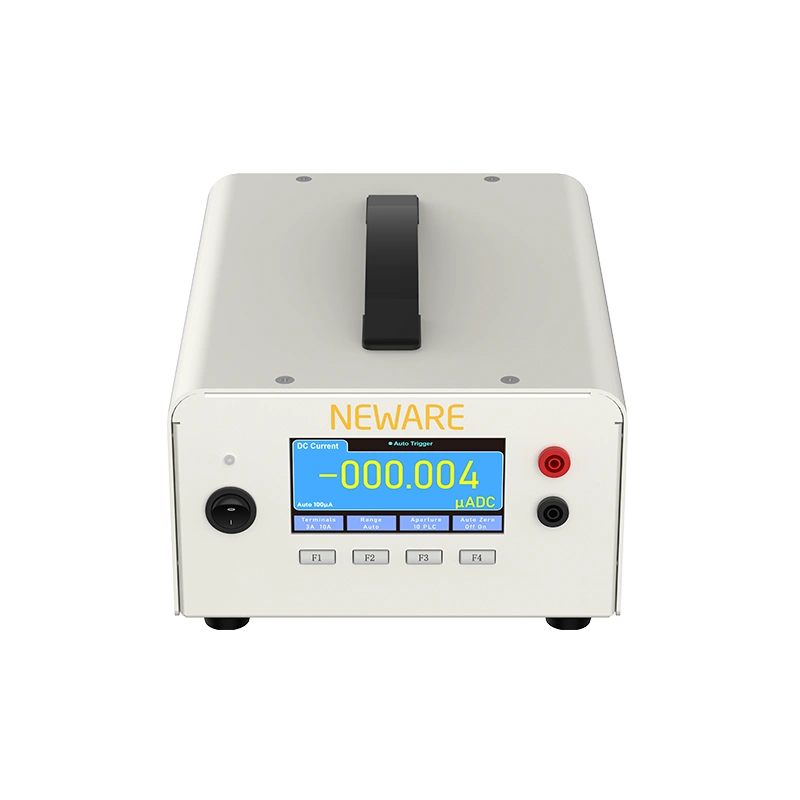

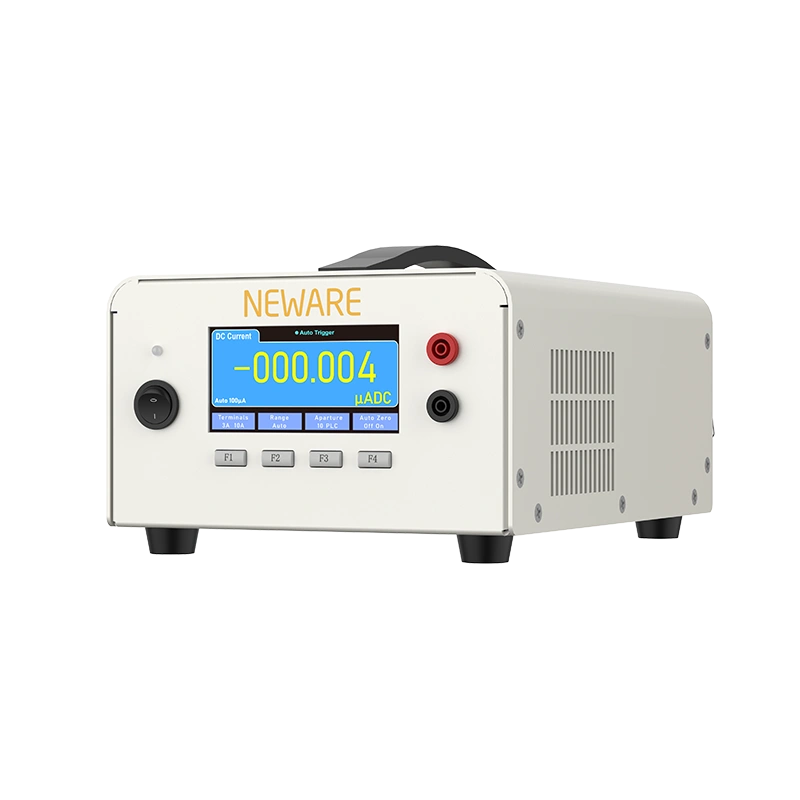

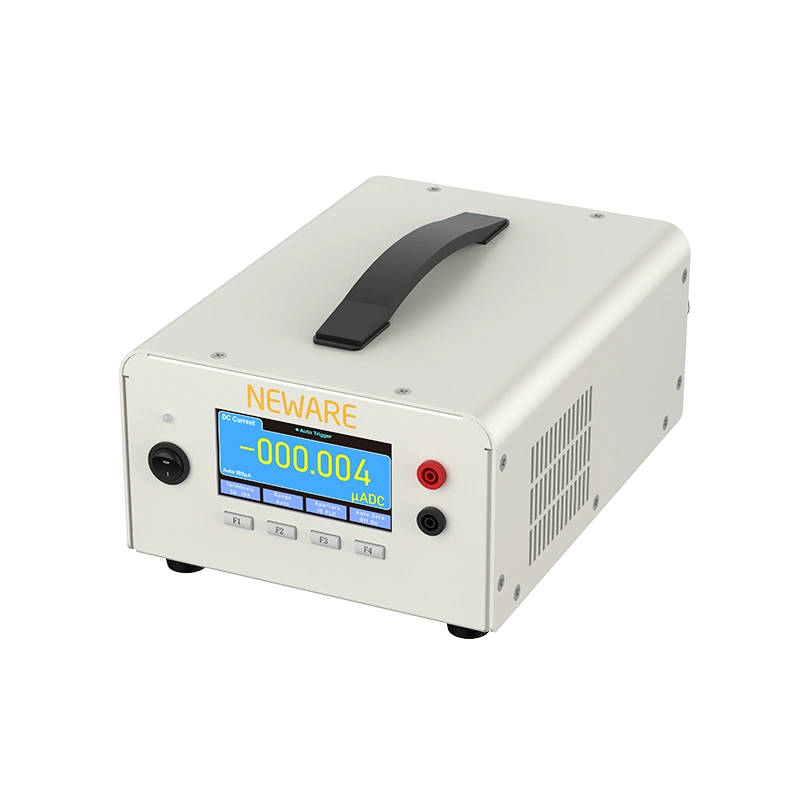

| CI-NW-DCQ-1000A | Range | 75A、150A、300A、600A 1200A |
| Accuracy | ±0.05% | |
| Sampling Frequency | 100Hz | |
| Resolution | 6.5 Digits | |
High-precision current meters can be used to monitor the internal current changes in batteries and detect potential issues such as overcharging, over-discharging, and short circuits. This helps ensure the safe operation of battery systems and provides real-time feedback for necessary maintenance and adjustments.
High-precision measurement of current and calibration of current meters with utmost accuracy and precision, meeting the demands for high accuracy and reliability in various current measurement and calibration requirements, providing users with high-quality current measurement solutions.

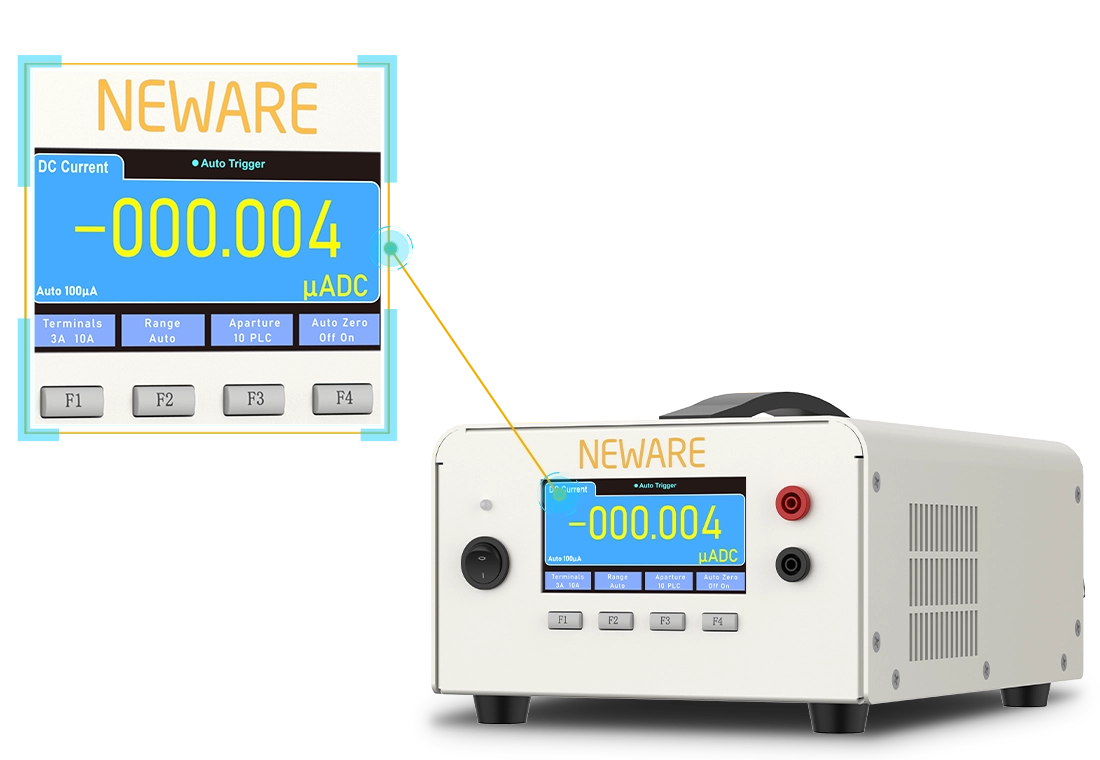

The ammeter not only features accurate measurement capabilities but also incorporates a user-friendly design for convenient and easy operation. With a large LCD screen, intuitive user interface, and multiple functional options, users can effortlessly grasp and fully utilize the instrument's potential.
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
