Real-time monitoring and data acquisition of individual battery voltage and temperature.

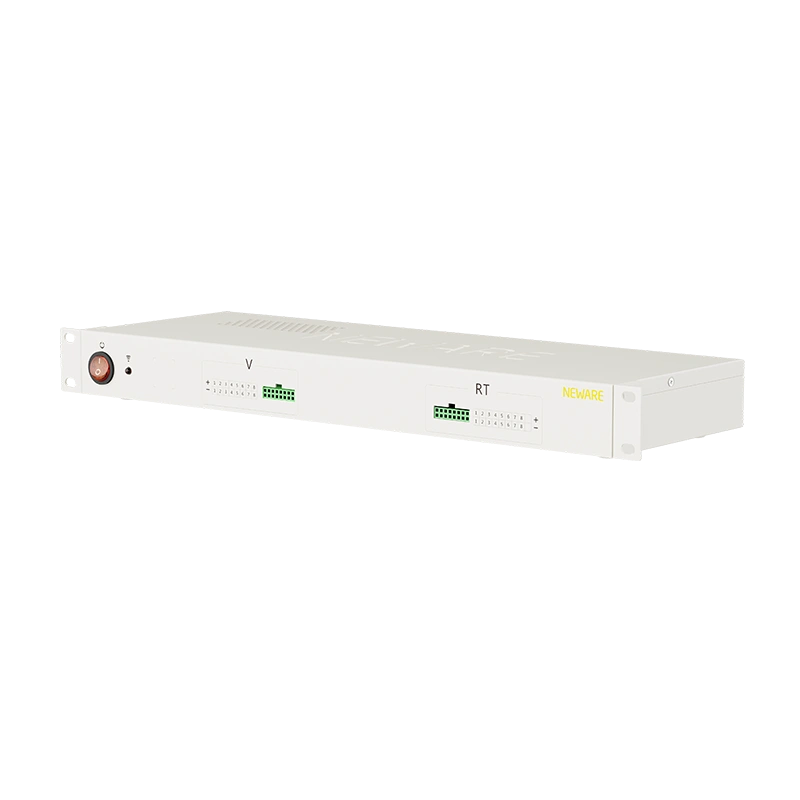

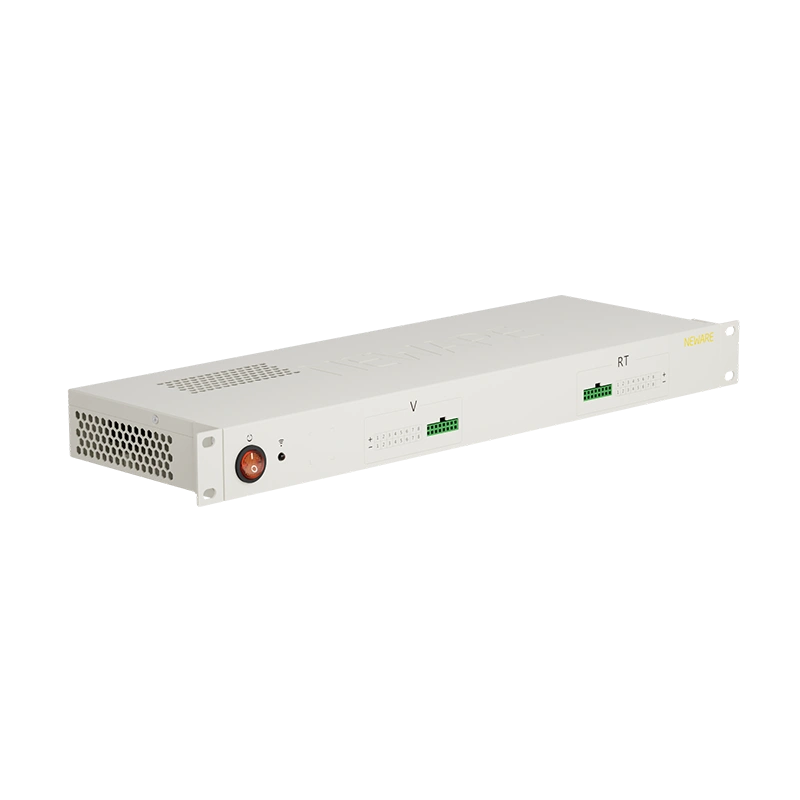

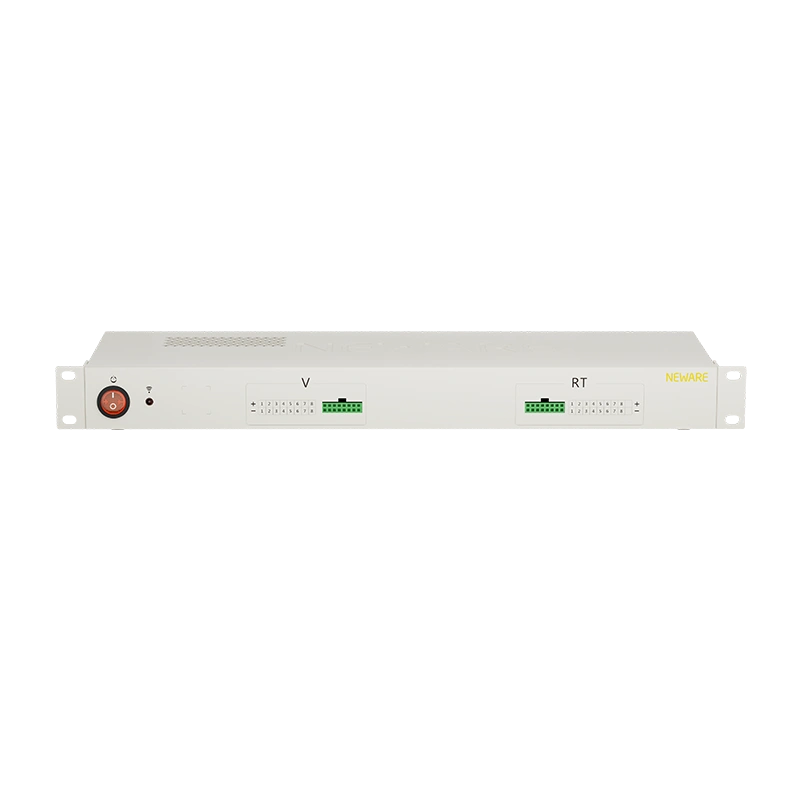

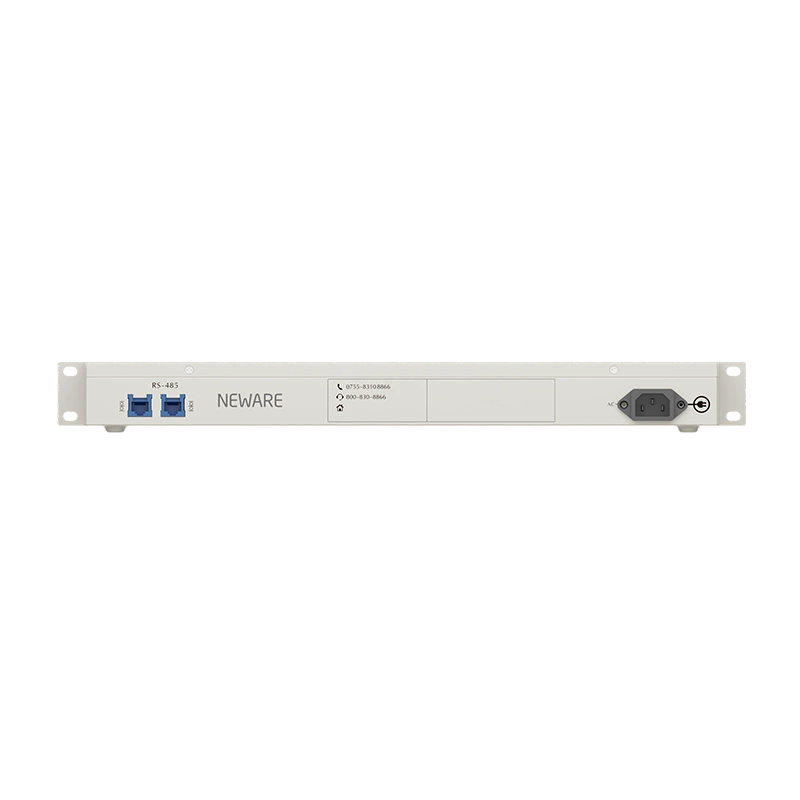

CA-4008n-1U-5VT-TC AUX auxiliary channel is a battery testing system used to measure voltage and temperature. It provides real-time monitoring and precise testing, catering to scientific research and data analysis needs, enabling comprehensive understanding of battery status.

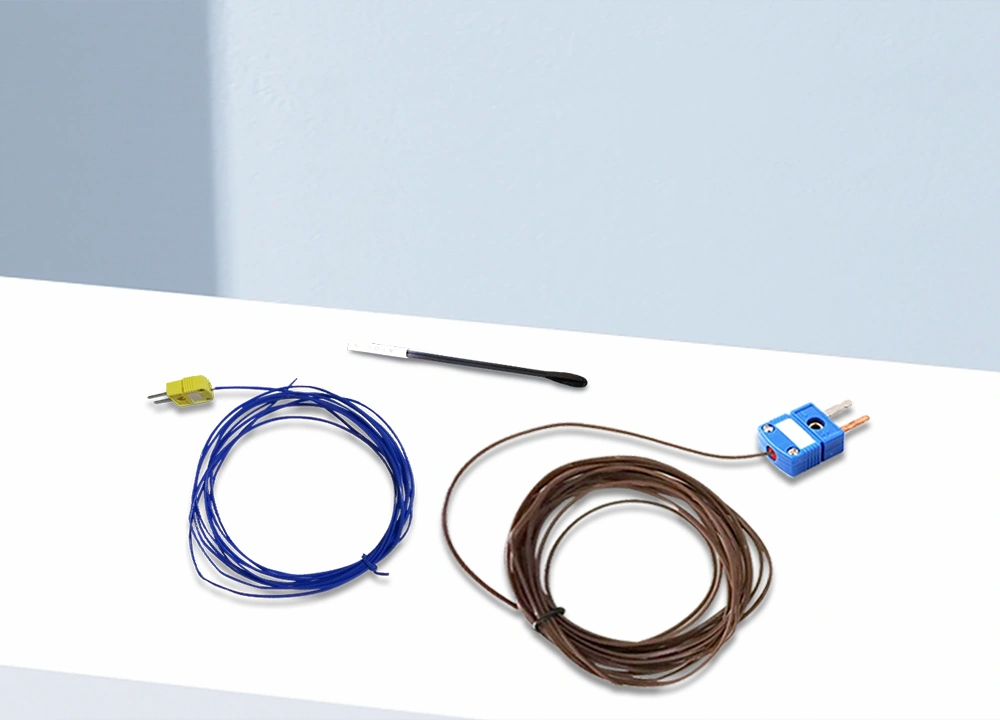

Three temperature sensors, T-type thermocouple, K-type thermocouple, and thermal resistance, are available for precise temperature testing to meet various temperature challenges.
● Thermistor: -22℉~248℉（-30℃~120℃）
● Thermocouple: -328℉~500℉（-200℃~260℃）

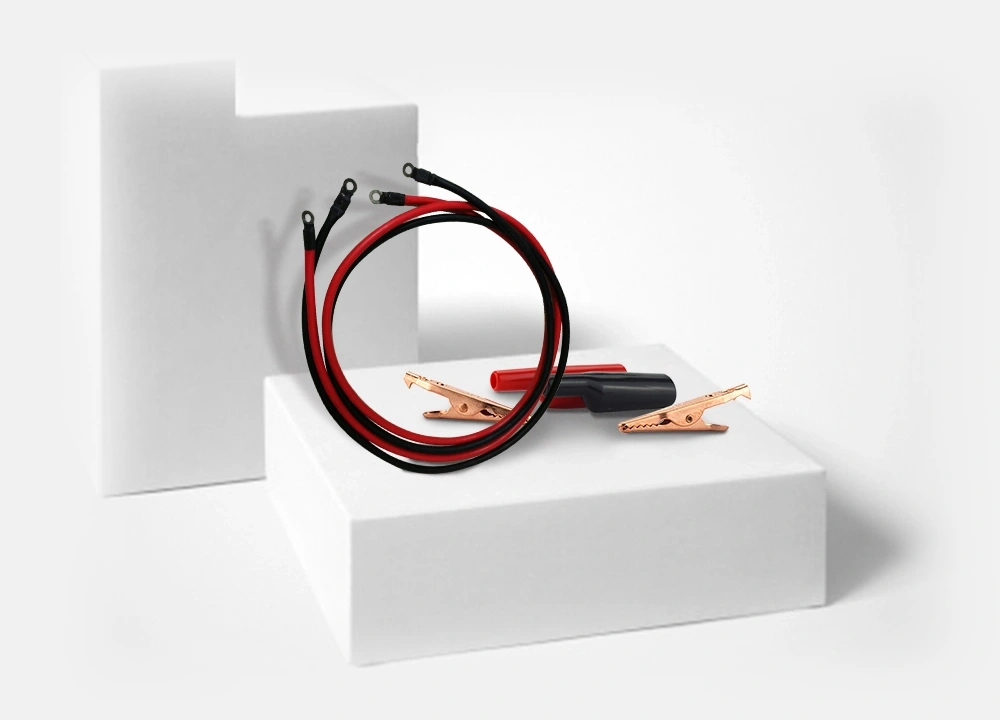

Voltage testing can be performed on different batteries using different fixtures according to specific requirements, achieving a voltage testing range from 0V to 5V.

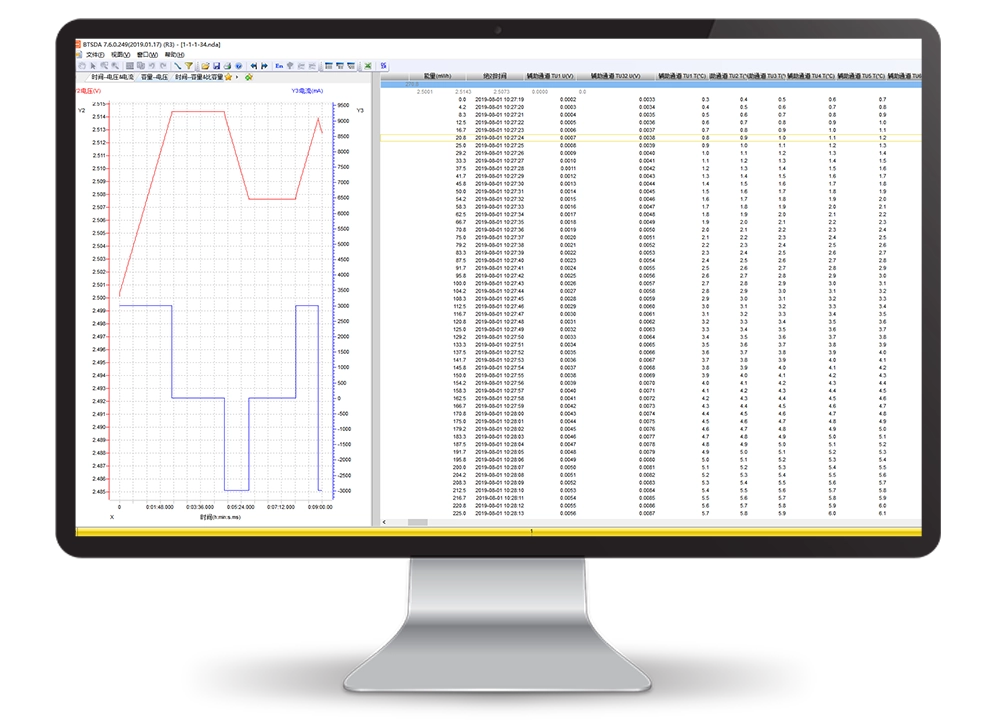

The auxiliary channel can be bound to any primary channel in the host computer, mapping it in the computer. The tested voltage and temperature data are linked with the main channel, and can be exported in Excel or TXT format for convenient data processing.

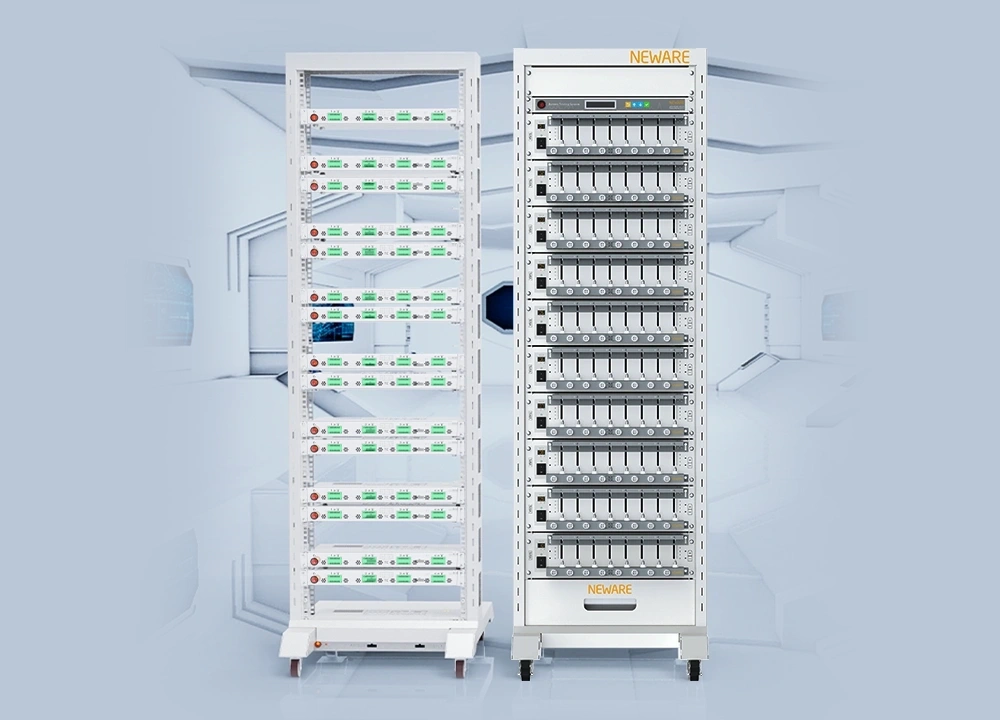

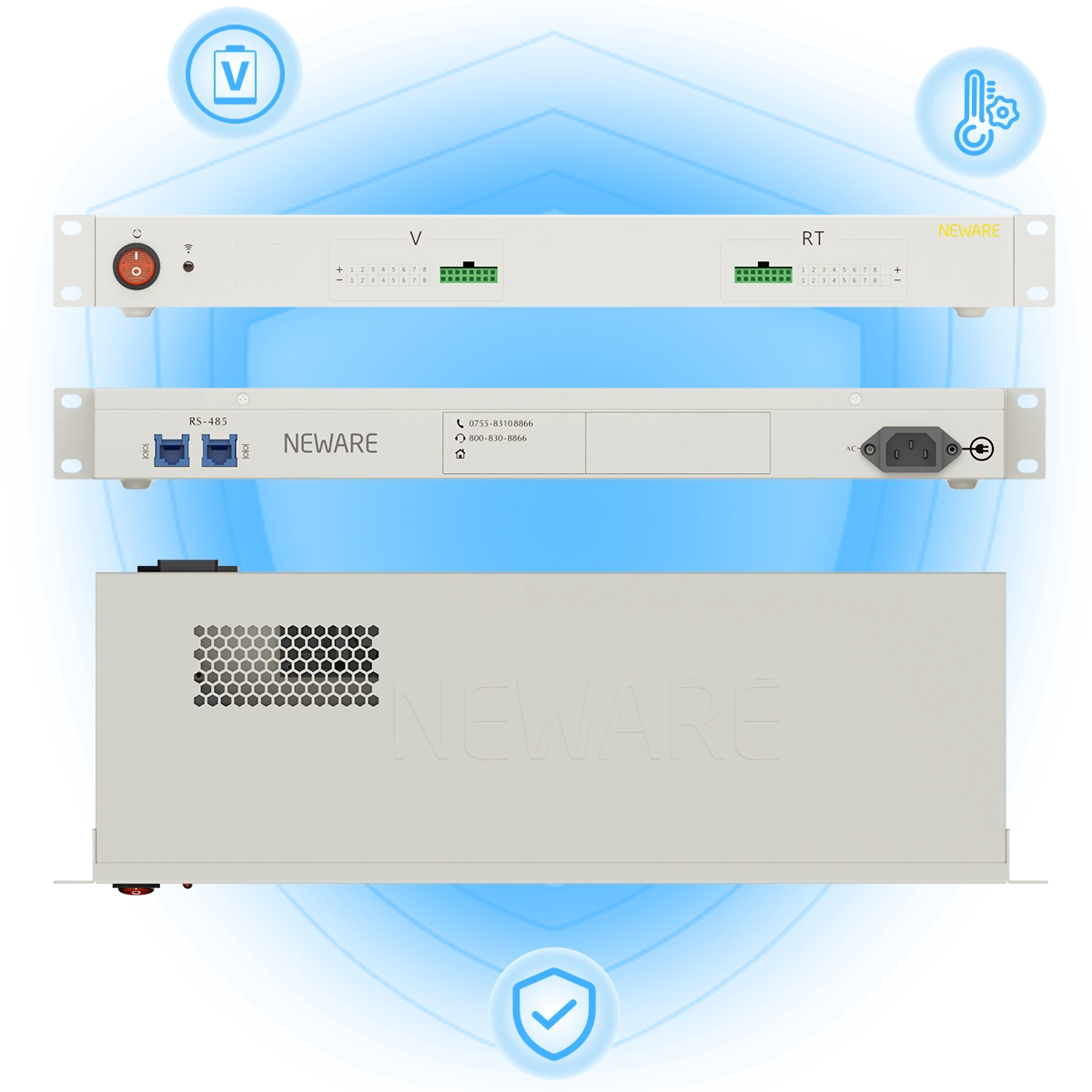

Each auxiliary channel can connect up to 8 temperature testing wires and 8 voltage testing wires. Each battery testing channel can be connected to 1~31 auxiliary channels, allowing for the serial connection of multiple auxiliary channels to achieve 1~248 temperature or voltage testing points.
The entire body is made of stainless steel material with an additional waterproof and rust-resistant coating, achieving a protection level of IP20. It effectively prevents dust and foreign objects from entering, safeguarding the equipment's security.
You can set temperature upper/lower limits, voltage upper/lower limits, and individual cell voltage difference to protect battery testing safety. This ensures a safe testing process, avoiding any potential safety issues and providing comprehensive safety protection.
| Equipment name | CA-4008n-1U-5VT-TC |
|---|---|
| Voltage | |
| Test specification | 0V~5V |
| Accuracy | ± 0.05% of F.S. |
| Temperature | |
| Test specification | Thermistor: -30℃ ~120℃ Thermocouple: -200℃ ~260℃ |
| Accuracy | ± 1℃ (within 2m of line length) |
| Temperature resolution | 0.1℃ |
| Frequency of sampling | |
| Time | 10Hz（100ms） |
