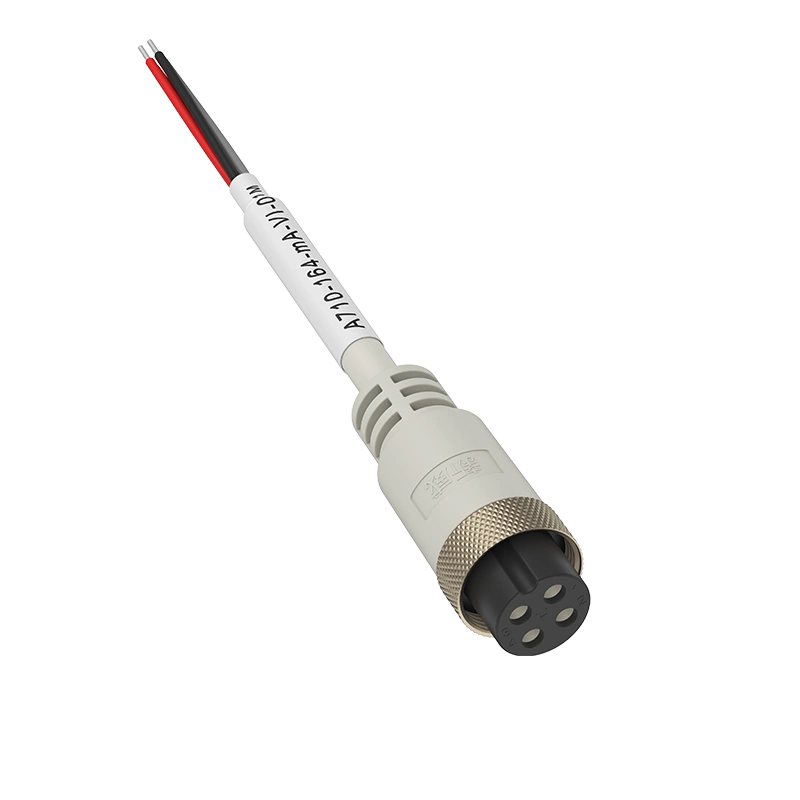

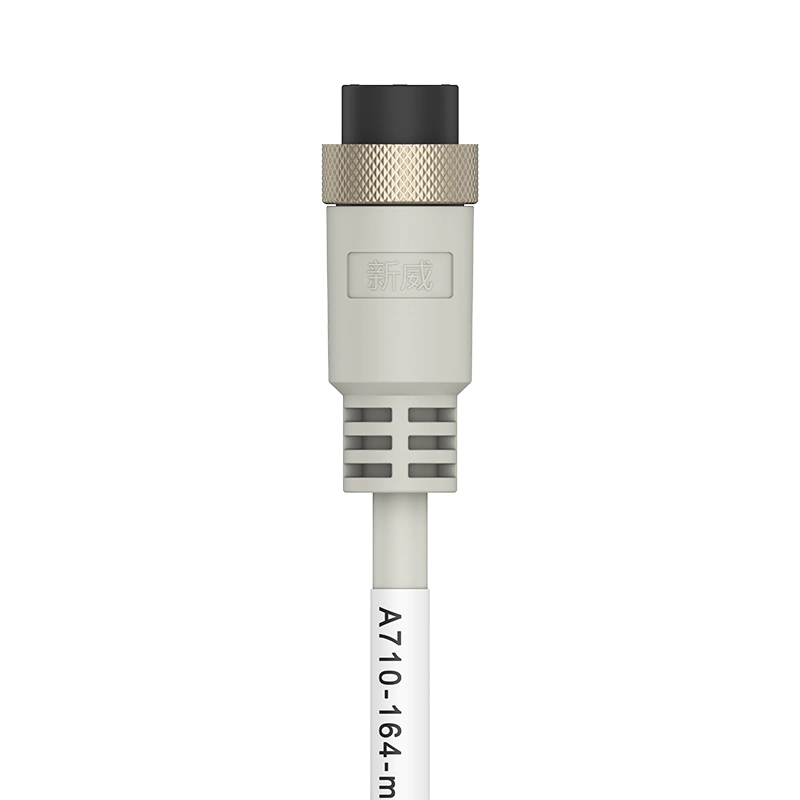

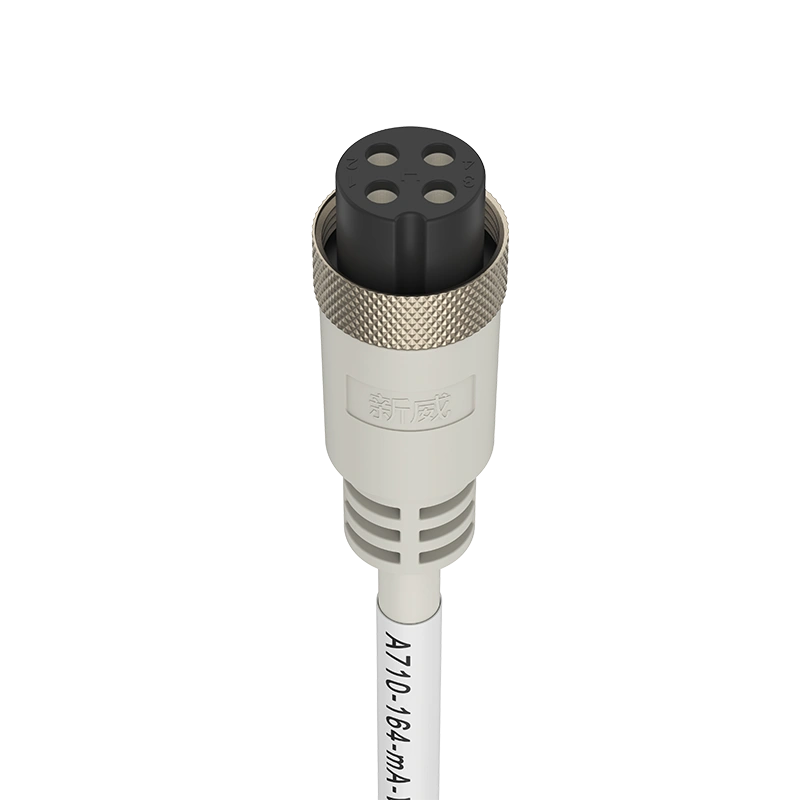

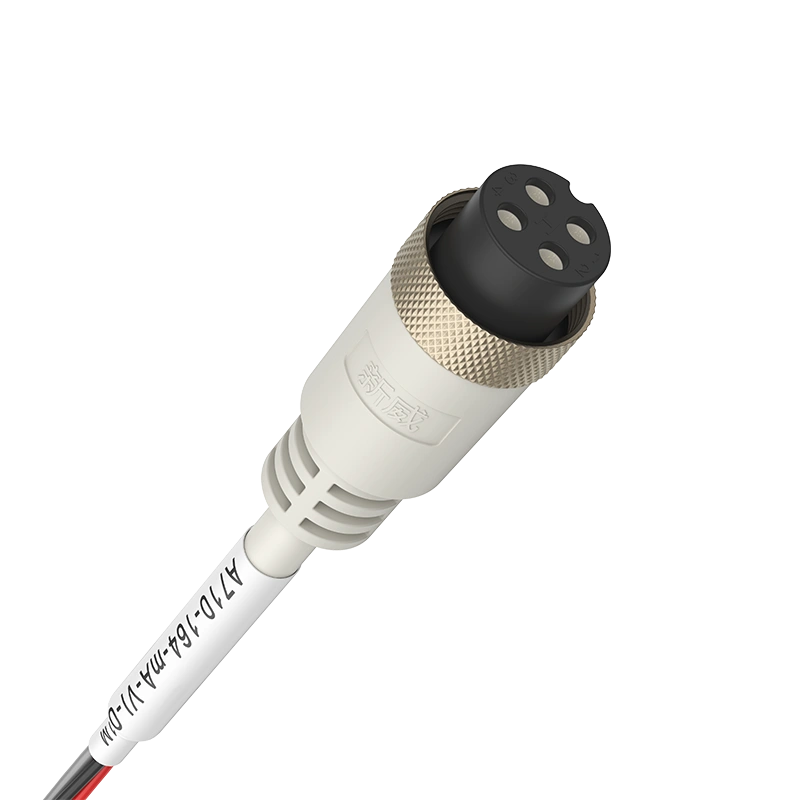

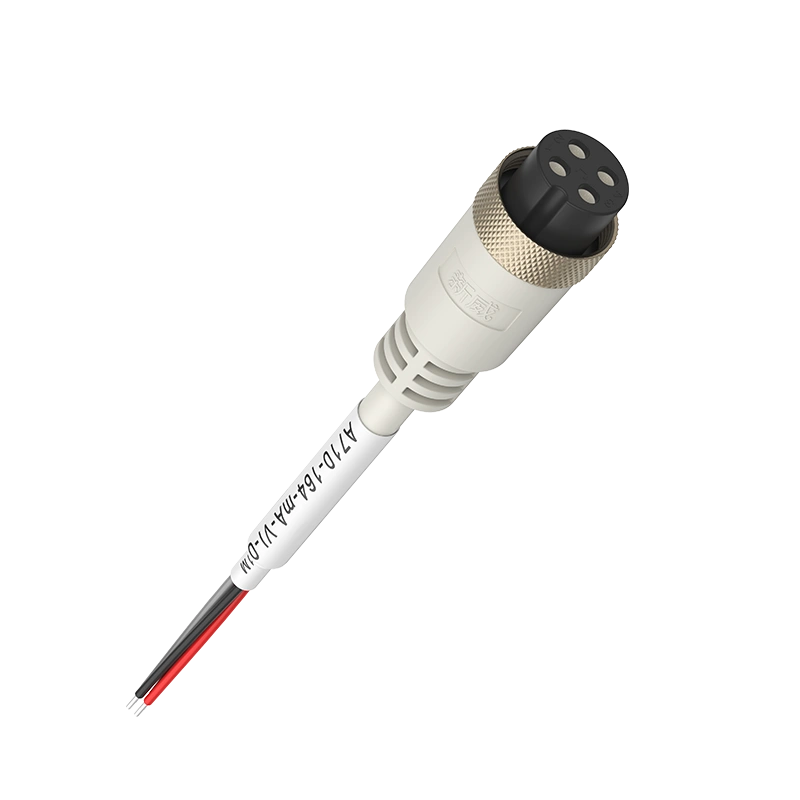

mA-level testing dedicated aviation plug linese.
Features
Tech Specs

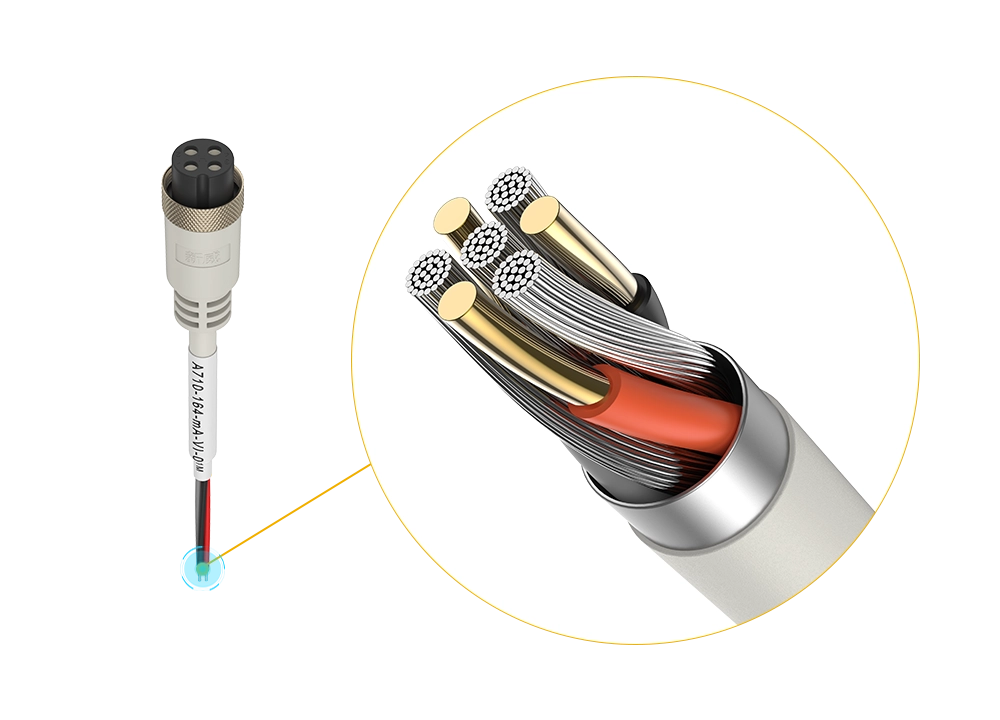

Tin-plated copper wire interior: corrosion-resistant, excellent conductivity, durable and long-lasting. Paired with the fixture, it is suitable for charge and discharge testing ofcoin battery cells and pouch battery cells.
Premium thick insulation material used for the casing, ensuring safety and stability. Use with confidence.
Stable signal transmission, convenient connection. Clear and distinguishable four-color current/voltage leads for easier differentiation of positive and negative polarities.
| Equipment name | 164 Aviation Plug Line |
|---|---|
| Length | 0.1/0.6 |
| Color of Four-Lines | V+Vermilion V-Dark Gray
I+Burgundy I-Deep Black |
