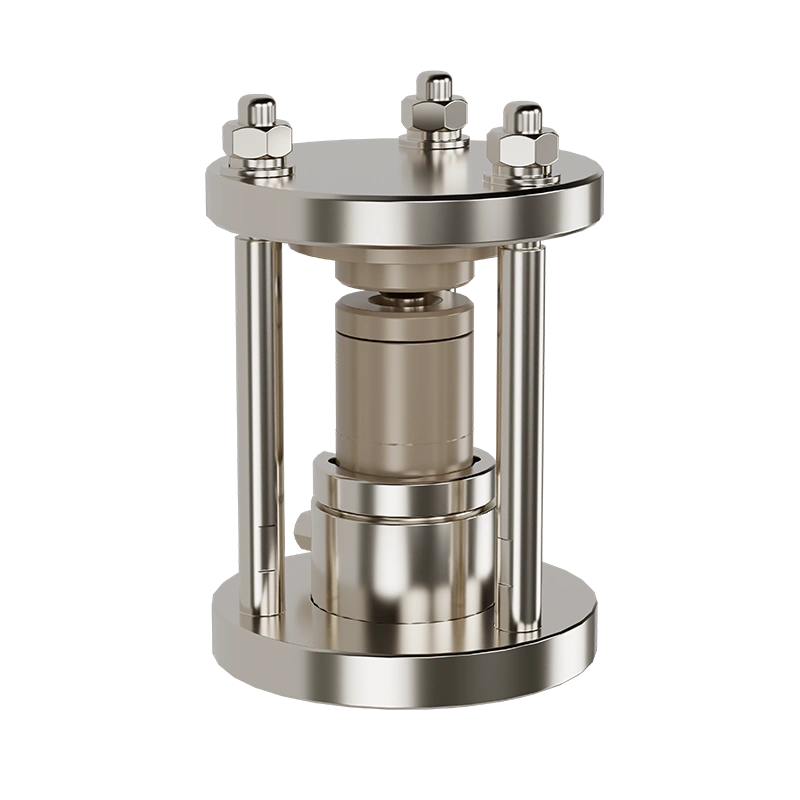

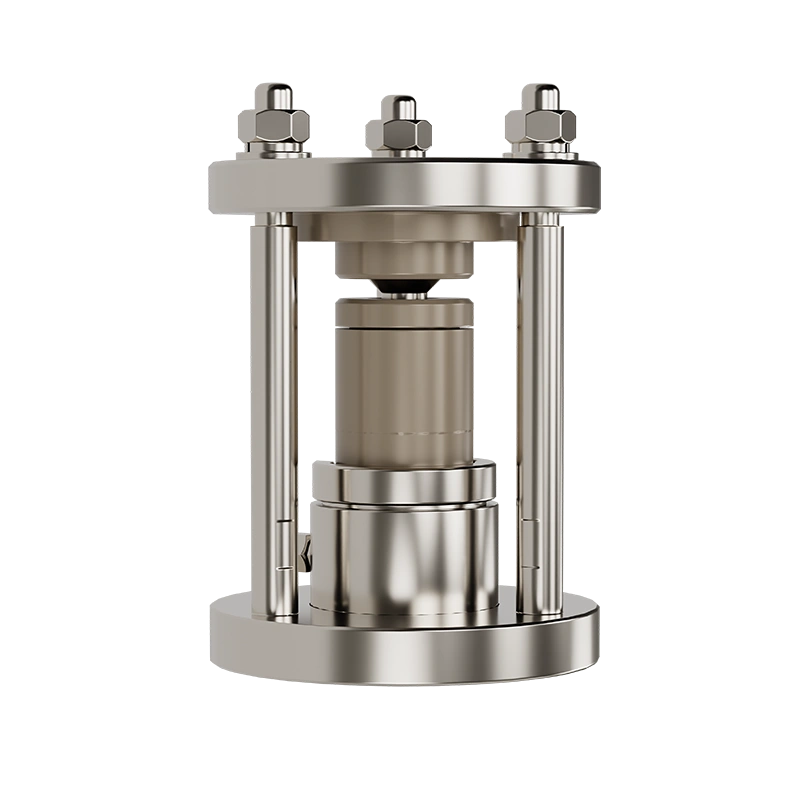

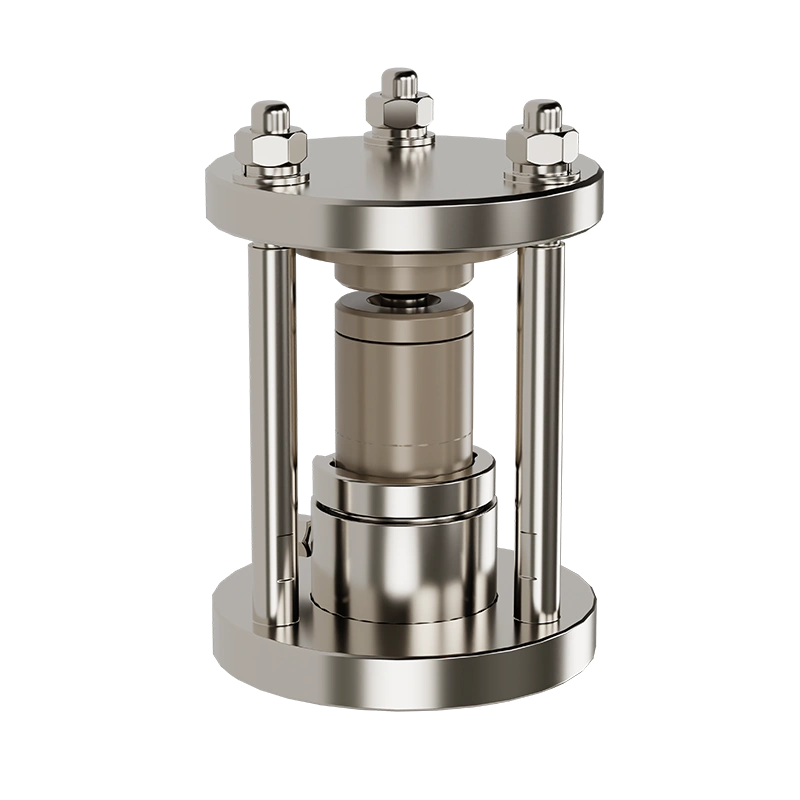

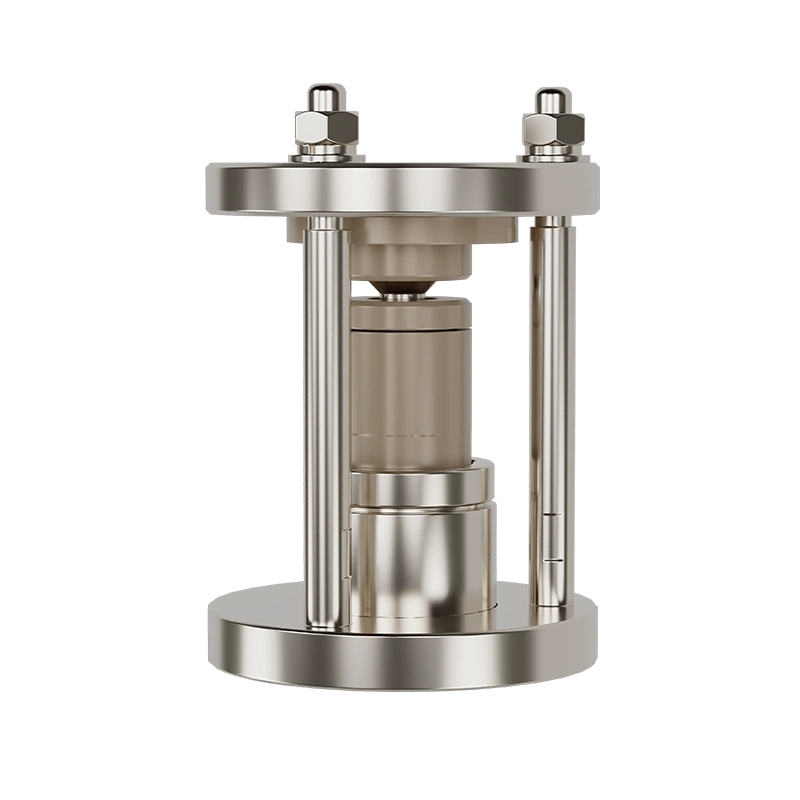

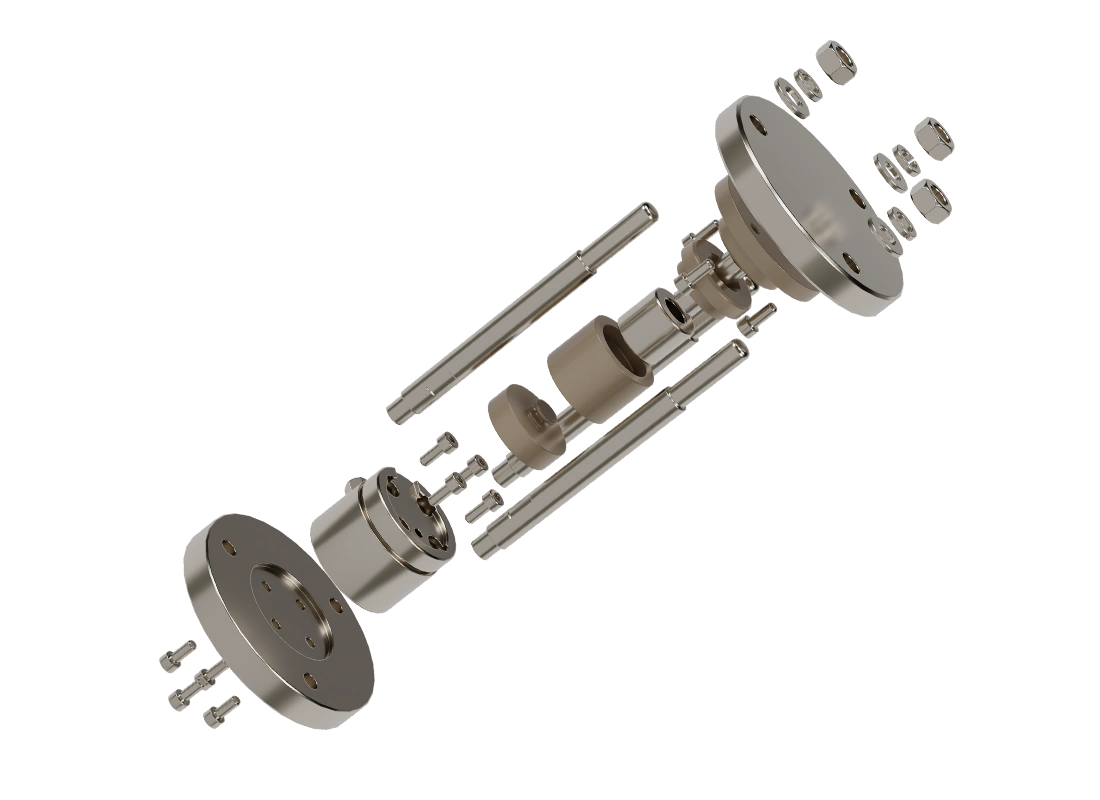

The solid-state battery holder, crafted from high-strength, corrosion-resistant PEEK, offers excellent chemical stability and sealing for battery testing.
Features
Tech Specs
● Simple structure, easy to operate, can be used in a glove box.
● Made of high mechanical strength and corrosion-resistant PEEK material to ensure the durability and chemical stability of the mold.
● Good sealing performance, compatible with pressure sensors.
In the manufacturing process of solid-state batteries, the mold can apply specific pressure to help the solid electrolyte form close contact with the electrode materials, thereby improving the battery's conductivity and overall performance.

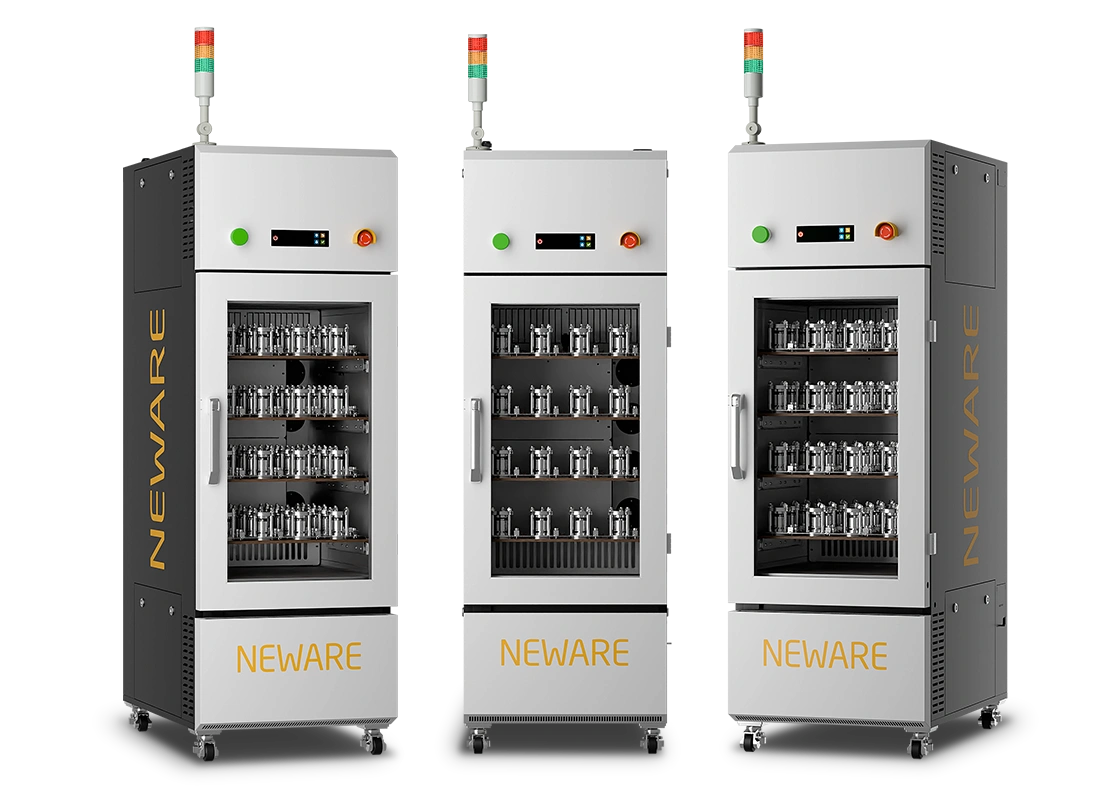

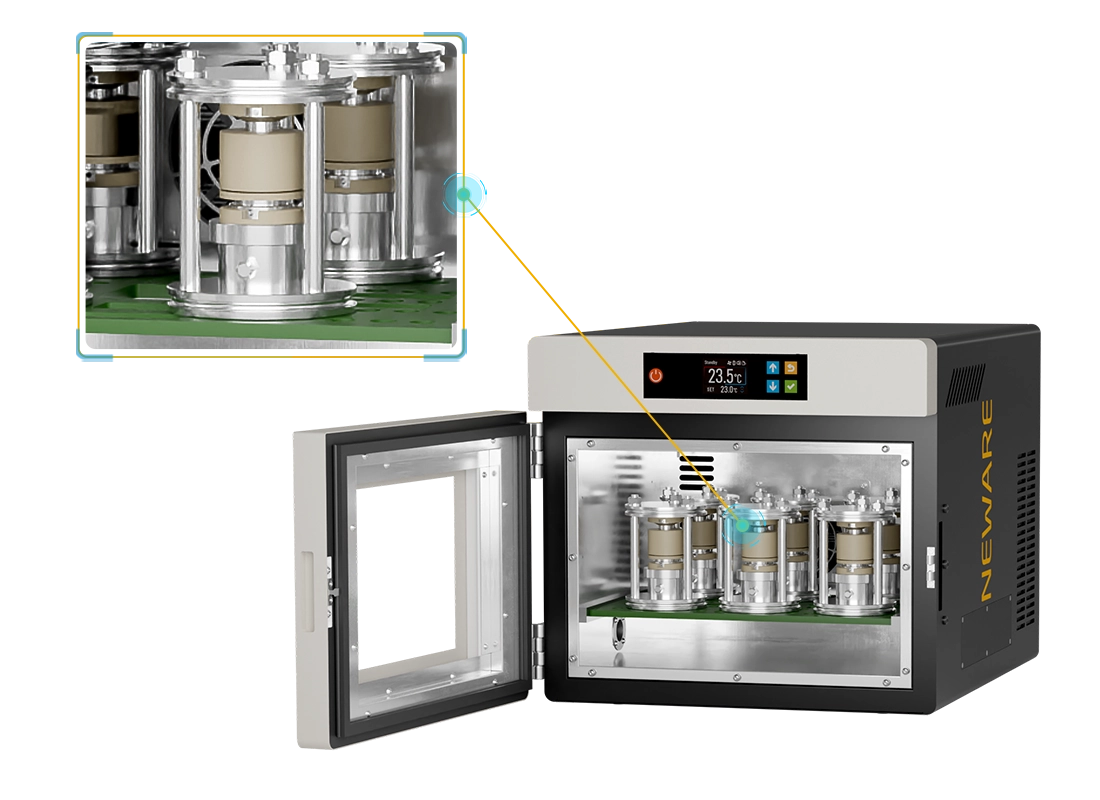

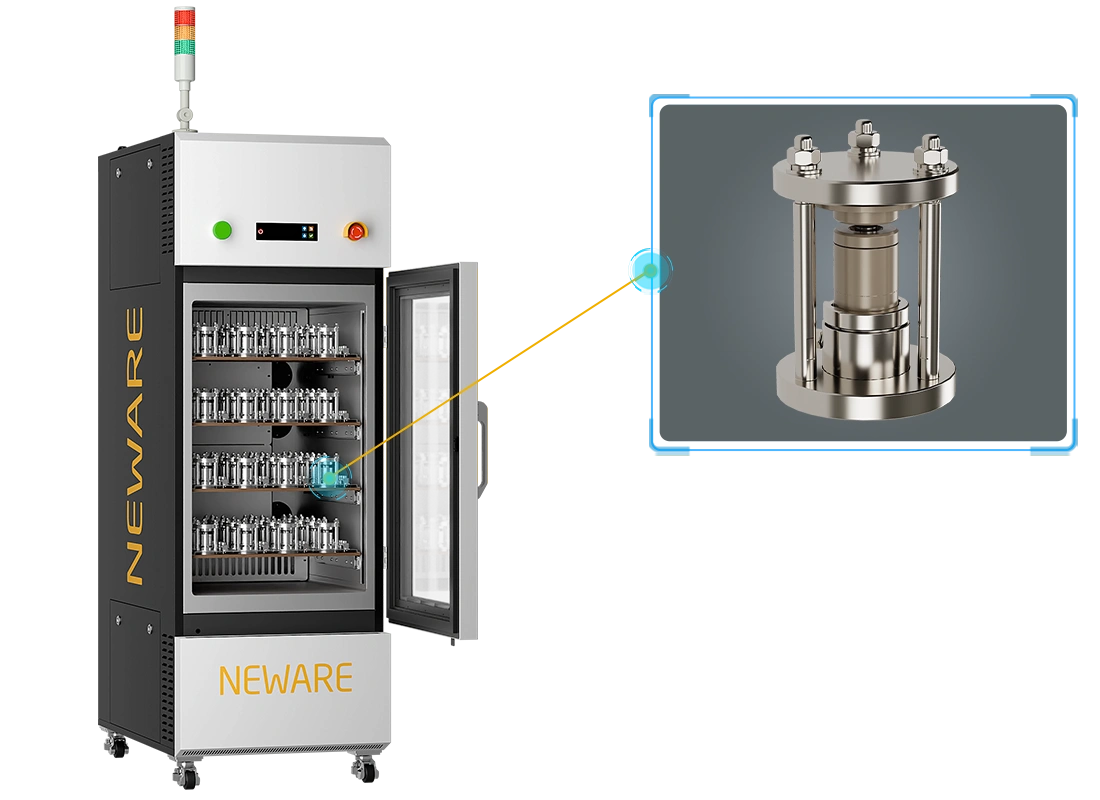

The solid-state battery test is conducted within an integrated unit, creating a constant temperature environment to ensure the consistency of the battery tests, or setting different temperature environments to test the battery's thermal performance. The use of an integrated unit enhances testing efficiency and repeatability.
| Equipment name | Solid-State Battery Mold |
|---|---|
| External Size | Diameter: 3.9" (100mm)
Height: 5.9" (150mm) |
| Sample Size | 0.4"/0.5" (10/12mm) |
| Mold Materials | High-strength steel, stainless steel, PEEK ceramic, etc. (selected based on battery type) |
| Cavity Specifications | φ16 mm (customizable) |
| Mold Dimensions | Diameter: 90 mm, Height: 125 mm (customizable) |
| Mold Precision | ±0.01 mm (for precise alignment of battery electrodes and electrolyte) |
| Operating Temperature Range | -40°C~150°C (high-temperature applications require customization) |
| Pressure Precision | ±0.3% |
| Pressure Range | 0~50000 kg |
| Mold Life | ≥10,000 cycles |
| Battery Types | All-solid-state batteries, semi-solid-state batteries |
| Mold Weight | 1.2 kg (varies with dimensions and materials) |
| Data Acquisition (Optional) | PC display / panel display |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
