Mainly used for temperature performance testing.
| Capacity | 200L |
| Internal Size | 19.7"×19.7"× 31.5" (500mm×500mm×800mm) |
| External Size | 23.6"×28.3" ×59.1" (600mm×720mm×1500mm) |

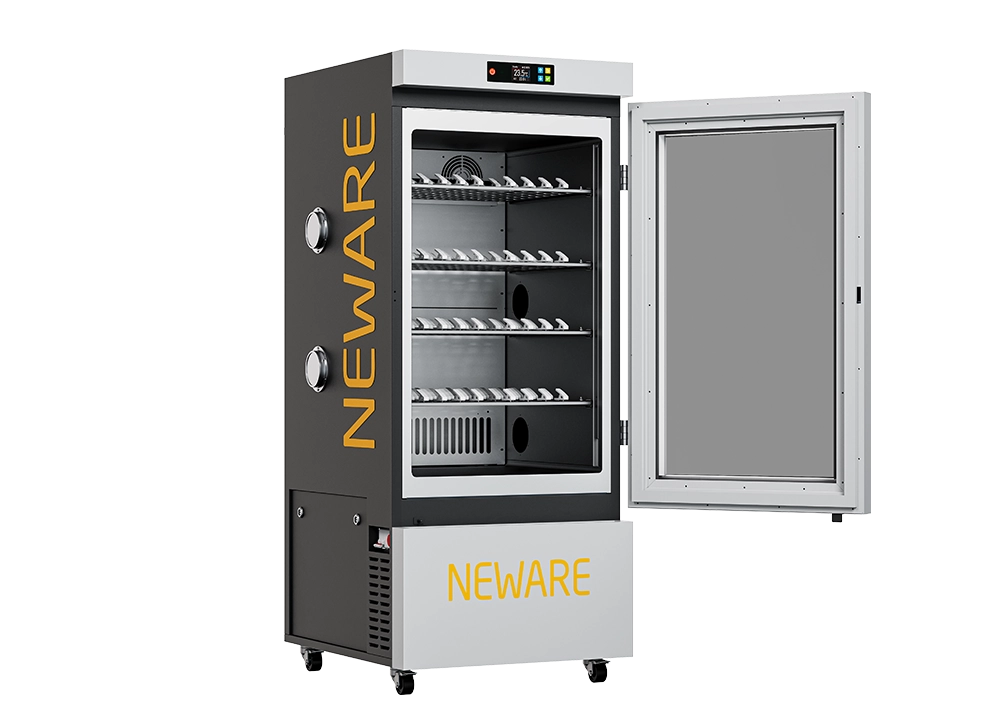

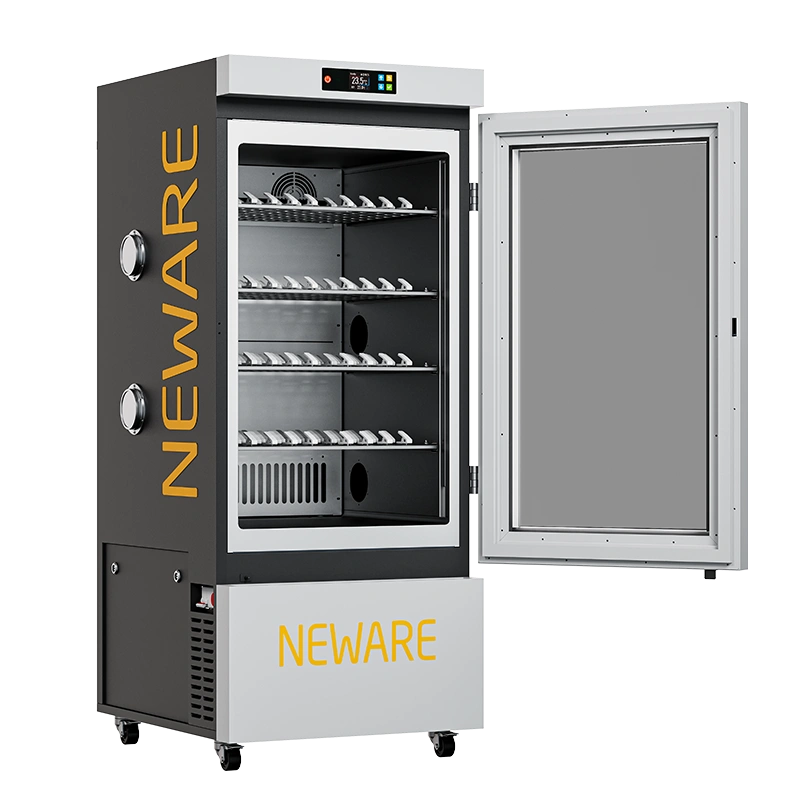

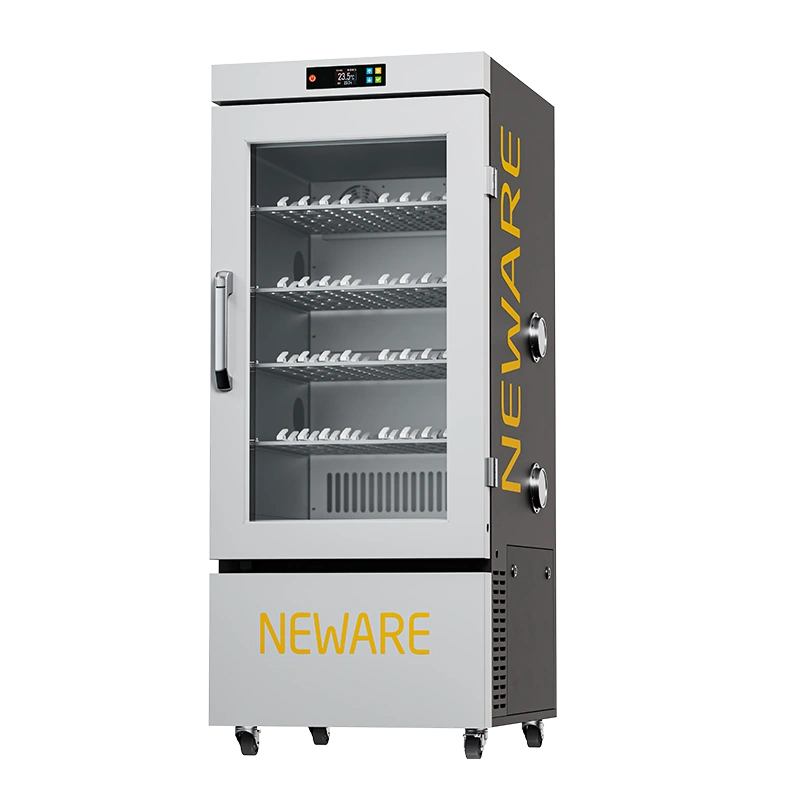

With its seamless integration into NEWARE's Test System Software, the NEWARE Integrated Constant Test Chamber can be easily set up as a test step in any experimental procedure. it's a highly versatile tool that has found widespread use in research institutions, universities, and battery production facilities.

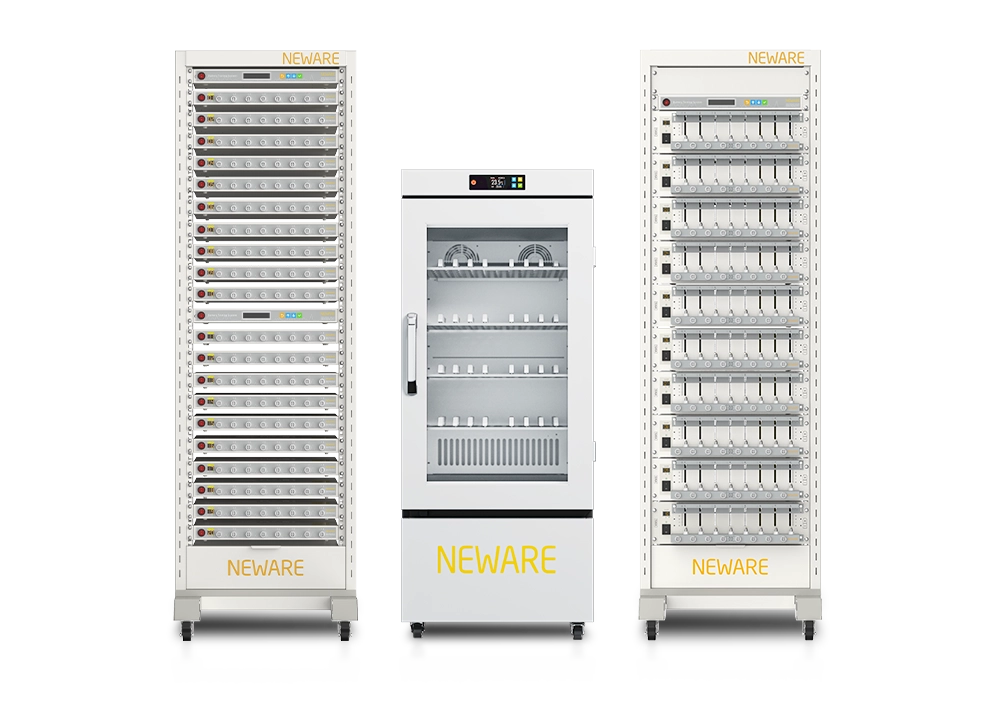

All-around product tour.Integrated operation via NEWARE Testing Software. The NEWARE Testing Software enables seamless control of both the Charge/Discharge battery testing system and environmental test chamber, facilitating optimal performance and functionality of the battery.
High quality cold rolled steel plate, solid and durable.

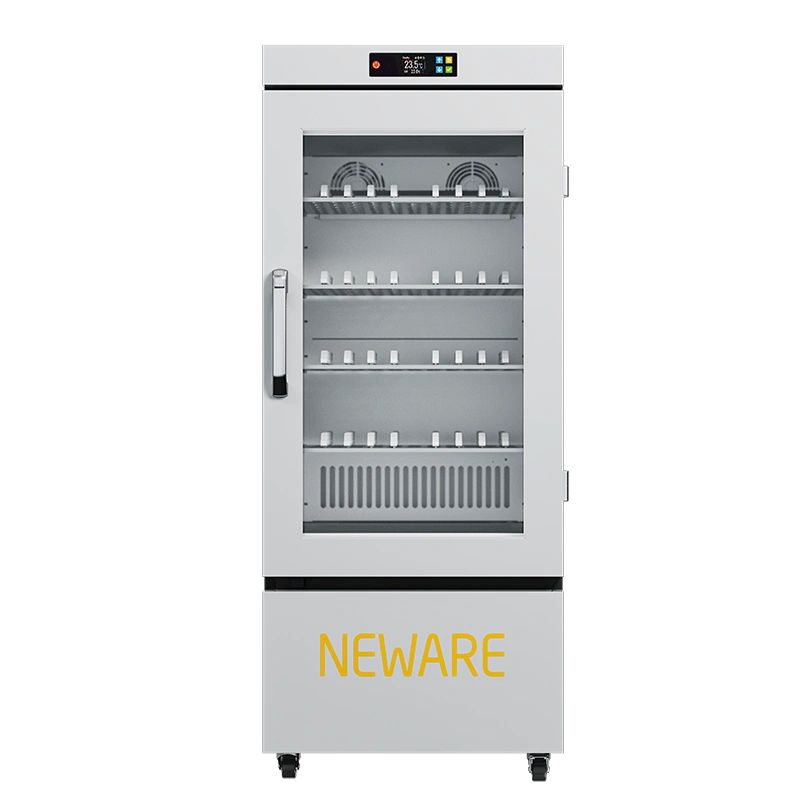

Hollow anti-fog tempered glass, clear and safe, thermal insulation.
Circulation fan .Uniform airflow distribution with no dead angles and a constant temperature that lasts.

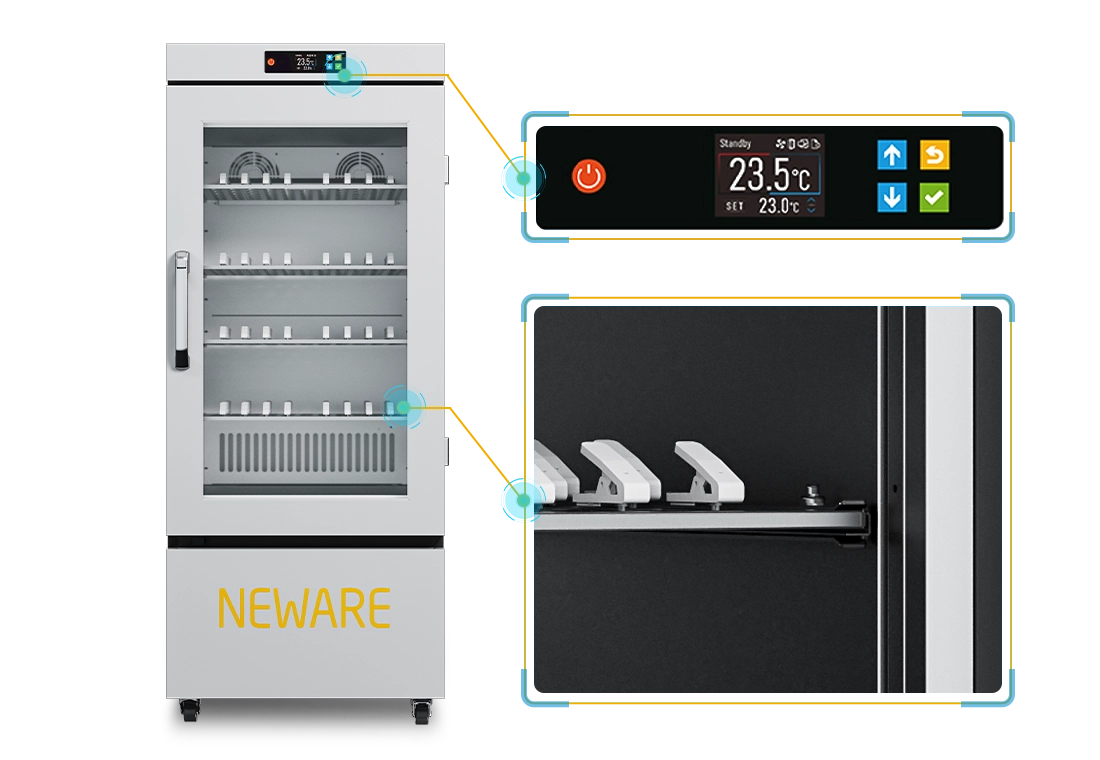

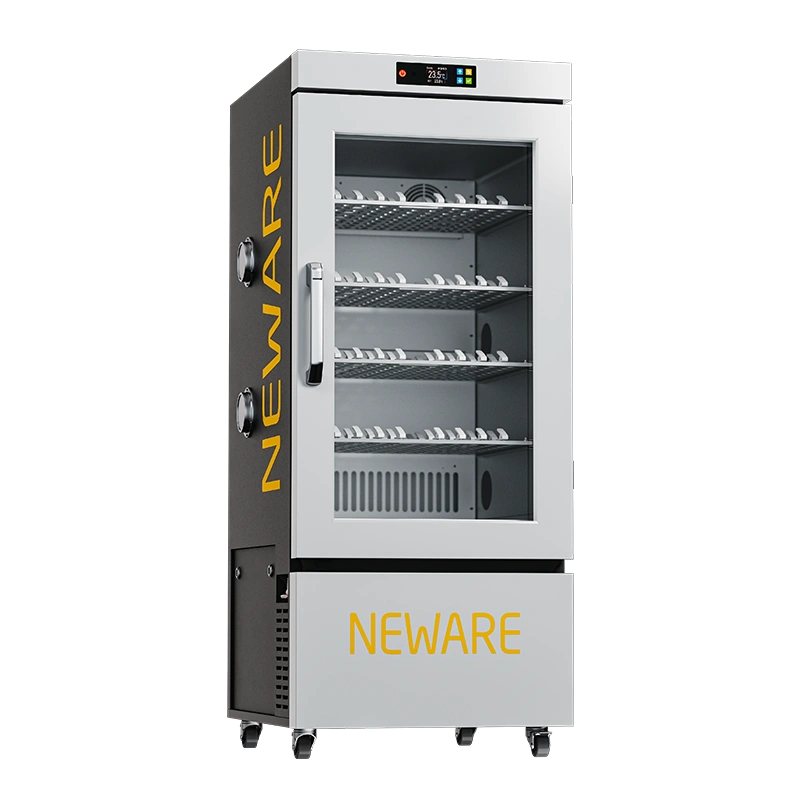

Maximum space utilization,
160 Coin Cells can be placed in.
In each layer, 40 coin cells can be placed, and with the capacity to accommodate 4 layers, a 200-liter chamber can test up to 160 coin cells at the same time.
Portable and efficient, control the testing in real time. Communication conversion module + Ethernet interface. Multi-device interconnection. Real-time data transmission & analysis of core data.
| Equipment name | WHW-200L |
|---|---|
| Nominal content product | 200L |
| Inner box size | W500 mm × D500 mm × H800 mm |
| Overall dimensions | W600 mm × D720 mm × H1500 mm |
| Net weight of the equipment | About 160kg |
| Test the environmental conditions | Ambient temperature is + 25℃, relative humidity is 85%, with no sample in the test box (no load) |
| Temperature range | 0～60℃ |
| Temperature fluctuation degree | ≤1℃ (equivalent to ± 0.5℃, with no load and stable temperature) |
| Temperature deviation | ± 2.0℃ (when no load and temperature is stable) |
| Product application | · Constant temperature test of new energy soft package polymer cell and buckle cell · Electronic, electrical, instrument, materials, semiconductor and other production enterprises to non-flammable, non-explosive items for constant temperature test · Environmental protection, agricultural and livestock, aquatic scientific research institutions and production of water analysis, bacteria, mold, microbial culture, preservation, plant cultivation, breeding test of constant temperature test |
| Limit the sample | This test equipment is prohibited by: · Test or storage of samples of inflammable, explosive and volatile substances · Test or storage of test samples of corrosive substances · Test or storage of samples of strong electromagnetic emission sources · Test and storage of test samples of radioactive substances · Test and storage of test samples of highly toxic substances · Testing or storage of tests or specimens that may produce such substances or objects |
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage Accuracy：±0.02% F.S.
● Current Accuracy：±0.05% F.S.
● Resolution Ratio AD/DA：16bit
● Current Response Time：≤1ms
● Minimum Pulse Width：100ms
● Off-Line Test：1GB/CH
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Current Conversion Time：≤6ms
● Current Response Time：≤3ms
● Minimum Pulse Width：100ms
● Feedback Efficiency (Max) ：75%
● Voltage & Current Accuracy：±0.02% F.S.
● Voltage & Current Stability：±0.01% F.S.
● Recording Frequency：1000Hz
● Resolution AD：16bit
● Current Response Time：≤100μs
● Off-Line Test： 1GB
