HOME Battery Test Equipment CT/CE-4000 Series
Overview Tech Specs FAQ Software

Seizing minuscule currents with ease.

Laptop and tablet batteries
Laptop and Tablet Battery
Headset and camera
Consumer Electronics
mobile phone
Communication

Steady-state data acquisition.
Embracing the energy of precision.

±0.05% F.S.
Voltage & Current Accuracy
±0.05% F.S.
10Hz
Recording Frequency
10Hz
100ms
Sampling Time
100ms
≤1ms
Current Response Time
≤1ms
>65%
Energy Efficiency
>65%
1GB
Off-Line Test
1GB
Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines.

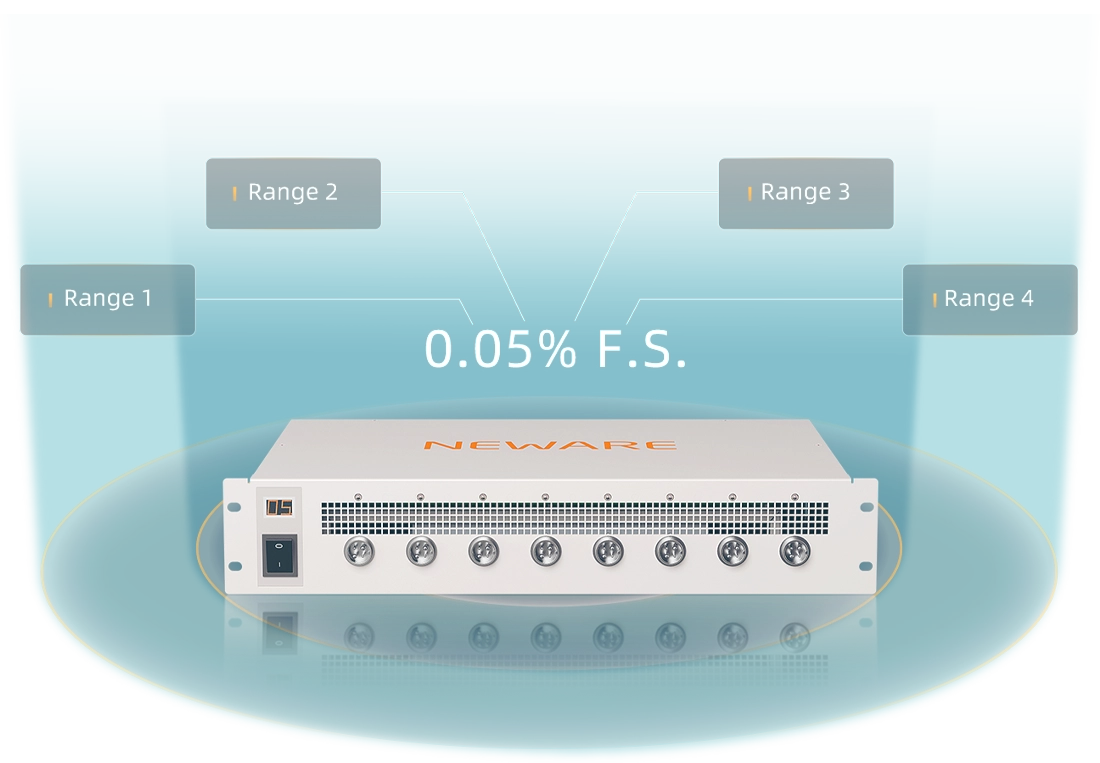

4-range switching, precision defined.

Current ranges of 5mA~300mA, 30mA~3A, 60mA~6A, 150mA~15A can be selected to realize the controllable accuracy of small current in small range.
Current ranges of 5mA~300mA, 30mA~3A, 60mA~6A, 150mA~15A can be selected to realize the controllable accuracy of small current in small range.

Compact in size, big on functionality.

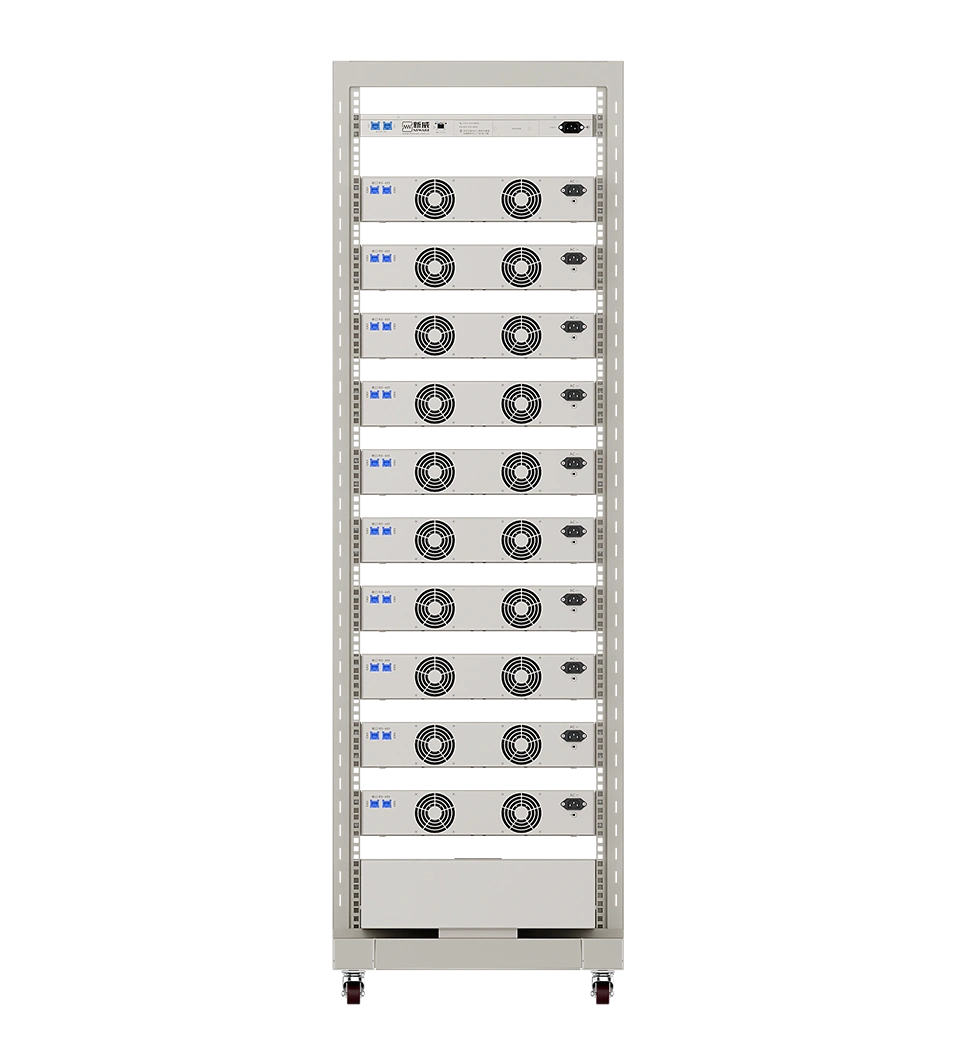

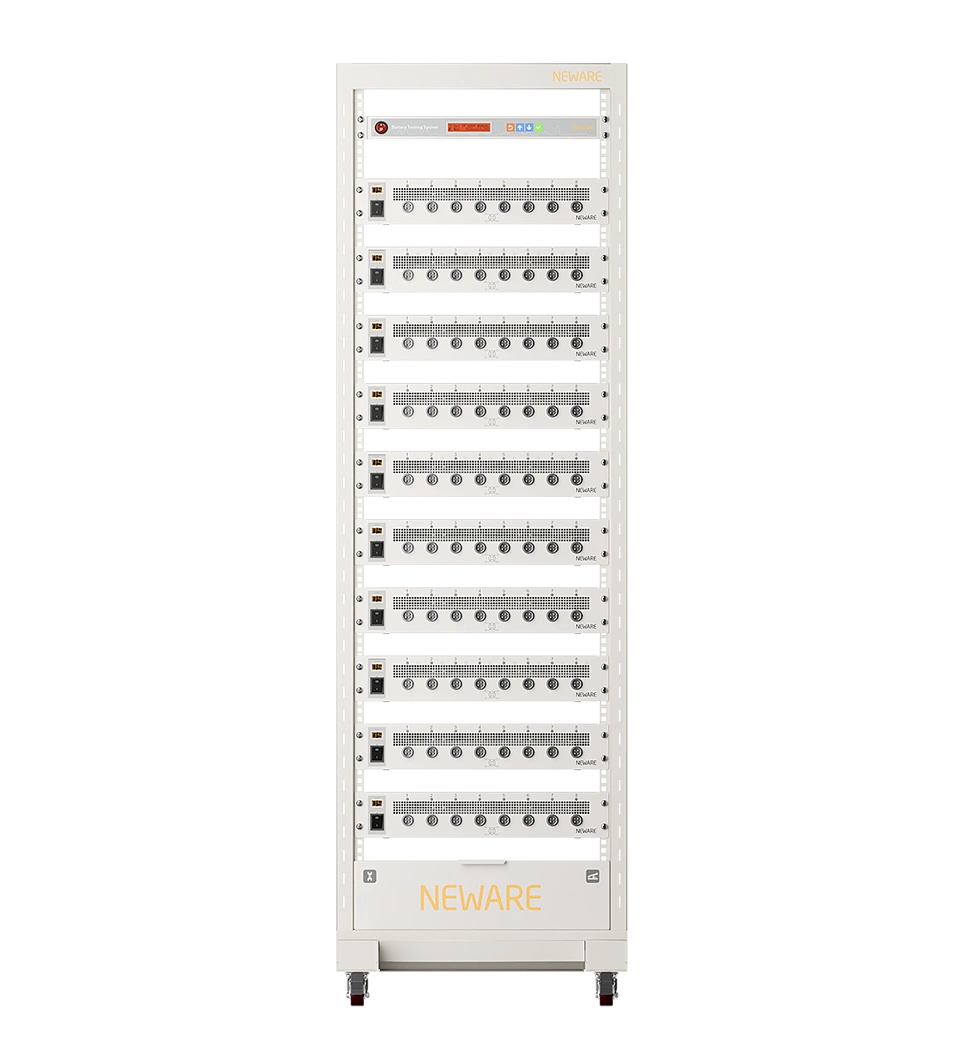

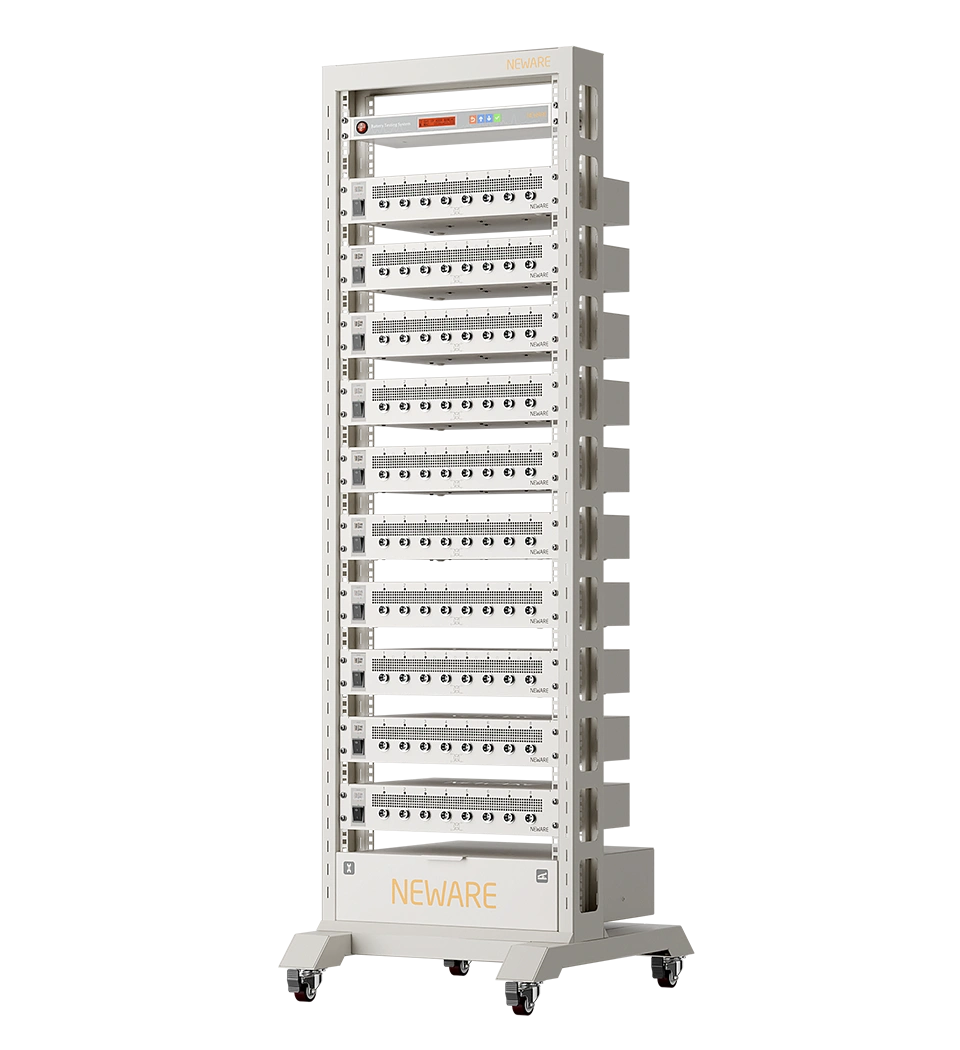

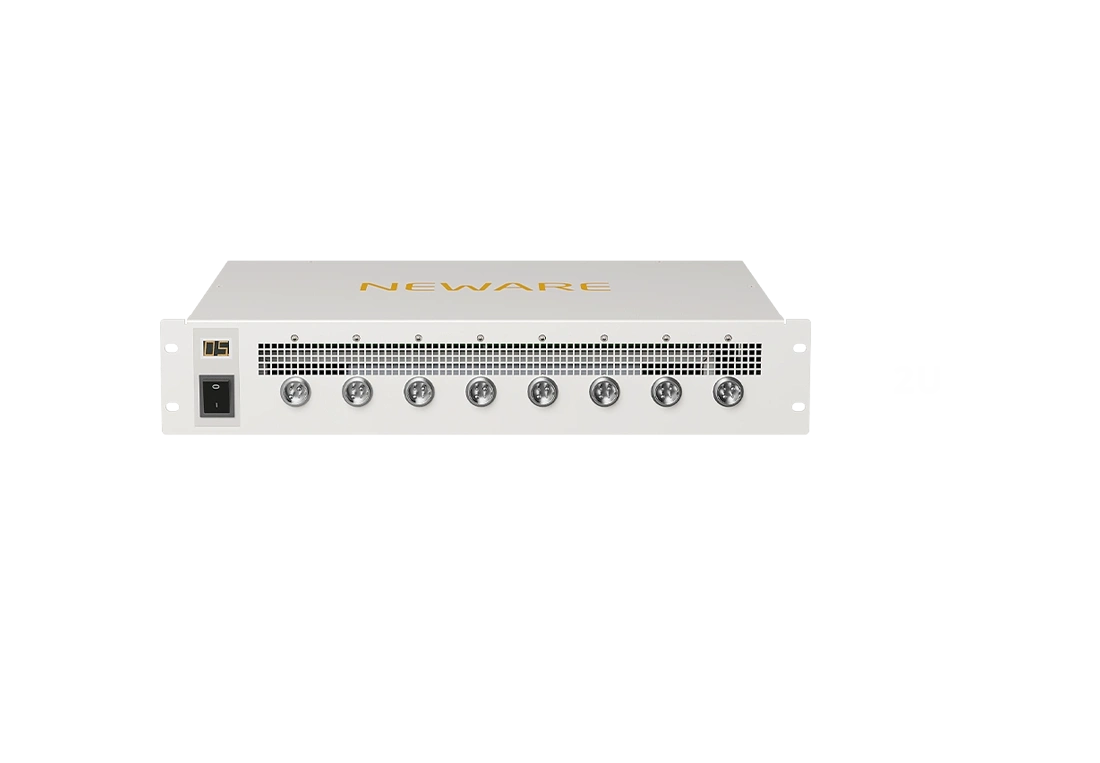

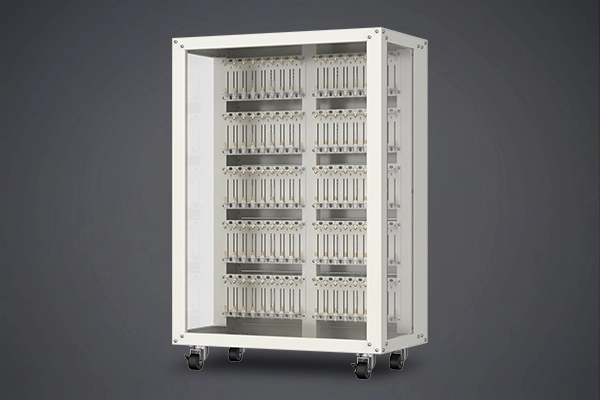

With a height of 2U*, it occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.
NEWARE Battery Testing Solutions
NEWARE Battery Testing Solutions

* 2 U = 3.5 IN = 8.89 cm

Multiple testing modes. One equipment, unlimited capabilities.

Cycle Life Test
Rate Charging / Discharging Test
Pulse Simulation Test
GITT Test
DCIR Test
dQ/dV Curve

Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

dQ/dV differential capacity curve analysis graph

Full-power energy feedback. Multi-scenario energy savings.

>65%
Energy Efficiency
>65%

The system can recover energy generated from battery discharge and redistribute it to other battery channels or feed it back to the internal power grid.

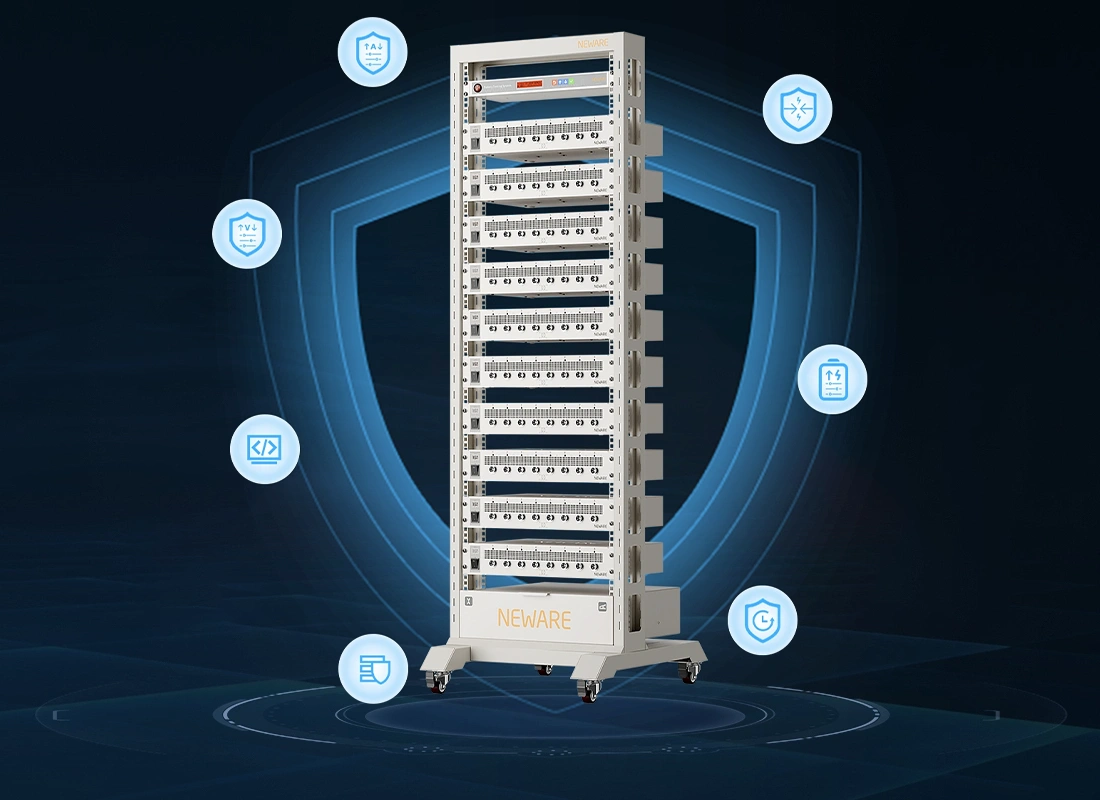

Perpetual dedication to safety protection.

● Discharge Data Protection

● Offline Testing Function

● Voltage Upper Limit Setting

● Voltage Lower Limit Setting

● Current Upper Limit Setting

● Current Lower Limit Setting

● Capacity Upper Limit Setting

● Delay Time Setting

Bttery Test Equipment-NEWARE-CE-4008Q-5V15A-Battery Testing System has a variety of security protection functions

Powerful programmability. Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

DBC Configuration
CC & CV charge/discharge test
Segmented recording
DBC Configuration
CC & CV charge/discharge test
Segmented recording
Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.
CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.
Allow to set up to 3 segment recording conditions per step, including voltage, current and time.

Extensive peripheral devices. Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

NEWARE battery tester-CT-4008-5V15A can connect to a variety of Integrated peripheral uses such as: Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers
CE-4008Q-5V15A01

Technical Specifications

Equipment name CE-4008Q-5V20A
Enter the power supply AC 220V ±10% / 50Hz
Input active power 0.68 kW
Resolution ratio AD：24bit；DA：16bit
Input impedence ≥1MΩ
Voltage
Constant voltage range control 0.025V~5V
Minimum discharge voltage 1.5V (2m wire length)
Accuracy ±0.05% of F.S.
Stability 0.1% of F.S.
Current
Output range per channel Range 1: 5mA~300mA;
Range 2: 30mA~3A;
Range 3: 60mA~6A;
Range 4: 150 mA ~ 15 A;
Accuracy ±0.05% of F.S.
Stability 0.1% of F.S.

Want to explore further?
Download our product technical specifications for more.

Download

CE-4008Q-5V20A

We offer powerful auxiliary equipments
and accessories to provide comprehensive testing support for battery testing.

We offer powerful auxiliary equipments and accessories to provide comprehensive testing support for battery testing.

· Instruments

NEWARE-Battery Tester- Mini All In One Testing System-WHW-25L-L-16CH

NEWARE-Environmental Test Chamber

WHW-25L-16CH

● Voltage & Current Accuracy：±0.05% F.S.

● Sampling Time：100ms

● Number of Channels：16CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
NEWARE-Battery Tester-All-in-One Testing System-WIHW-200L-160CH-B

NEWARE-Environmental Test Chamber

WHW-200L-160CH-B

● Voltage & Current Accuracy：±0.01% F.S.

● Recording Frequency：100Hz

● Number of Channels：160CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
NEWARE-Battery Tester-All-in-One Dual-Temperature Zones-WHW-100L-2-160CH

NEWARE-Environmental Test Chamber

WHW-100L-2-160CH

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Number of Channels：160CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃）
NEWARE-Battery Tester-All-in-One 4 Temperature Zone-WHW-25L-16CH*4

NEWARE-Environmental Test Chamber

WHW-25L-16CH*4

● Voltage & Current Accuracy：±0.05% F.S.

● Sampling Time：100ms

● Number of Channels：64CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃）
NEWARE-Battery Tester-3C All-in-One Testing System-WGDW-380L-2-40BFC-5V600A8CH

NEWARE-Environmental Test Chamber

WHW-500L-5V6A80CH-380V

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Number of Channels：80CH

● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)

● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)

● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
NEWARE-Battery Tester-Power Cell All-in-One-WGDW-380L-2-40BFC-5V600A8CH

NEWARE-Environmental Test Chamber

WGDW-380L-2-40BFC-5V600A8CH

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Temperature Fluctuation：≤1.8℉(1℃)

● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)

● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)

● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
NEWARE-All In One Battery Test Equipment-WGDW-400L-40BC-5V30A96CH

NEWARE-Environmental Test Chamber

WGDW-400L-40BC-5V30A96CH

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)

● Temperature Fluctuation：±0.9℉(±0.5℃)

● Heating Efficiency：68℉ → 302℉ ≤40min(20℃ → 150℃)

● Cooling Efficiency：68℉ → -40℉≤60min(20℃→-40℃)
NEWARE-Battery Tester-Enviromental Test Chamber-WGDW-50L-40-5V30A16CH

NEWARE-Environmental Test Chamber

WGDW-50L-40-5V30A16CH

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Temperature Range & Deviation：-40℉ ~ 212℉±3.6℉(-40℃ ~ 100℃±2.0℃)

● Temperature Fluctuation：±0.9℉(±0.5℃)

● Heating Efficiency：68℉ → 212℉ ≤40min(20℃ → 100℃)

● Cooling Efficiency：68℉ → -40℉≤60min(20℃→-40℃)
