Highly accurate 4-range tester, master of detail realism. CT-4008Q-5V6A-S1 adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines.
Features
Tech Specs
Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines.
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V6A | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 3A | 3A ~ 6A |
*Other models can be customized according to voltage and current requirements.

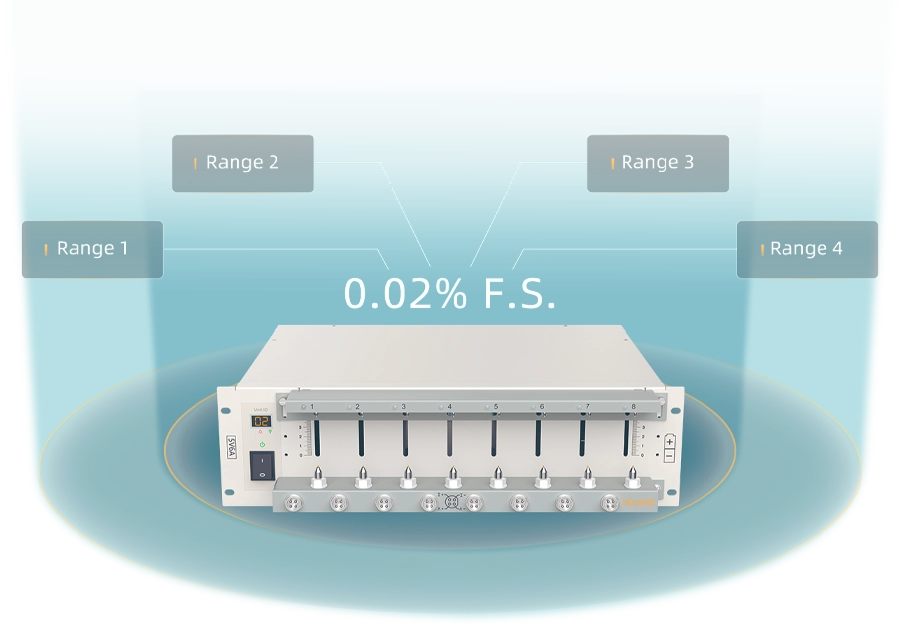

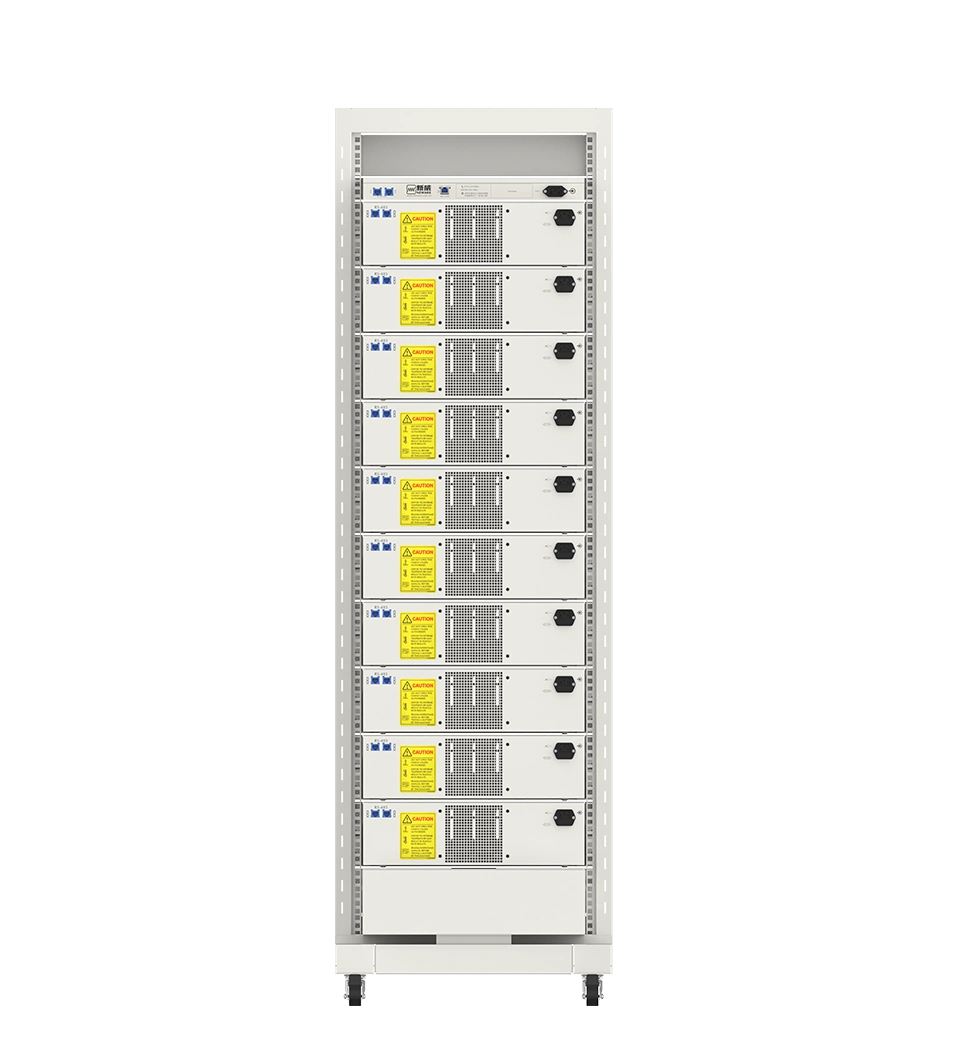

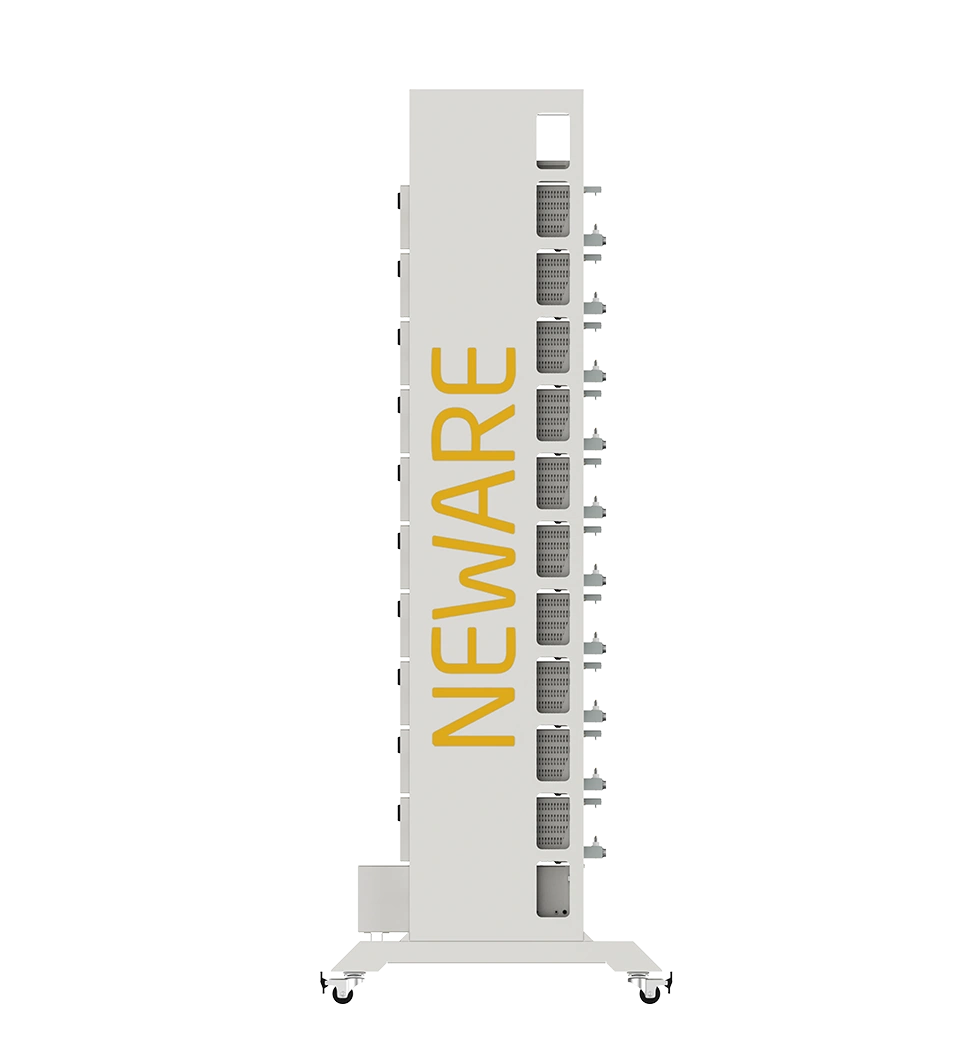

All-around product tour.Current ranges from 0.5mA ~ 100mA, 100mA ~ 500mA, 500mA ~ 3A, 3A ~ 6A can be selected to realize the controllable accuracy of small current in small range.

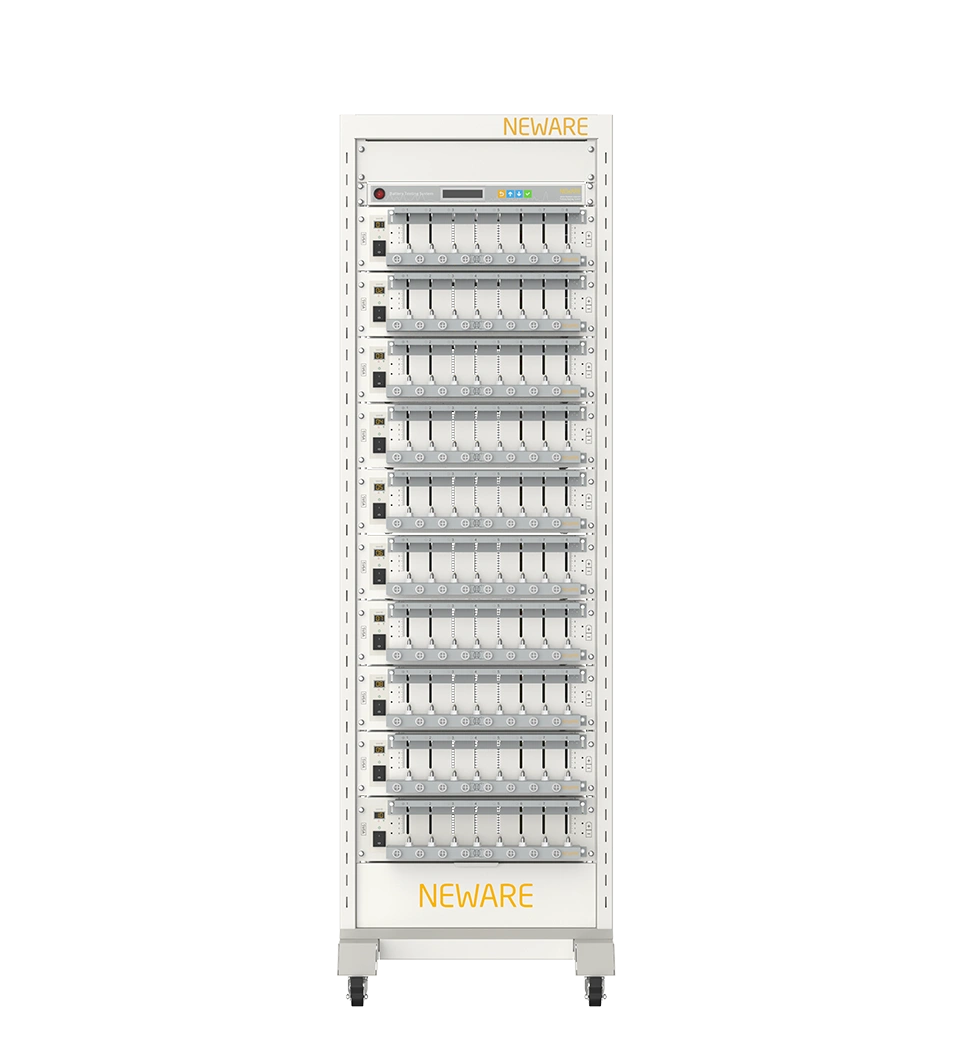

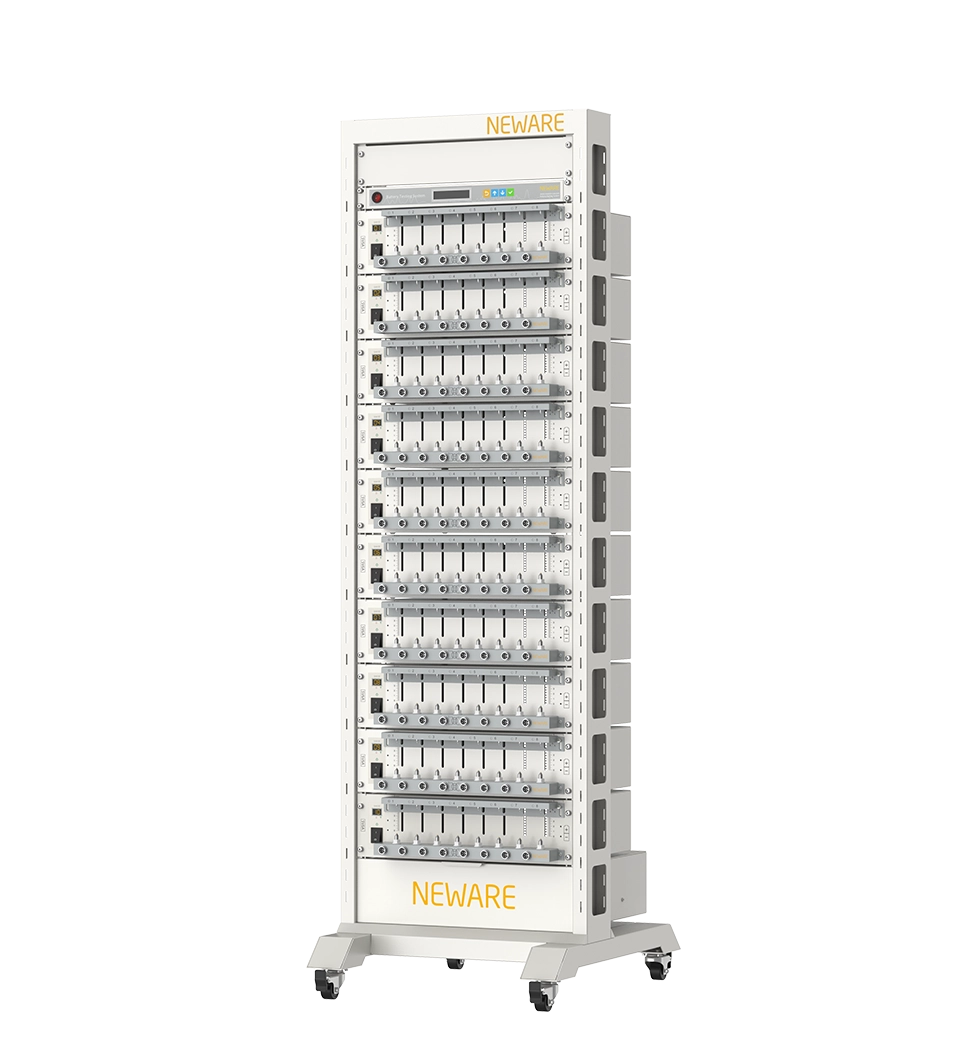

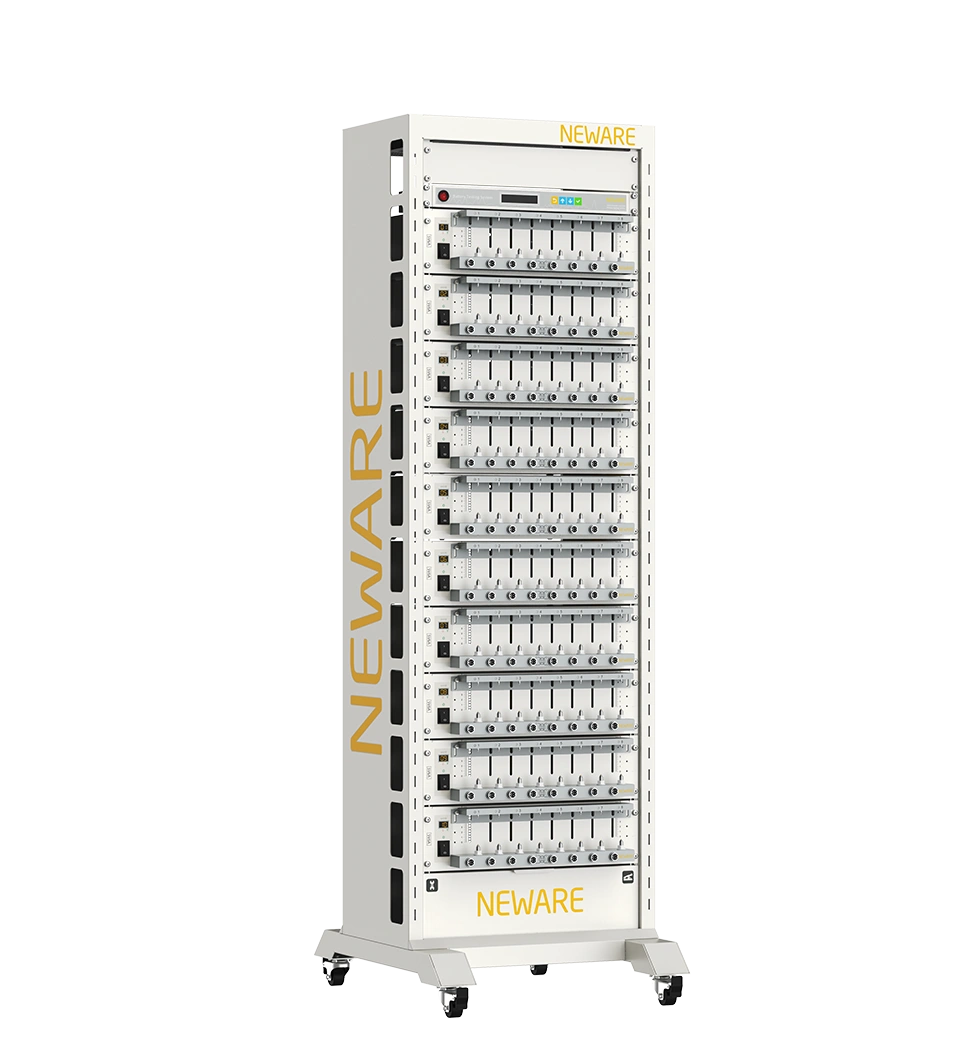

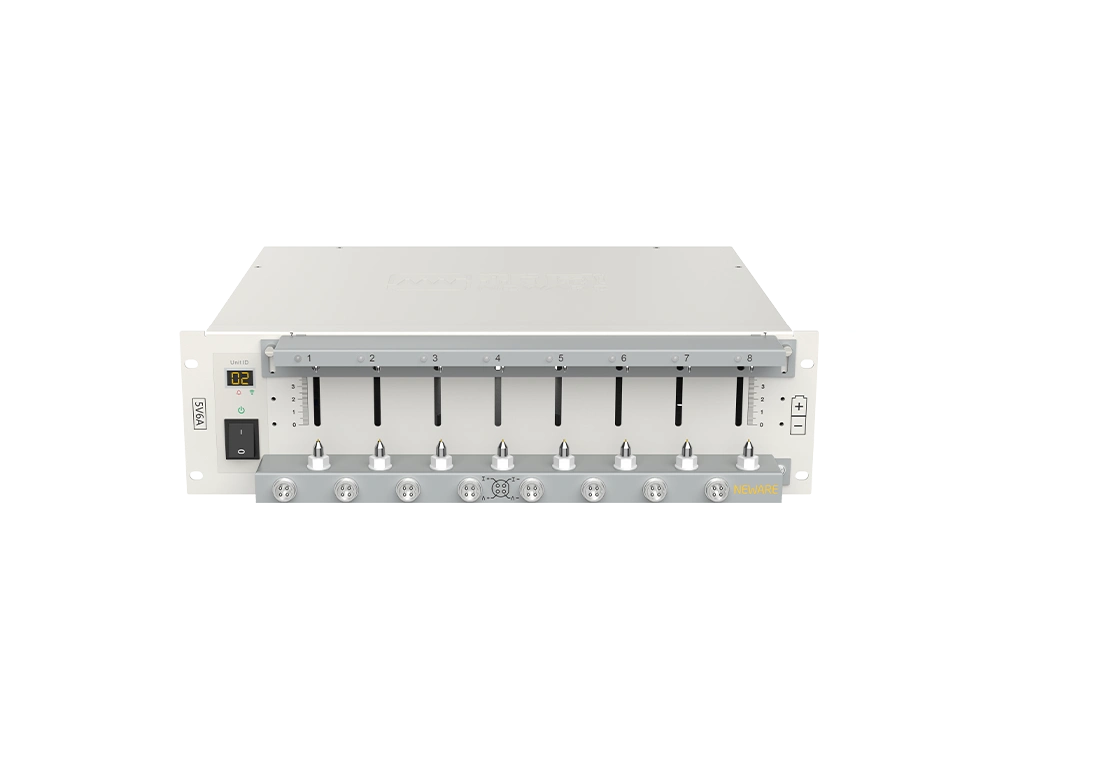

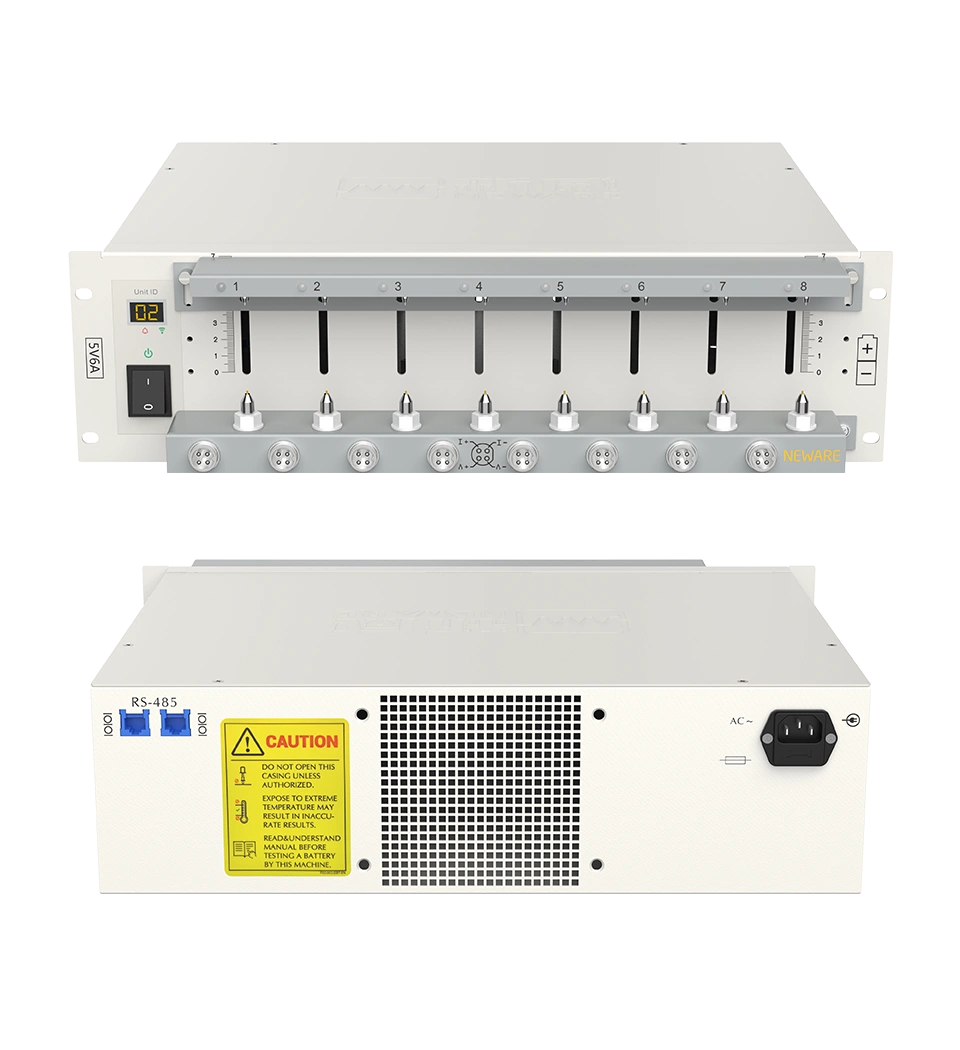

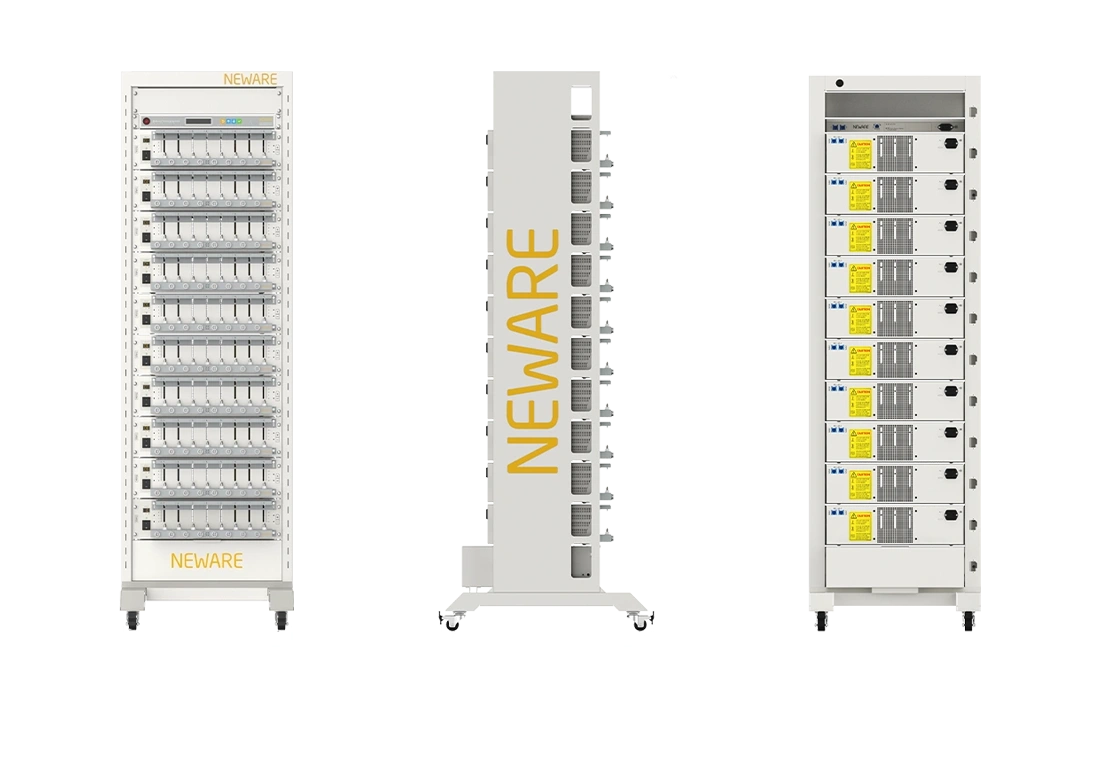

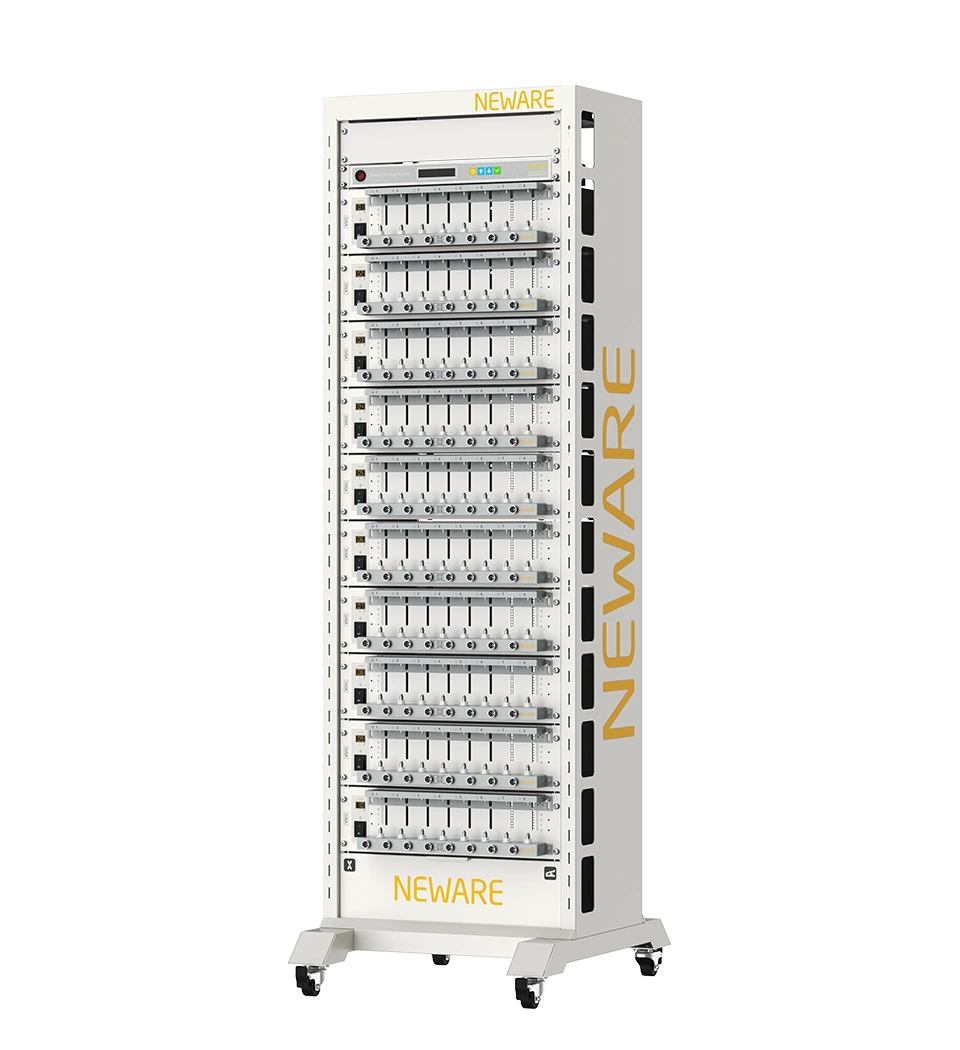

With a height of 3U*, it occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.
* 3 U = 5.25 IN = 13.335 cm
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.
● Discharge Data Protection
● Offline Testing Function
● Voltage Upper Limit Setting
● Voltage Lower Limit Setting
● Current Upper Limit Setting
● Current Lower Limit Setting
● Capacity Upper Limit Setting
● Delay Time Setting
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
| Equipment name | CT-4000 Battery Testing System |
|---|---|
| Voltage | |
| CV output range | 25mV~5V |
| Min discharge voltage | 1V for battery holder,1.5V for 2m cable |
| Accuracy | ± 0.02% of F.S. |
| Stability | ± 0.02% of F.S. |
| Current | |
| Output range/channel | Range1: 0.5mA-100mA Range2: 100mA-500mA Range3: 500mA-3A Range4: 3A-6A |
| Accuracy | ± 0.02% of F.S. |
| CV cut-off current | Range1：0.2mA Range2：1mA Range3：6mA Range4：12mA |
| Stability | ± 0.02% of F.S. |
| Power | |
| Output power/channel | 30W |
| Stability | ± 0.02% of F.S. |
| Time | |
| Current response time | <1.5ms (10%F.S. ~ 90%F.S.) |
| Working step time | ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms) |
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Temperature Range ：32℉~140℉(0℃~60℃)
● Ambient Air Temperature ：41℉~86℉(5℃~30℃)
● Temperature Fluctuation：≤1.8℉(1℃)(No load and stable temperature)
● Cooling Efficiency：≤40MINS(77℉→32℉)(25℃→0℃)
● Heating Efficiency：≤30MINS(77℉→140℉)(0℃→60℃)
● Temperature Deviation：±3.6℉(±2.0℃)(No load and stable temperature)
