For Coin Cells, Super Capacitors, Three-Electrode Systems Testing and etc.
| Voltage & Current | Range1 | Range2 | Range3 | Range4 |
| 5V100mA | 0.2μA ~ 0.1mA | 0.1mA ~ 1mA | 1mA ~ 10mA | 10mA ~ 100mA |
*Other models can be customized according to voltage and current requirements.

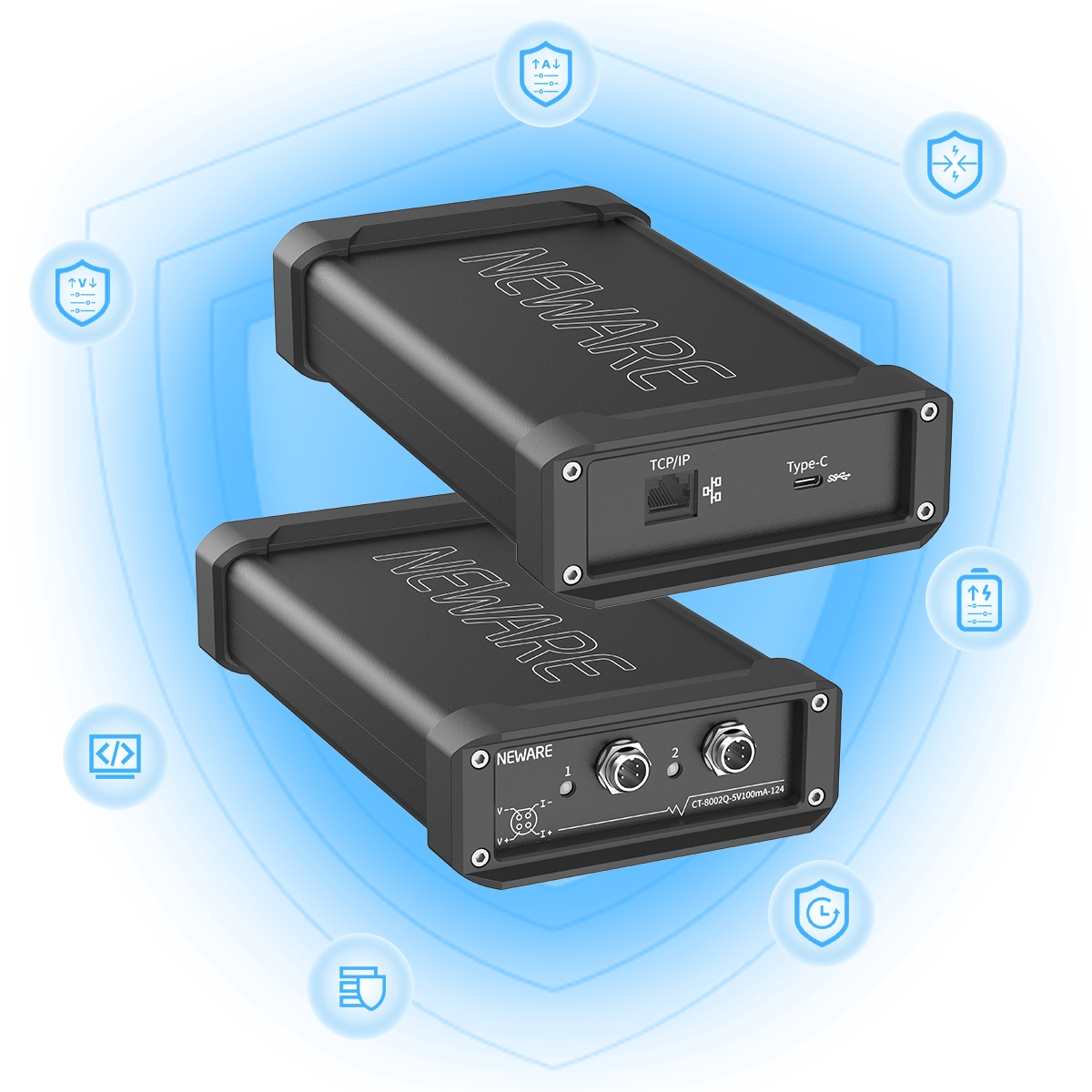

Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 2 channels, which can be independently data acquisition.

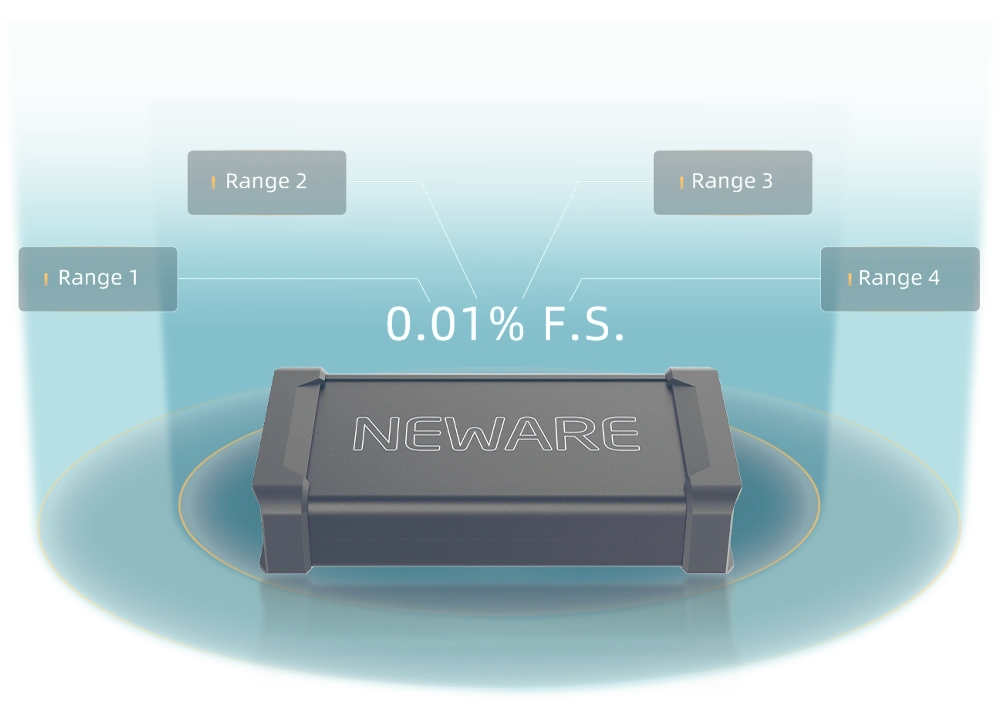

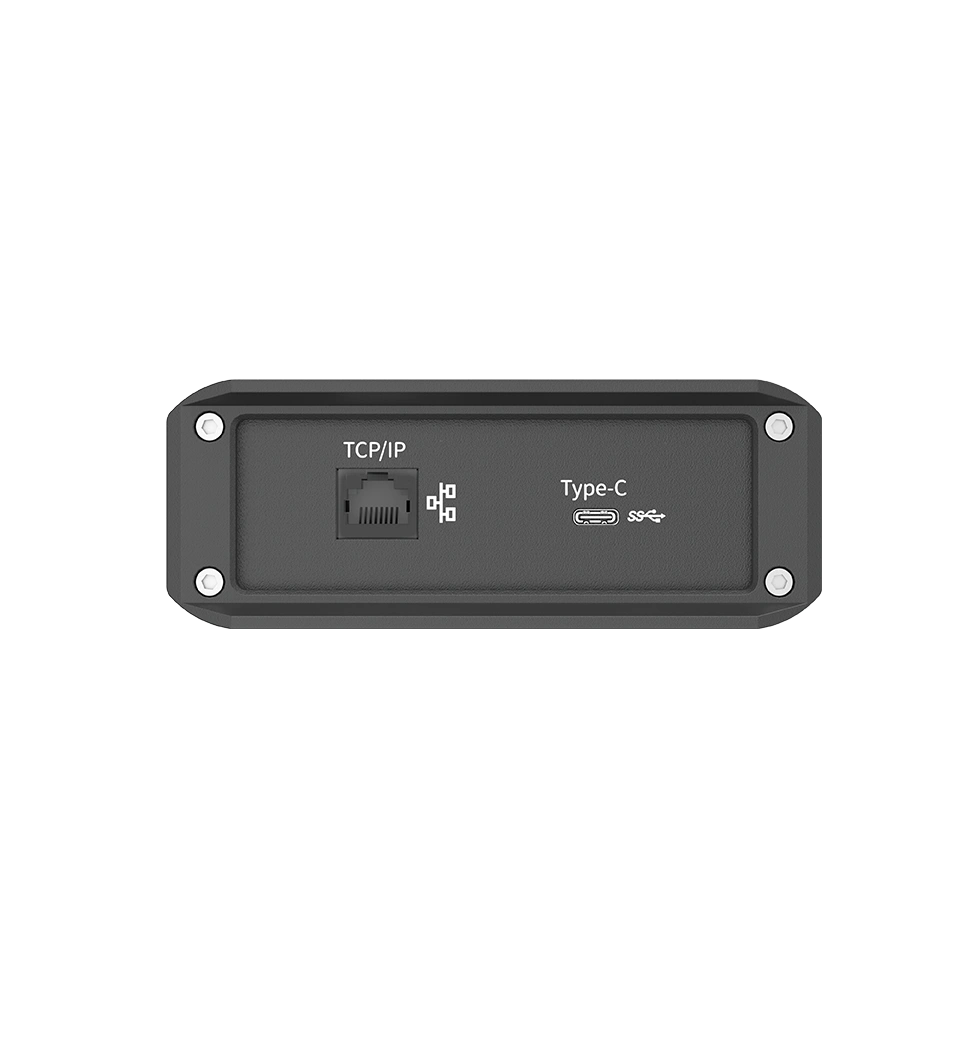

All-around product tour.4 current ranges from 0.5μA ~ 0.1mA, 0.1mA ~ 1mA, 1mA ~ 10mA , 10mA ~100mA can be selected to realize the controllable accuracy of small current in small range.
● Discharge Data Protection
● Offline Testing Function
● Voltage Upper Limit Setting
● Voltage Lower Limit Setting
● Current Upper Limit Setting
● Current Lower Limit Setting
● Capacity Upper Limit Setting
● Delay Time Setting
Delicate measurements at μA-level current, uncovering the essence of testing.
Based on NEWARE 5th generation test system architecture, it can perform Cycle Life Test, Rate Charging / Discharging Test, Pulse Simulation Test, HPPC, etc. Meanwhile, it can simulate the actual driving road conditions of electric vehicles by dynamic power or current waveform.
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

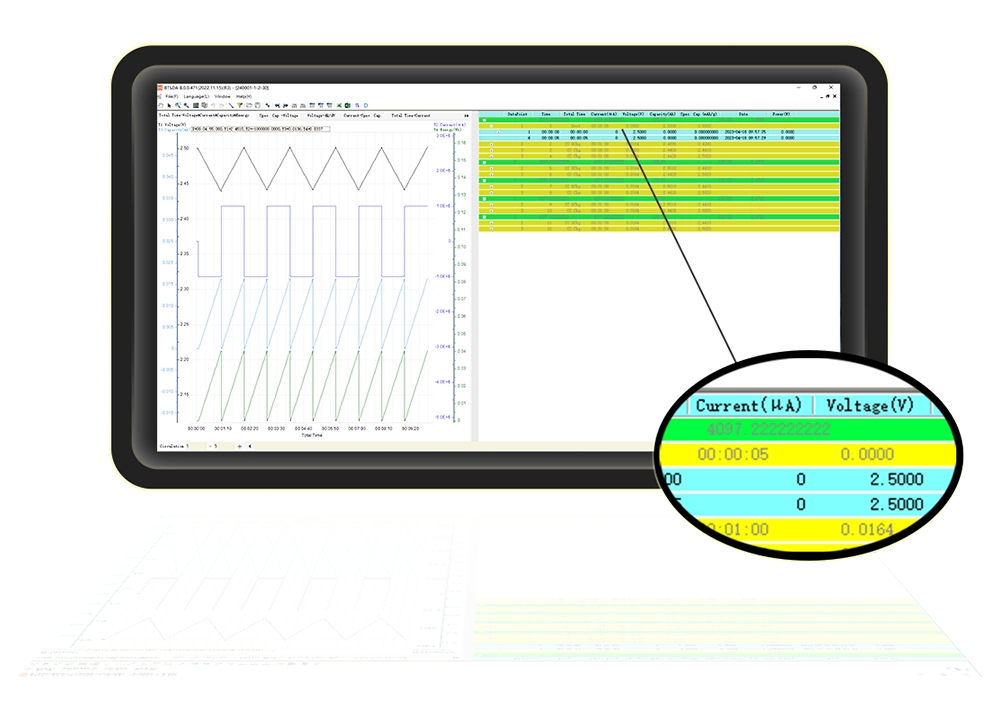

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

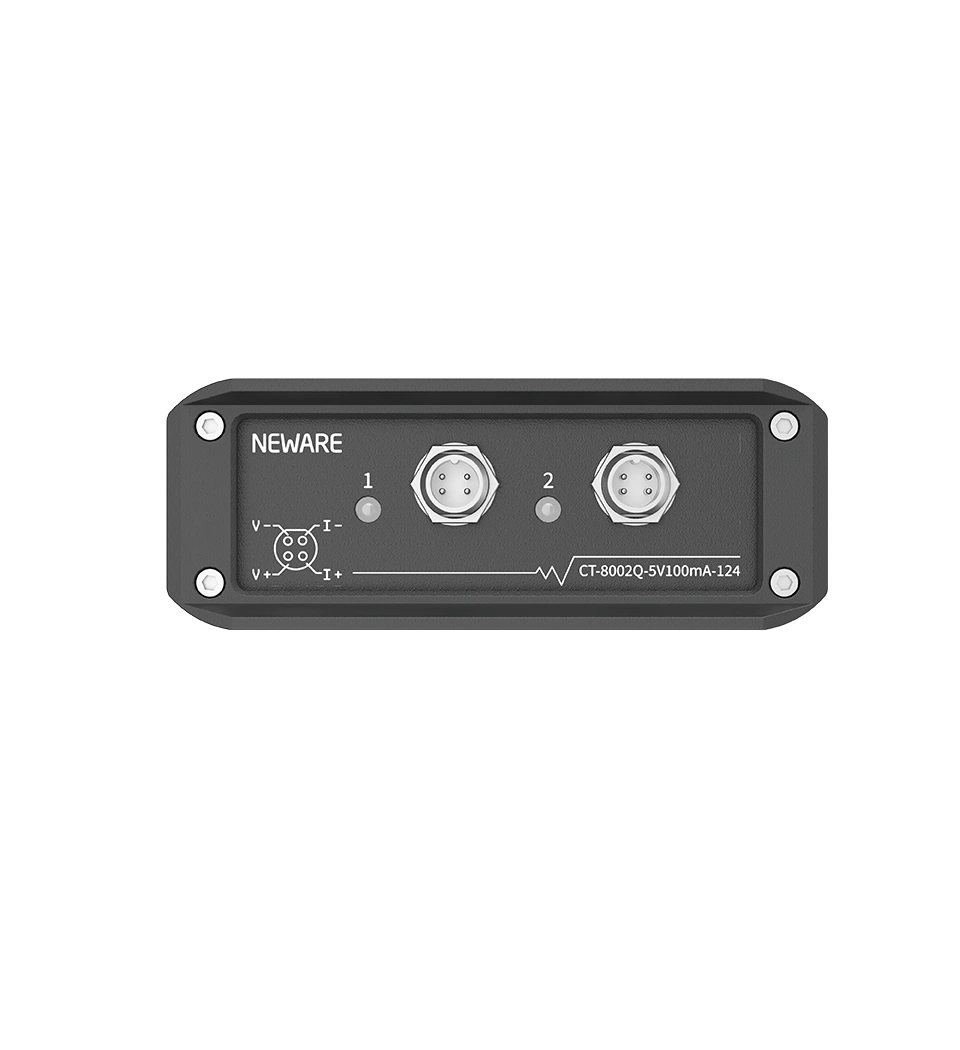

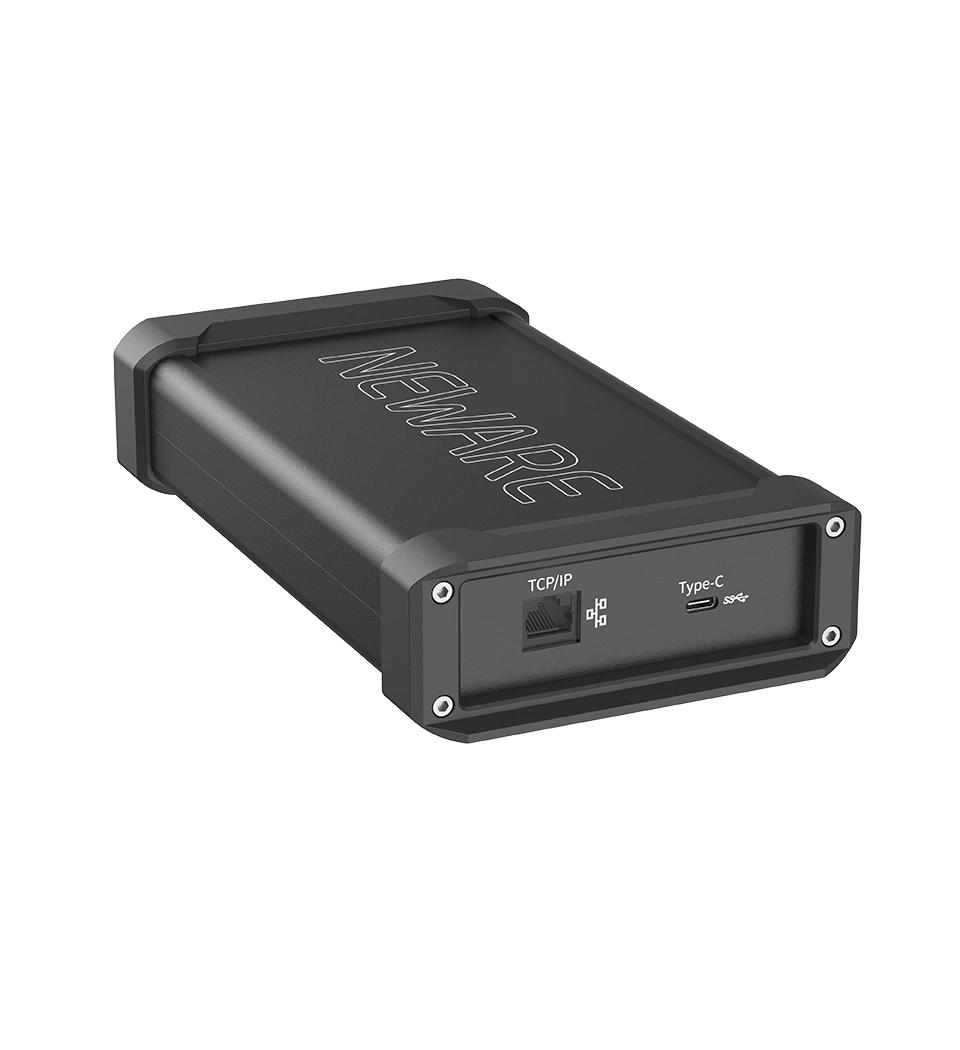

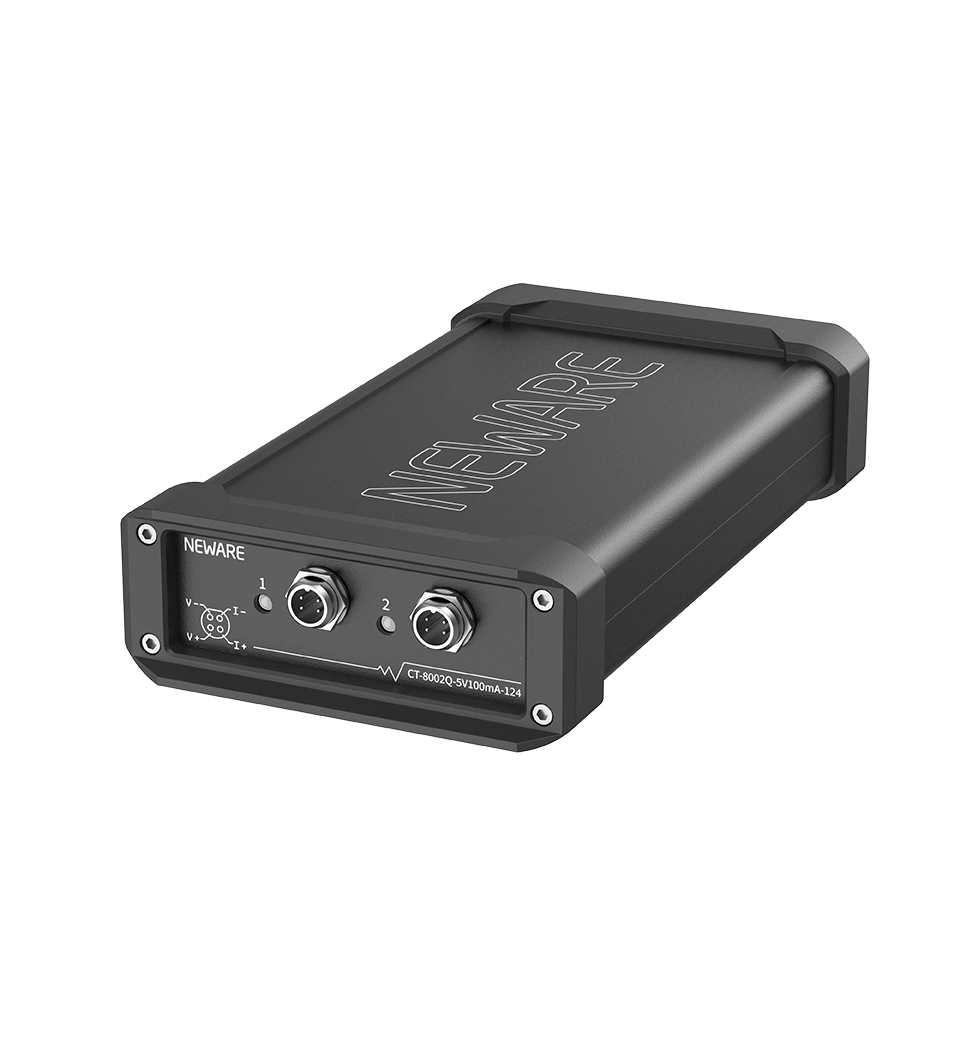

| Equipment name | CT-8002Q-5V100mA |
|---|---|
| Input power supply | AC 220V ±10% / 50Hz |
| Input power | 25 W |
| Resolution ratio | AD：24bit；DA：16bit |
| Input impedence | ≥1GΩ |
| Voltage | |
| Voltage range per channel | 10mV~5V |
| Minimum discharge voltage | -5 V |
| Accuracy | ± 0.01% of F.S. |
| Stability | ± 0.01% of F.S. |
| Current | |
| Current range per channel | Range 1:0.1 mA; Range 2:1 mA; Range 3:10 mA; Range 4:100 mA |
| Accuracy | ± 0.02% of F.S. |
| Constant pressure cut-off current | Range 1: 0.1 μA; Range 2: 1 μA; Range 3: 10 μA; Range 4: 100 μA |
| Stability | ± 0.02% of F.S. |
| Power | |
| Max power per channel | 0.5 W |
| Accuracy | ± 0.03% of F.S. |
| Stability | ± 0.03% of F.S. |
| Time | |
| Current response time | ≤1ms(10% ~ 90% of F.S.) |
| Charge and discharge conversion time | ≤20ms |
| Time range of work step | (365 * 24) hours / work step Supported in time format: 00:00:00:00 (h, min, s, ms) |
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH

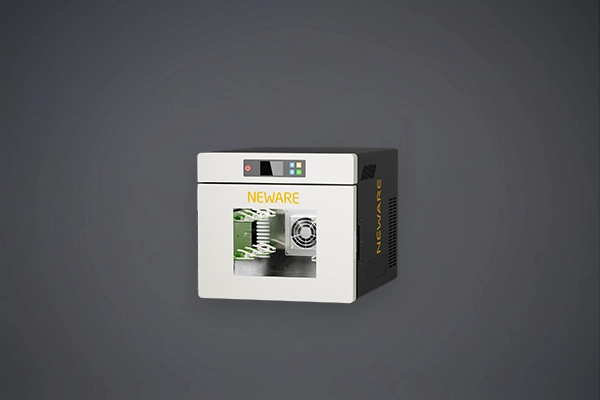

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH

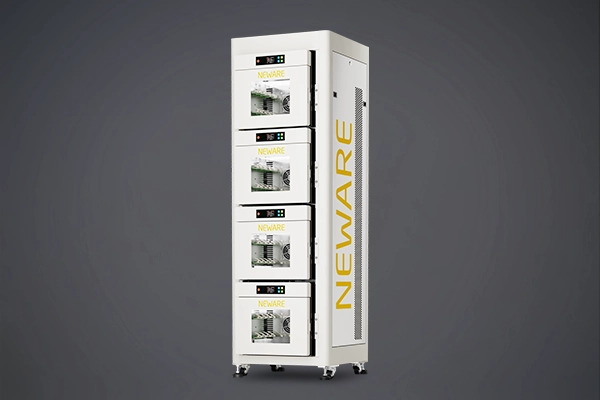

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：64CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃）
● Temperature Range ：32℉~140℉(0℃~60℃)
● Ambient Air Temperature ：41℉~86℉(5℃~30℃)
● Temperature Fluctuation：≤1.8℉(1℃)(No load and stable temperature)
● Cooling Efficiency：≤40MINS(77℉→32℉)(25℃→0℃)
● Heating Efficiency：≤30MINS(77℉→140℉)(0℃→60℃)
● Temperature Deviation：±3.6℉(±2.0℃)(No load and stable temperature)
 |
 |
 |
|---|---|---|
| Equipment model | CT-8002Q-5V100mA-124 | CT-9002-5V6A-F-204n |
| Resolution ratio | ||
| AD | 24bit | 16bit |
| DA | 16bit | 16bit |
| Voltage | ||
| Range | 10mV~5V | Charge：0V~5V Discharge：-5V~5V |
| Min discharge voltage | -5V | -5V |
| Accuracy | ±0.01% F.S. | ±0.02% F.S. |
| Stability | ±0.01% F.S. | ±0.01% F.S. |
| Current | ||
| Range | Range 1: 0.2μA ~ 0.1mA Range 2: 0.1mA ~ 1mA Range 3: 1mA ~ 10mA Range 4: 10mA ~ 100mA |
Range 1: 0.1μA ~ 180μA Range 2: 180μA ~ 6mA Range 3: 6mA ~ 180mA Range 4: 180mA ~ 6A |
| Accuracy | ±0.02% F.S. Range1: 0.1μA Range2: 1μA Range3: 10μA Range4: 100μA |
±0.02% F.S. Range1: ±36nA Range2: ±1.2μA Range3: ±36μA Range4: ±1.2mA |
| Stability | ±0.02% F.S. | ±0.02% F.S. |
| Power | ||
| Max power per channel | 0.5W | 30W |
| Stability | ±0.03% F.S. | ±0.02% F.S. |
| Time | ||
| Current response time | ≤1ms (10% ~ 90% F.S.) | ≤100μs (10% ~ 90% F.S.) |
| Time range of work step | ≤ (365*24) hour/step | ≥10ms |
| Data record | ||
| Recording frequency | 100Hz | 1000Hz |
| Recording condition | Time △t: ≥10ms Voltage △U: ≥5mV Current △I: Range 1: ≥0.1μA, Range 2: ≥1μA, Range 3: ≥10μA, Range 4: ≥100μA |
Time △t: ≥1ms Voltage △U: ≥1mV Current △I: ≥100nA |
| Charge | ||
| Recording condition | CC charging, CC-CV charging, CV charging, CP charging, CP-CV charging, CR charging, Current ramp charging, Adaptive charging | CC charging, CC-CV charging, CV charging, CP charging, CP-CV charging, CR charging |
| Cut-off condition | Voltage, Current, Relative time, Capacity, -△V | Voltage, Current, Relative time, Capacity, Energy, Power |
| Discharge | ||
| Discharging mode | CC discharging, CV discharging, CC-CV discharging, CP discharging, CR discharging | CC discharging, CP discharging, CR discharging, Pulse discharging, CC-CV discharging |
| Cut-off condition | Voltage, Current, Relative time, Capacity, -△V | Voltage, Current, Relative time, Capacity |
| Pulse mode | ||
| Minimum pulse width | 500ms | — |
| Pulses numbers | A single pulse step supports 32 different pulses. | — |
| Operating condition simulation | ||
| Charge/Discharge | CC, CP | Supports only unidirectional current. |
| Cut-off condition | Time, Number of step | — |
| DCIR test | ||
| DCIR | Support for custom taking points for the calculation of DCIR. | Support for custom taking points for the calculation of DCIR. |
| Circulate | ||
| Cycle measuring range | 1~65535 times | 1~65535 times |
| Single cycle step number | 254 | 255 |
| Cyclic nesting | ≤3 Layers | ≤4 Layers |
