For testing 100A cylindrical batteries in a temperature chamber.
Features
Tech Specs

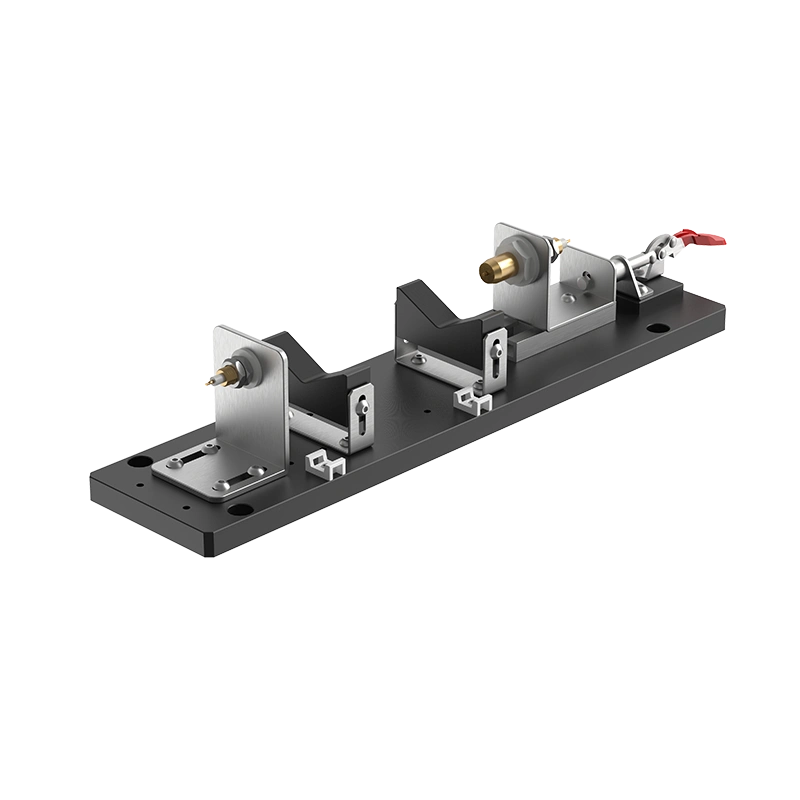

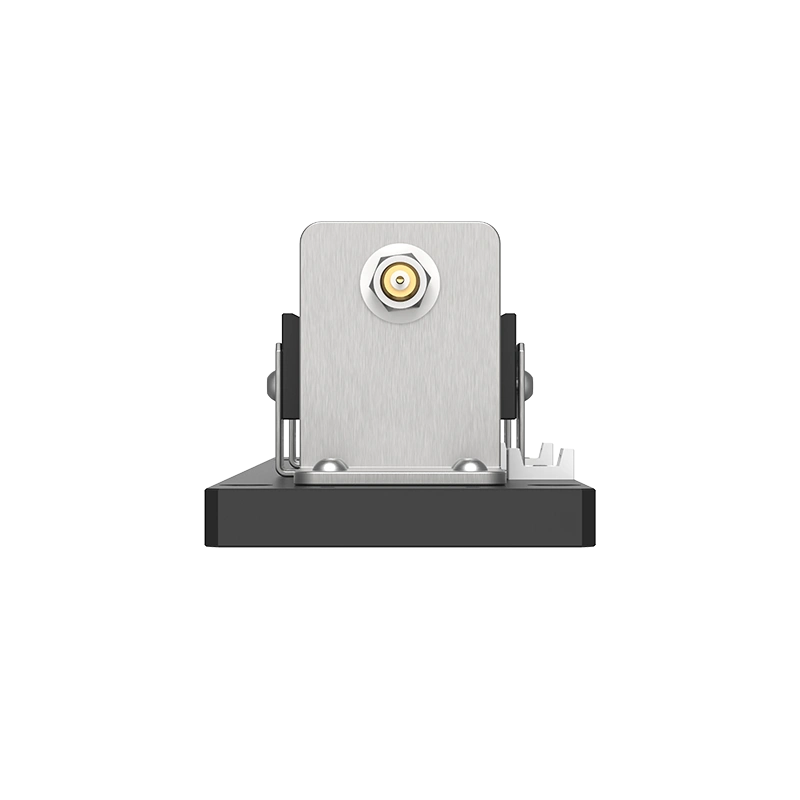

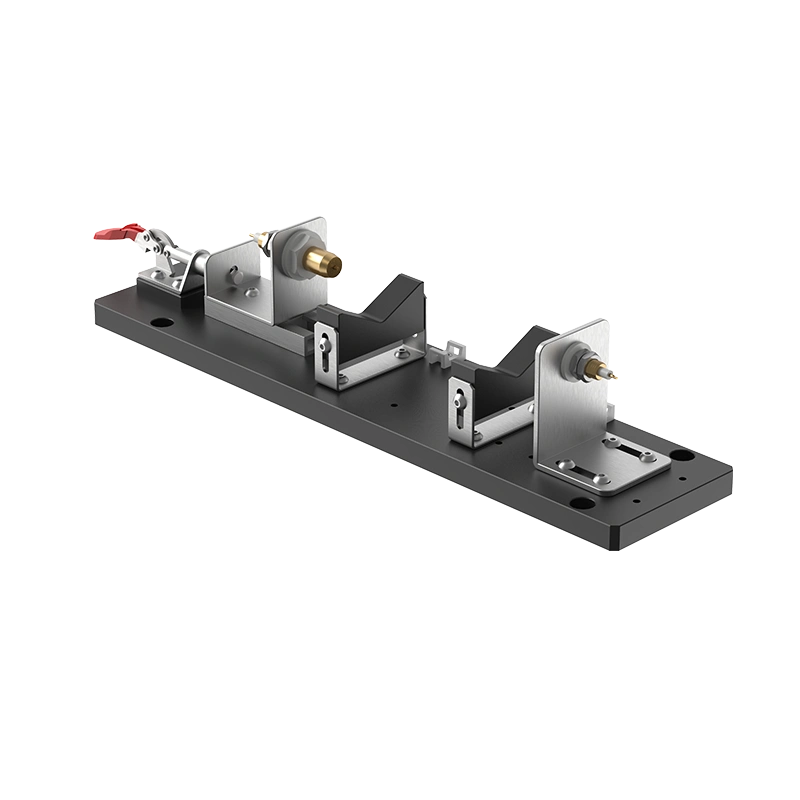

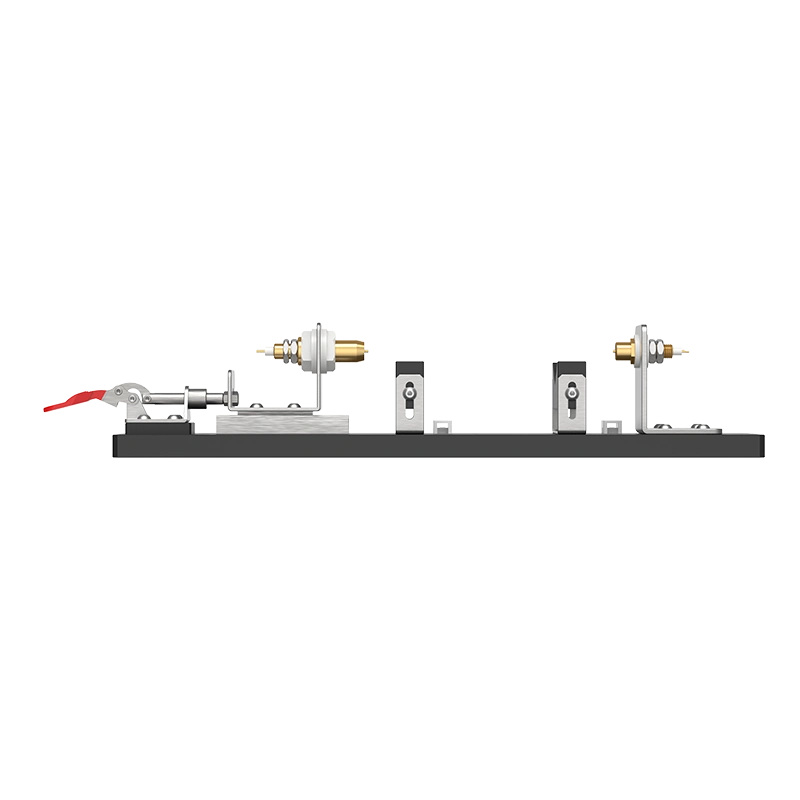

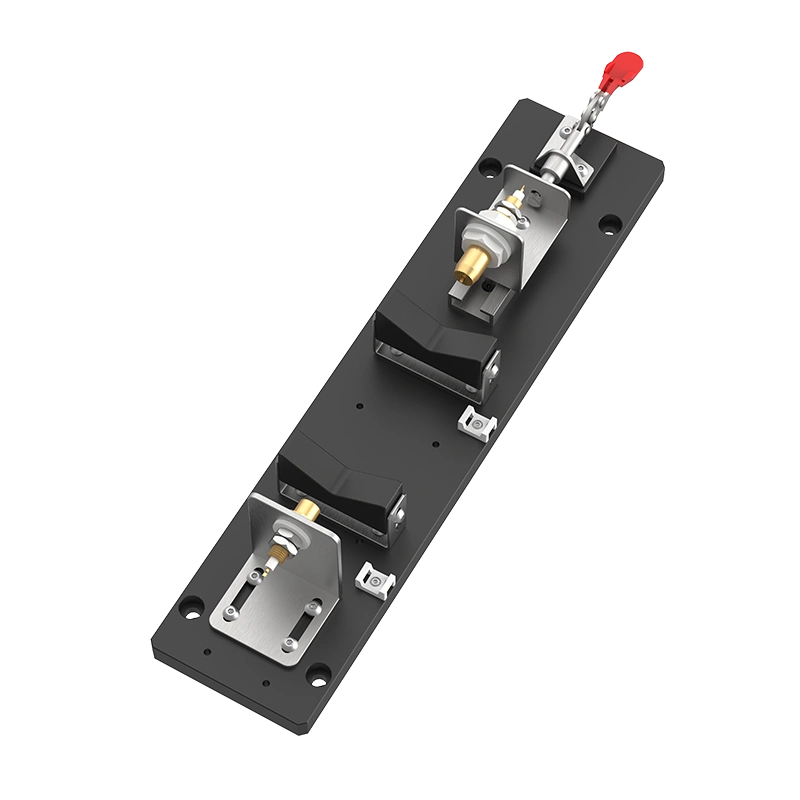

Capable of withstanding a maximum current of 100A, designed for testing 3260/4680 cylindrical batteries. It can be fixed in a temperature chamber tray for temperature performance testing. The base plate is made of phenolic material, effectively preventing the risk of battery short circuits. The positioning block secures and supports the battery, ensuring its stability.
| Equipment name | 100A Cylindrical Cell Clamp for Temperature Chamber |
|---|---|
| Model | PCJ-YZJ-Y-3260-100A-WX |
| Current | 100A |
| Battery Size | Length: 2.0"-5.5" (50-140mm) Diameter: 0.8"-1.0" (21-48) |
| External Size | 15.4"×3.9"×2.8" (390×100×72mm) |
| Weight | 1kg |
| Wire Terminal | M8 |
