2 channels, for testing 75A cylindrical batteries.
Features
Tech Specs

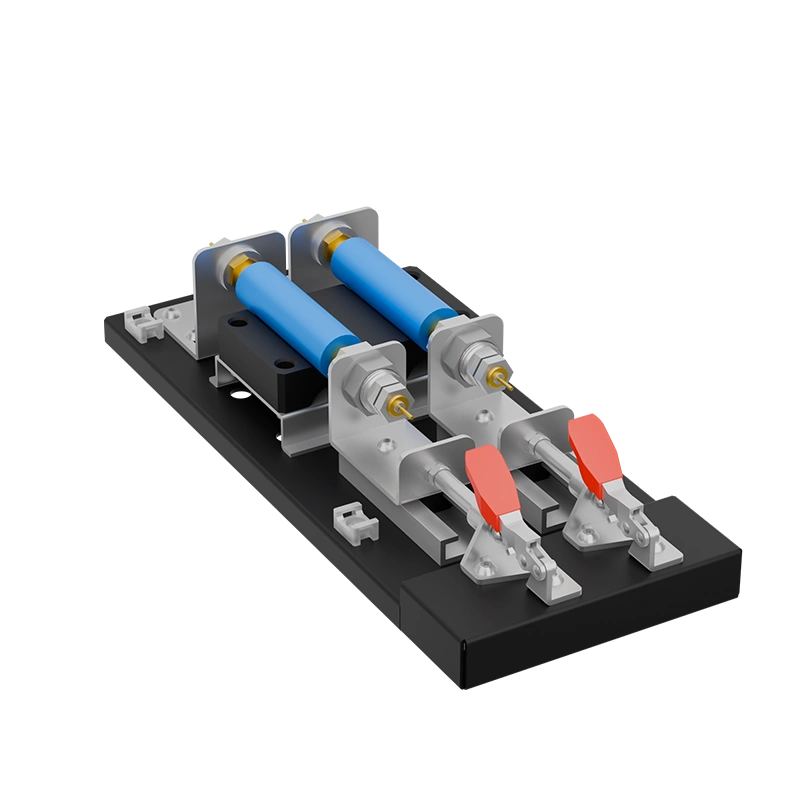

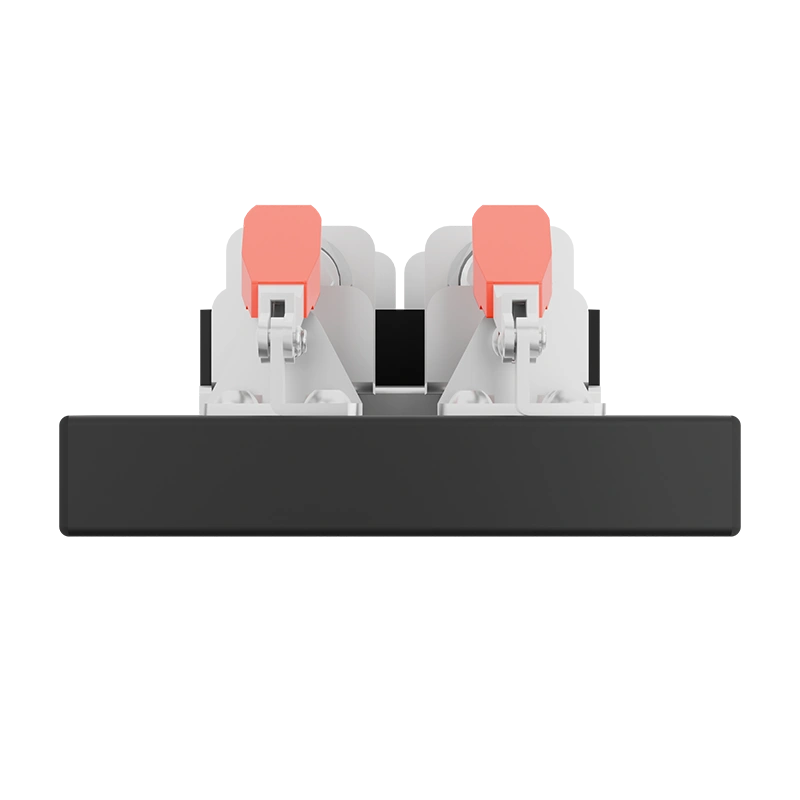

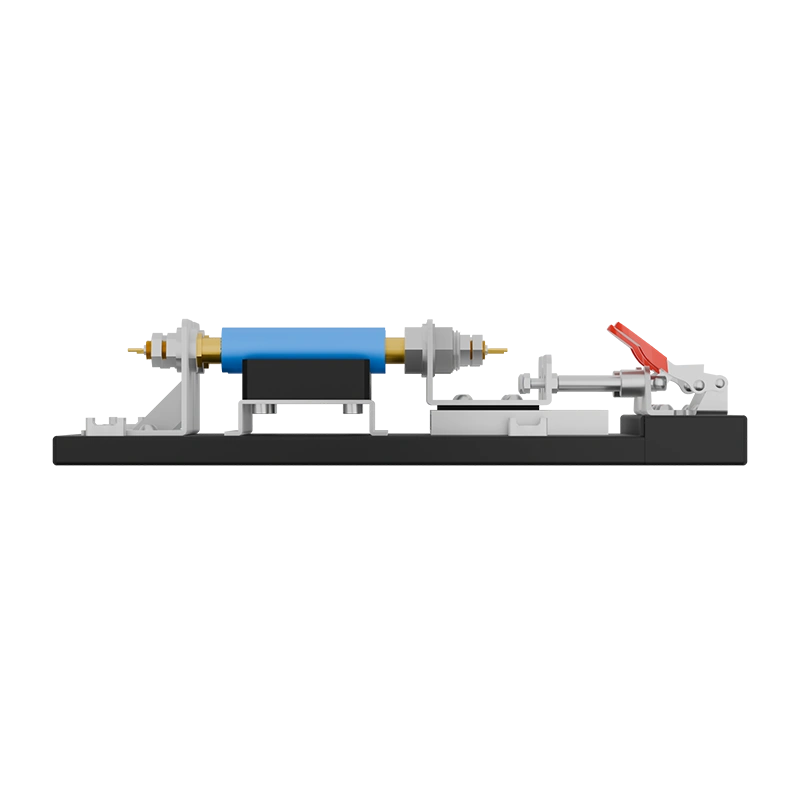

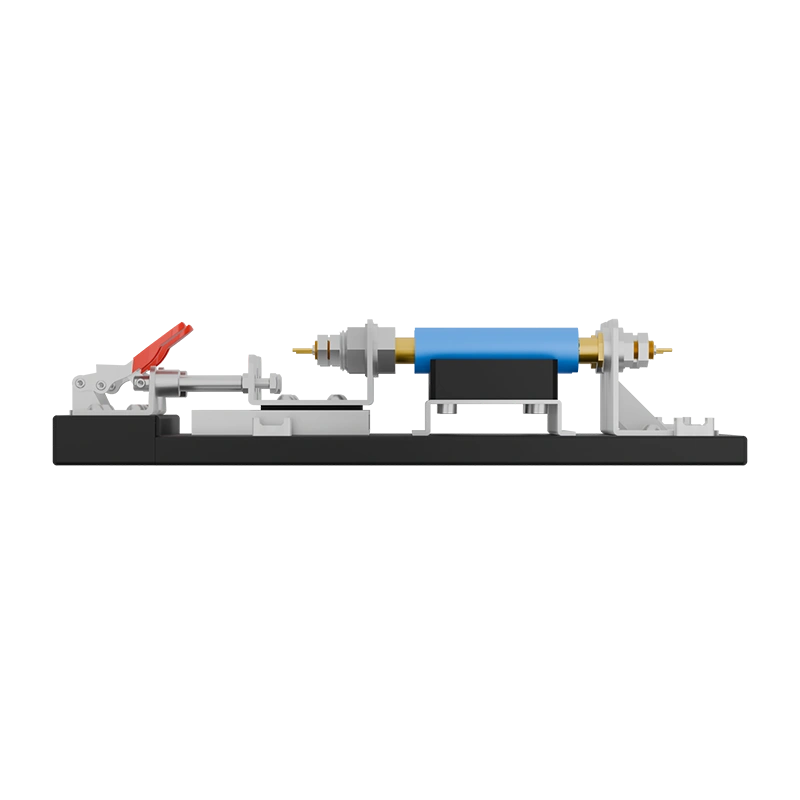

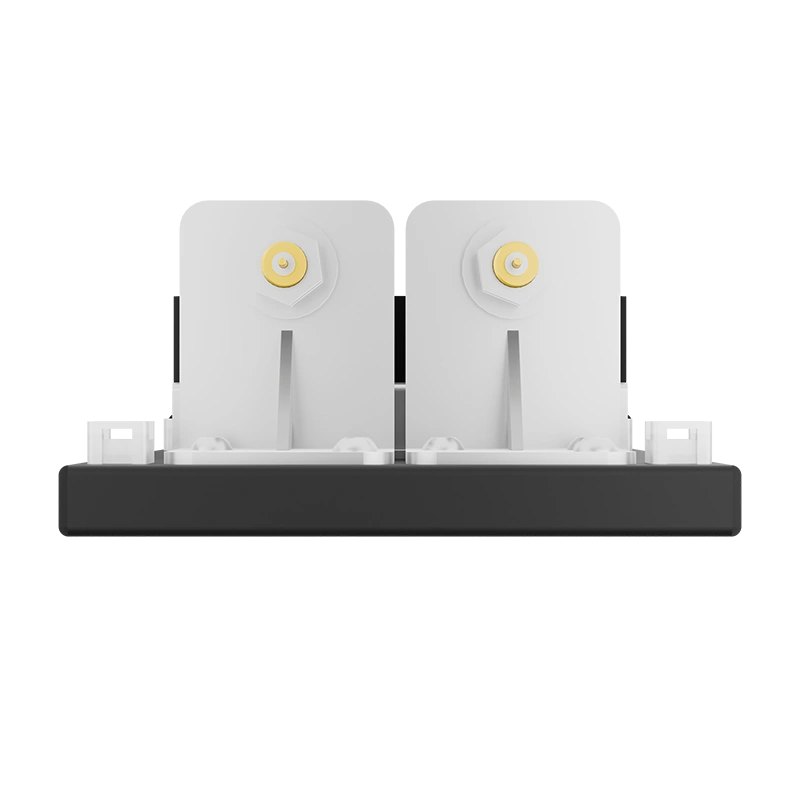

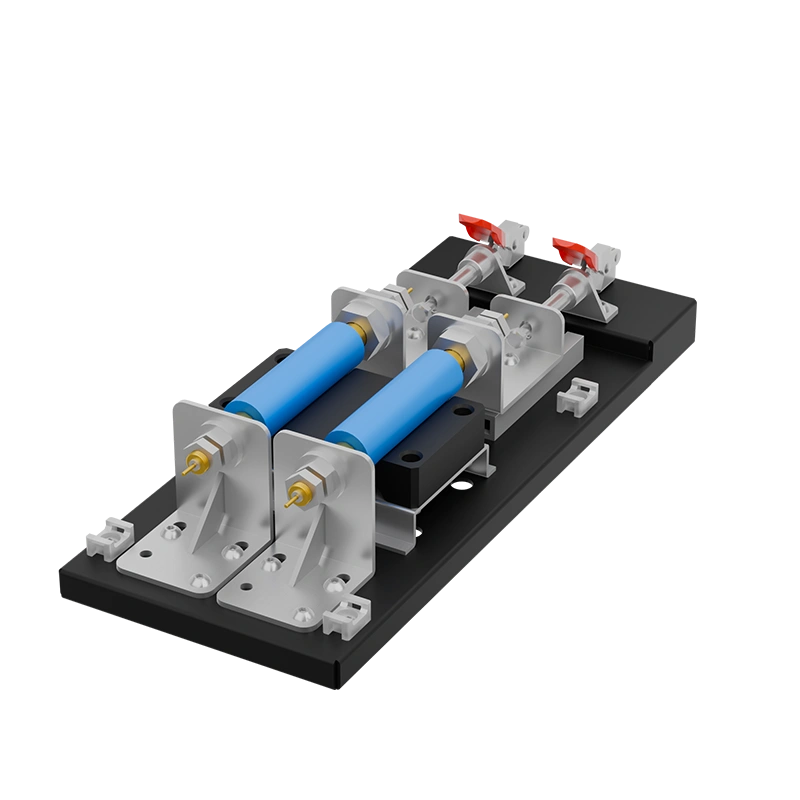

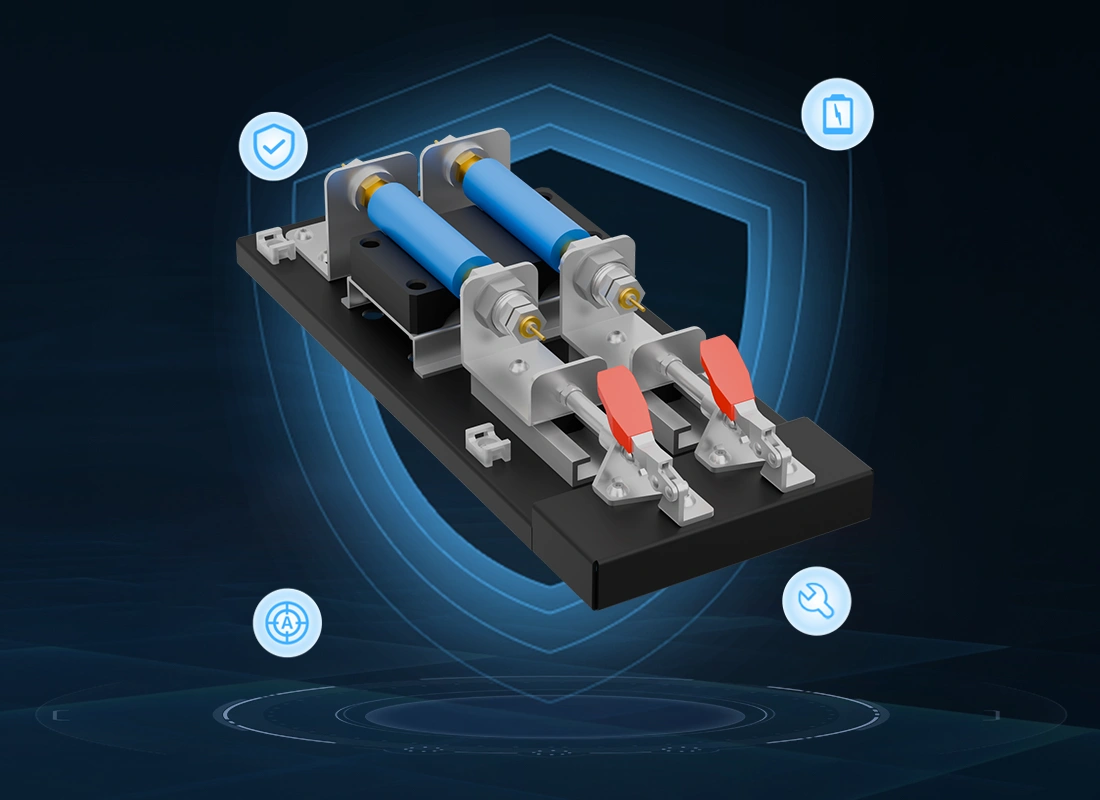

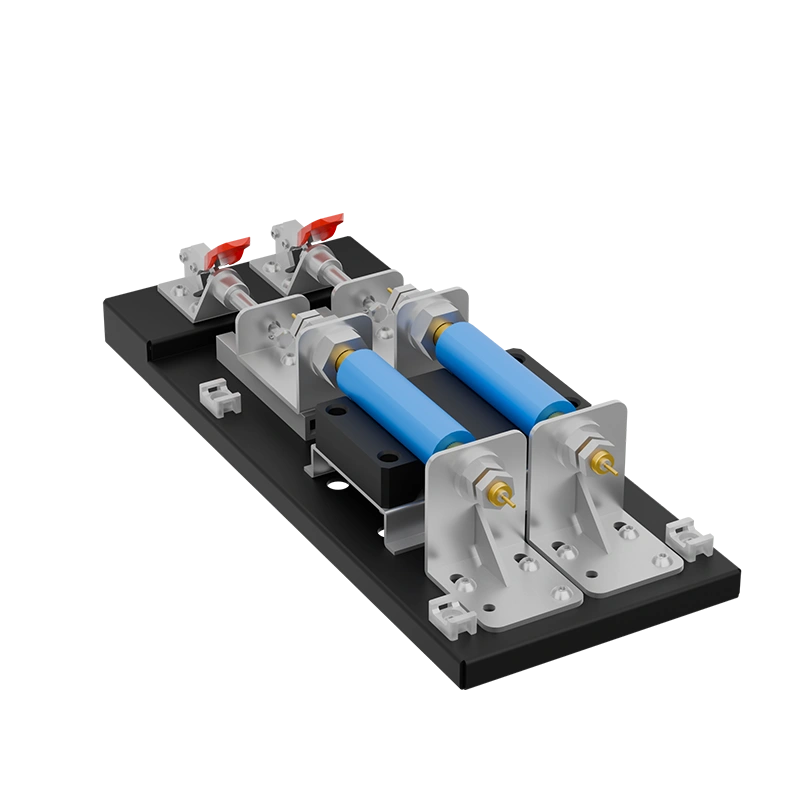

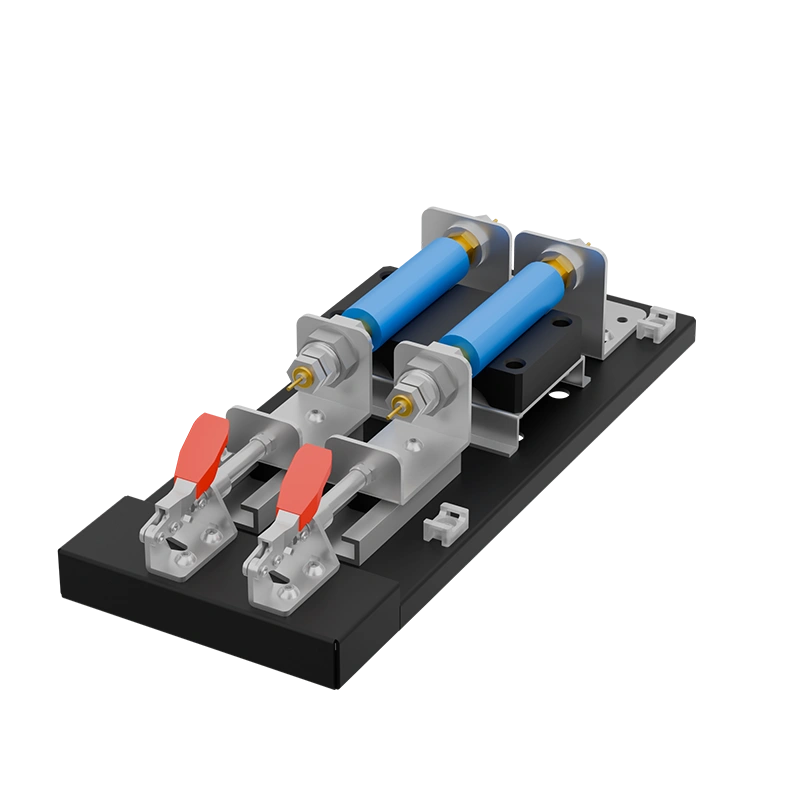

2-channel cylindrical battery fixture, specifically designed for cylindrical battery testing.
● High Current Capacity: Supports high current testing to ensure the accuracy and reliability of battery performance testing.
● Gold-Plated Four-Wire Fixture Design: Reliable contacts enhance testing precision and stability.
● Toggle Design: Increases test efficiency and simplifies operation.
● Compact Structure: High space utilization, suitable for laboratory and production environments.
| Equipment name | 75A 2CH Cylindrical Cell Toggle Clamp |
|---|---|
| Model | PTF-ZJ-Y-2CH-75A-TP |
| Current | 75A |
| Contact Resistance | ≤0.5mΩ |
| Temperature rise testing | ≤25℃ |
| Probe Compression Dimensions | 0.2" (5mm) |
| Probe tip diameter | 0.4" (10mm) |
| Thread Connection | M8 |
| Battery Size | Length: 2.6"-2.8" (65-70mm) Dimensions: 0.7"-0.8" (18-21mm) |
| External Size | 12.2"×4.3"×2.4"(310×110×60mm) |
| Weight | 1.8kg |
