Used for cylindrical cell charge/discharge testing, voltage,and formation measurement.
Features
Tech Specs
Insulating silicone protection is installed between the positive and negative poles, avoiding short circuits in the circuit. The three negative pole conduction and diversion operation enhance the safety of the testing process.
With its sleek design and flexible portability, clamps are seamlessly integrated with charge and discharge testing equipment or integrated systems for electrochemical performance testing of cylindrical battery cells.
The clamps are designed for easy operation, with adjustable height for the upper probe to accommodate various sizes of cylindrical battery cells. They also offer a wide current range, covering from 60A to 100A, ensuring compatibility with a broad range of testing requirements.
Featuring a vertical lifting contact operation, our clamps provide precise alignment and excellent conductivity, ensuring accurate and damage-free contact with the batteries during testing. Experience optimal electrical conduction with high-precision design.

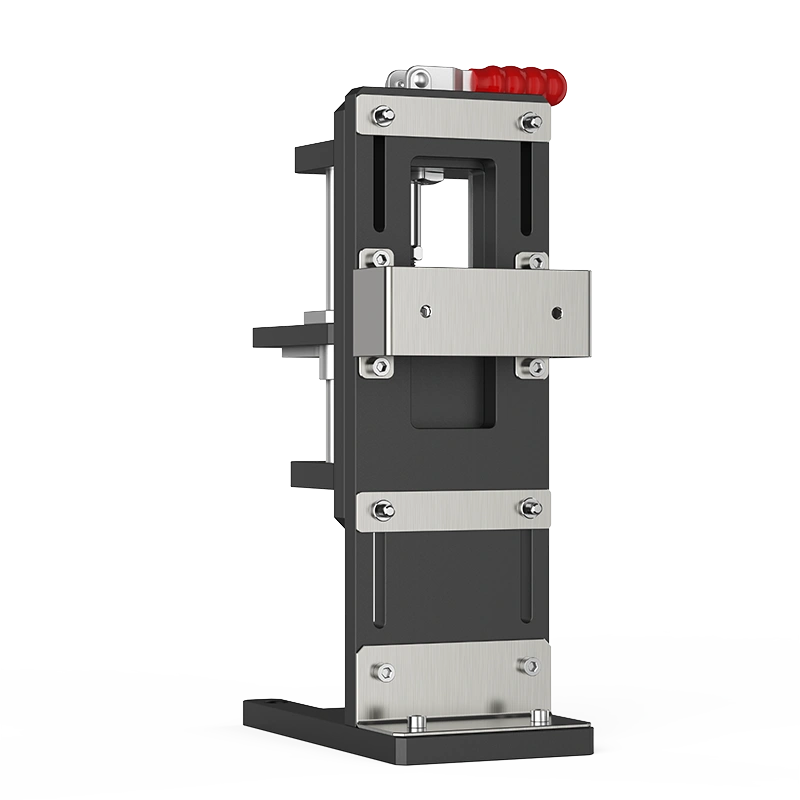

| Equipment name | Cylindrical Cell Toggle Clamp |
|---|---|
| Current | 60A~100A |
| Battery Size | 3.1"~4.7"
80mm~120mm |
| External Size | 3.1"×5.9"×9.6"
80mm×150mm×244mm |
