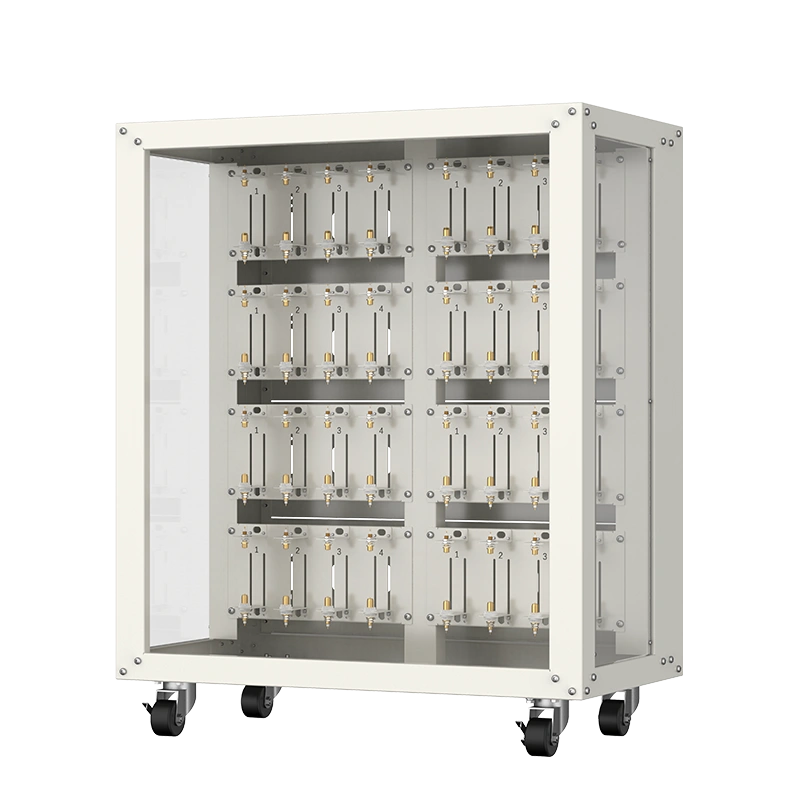

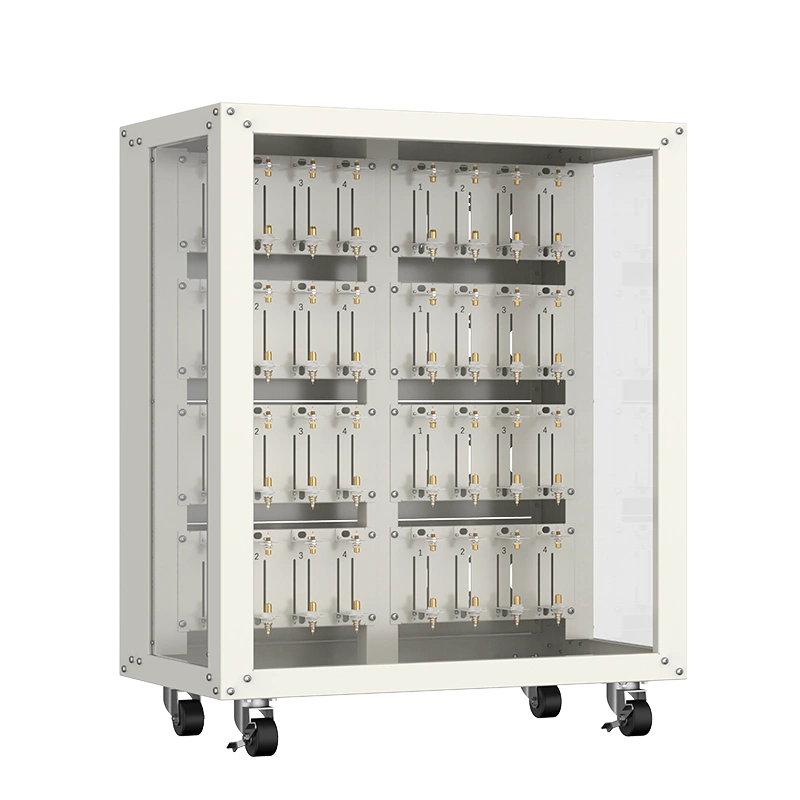

Cylindrical cells testing rack supports simultaneous battery testing of 32 cylindrical cells.
Features
Tech Specs
Designed for use with battery testing systems, specifically for cylindrical battery charge-discharge testing, with a testing current of 50A.

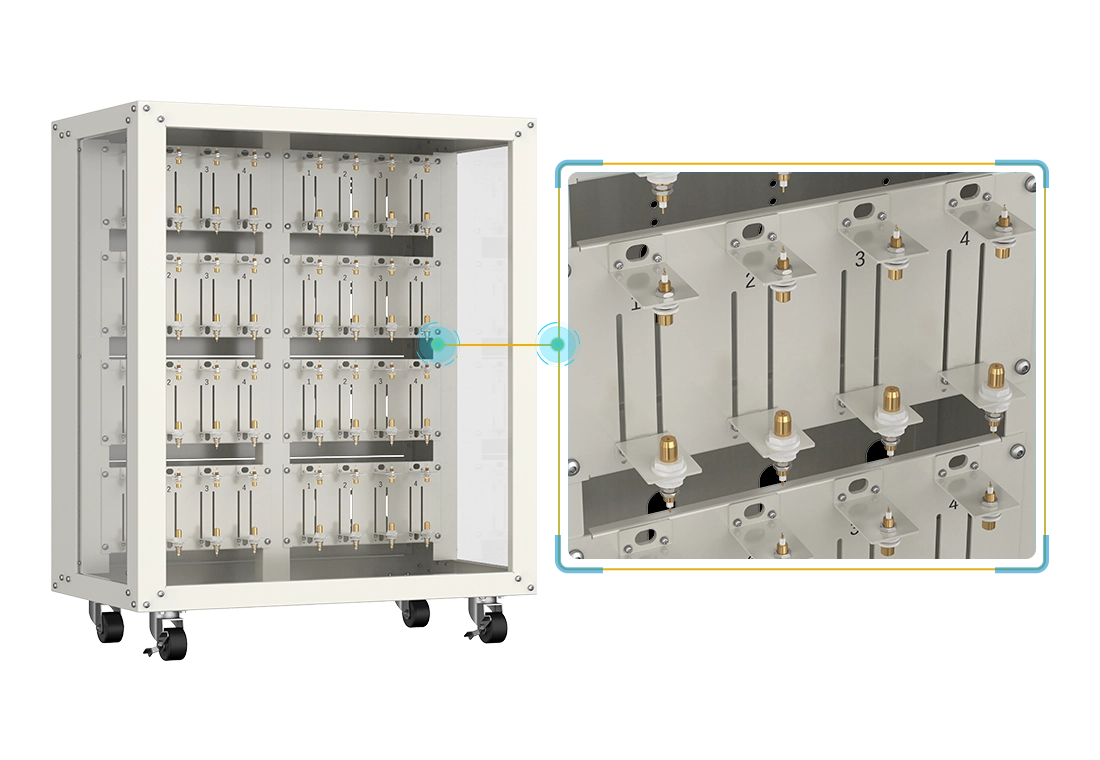

All-around product tour.The bottom probes are adjustable and secured with stainless steel screws, allowing for adjustment of cells accommodation space according to experimental needs. It can accommodate cylindrical cells with lengths ranging from 65mm to 80mm.

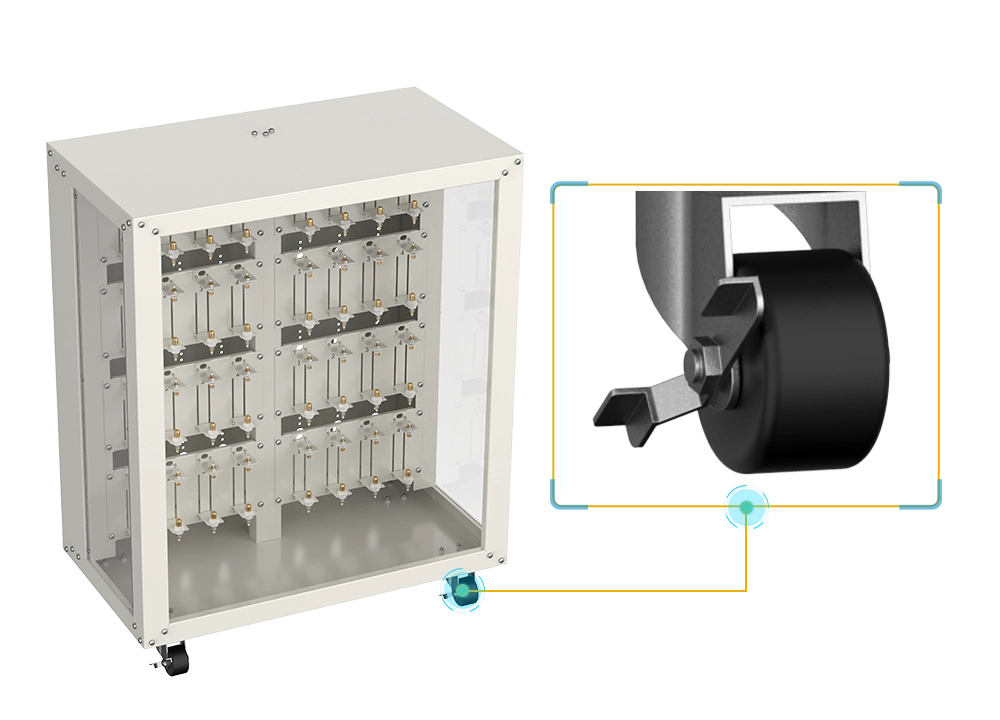

With a small footprint and equipped with 360° swivel casters, the battery rack is easily movable and can be securely locked in place using the locking mechanism on the tightening wheels.

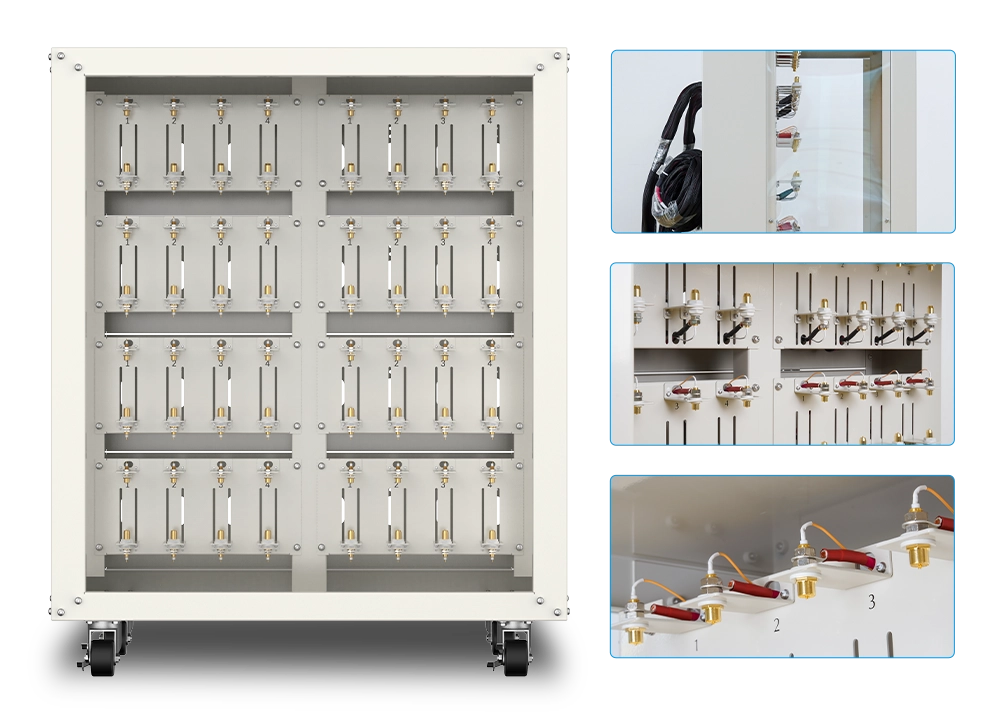

With a high-quality conductive coating that is uniformly smooth, ensuring excellent conductivity. The acrylic panels seal both sides, creating a semi-enclosed space that ensures a safe testing environment.
| Equipment name | 50A Cylindrical Cell Rack |
|---|---|
| Current | 50A |
| Number of Channels per Panel | 4 |
| Battery Rack Layout | 4 × 8 |
| Number of Channels | 32 |
| Battery Size | Diameter: 0.6"~0.8"(14~21mm)
Length: 2.6"~3.1"(65~80mm) |
| External Size | 35.3"× 19.7"× 43.1"
896mm×500mm×1096mm |
