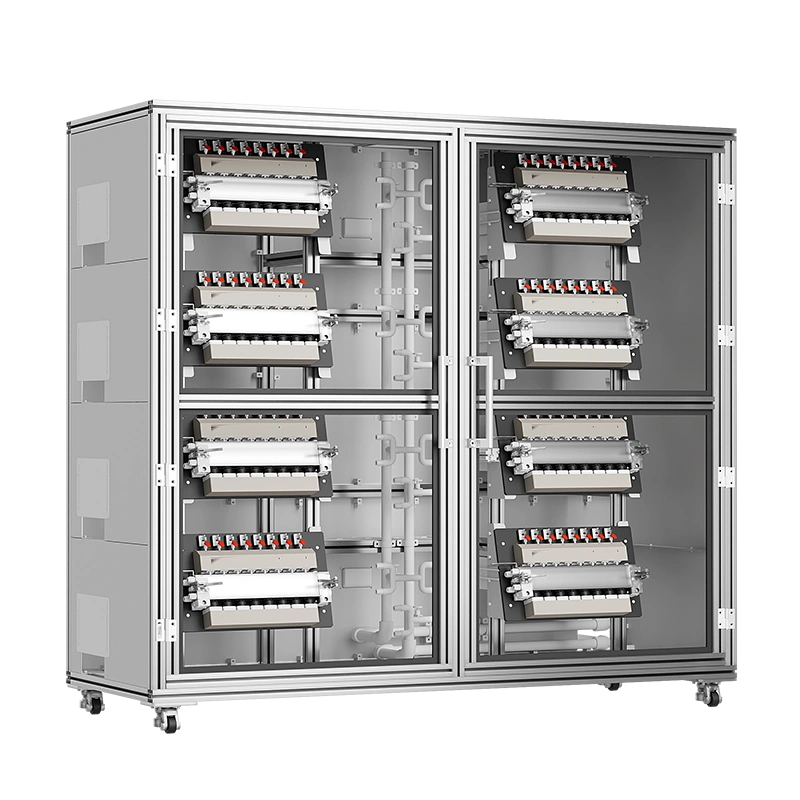

The cylindrical water-cooled battery rack, equipped with a 30A water-cooled fixture and a 64-channel design, provides efficient heat dissipation, ensuring stable and reliable battery testing, extending battery life, and enhancing test safety.
Features
Tech Specs
Efficient heat dissipation design.
The water-cooled battery rack is equipped with a circulating water cooling system that can quickly remove the heat generated by the battery during charging and discharging, ensuring that the battery remains within an optimal working temperature range. This not only extends the battery's service life but also significantly enhances the safety of battery testing.
64-channel high capacity.

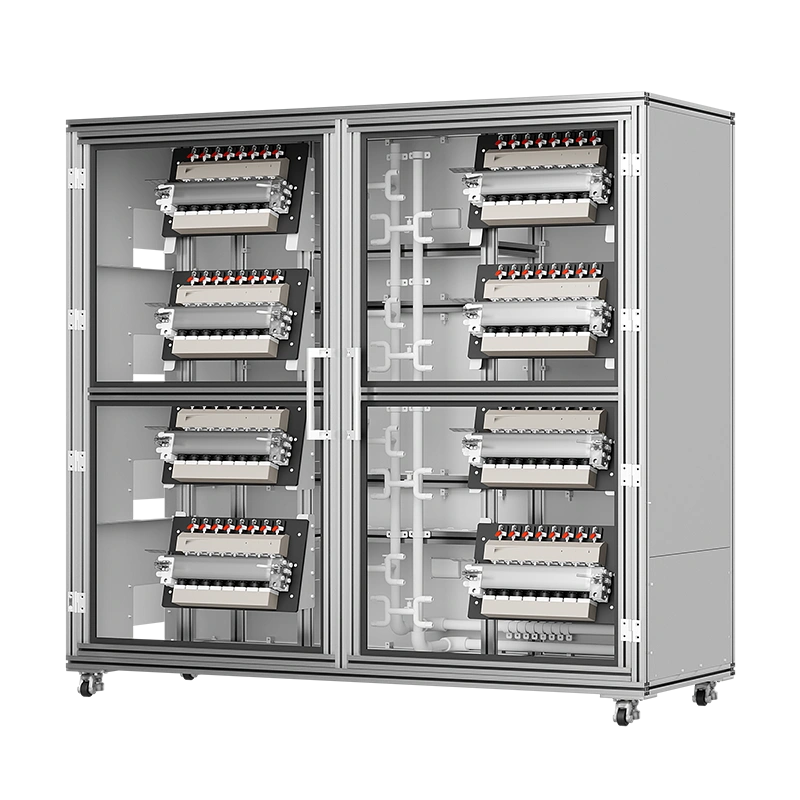

With 64 independent channels, the water-cooled battery rack can support the testing of multiple batteries simultaneously, greatly improving testing efficiency. Each channel is equipped with an independent water-cooled fixture to ensure uniform and efficient heat dissipation for each battery, meeting the needs of large-scale battery testing.
Safety, reliability, and easy operation and maintenance.
The design of the water-cooled battery rack fully considers safety. The cooling liquid is completely isolated from the battery, preventing the risk of short circuits and fires caused by leakage.
| Equipment name | Water-Cooled 30A 64CH Cylindrical Cell Rack |
|---|---|
| Model | PDCJ-Y1-ZJ-30A-64CH-SL-LG-C |
| Current | 30A |
| Battery Size | Length: 2.8" (70mm) Dimensions: 0.8" (21mm) |
| Number of Channels | 64CH |
| External Size | 78.3"×29.1"×72.5"(1990×740×1842mm) |
| Weight | 265kg |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
