Wide-range temperature control, high-low temperature battery testing.
Features
Tech Specs

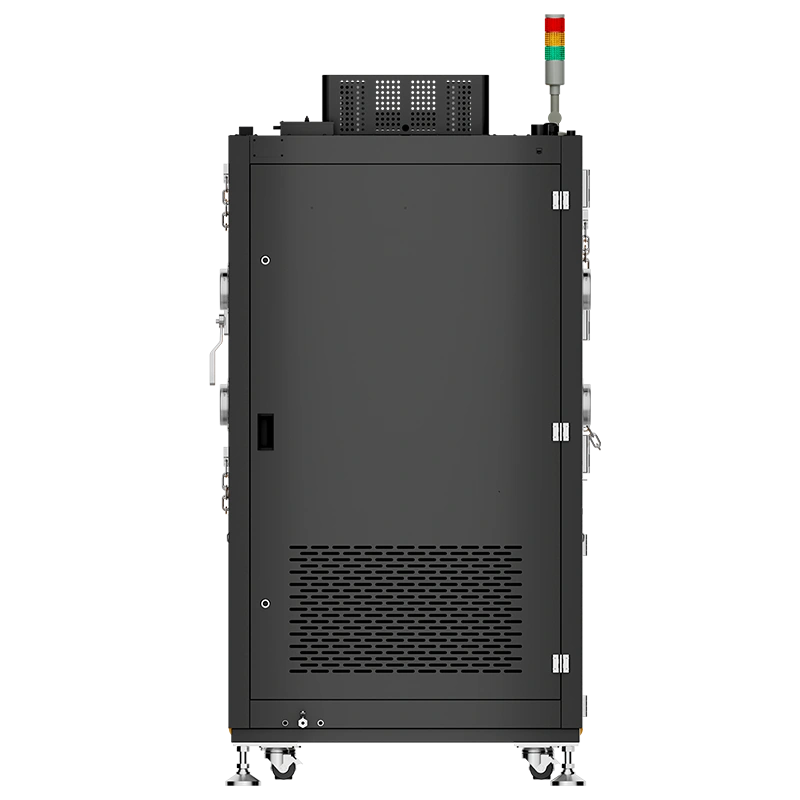

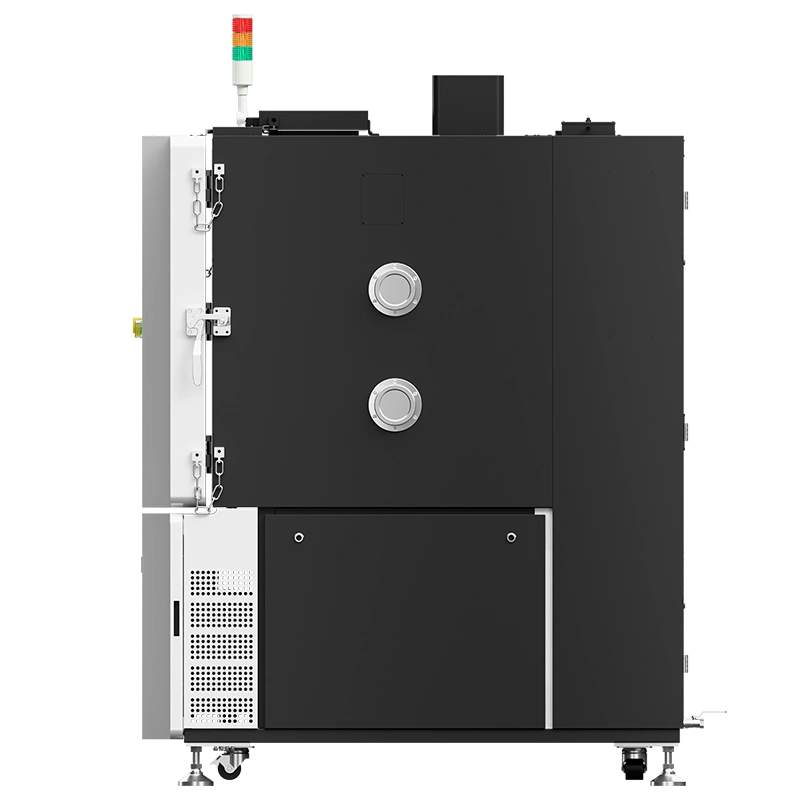

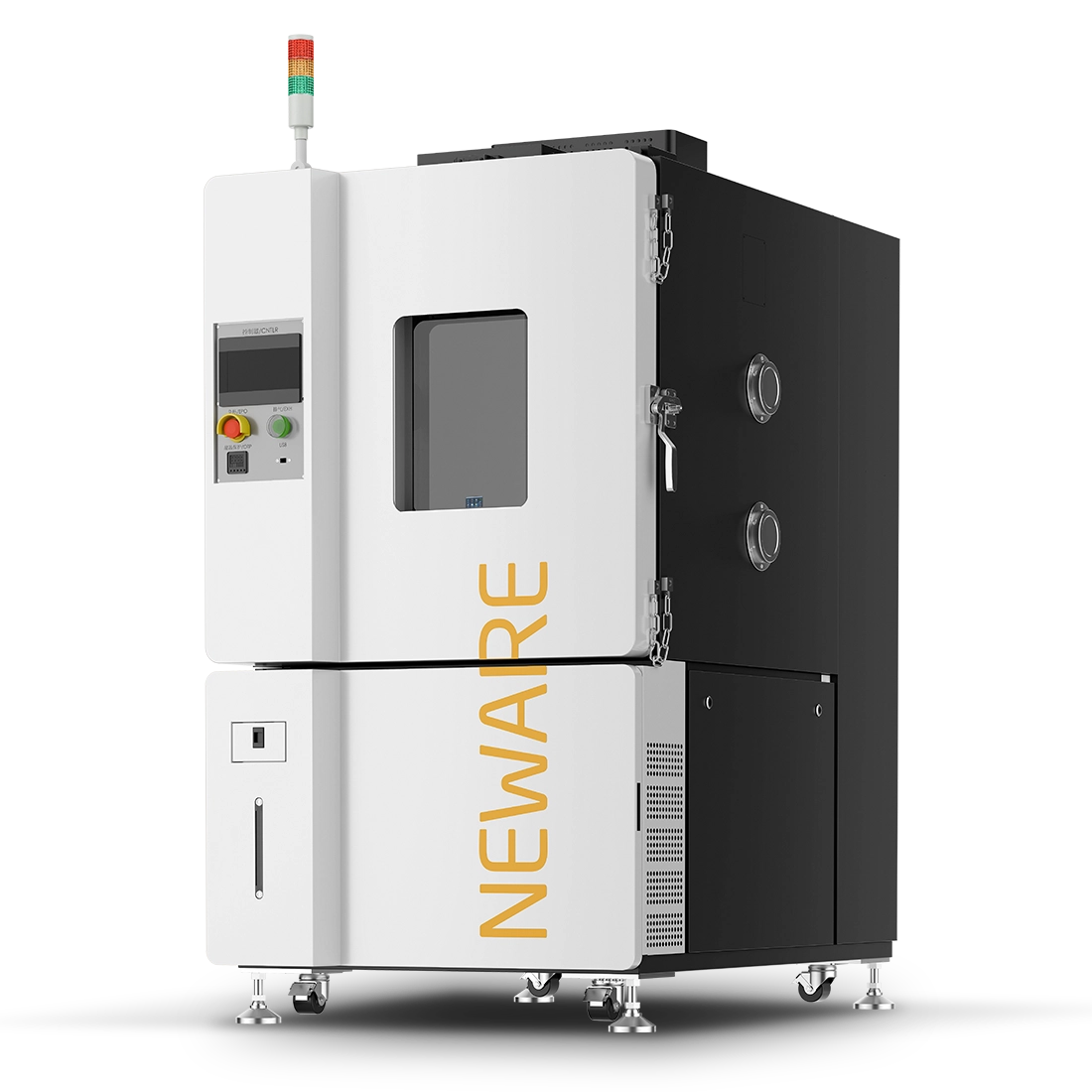

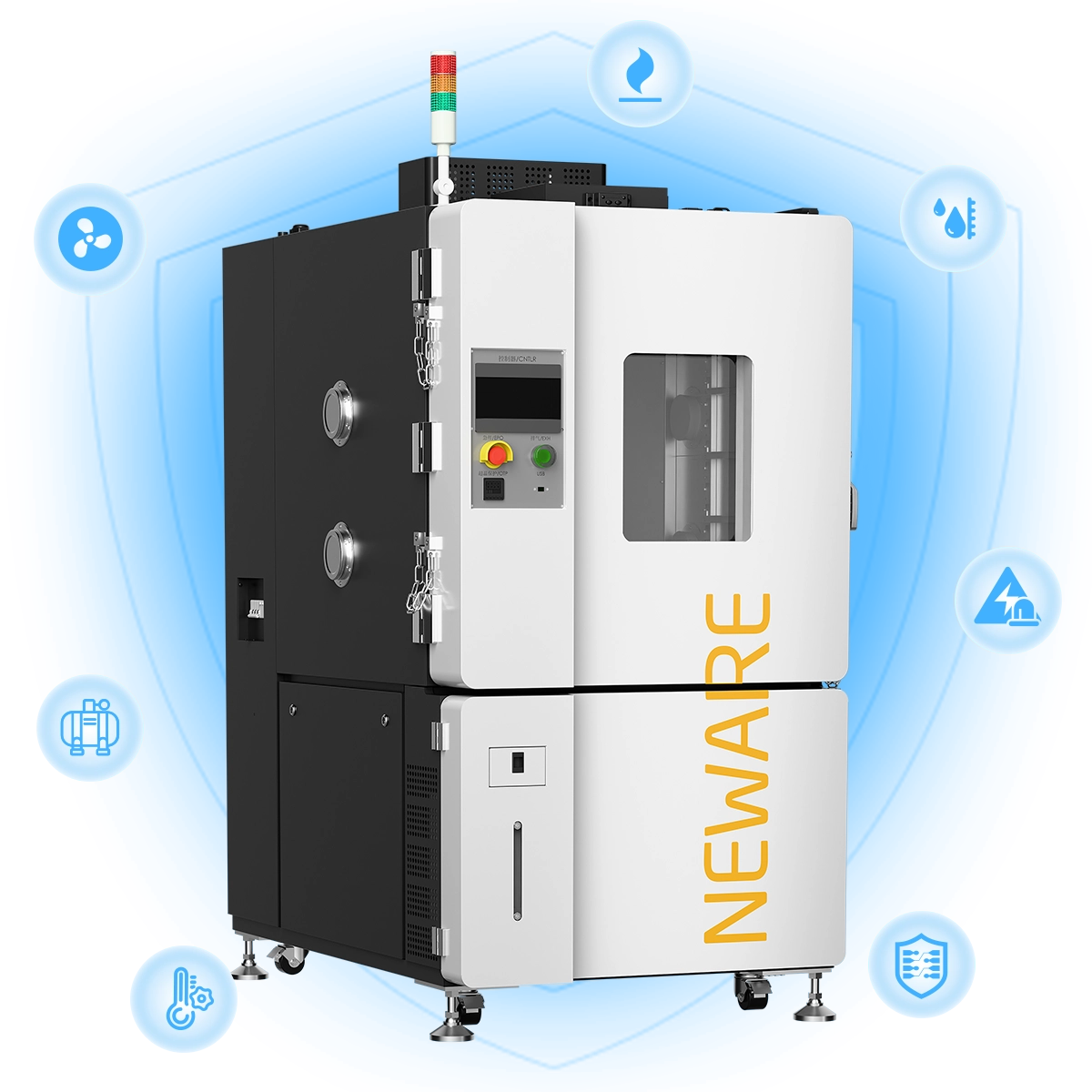

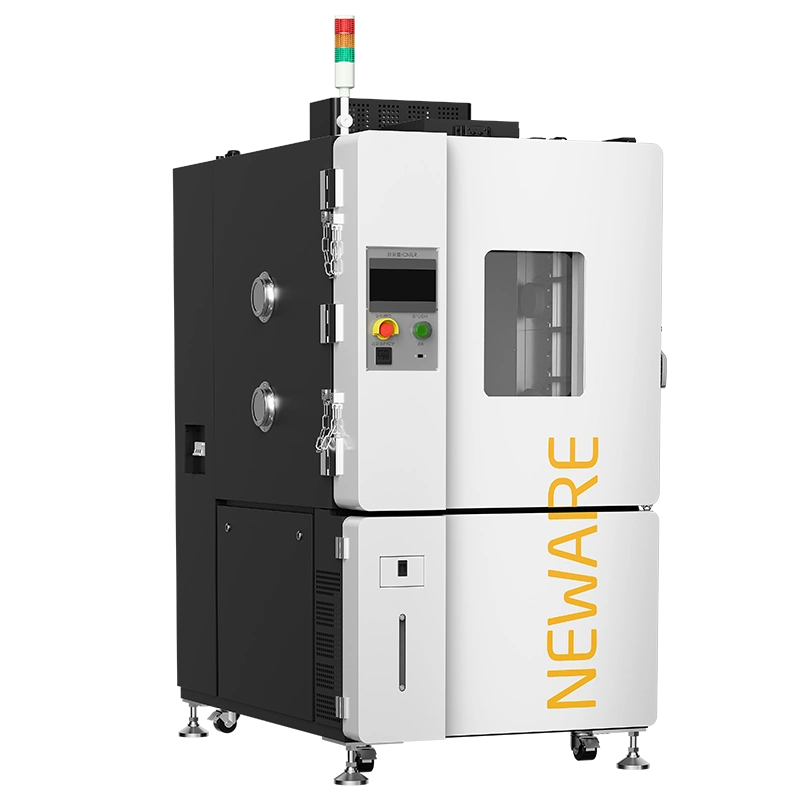

WGDW series of high-low temperature test chambers covers a wide range of temperature measurements, with options for minimum temperatures of-4℉, -40℉ and -94℉(-20°C, -40°C, and -70°C). It can achieve a maximum temperature measurement of 150°C, meeting various user requirements.

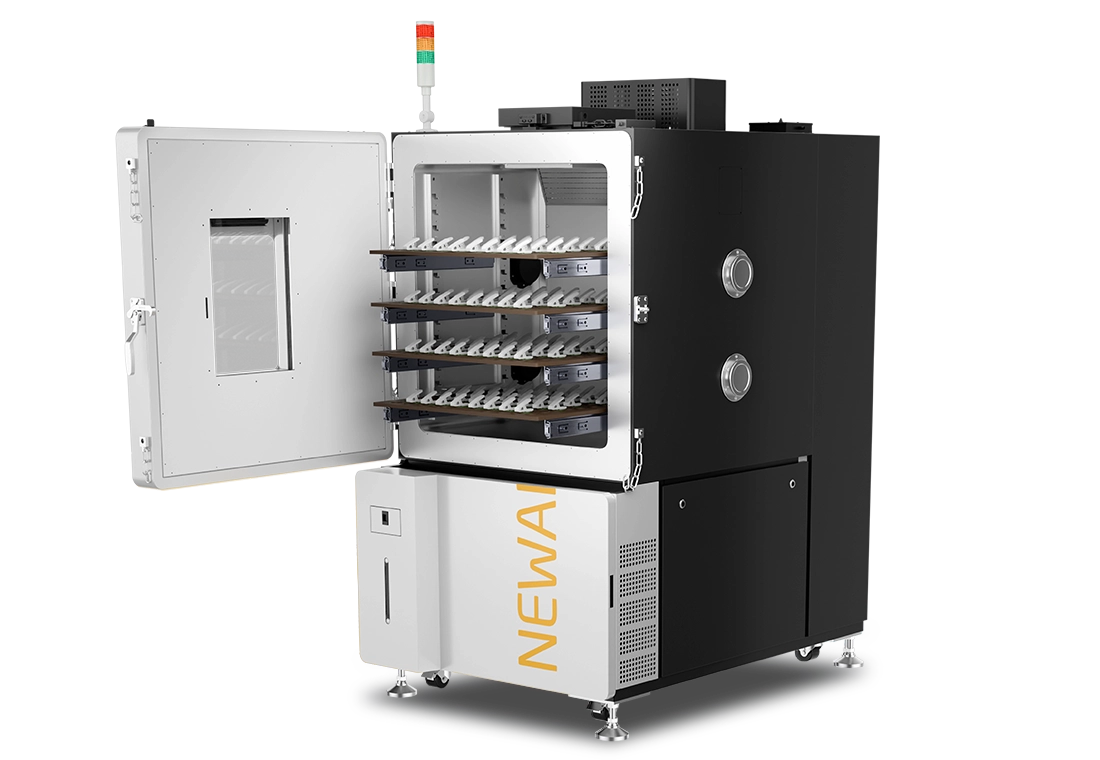

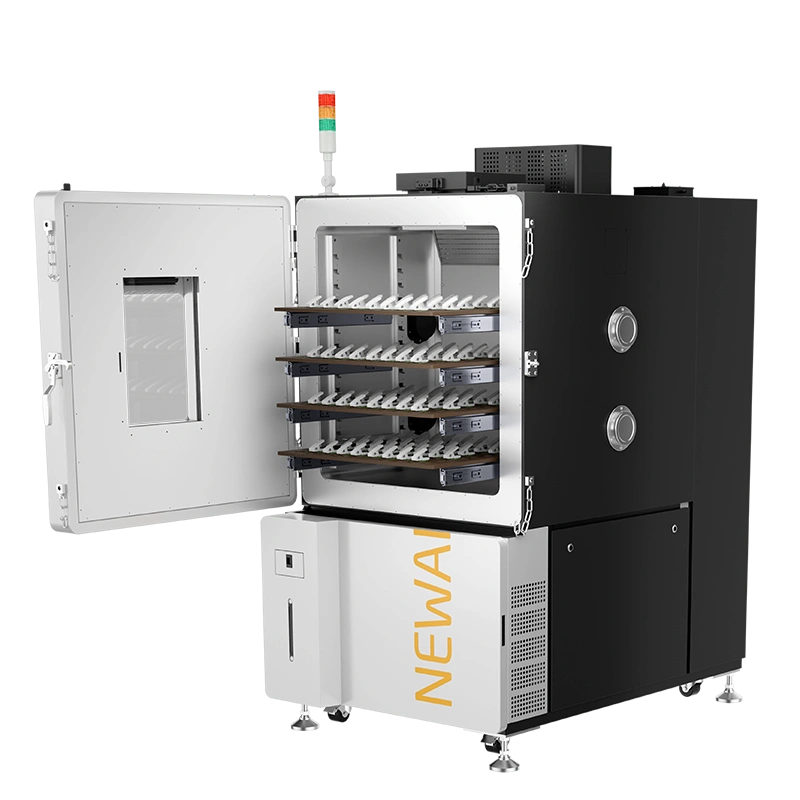

Each shelf has 8 channels, and the model of 225L can accommodate up to 4 shelves, allowing a total of 160 prismatic cells (the actual number may vary based on the size of the battery).

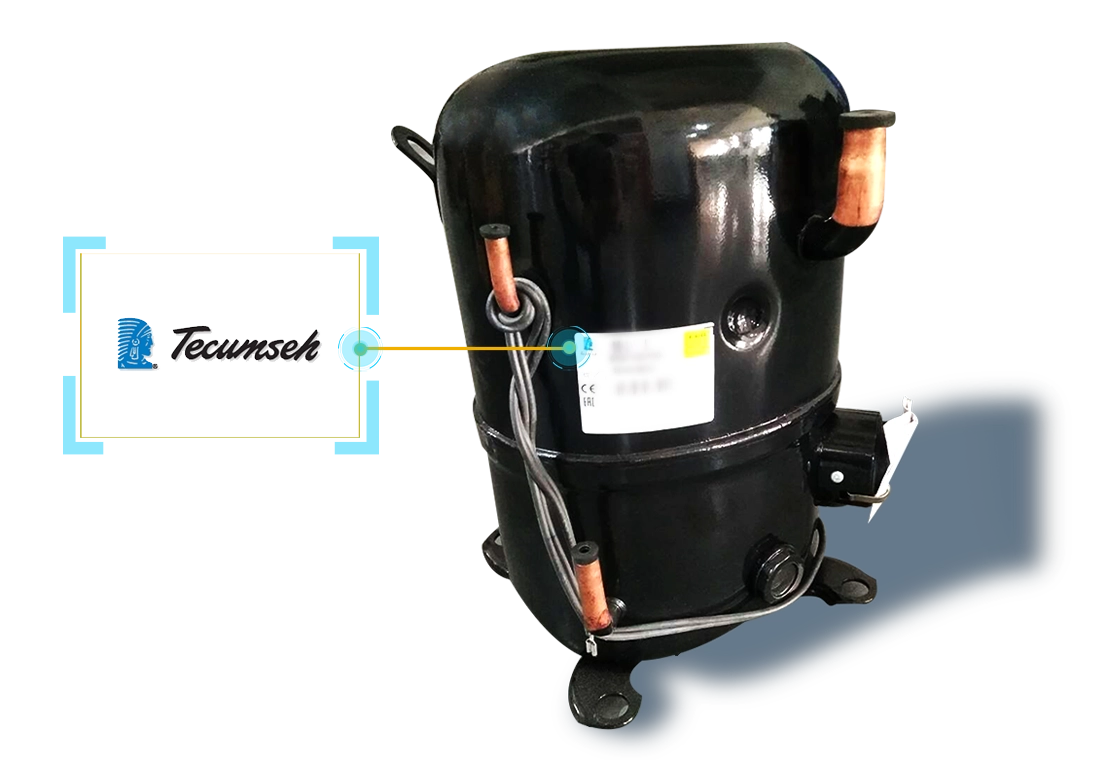

The equipment adopts a fully enclosed compressor imported from Europe, which operates with low noise and maintains excellent performance and stability during long-term operation.

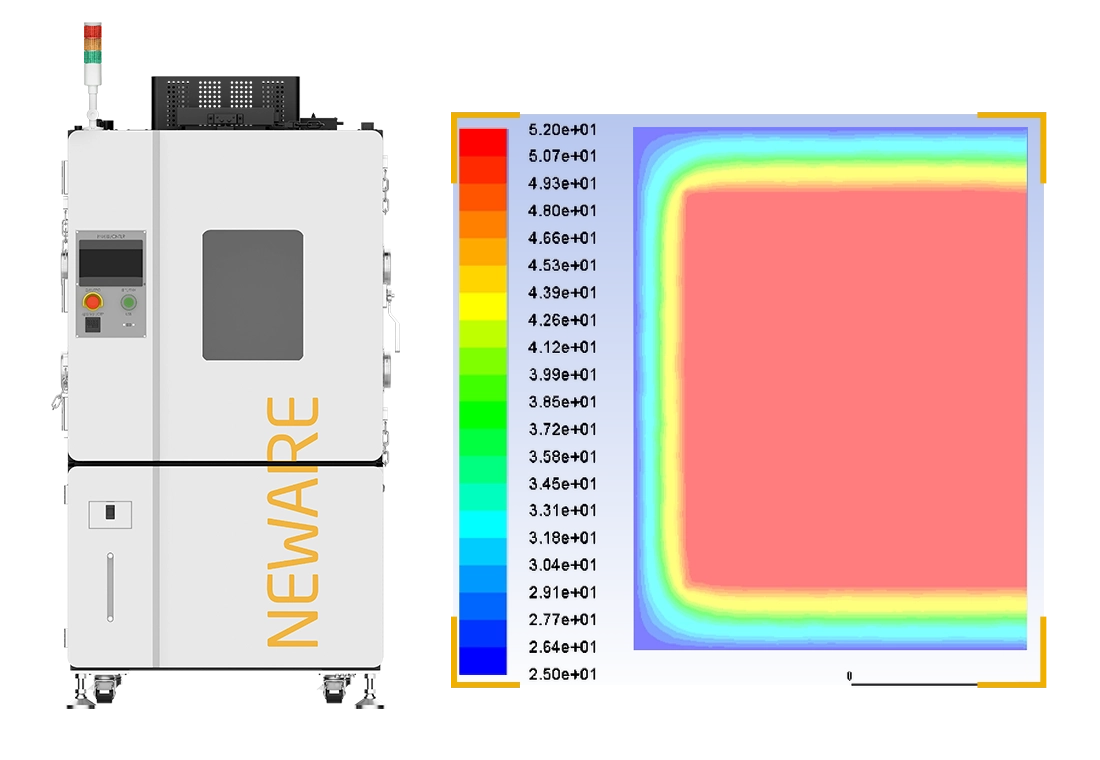

The device utilizes PID calculation to automatically control the output of the heater based on the set temperature value, ensuring rapid and efficient attainment of dynamic equilibrium in the temperature chamber. Moreover, high-quality insulation materials are employed to efficiently stabilize the thermal environment.

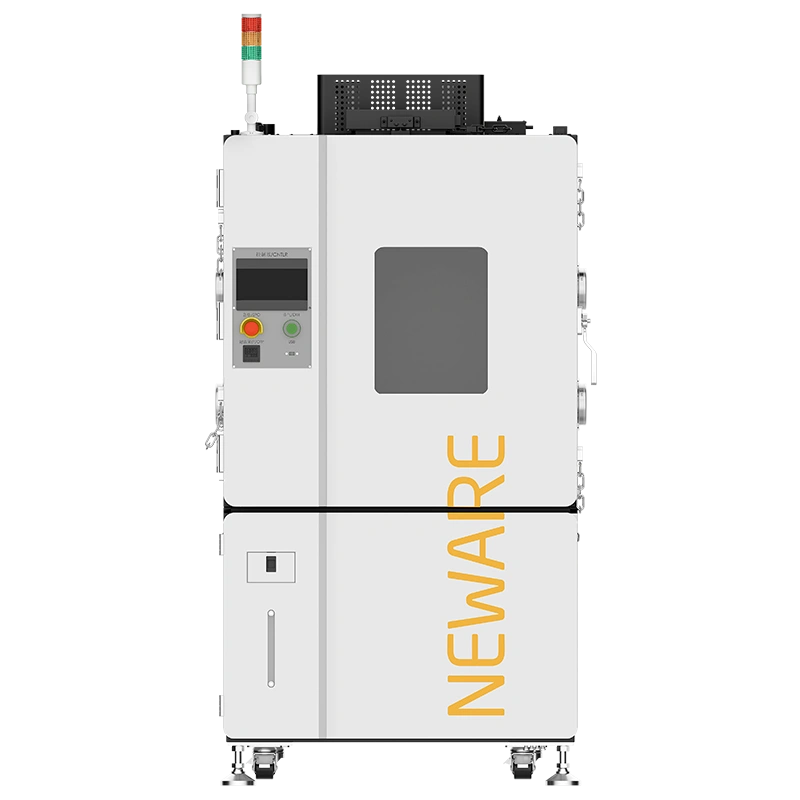

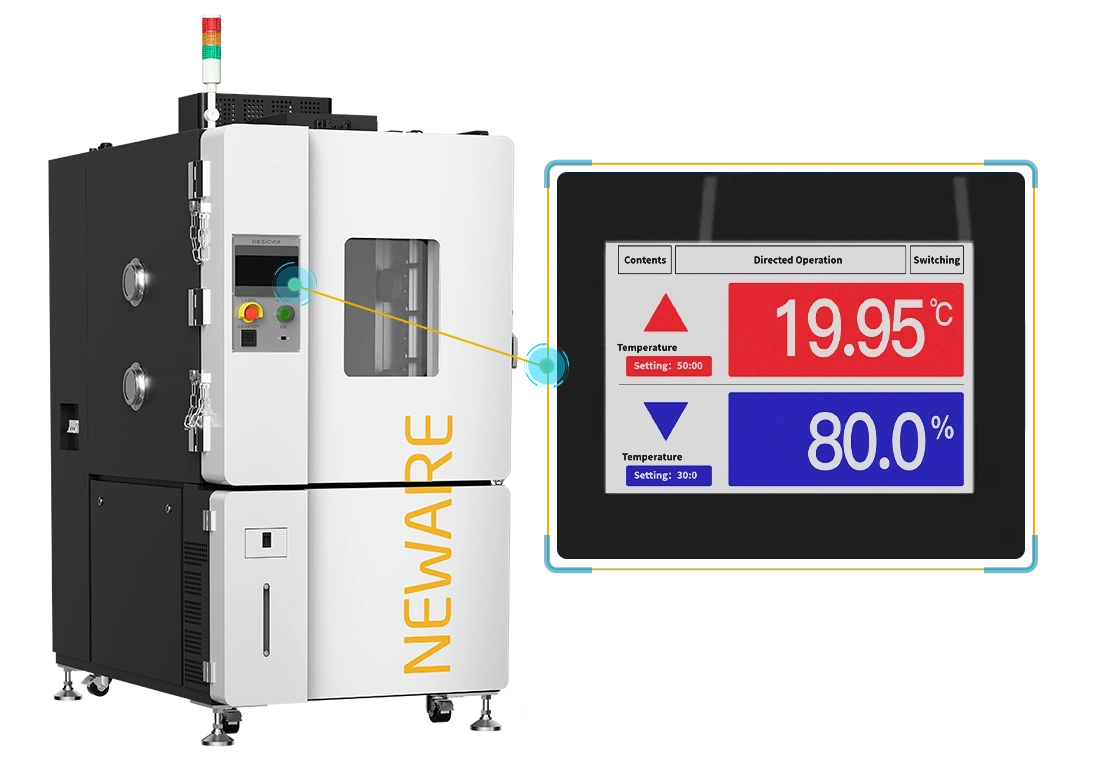

WGDW series focuses on user experience, featuring a large-sized high-definition touchscreen for easy operation and programming. It comes standard with an Ethernet (RJ45) communication interface.

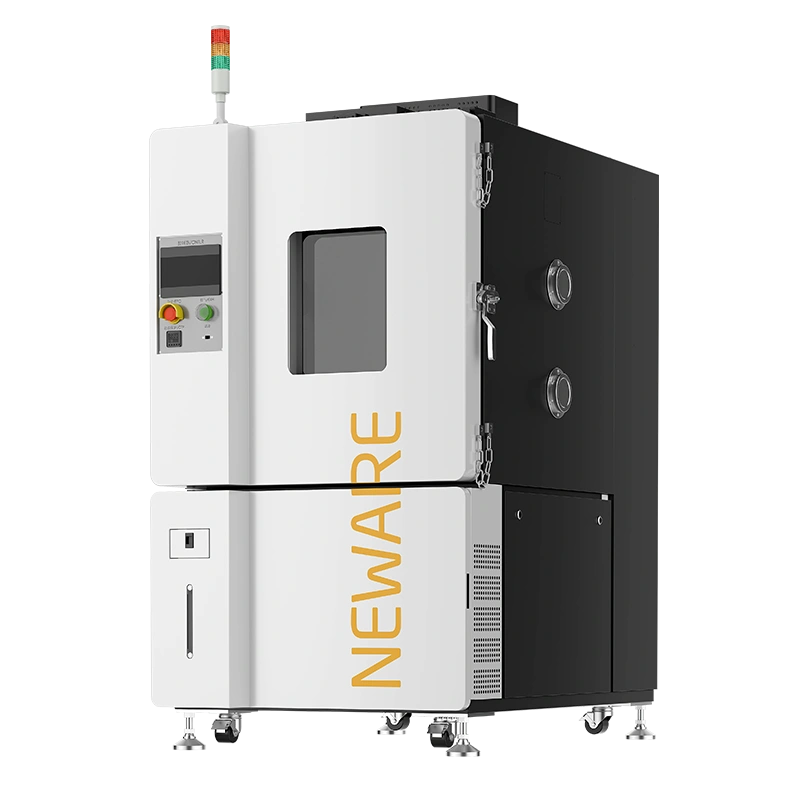

The exterior wall material is made of high-quality cold-pressed steel plate, and the insulation structure consists of a 100mm insulation layer composed of rigid polyurethane foam and glass wool. This insulation layer effectively isolates the internal and external environments, preventing heat exchange and keeping temperature fluctuations within the range of ≤1.8℉ (1℃).

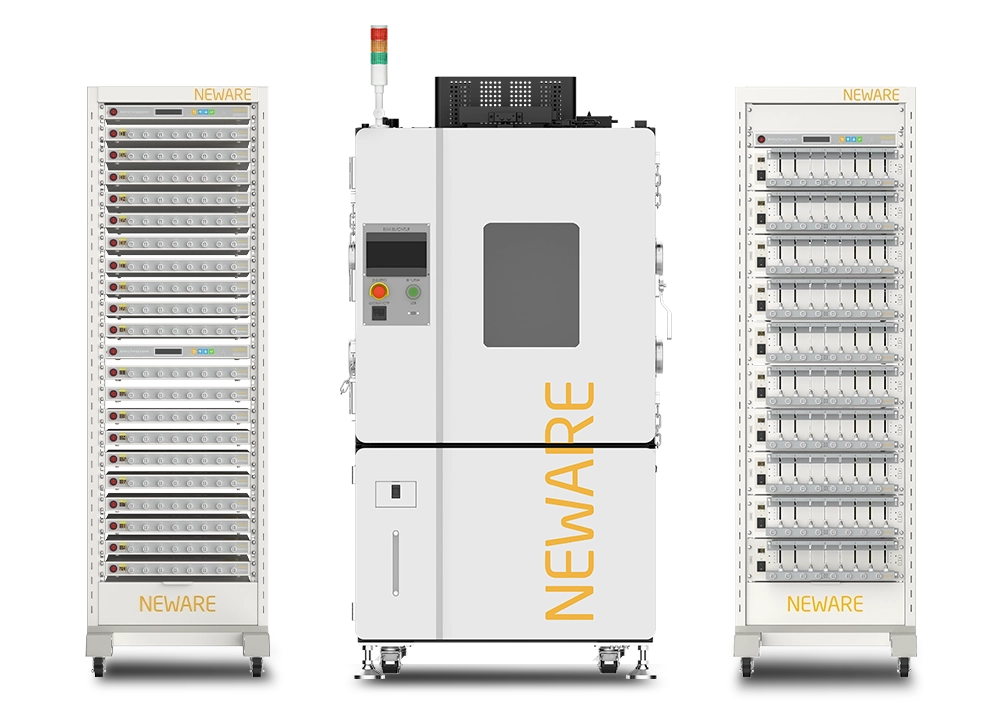

Neware's battery charge-discharge testing system achieves integrated operation and collaborative work through the Newway BTS supervisory control system, maximizing the functionality of battery characteristics.
● Overtemperature Protection
● Compressor Overpressure and Overload Protection
● Fan Overload Protection
● Humidifier Dry Burn Protection
● Lack of Water Protection
● Leakage Protection
● Short Circuit Protection
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
| Equipment name | WGDW Series High and Low Temperature Test Chamber |
|---|---|
| Capacity: 150L | |
| Internal Size | 19.7"×19.7"×23.6" (500mm×500mm×600mm) |
| External Size | 29.5"×51.2"×68.9" (750mm×1300mm×1750mm) |
| Heating/Cooling Efficiency | -4℉~302℉(-20℃~150℃)≤60min
68℉~-4℉(20℃ ~ -20℃)≤45min |
| Capacity: 225L | |
| Internal Size | 23.6"×19.7"×29.5" (600mm×500mm×750mm) |
| External Size | 33.5"×51.2"×72.8" (850mm×1300mm×1850mm) |
| Heating/Cooling Efficiency | -40℉~302℉(-40℃ ~ 150℃)≤60min
68℉~-40℉(20℃ ~ -40℃)≤60min |
| Capacity: 408L | |
| Internal Size | 31.5"×23.6"×33.5" (800mm×600mm×850mm) |
| External Size | 41.3"×55.1"×76.8" (1050mm×1400mm×1950mm) |
| Heating/Cooling Efficiency | -40℉~302℉(-40℃ ~ 150℃)≤60min
68℉~-40℉(20℃ ~ -40℃)≤60min |
| Capacity: 800L | |
| Internal Size | 39.4"×31.5"×39.4" (1000mm×800mm×1000mm) |
| External Size | 49.2"×63.0"×82.7" (1250mm×1600mm×2100mm) |
| Heating/Cooling Efficiency | -94℉~302℉(-70℃ ~ 150℃)≤60min
68℉~-94℉(20℃ ~ -70℃)≤75min |
| Capacity: 1000L | |
| Internal Size | 39.4"×39.4"×39.4" (1000mm×1000mm×1000mm) |
| External Size | 49.2"×70.9"×82.7"
(1250mm×1800mm×2100mm) |
| Heating/Cooling Efficiency | -94℉~302℉(-70℃ ~ 150℃)≤60min
68℉~-94℉(20℃ ~ -70℃)≤75min |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
