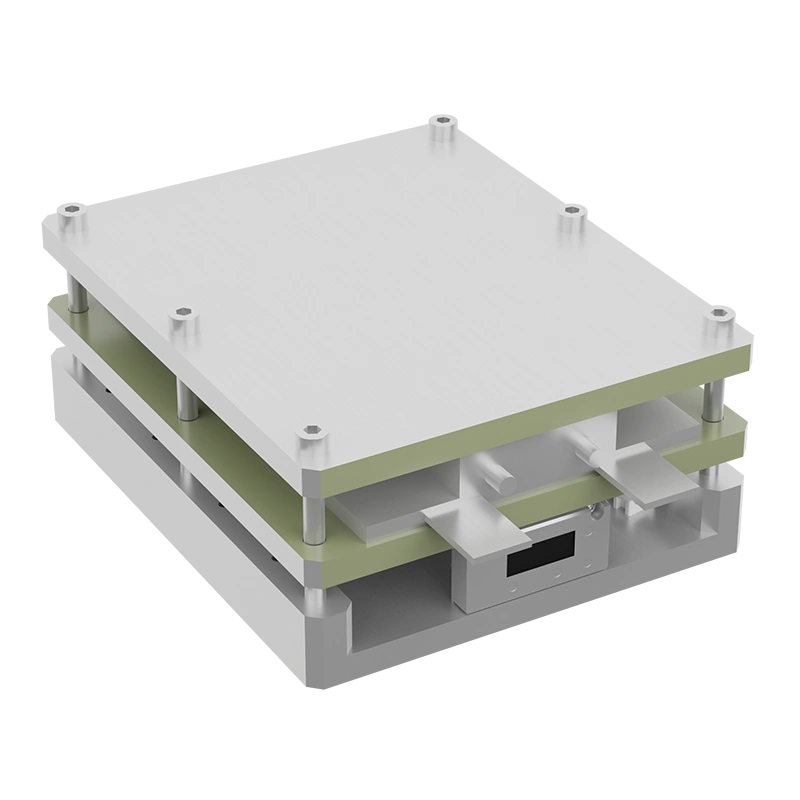

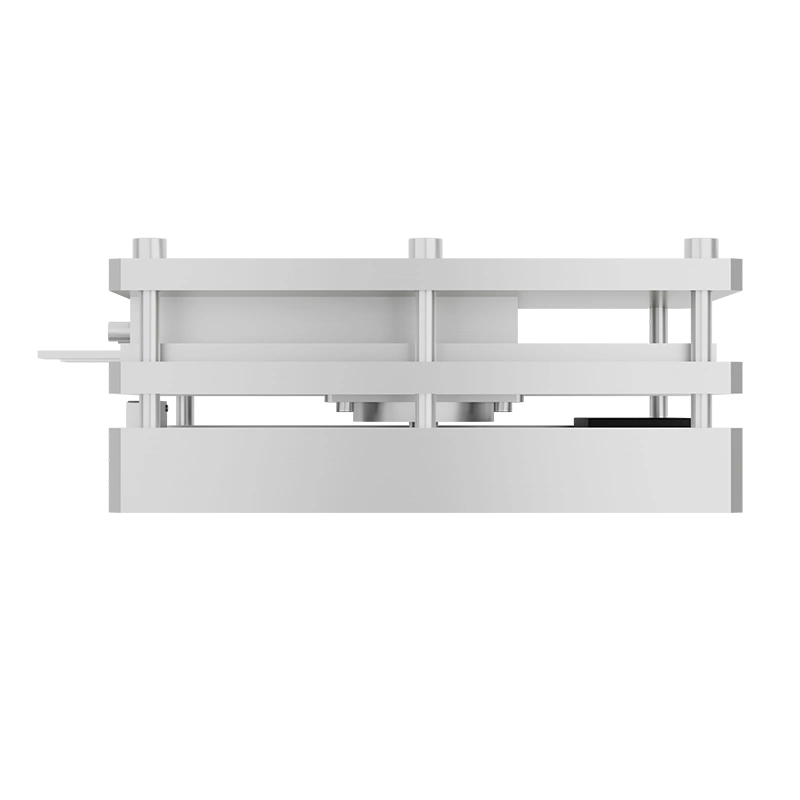

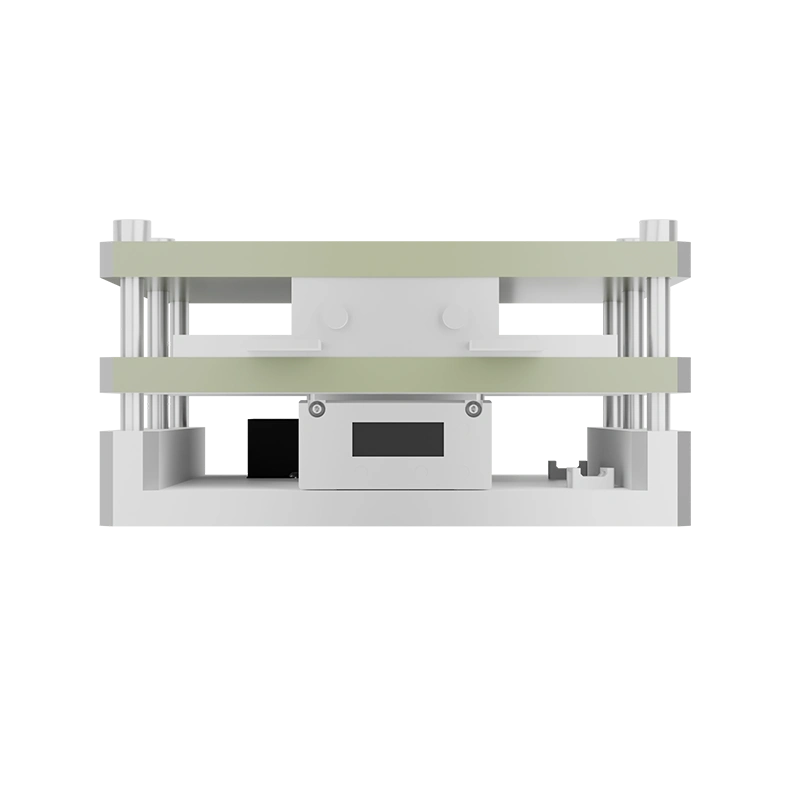

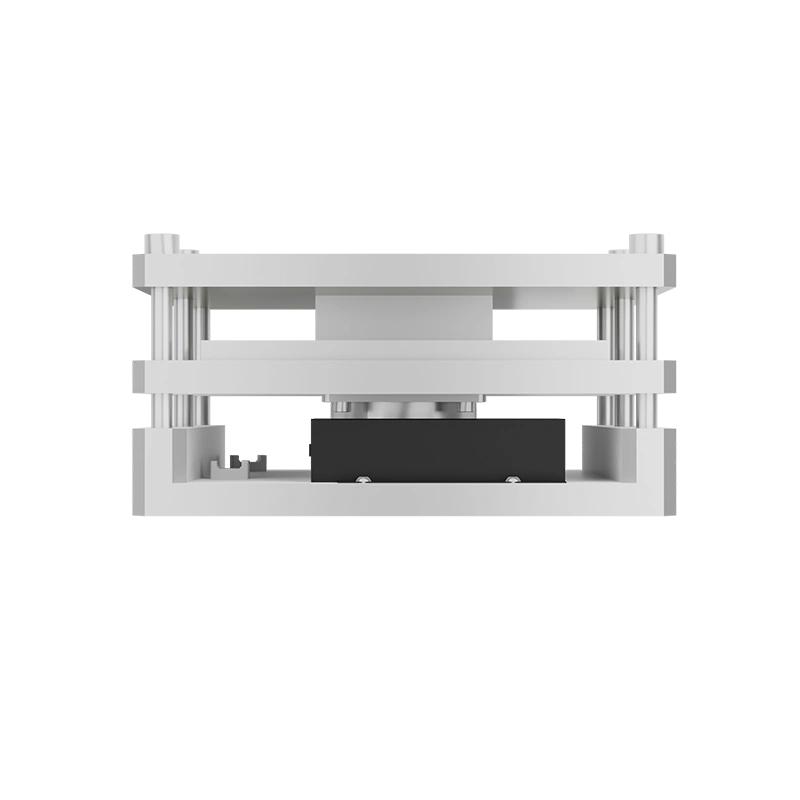

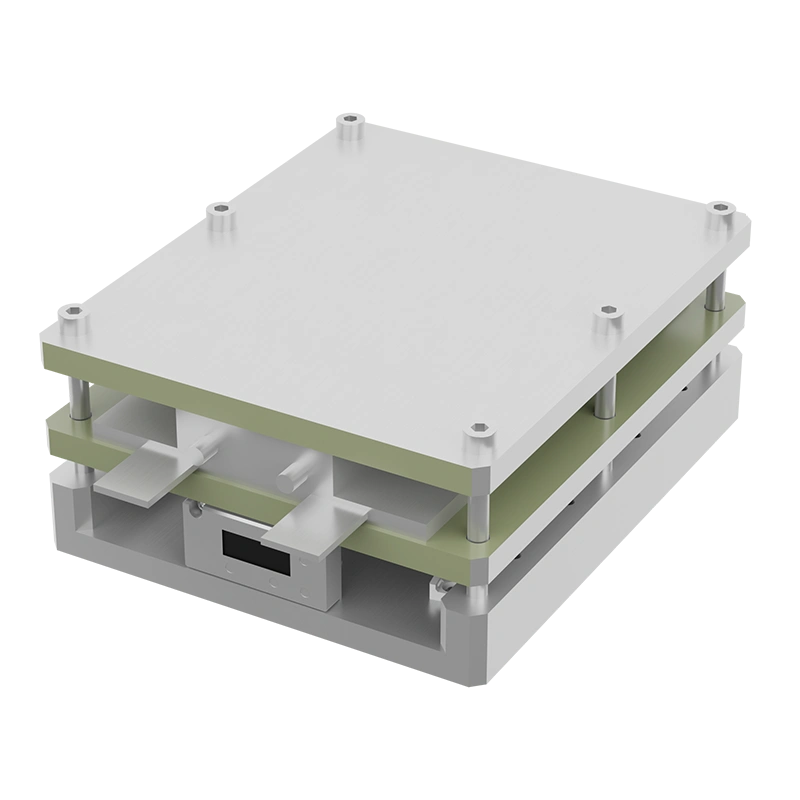

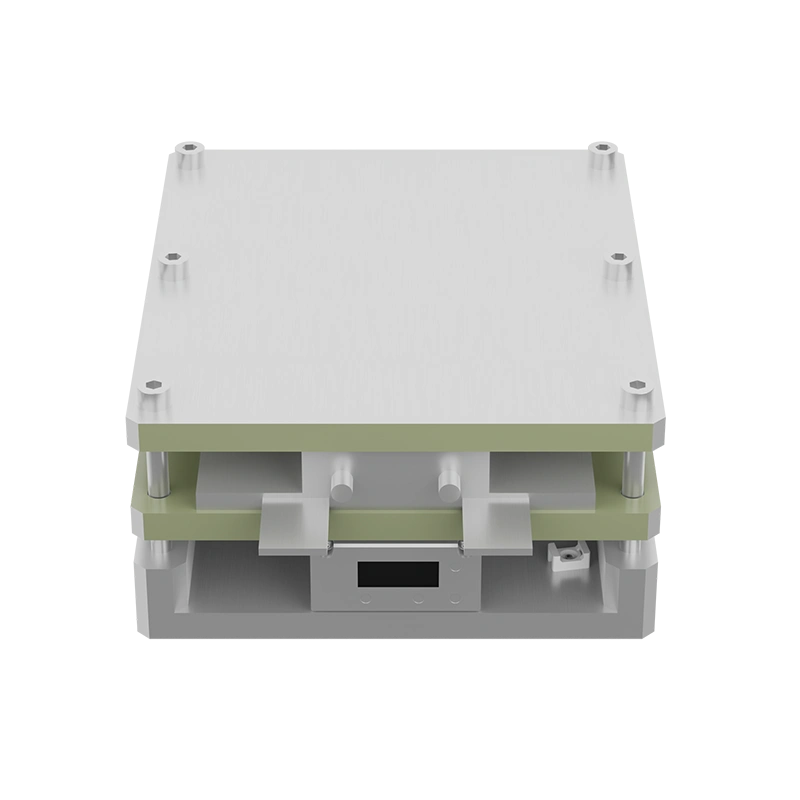

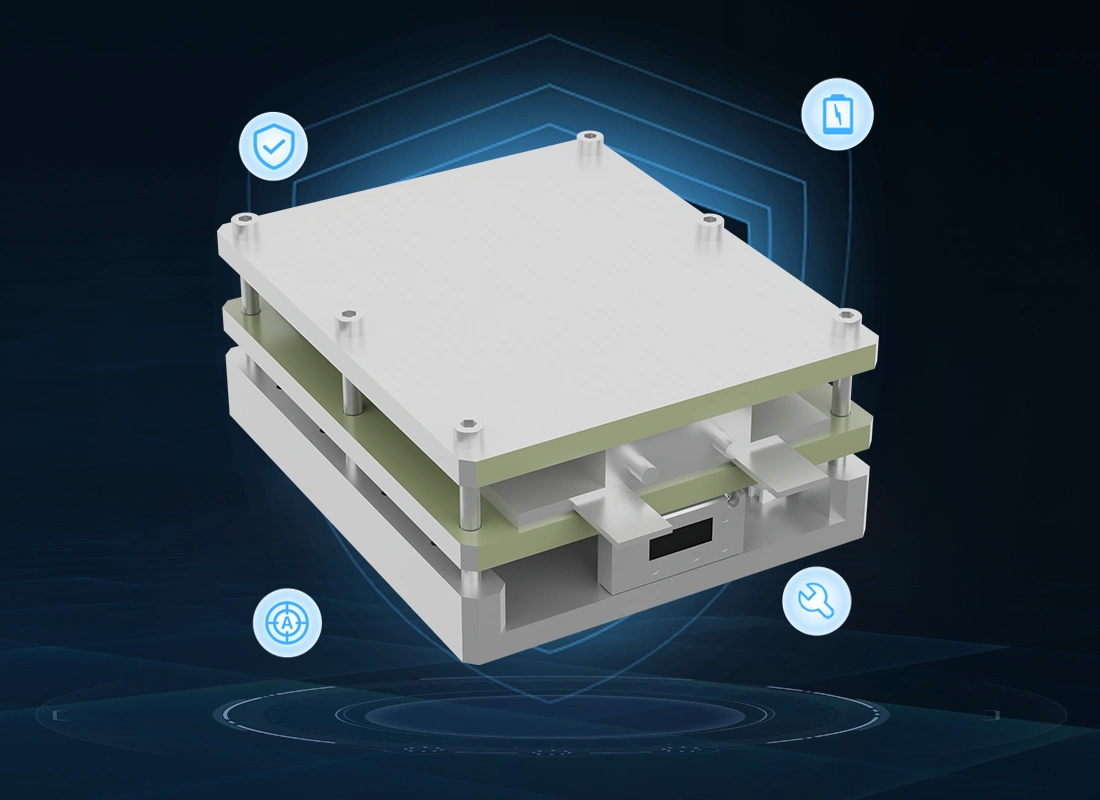

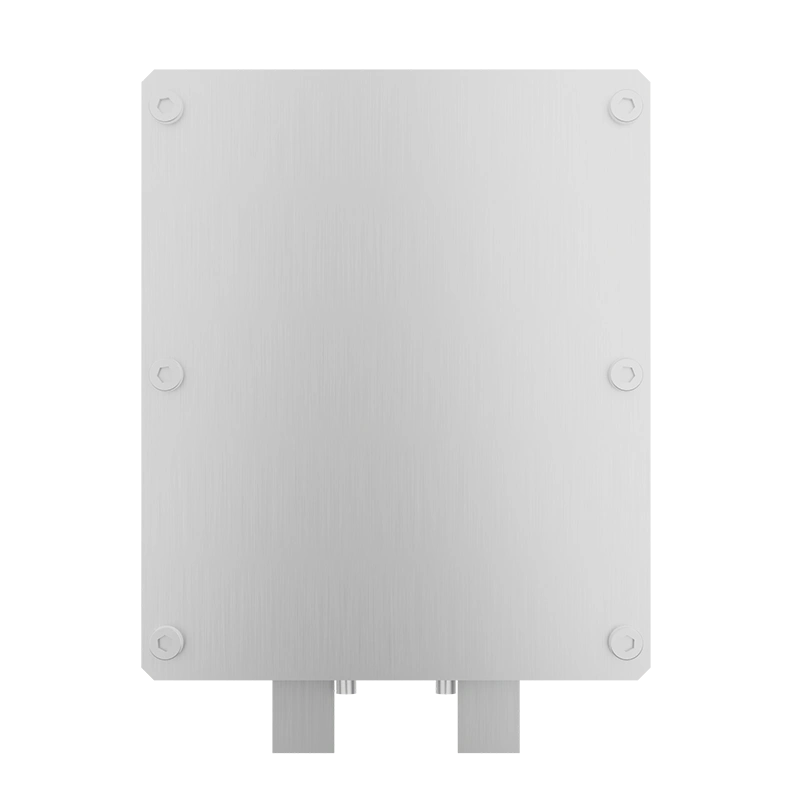

With a pressure display, used for pressure testing of pouch battery cells.
Features
Tech Specs
Equipped with a pressure display, it real-time displays and controls the pressure applied to the battery, ensuring the uniformity and stability of pressure during the testing process, suitable for the study and testing of pouch batteries that require precise pressure control. The structure is stable and robust, capable of providing up to 1 ton of load pressure.
| Equipment name | Pressure Display Plat Plate Fixture |
|---|---|
| Model | PCJ-YCG-R-1T-230-150 |
| Pressure Test Range | 1T |
| Battery Size | Length: 9.1" (230mm) Width: 6.3" (160mm) Thickness: 1.1" (28mm) |
| External Size | 9.4"×7.9"×3.9" (240×200×100mm) |
| Weight | 20kg |
