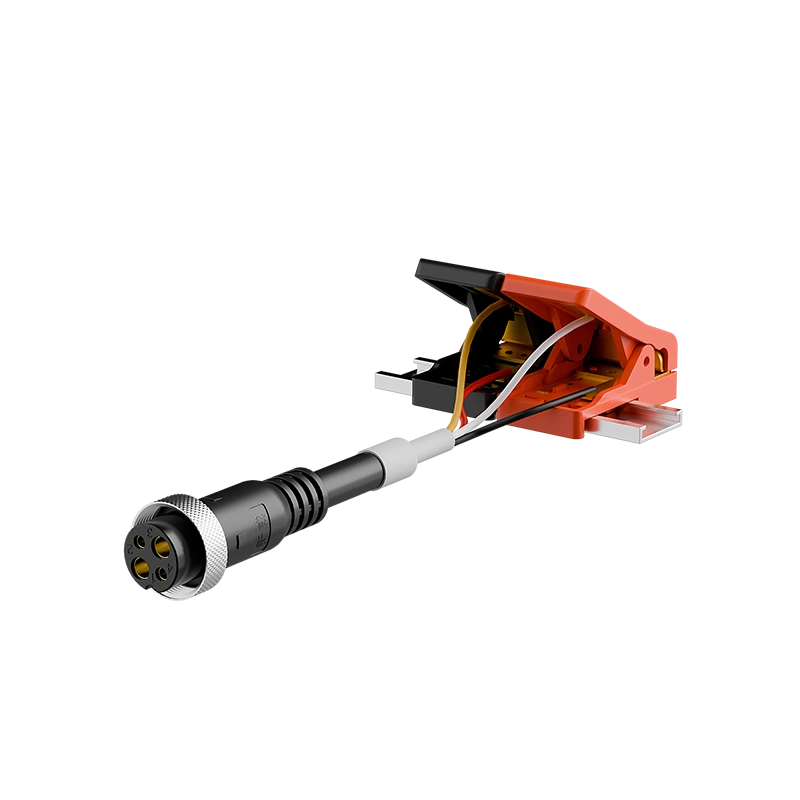

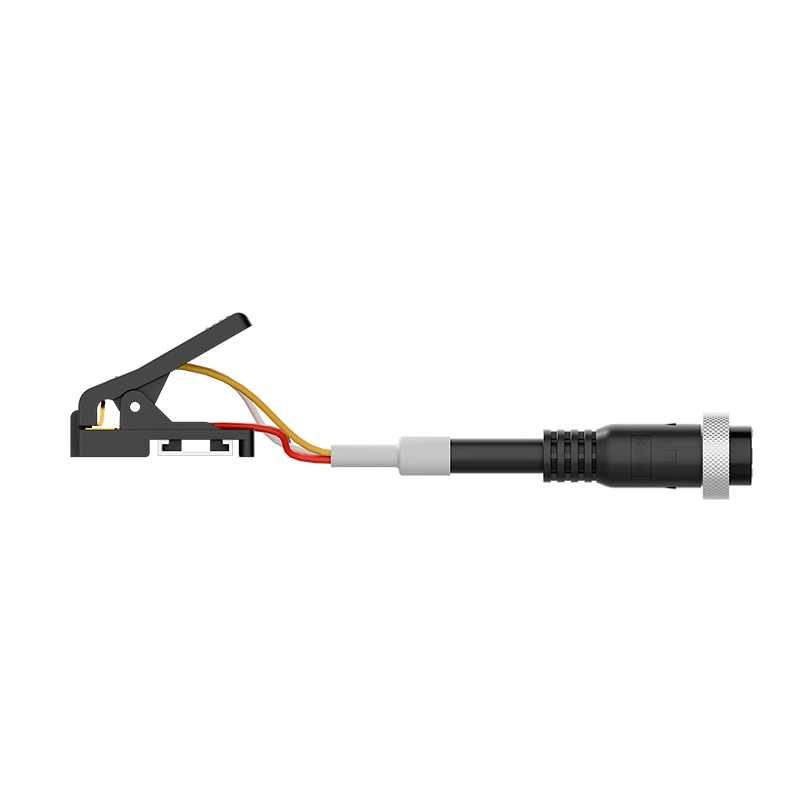

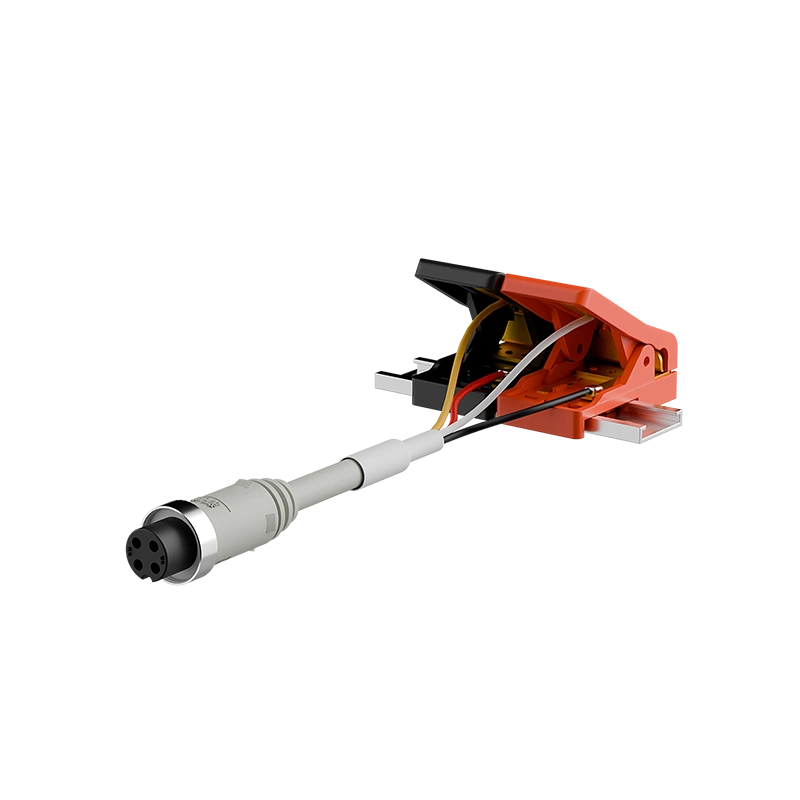

Used for testing polymer pouch cells in terms of charge/discharge cycles, formation capacity, and other tests.
| Current | 6A ~ 15A |
| Rail Size | Length: 2.8" (70mm) Hole Spacing: 2.4" (60mm) Diameter: 0.1" (3.5mm) |

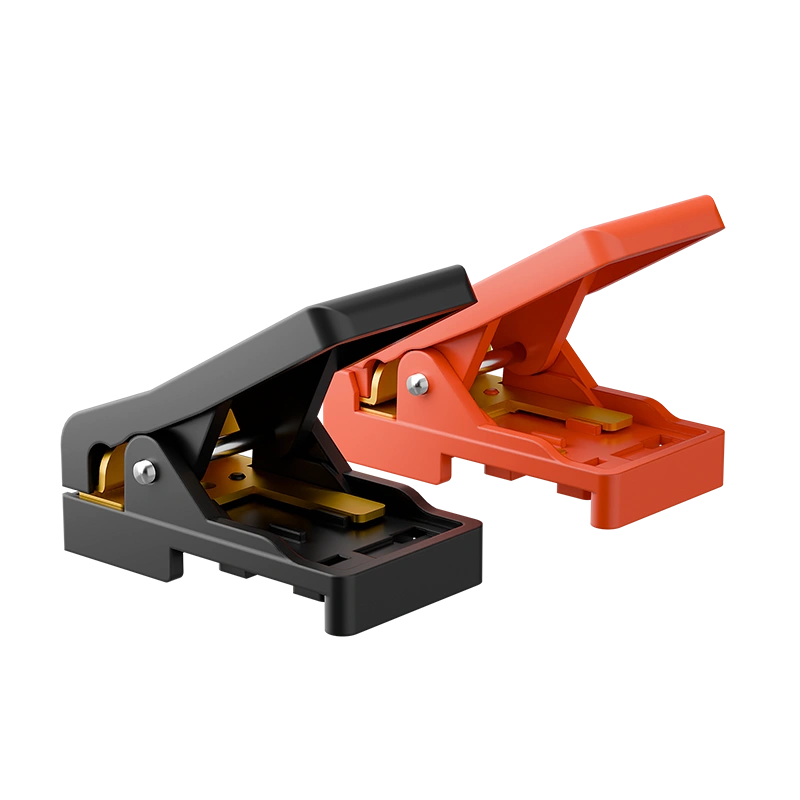

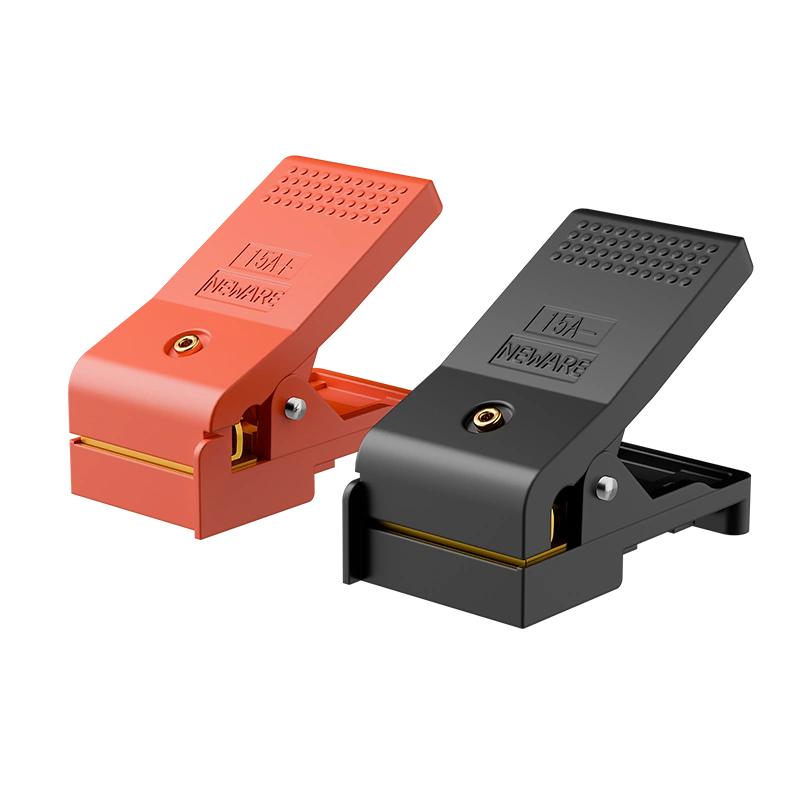

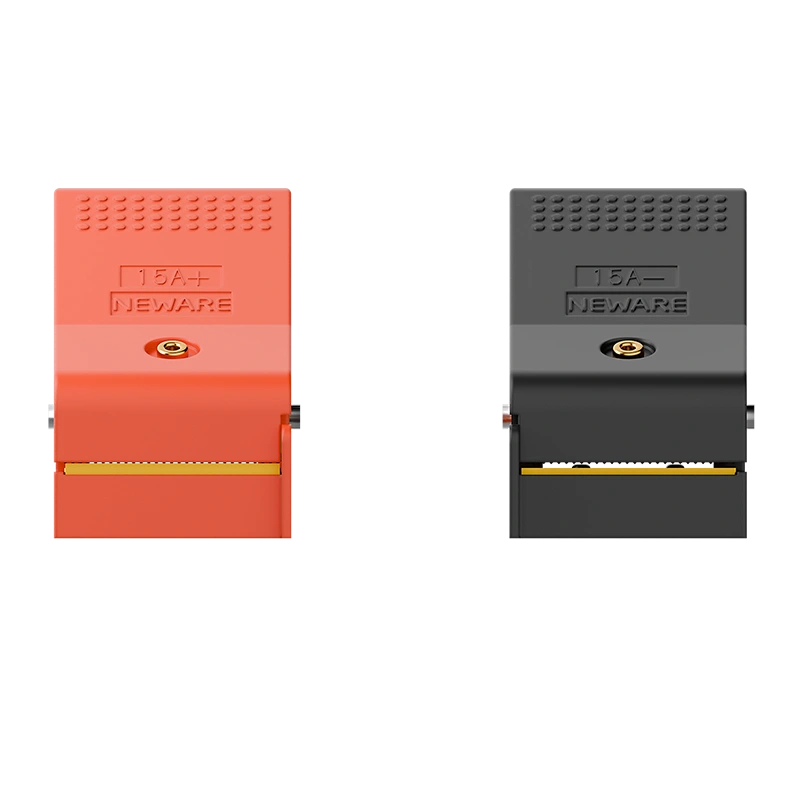

Meets the testing requirements of 6A to 15A current, with gold-plated conductive clips, anti-oxidation treatment, and contact resistance less than 1mΩ, ensuring efficient current transfer, reducing energy loss, and enhancing the conductivity of the clamps to assist in battery testing.

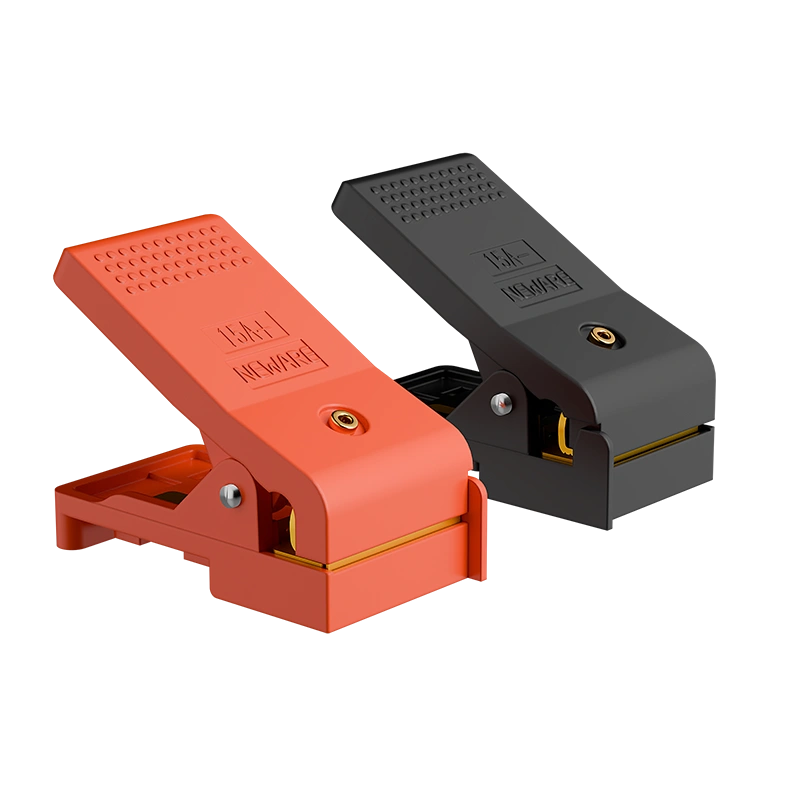

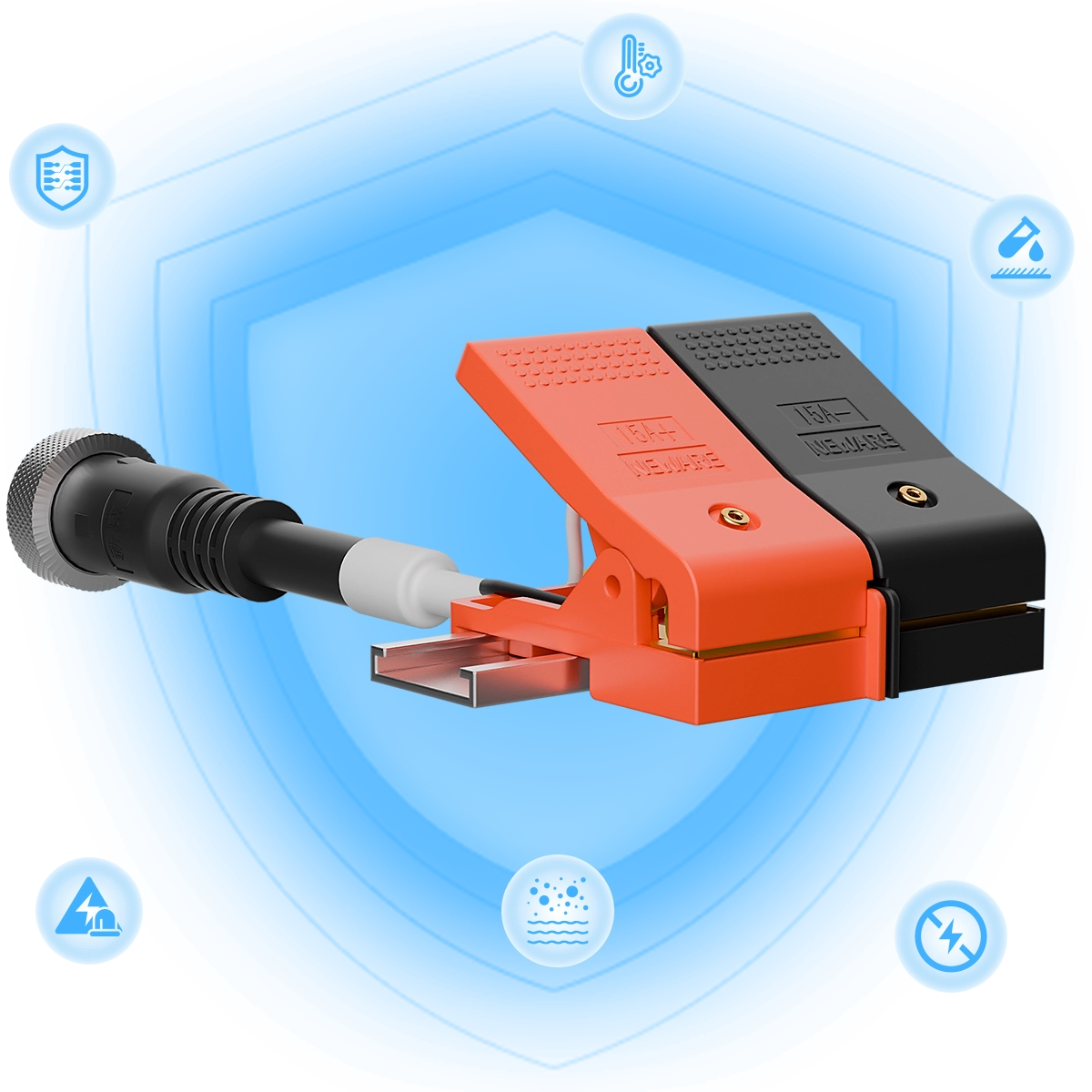

The clamps are wrapped with high-temperature plastic on the outside, providing heat insulation and resistance to temperatures up to 150℃, corrosion, and rust. They have undergone salt spray testing, short-circuit testing, and multiple safety inspections to ensure comprehensive stability and safety in testing.

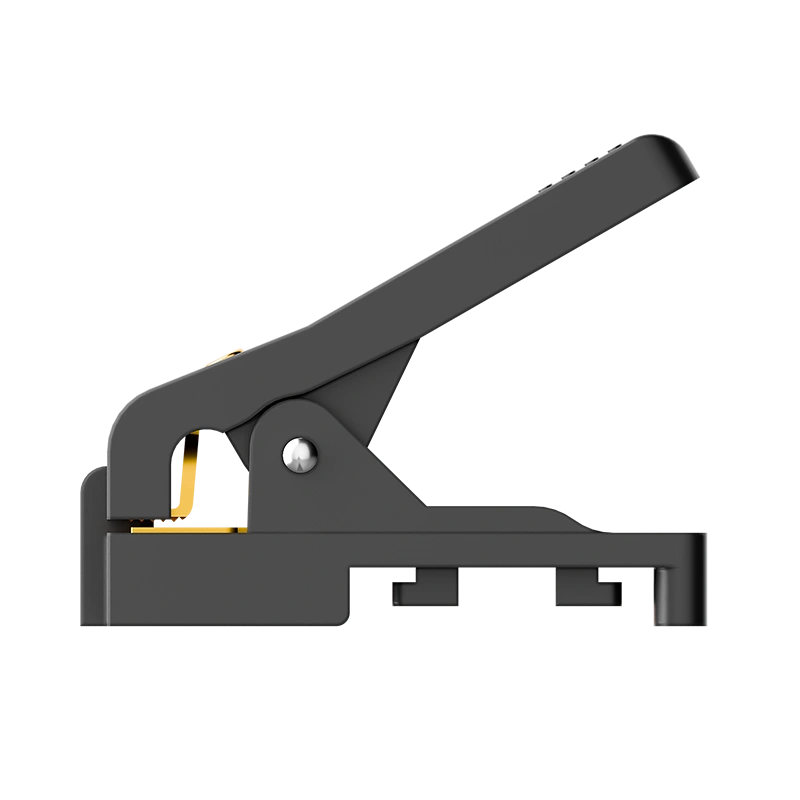

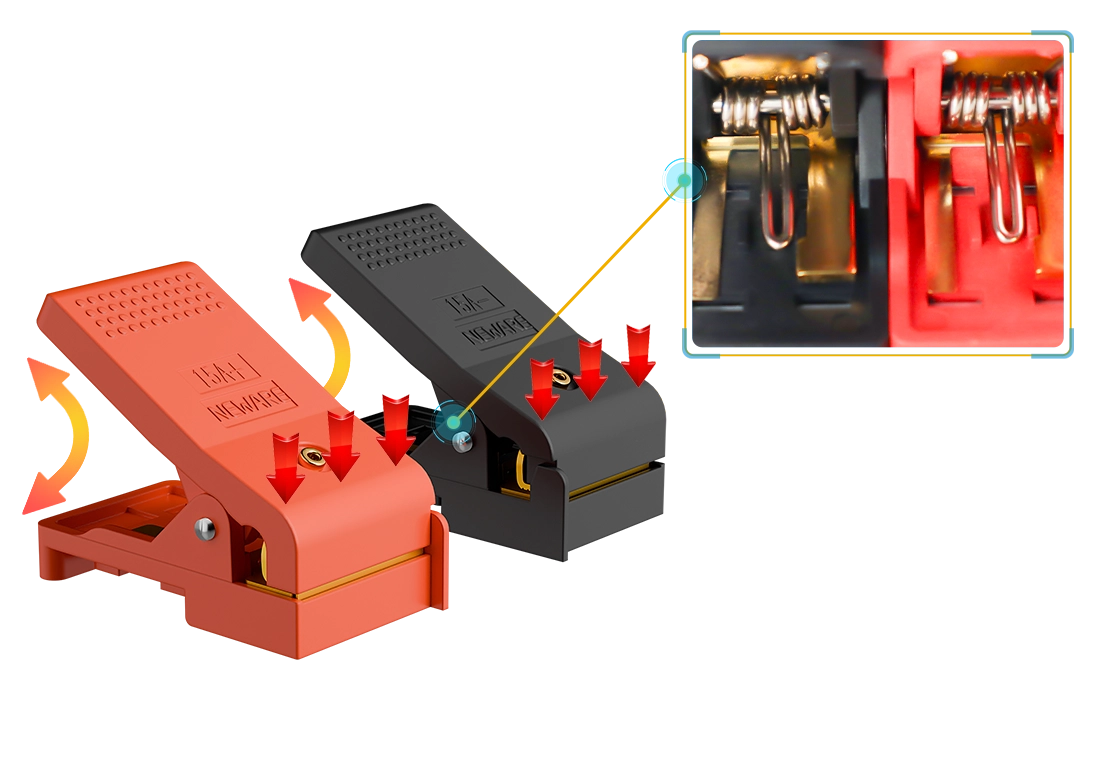

Strong Clamping: After clamping force testing, the clips can lift a 2kg weight without dropping, firmly holding and preventing the electrode ears from shifting or falling off during the testing process.

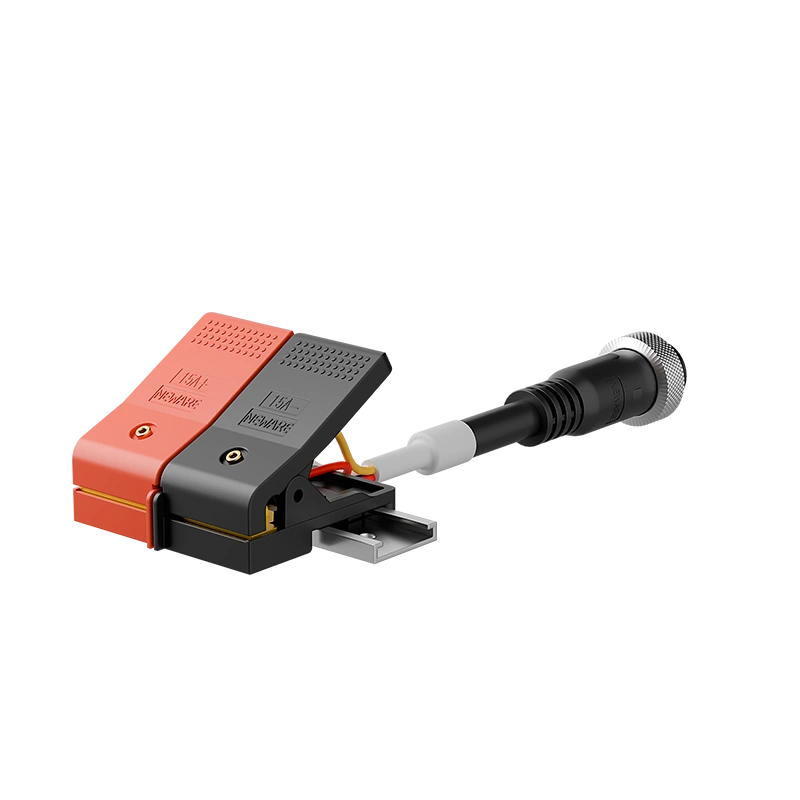

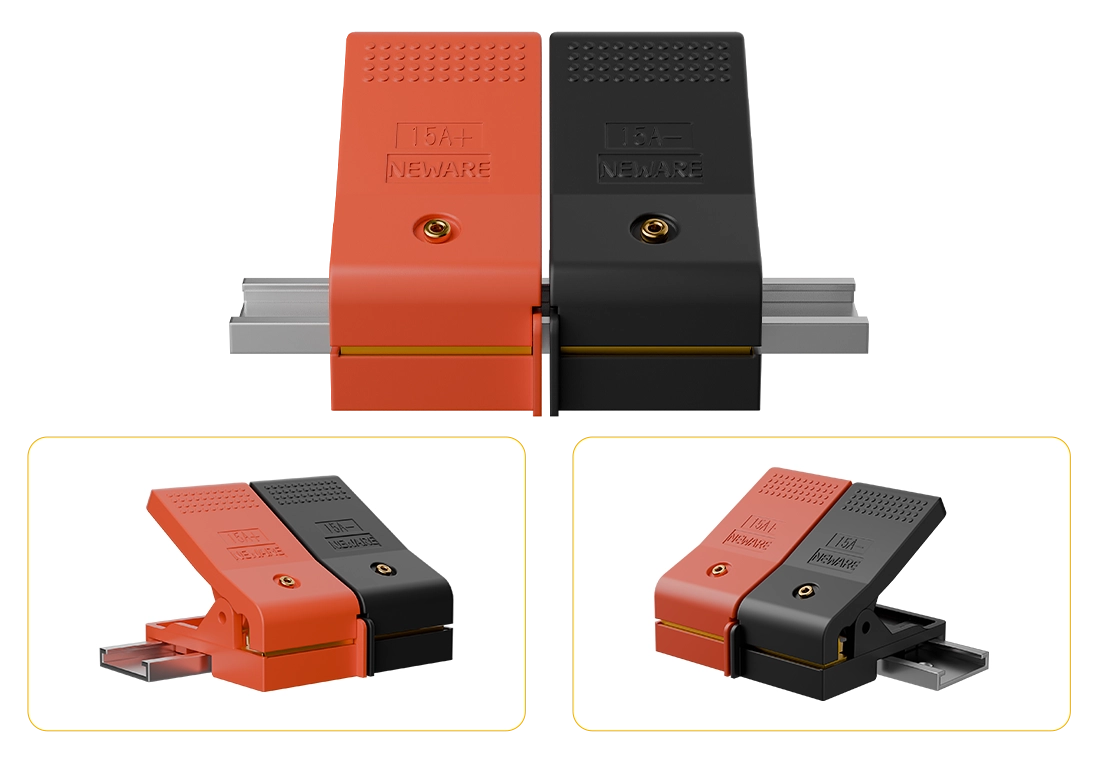

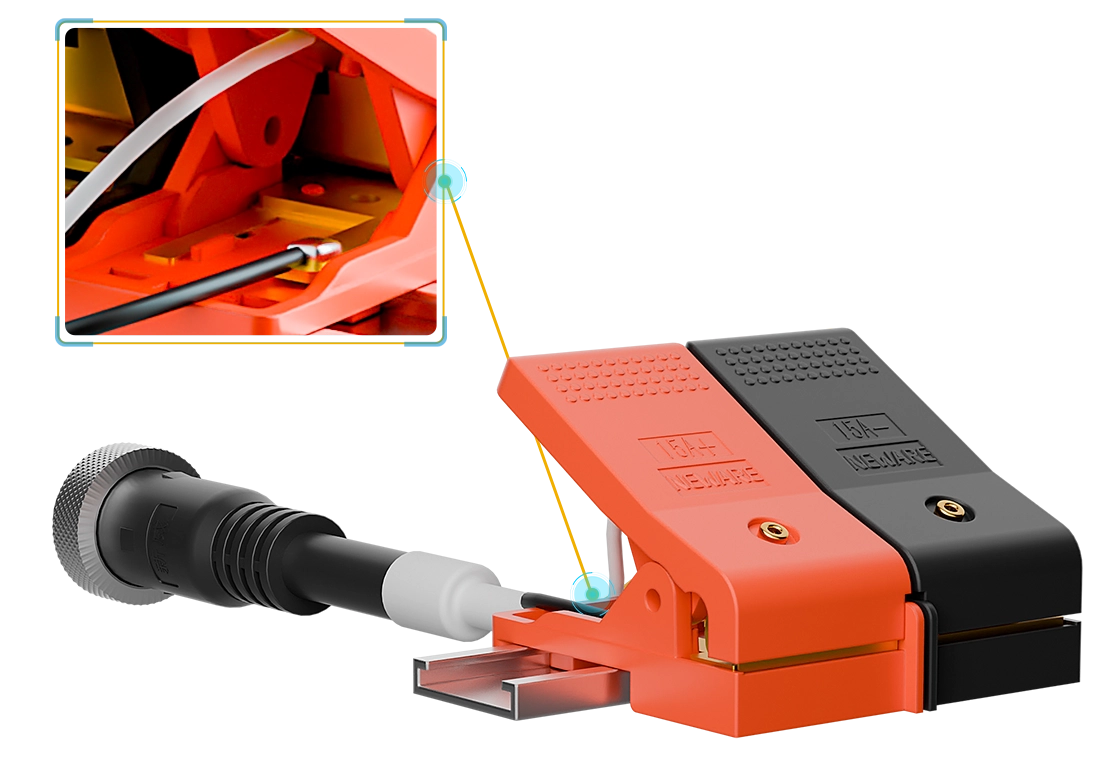

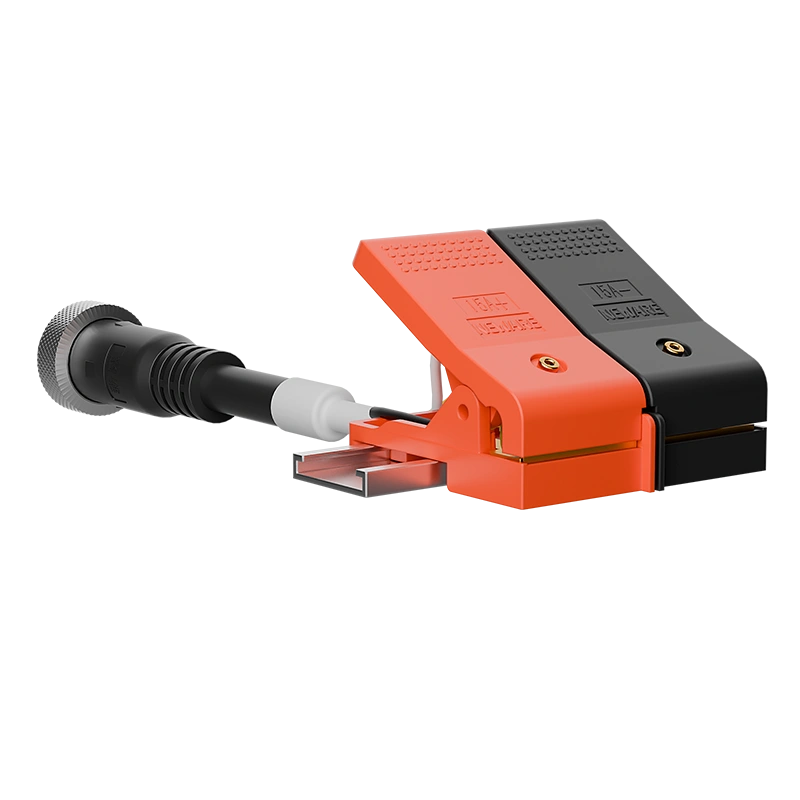

Used in conjunction with C-type rails, customizable rails can be provided to meet the testing needs of batteries with different electrode spacing. The fixed rack platform simplifies battery arrangement, making it easy to quickly and neatly arrange the batteries.
