For use in pouch cell and power battery cell charging and discharging, capacitance voltage, and formation and capacity grading tests.
Features
Tech Specs

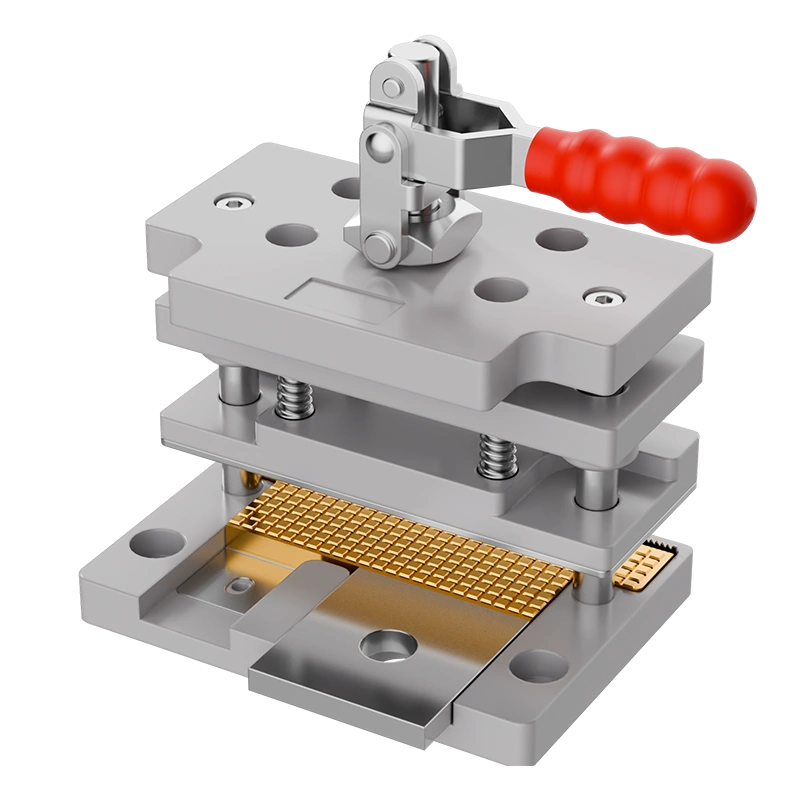

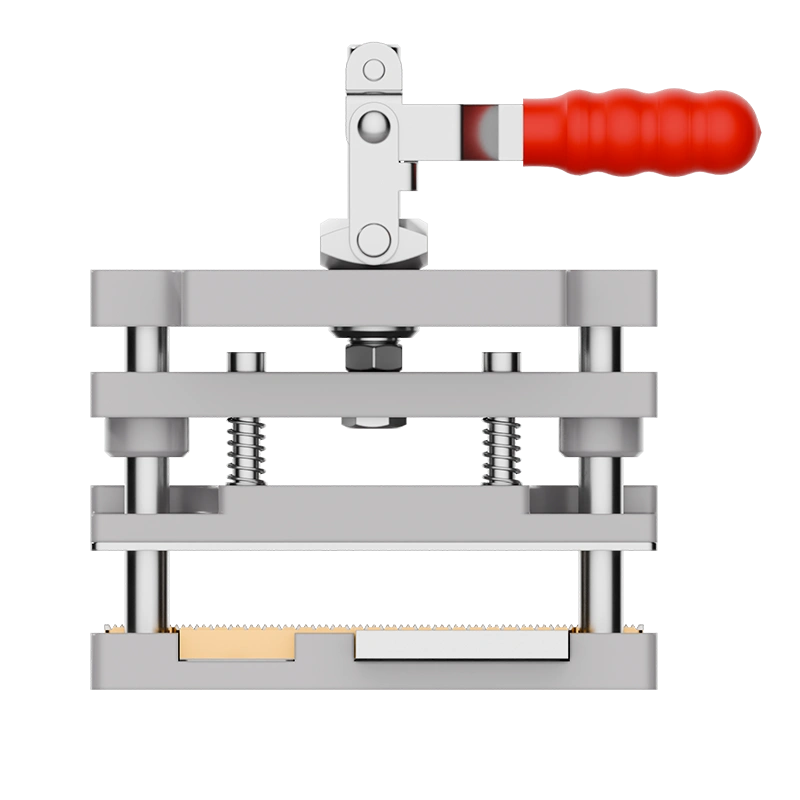

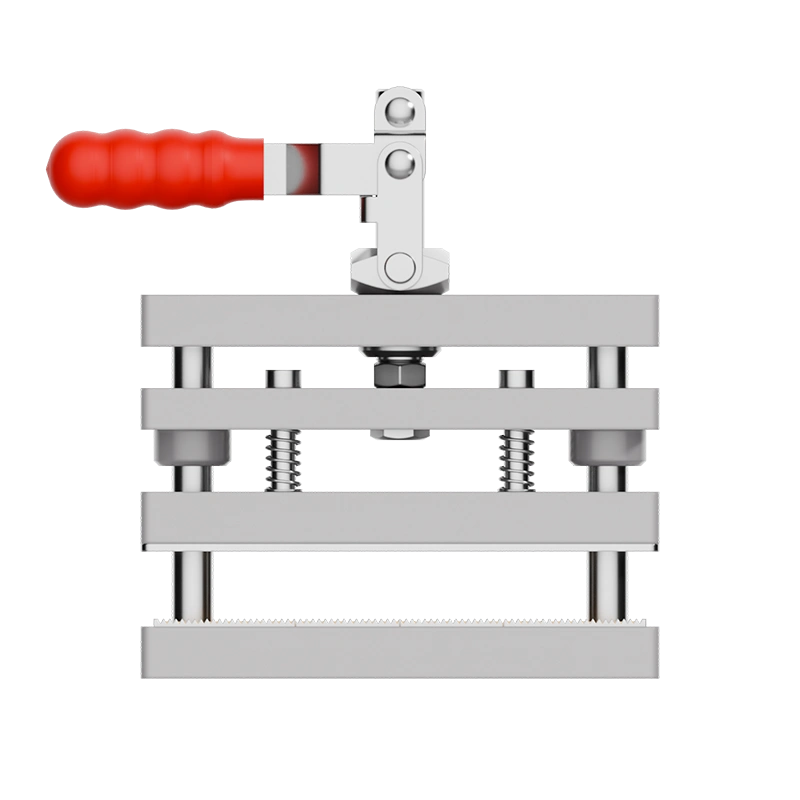

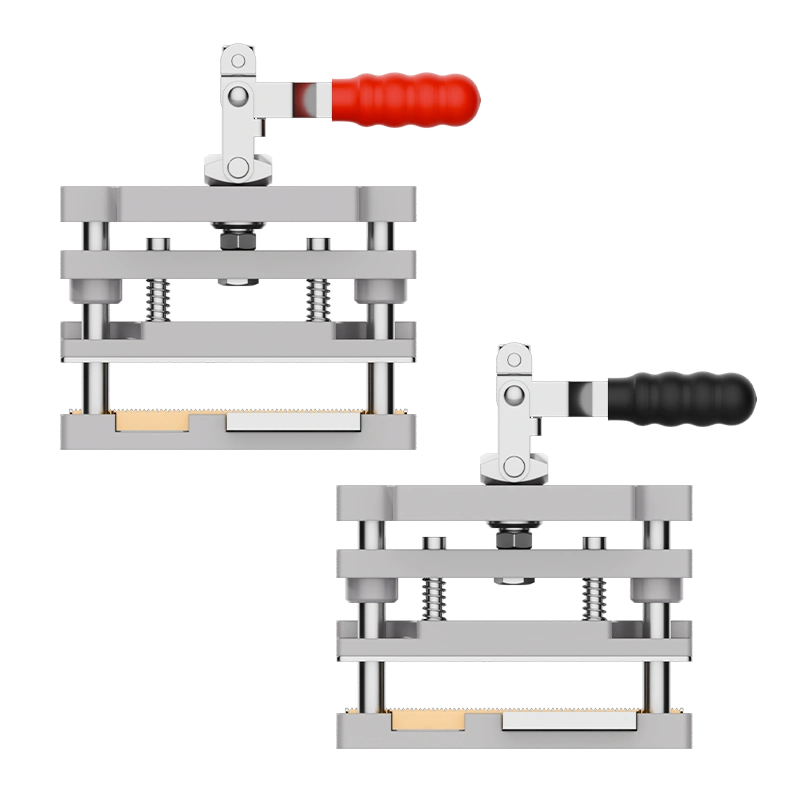

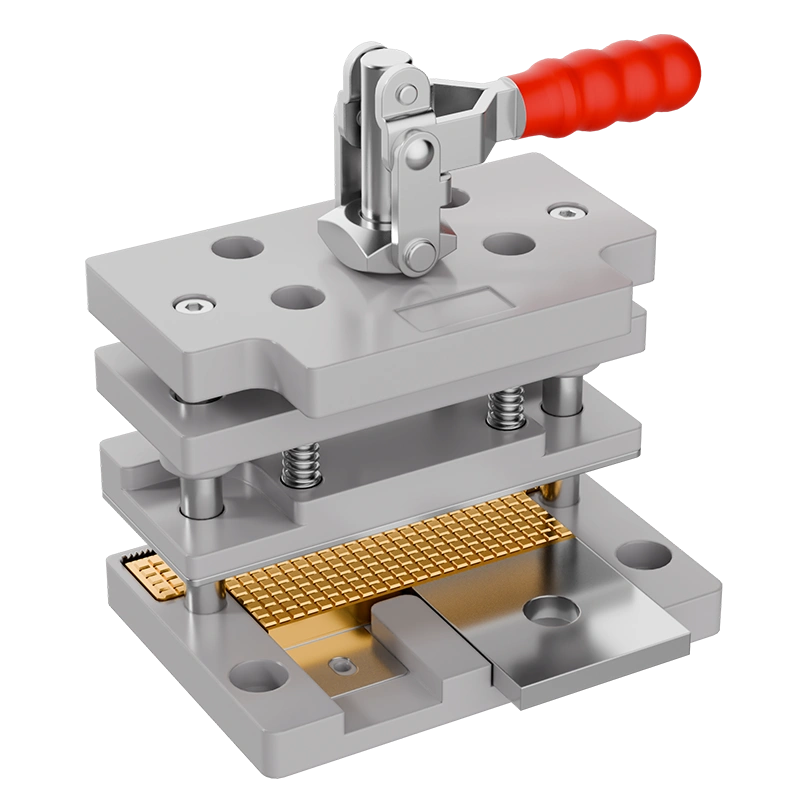

The elbow joint clamp is convenient to operate and has a strong clamping force, making it suitable for high current transmission. When combined with the P103-12-TZ-R-600A- negative clamp, it is capable of handling charging and discharging, capacitance voltage, and formation and capacity grading tests for 600A pouch batteries, ensuring stable and efficient current transmission.
| Equipment name | 600A Pouch Cell Positive Toggle Clamp |
|---|---|
| Model | P103-12-TZ-R-600A+ |
| Current | 600A |
| Color | Red |
