Thermal pressing formation charging and discharging testing for pouch batteries.
| Voltage & Current | 5V12A |
| Number of Channel | 32CH |
| Battery Type | Single-sided tab pouch cell |
| Battery Size | Width: 2.0"~5.5" (50~140mm) Length: 2.4"~6.3" (60~160mm) Thickness: 0.1"~0.6" (3~15mm) (Customized according to the actual size of the battery.) |
| External Size | 70.9"×43.3×74.8" (1800mm×1100mm×1900mm) |
*Customizable according to actual requirements of voltage, current, and battery test quantity.
*Please refer to the actual physical dimensions.
MRH-12A32CH-DQ pouch battery formation system provides an efficient and stable formation solution, ensuring the formation of high-quality SEI films during the formation process through precise control of temperature and pressure, thereby enhancing the performance and safety of the battery.

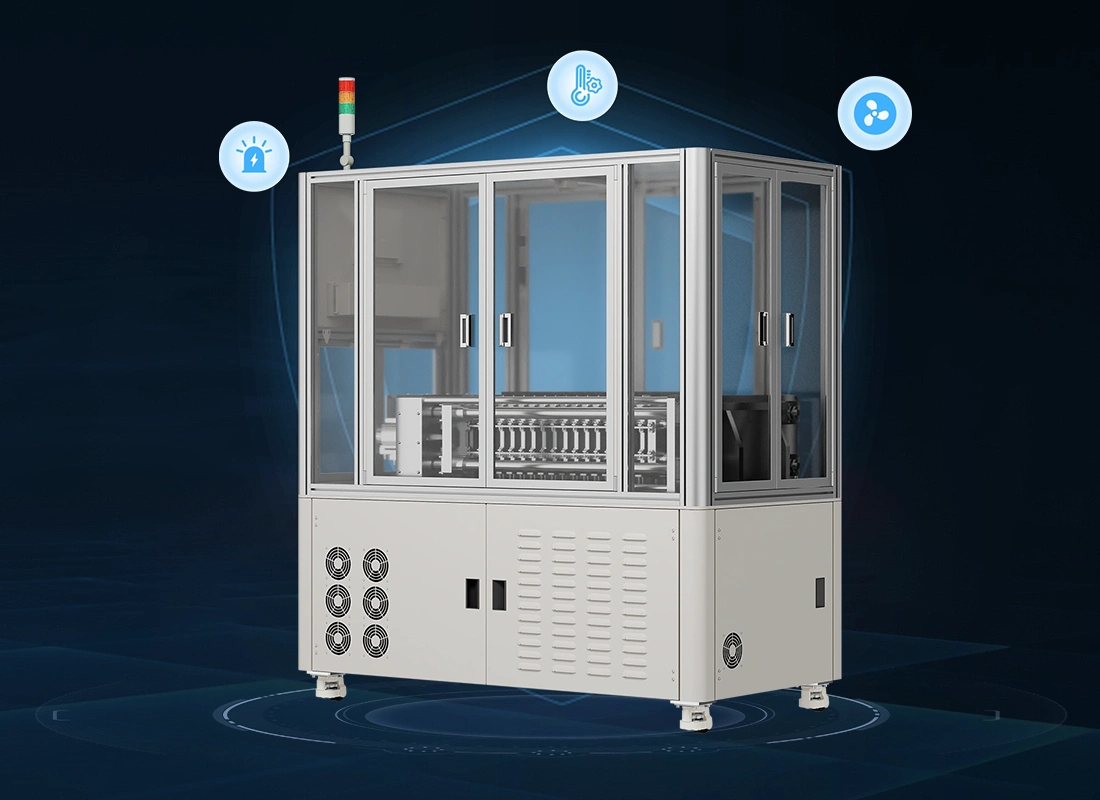

Combined with an intelligent temperature and pressure control system, it achieves multi-stage heating and pressure formation, with each stage's temperature and pressure independently adjustable, ensuring the consistency and stability of battery performance. Each heating plate has a temperature probe, and the system alerts and halts the formation process in case of anomalies.

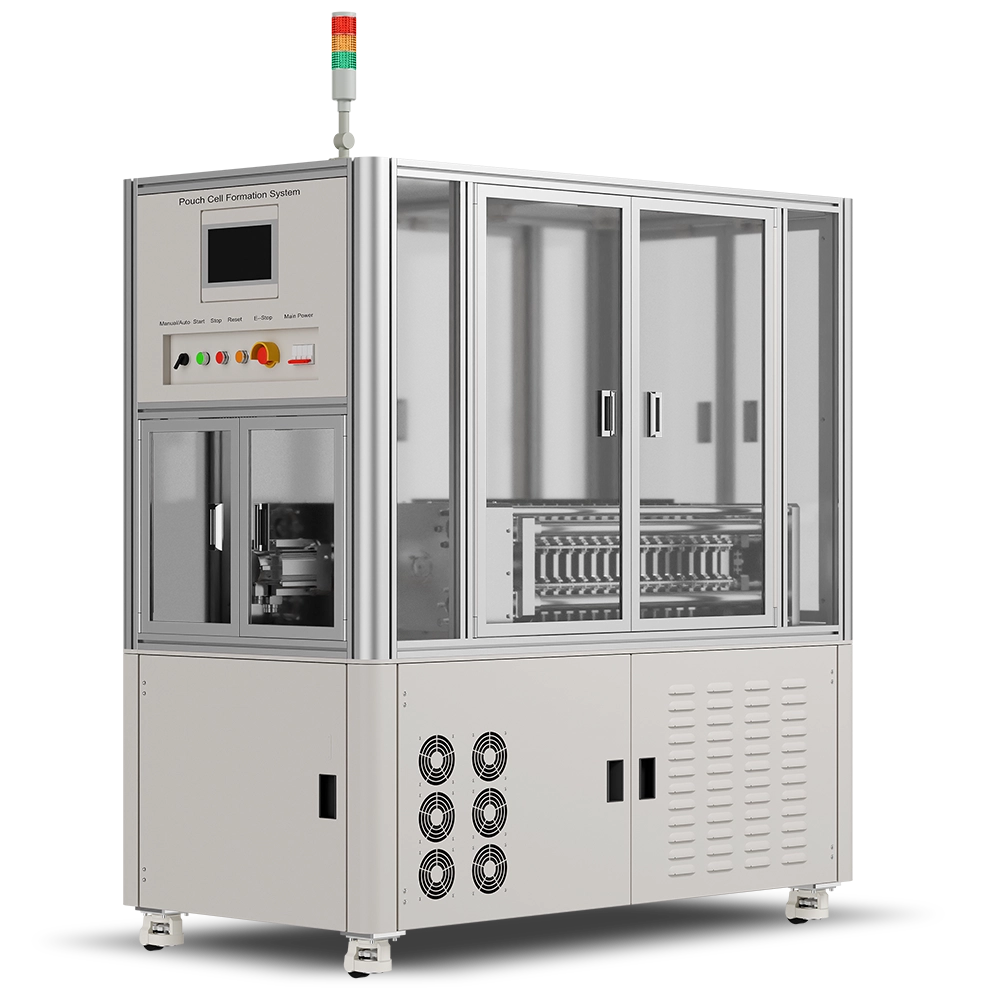

Built-in controller, compact integrated design not only saves production space but also enhances the cleanliness and ease of operation of the production line.
Action process: ● Parameter setting → ● Manual scanning → ● Manual loading → ● Fixture clamping → ● Stabilization of pressure/temperature parameters → ● Start → ● Completion → ● Manual unloading

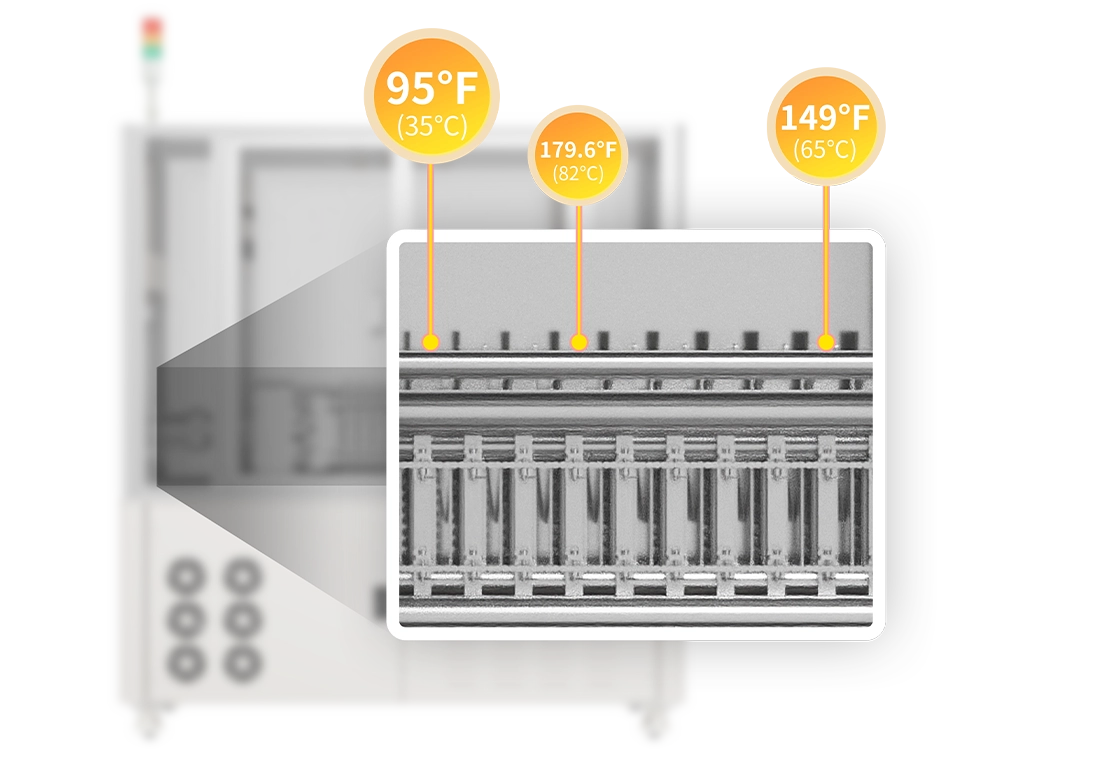

Using advanced temperature control technology, it ensures precise temperature control during the formation process, improving the efficiency and yield of battery formation.

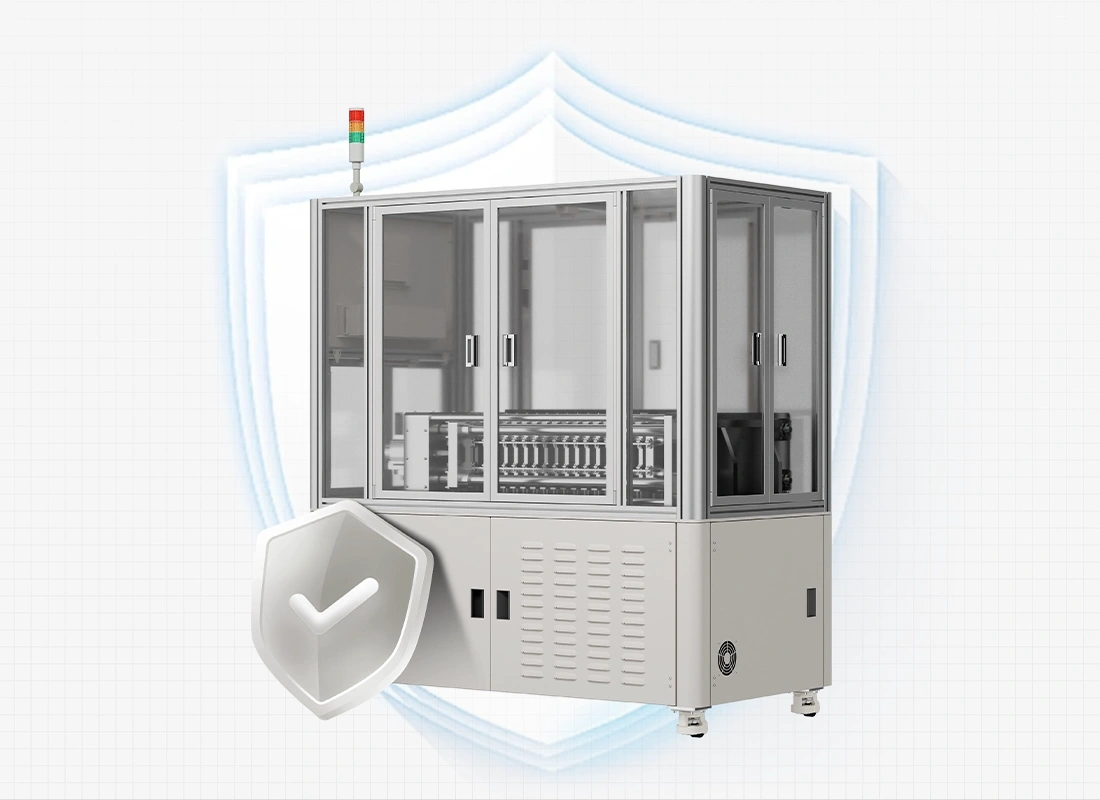

Equipped with an intelligent safety monitoring system, it monitors the production status in real-time, ensuring the safe operation of the equipment and making the production process more worry-free.

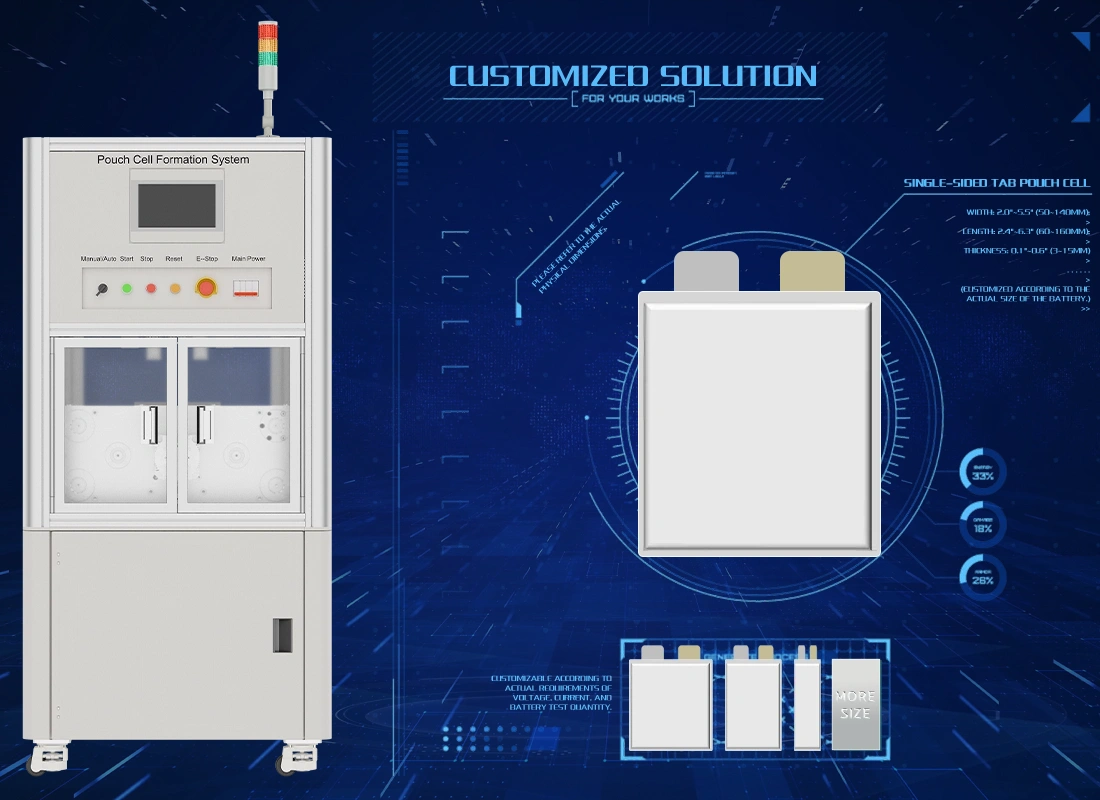

The equipment is compatible with a variety of battery sizes and can provide customized solutions according to different customer needs by changing different support films to meet the variations in cell sizes.
● Voltage & Current Accuracy：±0.02% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1.5ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB
● Voltage & Current Accuracy：±0.02% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1.5ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB
● Voltage & Current Accuracy：±0.02% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1.5ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB
● Voltage & Current Accuracy：±0.02% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1.5ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB
