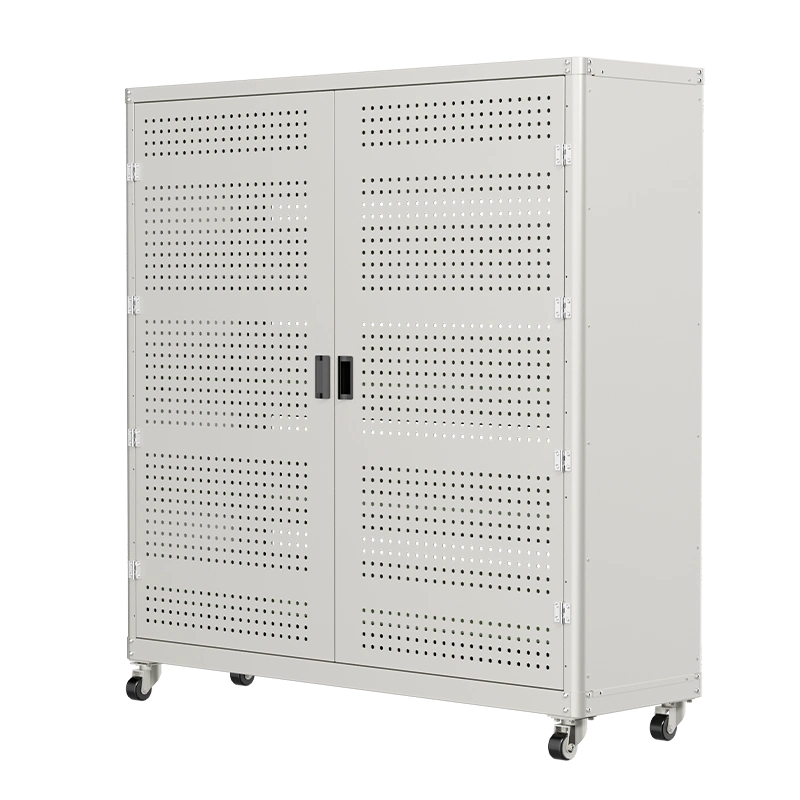

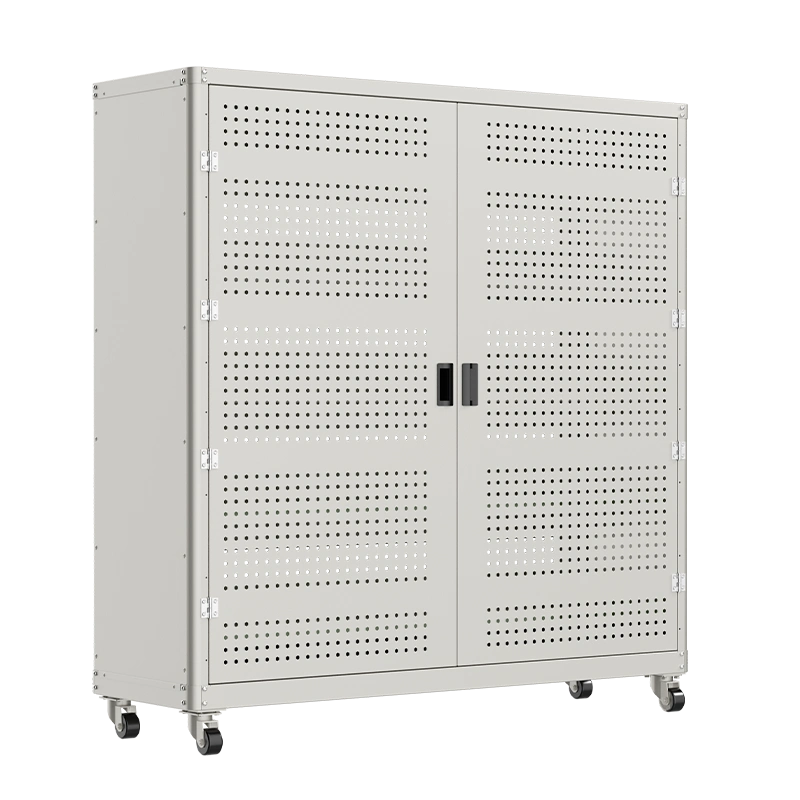

Capable of arranging up to 32 pouch cells, providing stable support, specifically designed for battery layout during testing.
Features
Tech Specs
Compact design, easy operation, enhancing work efficiency. The pouch cell rack features a flexible and adaptable design, allowing adjustable battery placement space to accommodate various sizes of pouch cells, meeting the diverse testing requirements. The stable rack ensures the batteries remain steady during testing, ensuring test safety.
| Equipment name | 60A 32CH Pouch Cell Rack |
|---|---|
| Model | PDCJ-R-60A-32CH-W180-H |
| Current | 60A |
| Battery Size | Length: 11.8" (300mm) Width: 7.4" (188mm) Height: 0.6" (15mm) |
| Number of Channels | 32CH (4 layer×8) |
| External Size | 63.5"×20.8"×65.4" (1612×529×1660mm) |
| Weight | 210kg |
