For Pouch cells battery testing. The BTS system, paired with battery testing equipment, monitors battery status and conducts bulk charging and discharging tests, efficiently assessing the overall performance of battery packs. It optimizes battery management strategies and provides a scientific basis for battery development and quality control through detailed data analysis.
Features
Tech Specs
The BTS system, paired with battery testing equipment, monitors battery status and conducts bulk charging and discharging tests, efficiently assessing the overall performance of battery packs. It optimizes battery management strategies and provides a scientific basis for battery development and quality control through detailed data analysis.
· Adapts flexibly to testing requirements of batteries of various sizes, ensuring accuracy and adaptability in the testing process.

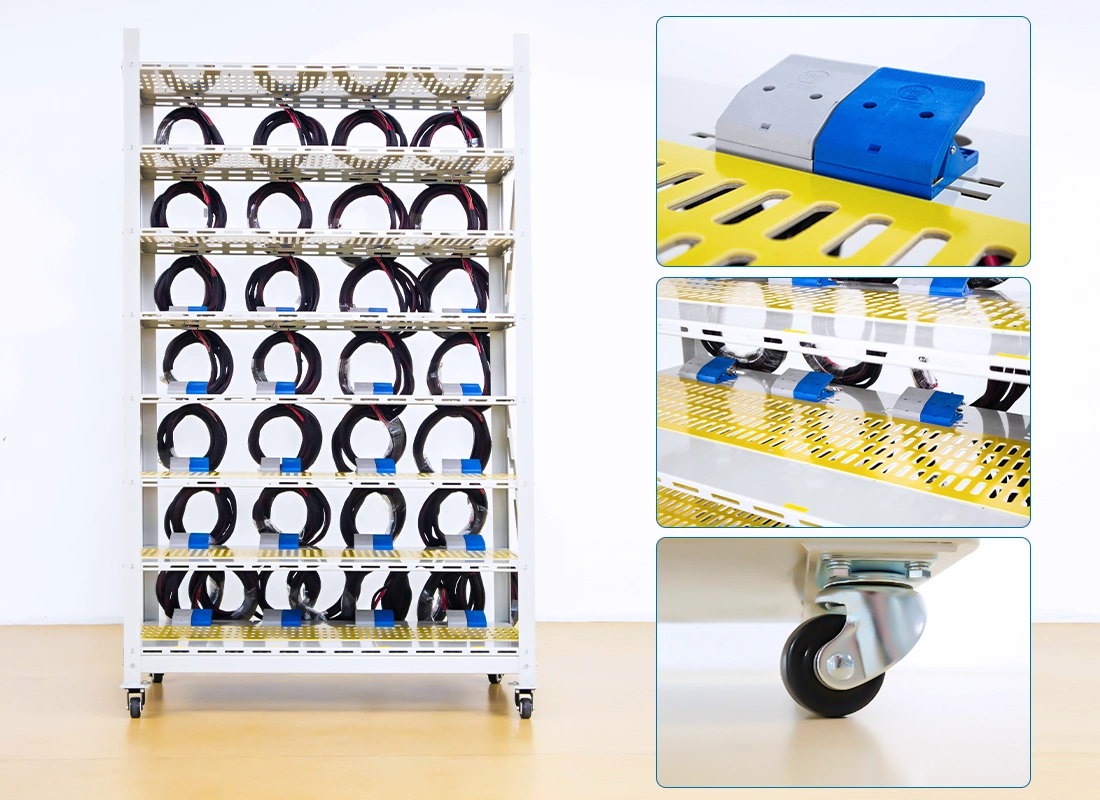

· The tray surface is equipped with an insulating pad layer to effectively prevent current leakage, enhancing the safety of the test.
· The battery test rack features various reinforcement designs to ensure reliable support for various types of test batteries, offering a stable testing platform.
· Equipped with omnidirectional wheels for 360° flexible rotation, facilitating easy movement and positioning, ensuring stability and safety during testing.

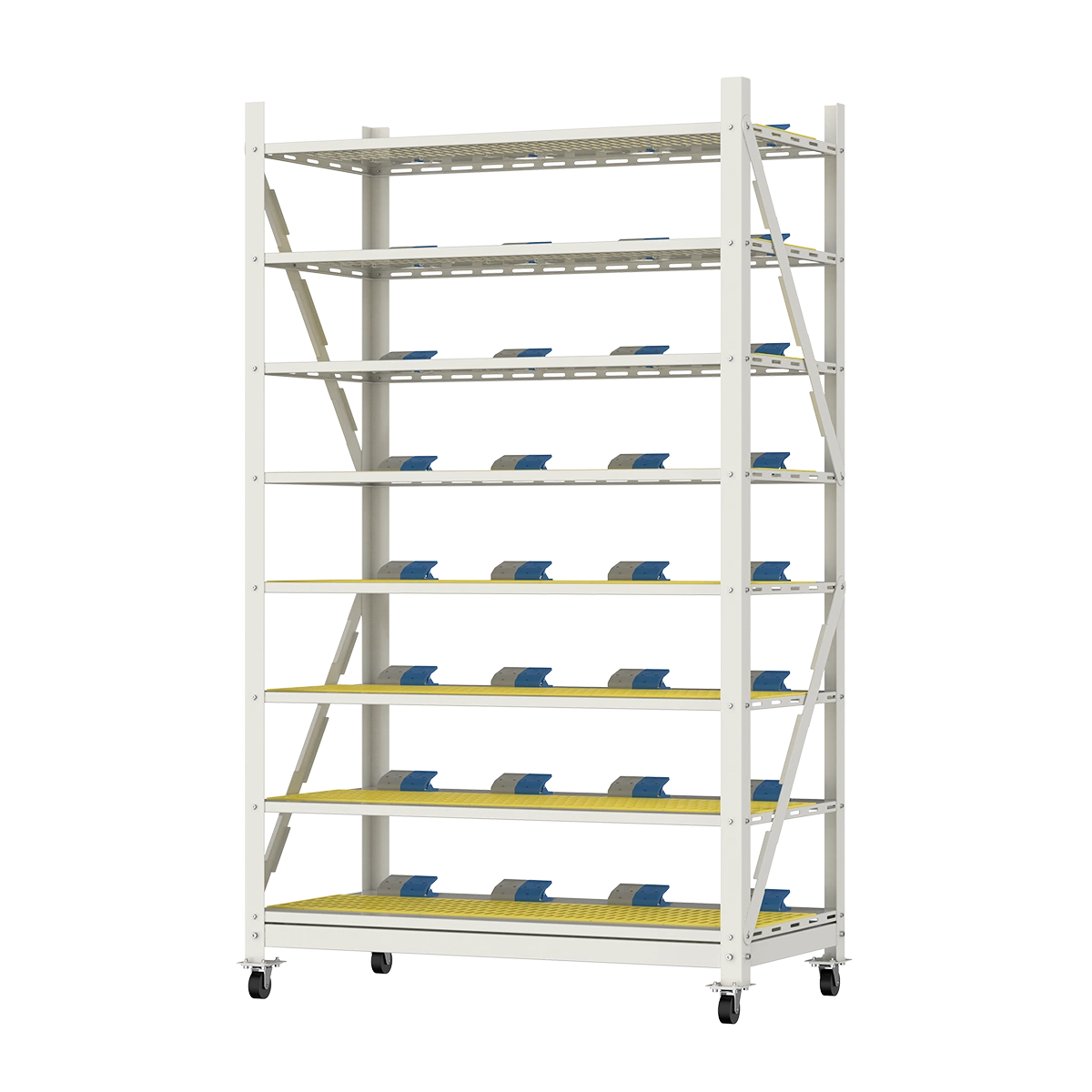

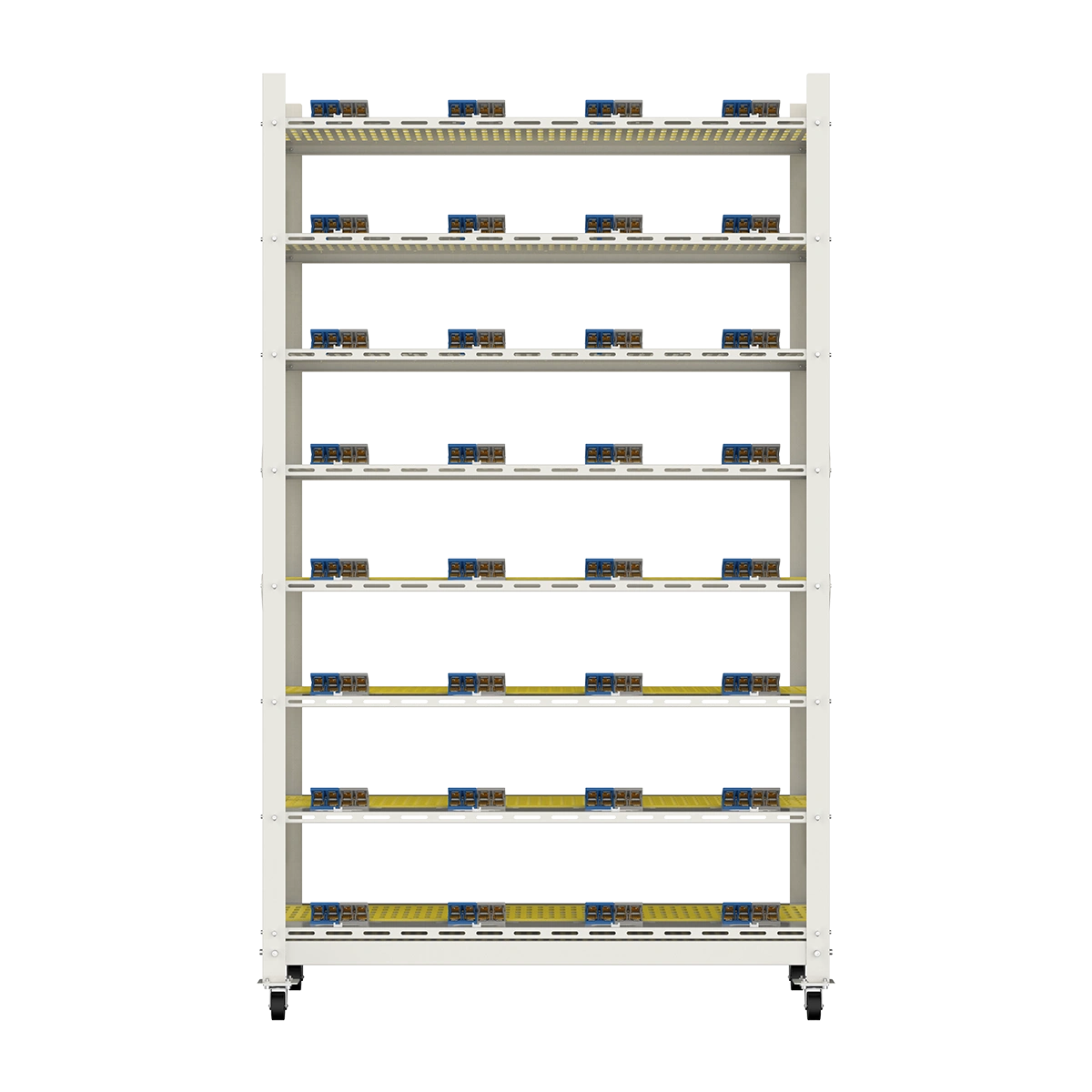

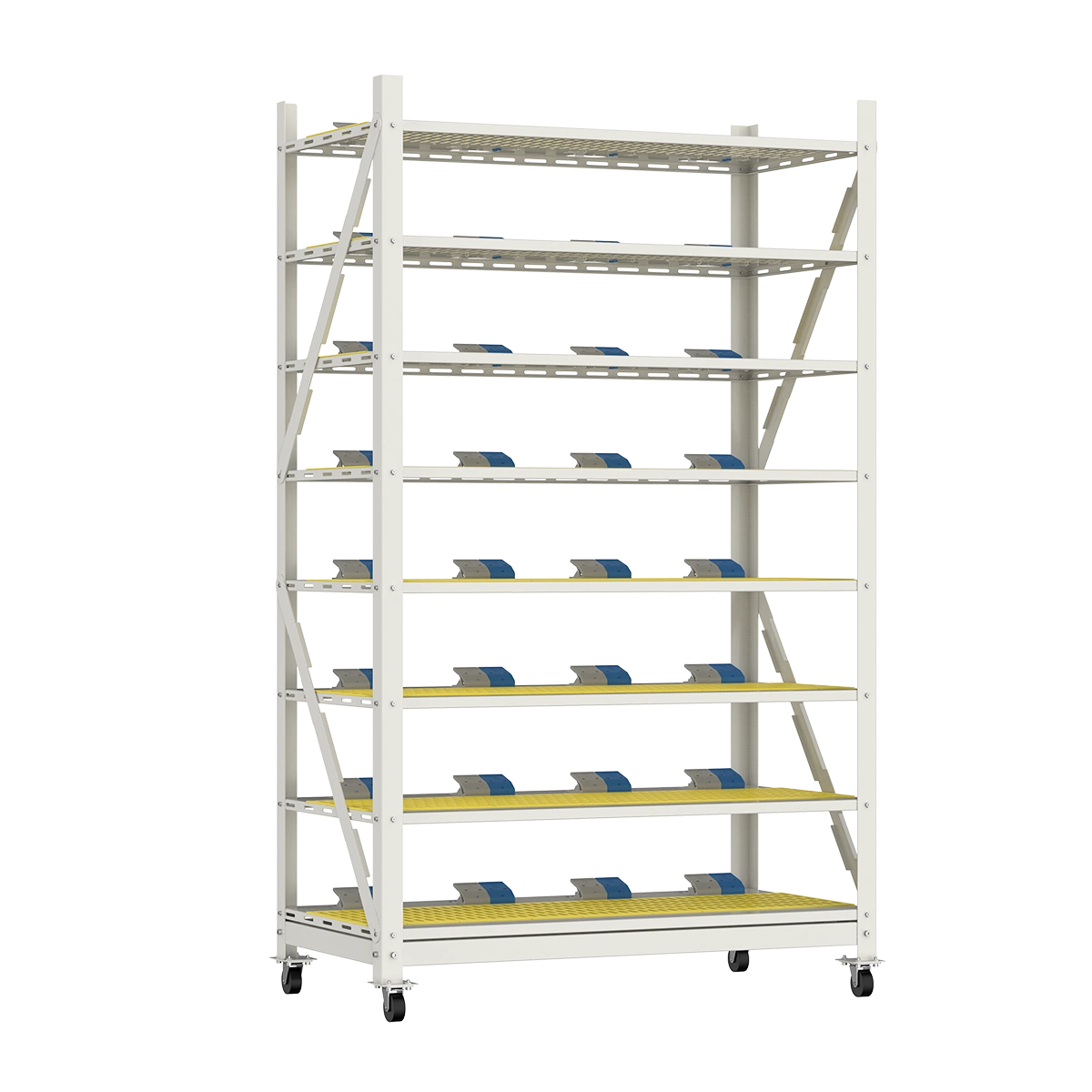

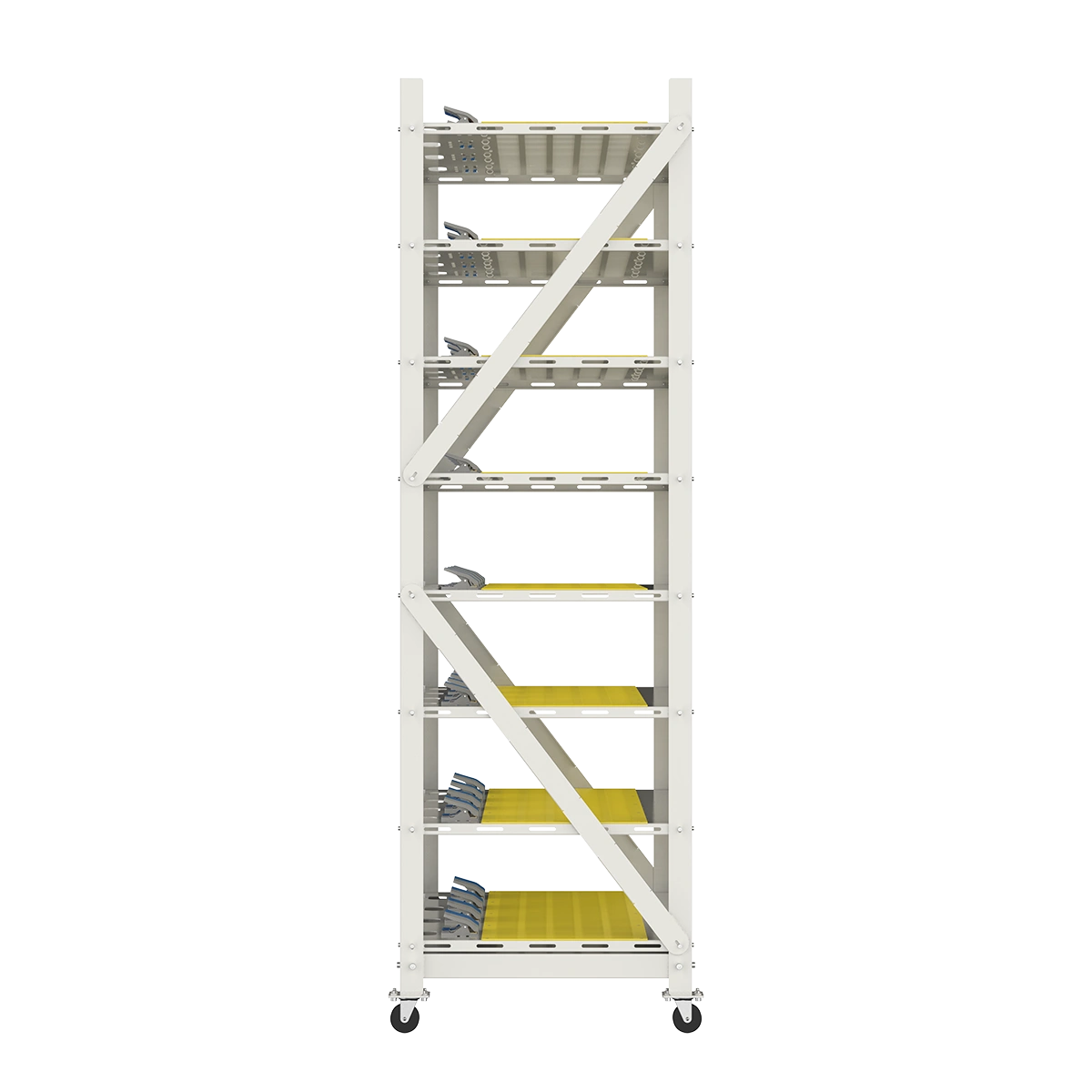

| Equipment name | 30A Pouch Cell Rack |
|---|---|
| Model | PDCJ-R1-P1-30A-32CH-D1 |
| Current | 30A |
| Battery Size | Length: 10.6" (270mm) Width: 8.7" (220mm) Height: 0.6" (15mm) |
| Includes Clamps | No |
| Number of Channels | 32CH |
| External Size (W×D×H) | 39.2"×21.3"×64.4" (996mm×540mm×1637mm) |
| Weight | 84kg |
