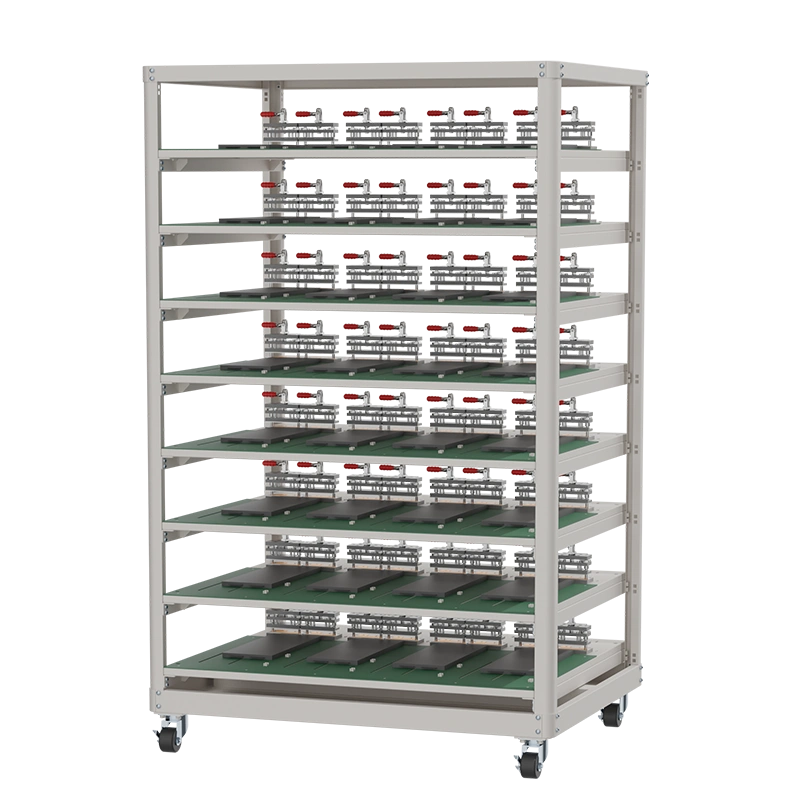

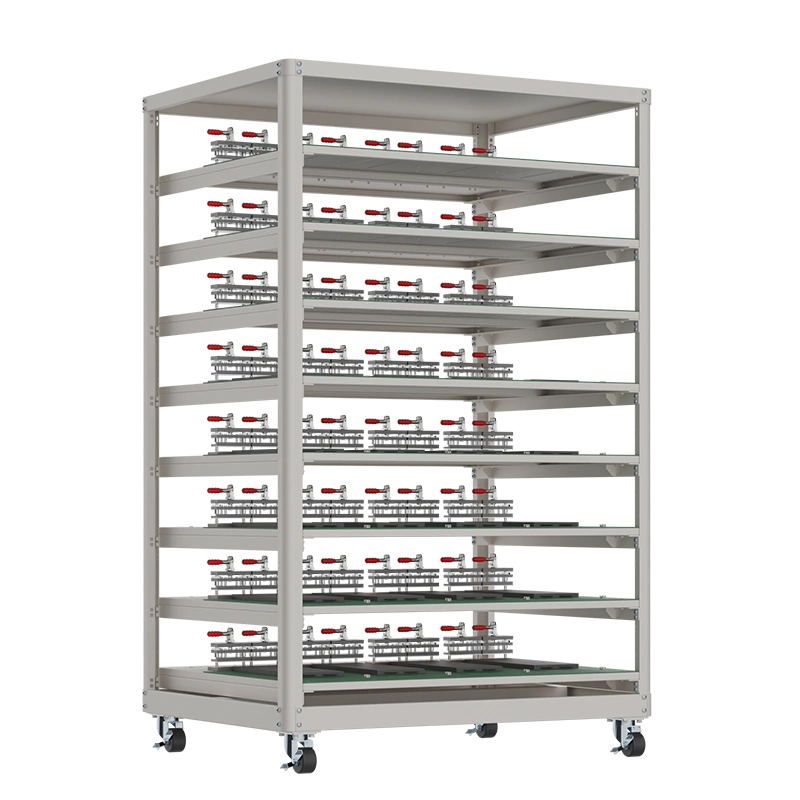

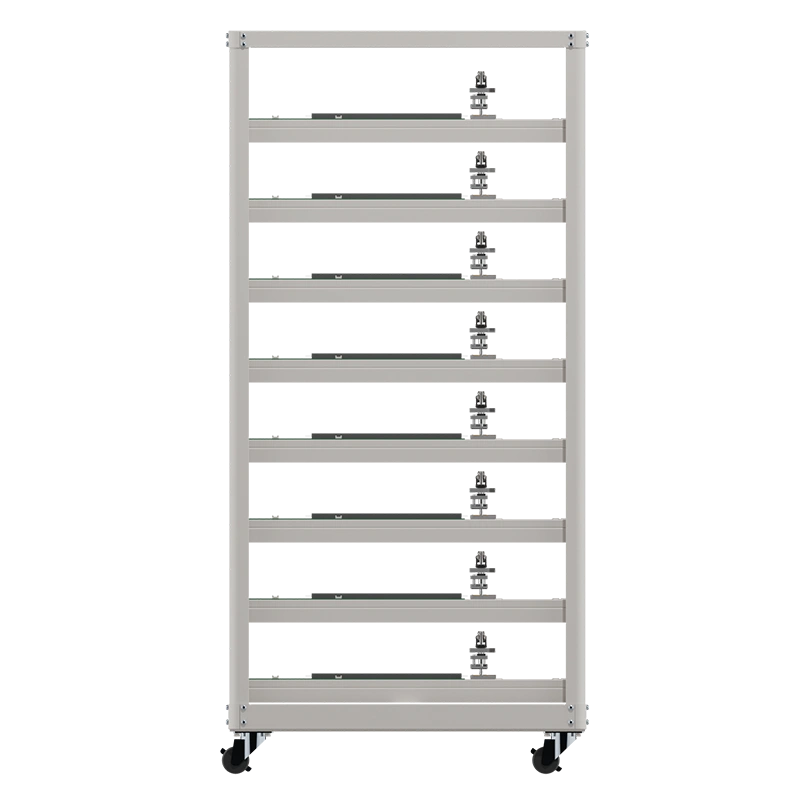

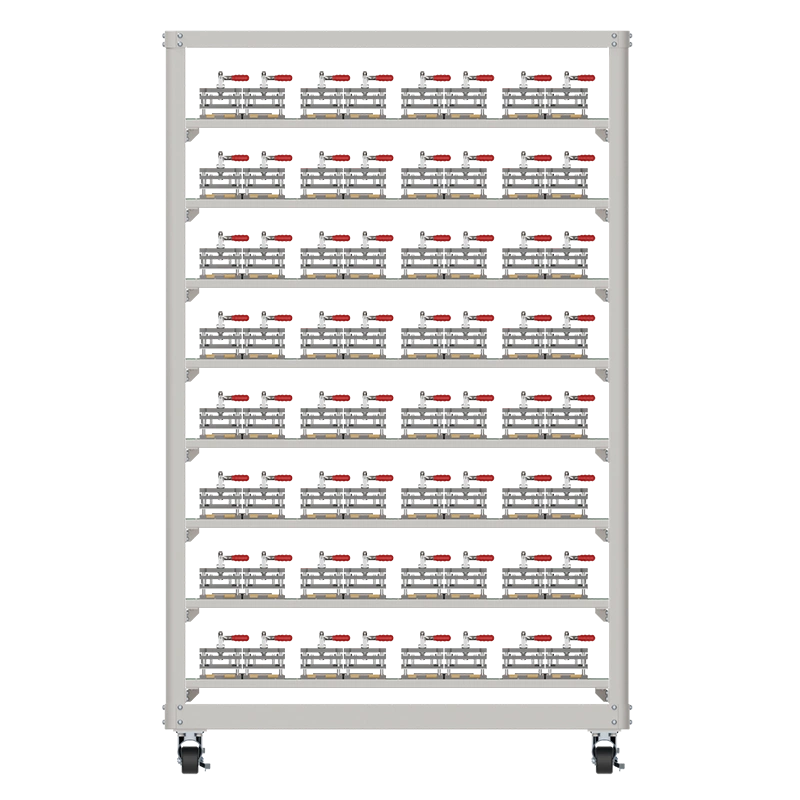

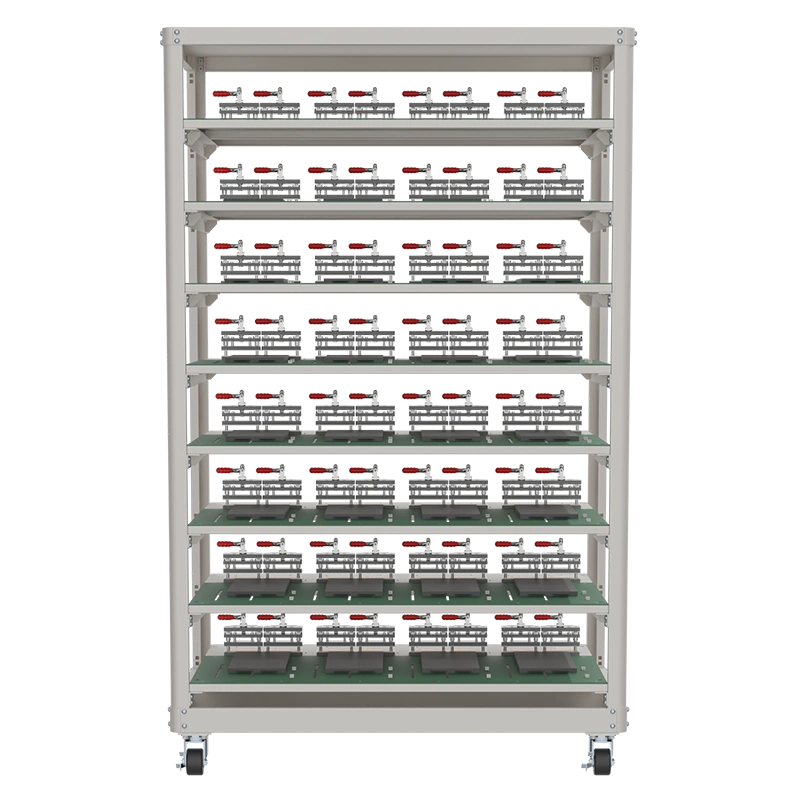

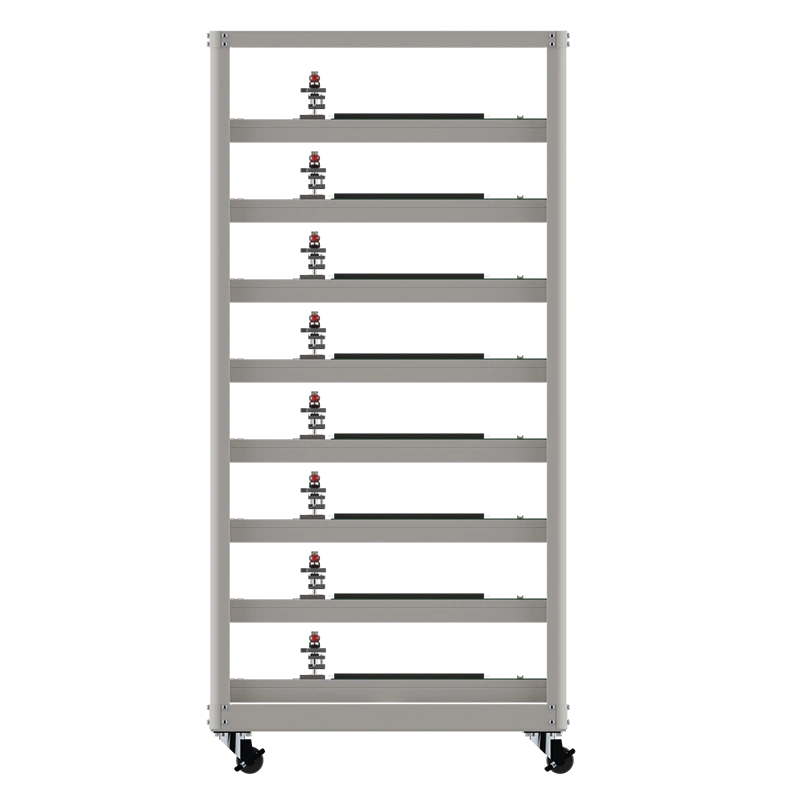

Compatible with single or double-sided battery tabs, paired with a battery testing system for pouch cell battery testing. Integrated with charging and discharging equipment for efficient bulk battery testing. Supports up to 32 batteries with a maximum test current of 120A, both customizable.

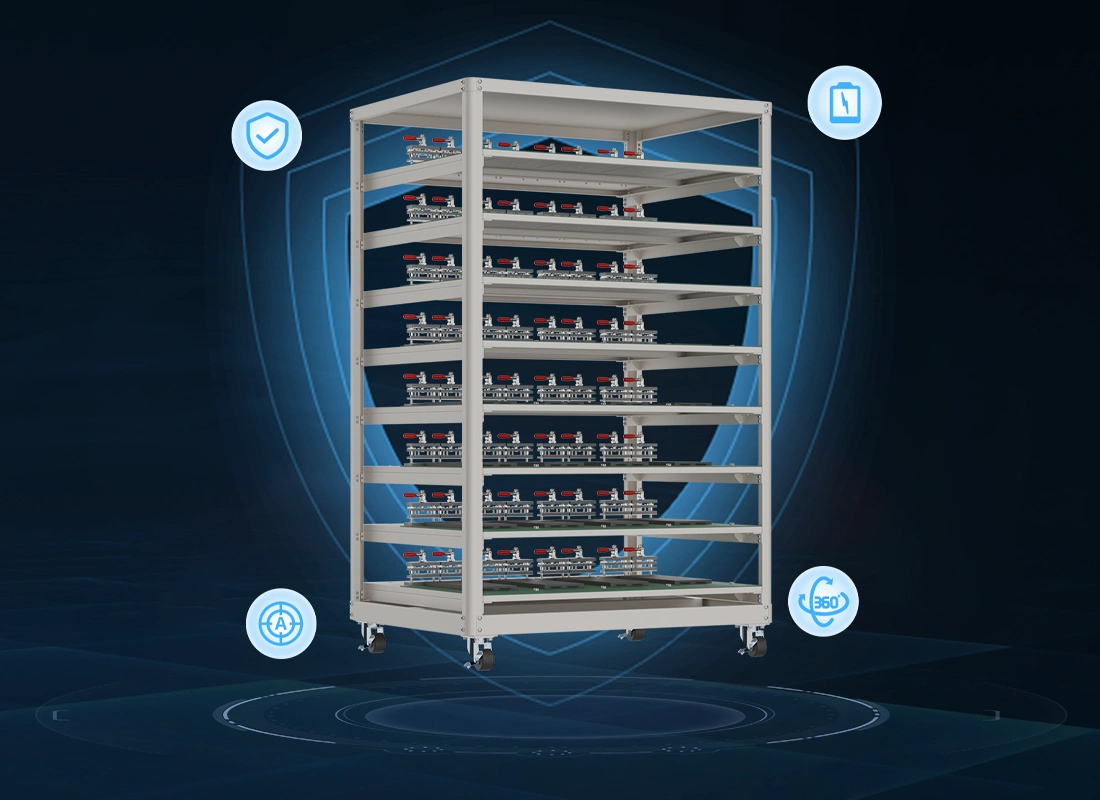

Features
Tech Specs
· Integrated with charging and discharging equipment for efficient bulk battery testing.
· Supports up to 32 batteries with a maximum test current of 120A, both customizable.
· Adjustable clamp spacing accommodates single or double-sided battery tabs, meeting the testing needs for a variety of battery sizes, ensuring the precision and adaptability of the testing process.
· The tray is equipped with a green fiberglass epoxy insulation layer, effectively isolating the risk of current leakage, enhancing the safety of the test.
· Battery Size：
Length: 3.1"-14.0" (80-355mm )
Width: 8.7" (220mm)
Height: 0.6" (15mm)
· The channel line tie-down design facilitates the organization and arrangement of wiring, maintaining an orderly work area.
· Equipped with omnidirectional wheels for 360° flexible rotation, it is easy to move and position, ensuring stability and safety during the testing process.
| Equipment name | 120A Pouch Cell Rack |
|---|---|
| Model | PDCJ-R3-ZJ-120A-32CH-D1 |
| Current | 120A |
| Battery Size | Length: 3.1"-14.0" (80-355mm ) Width: 8.7" (220mm) Height: 0.6" (15mm) |
| Includes Clamps | No |
| Number of Channels | 32CH |
| External Size (W×D×H) | 47.4"×33.5"×69.5" (1204mm×850mm×1765mm) |
| Weight | 252kg |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
