For testing 300A blade batteries.
Features
Tech Specs

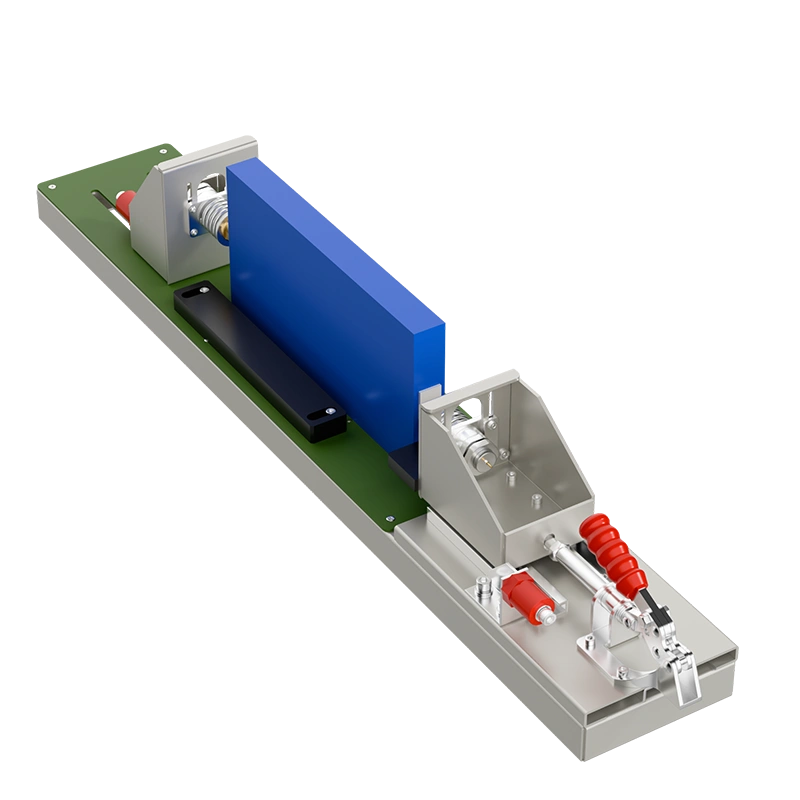

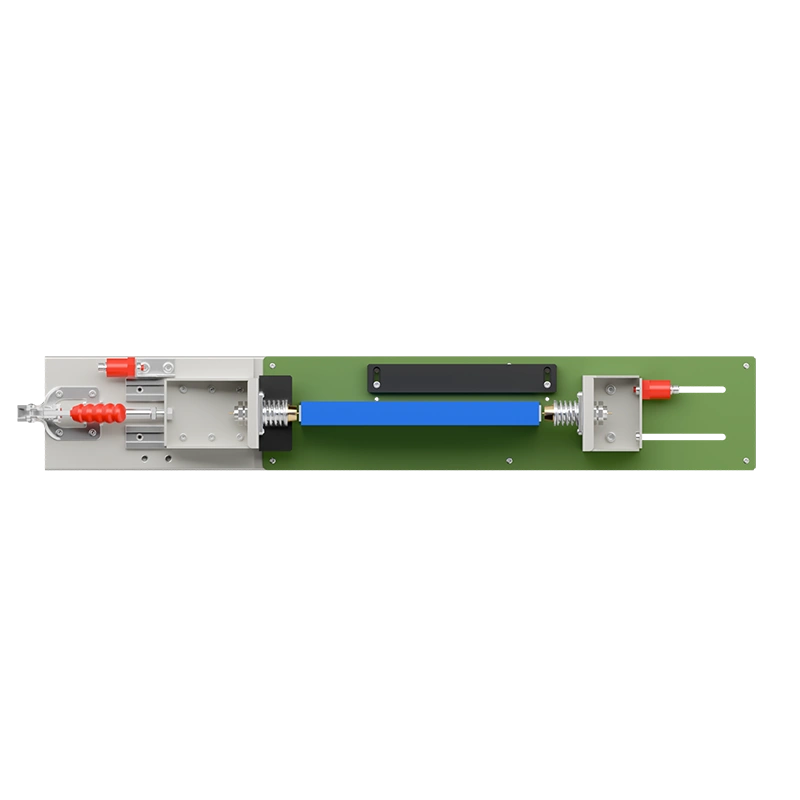

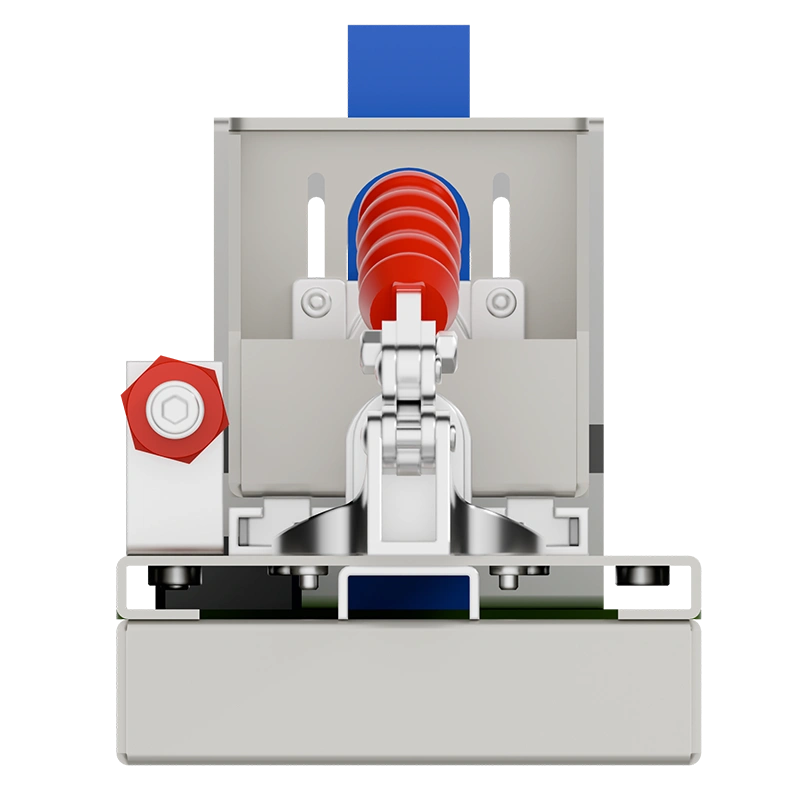

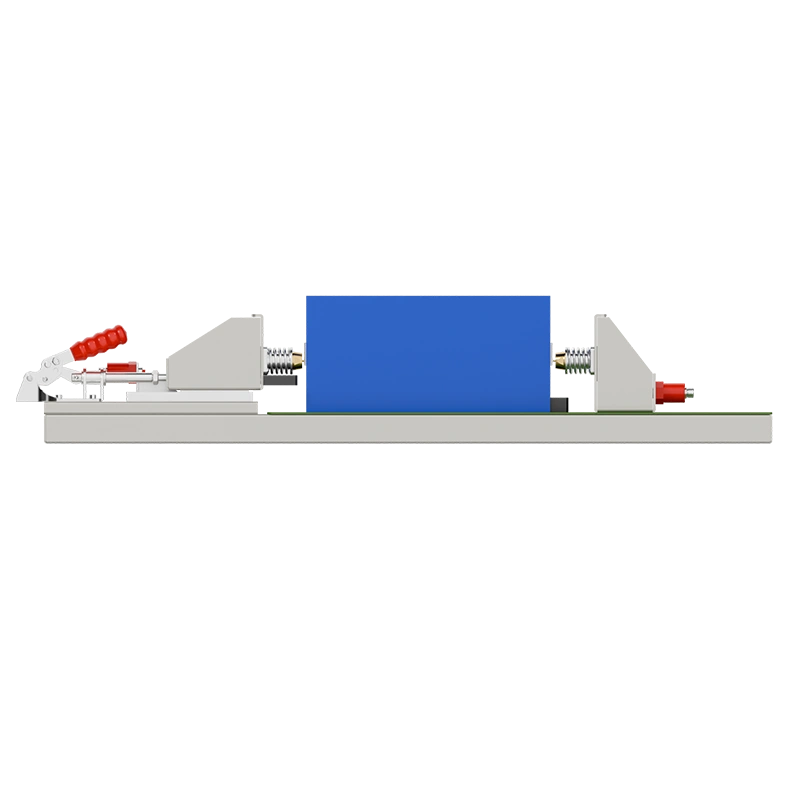

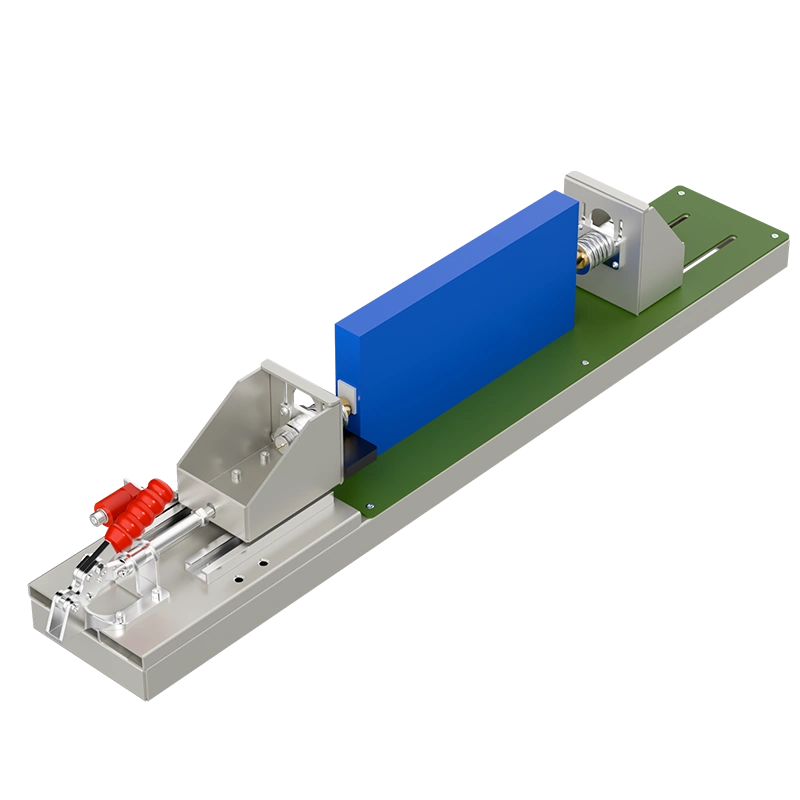

Capable of withstanding a maximum current of 300A, designed for testing blade batteries with anode and cathode on opposite sides, with adjustable tab spacing up to 0.4 meters, suitable for testing various sizes of blade batteries, and gold-plated probes ensure stable current transmission.
| Equipment name | 300A Blade Battery Toggle Clamp |
|---|---|
| Model | PCJ-F2-ZJ-300A-1CH-L-0.4M |
| Current | 300A |
| Battery Size | Length: 11.0"-15.7" (280-400mm) Width: 0.8"-3.1" (20-80mm) Height: 4.2"-6.1" (106-156mm) |
| External Size | 35.8"×5.5"×5.2" (910×140×133mm) |
| Weight | 5kg |
| Wire Terminal | M14/M6 |
