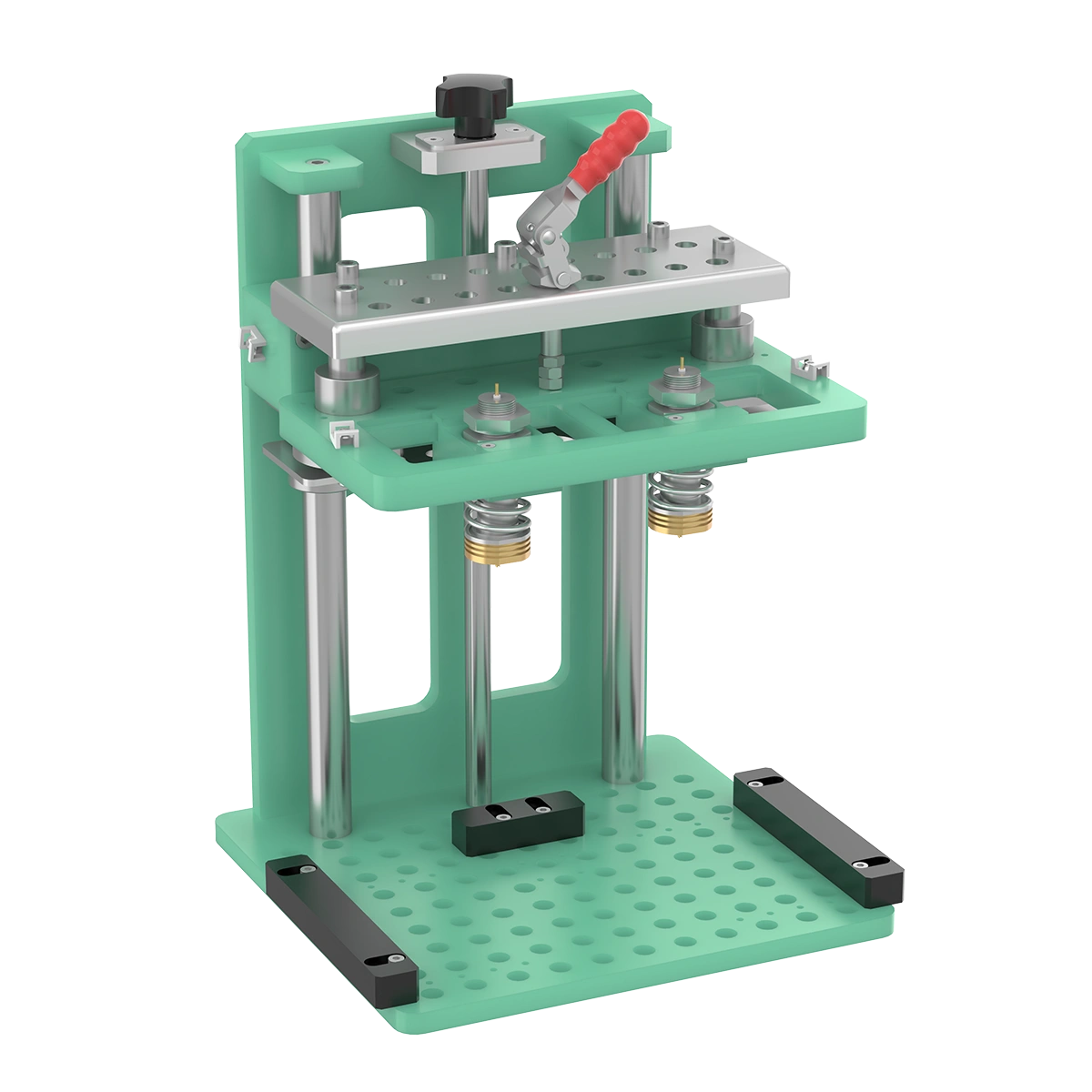

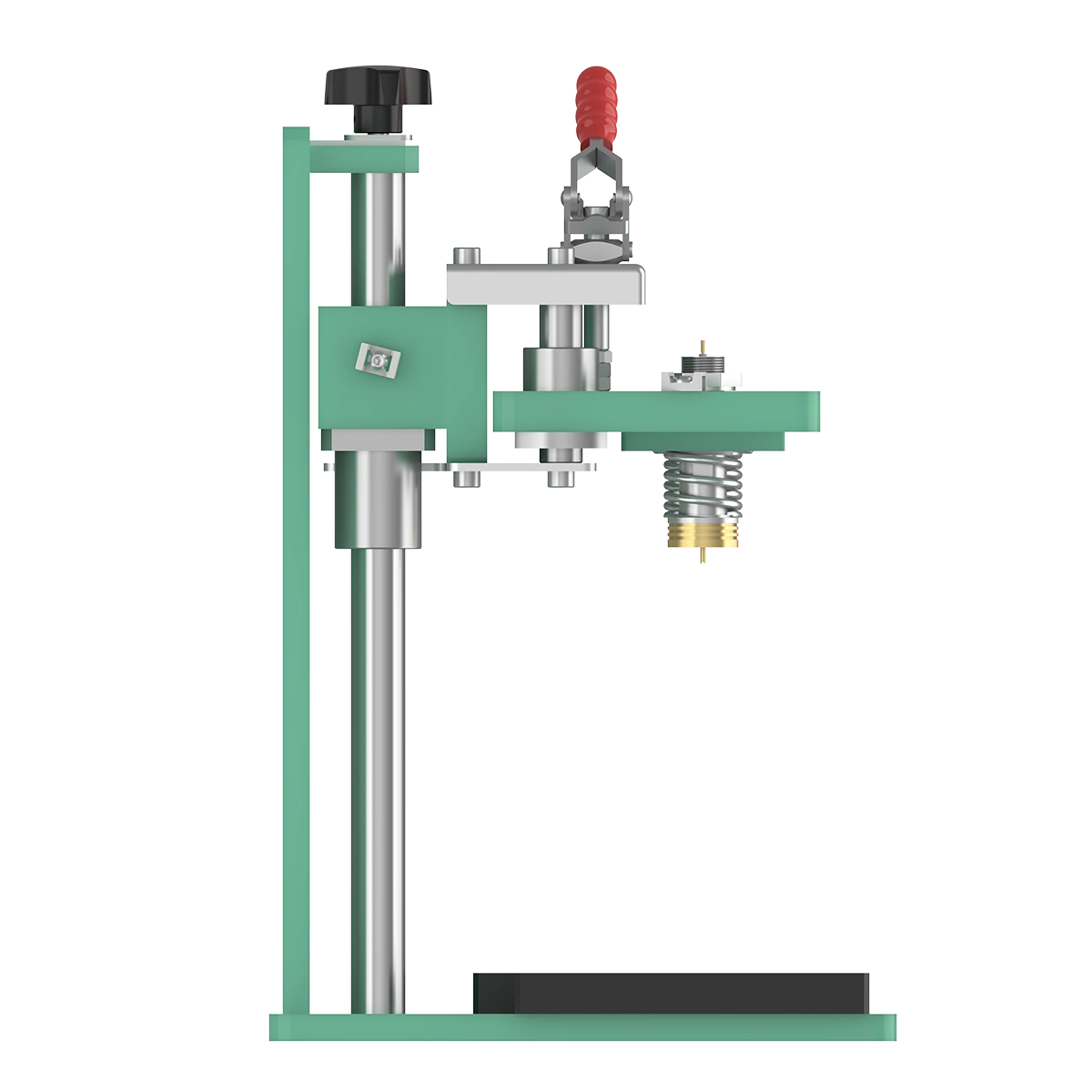

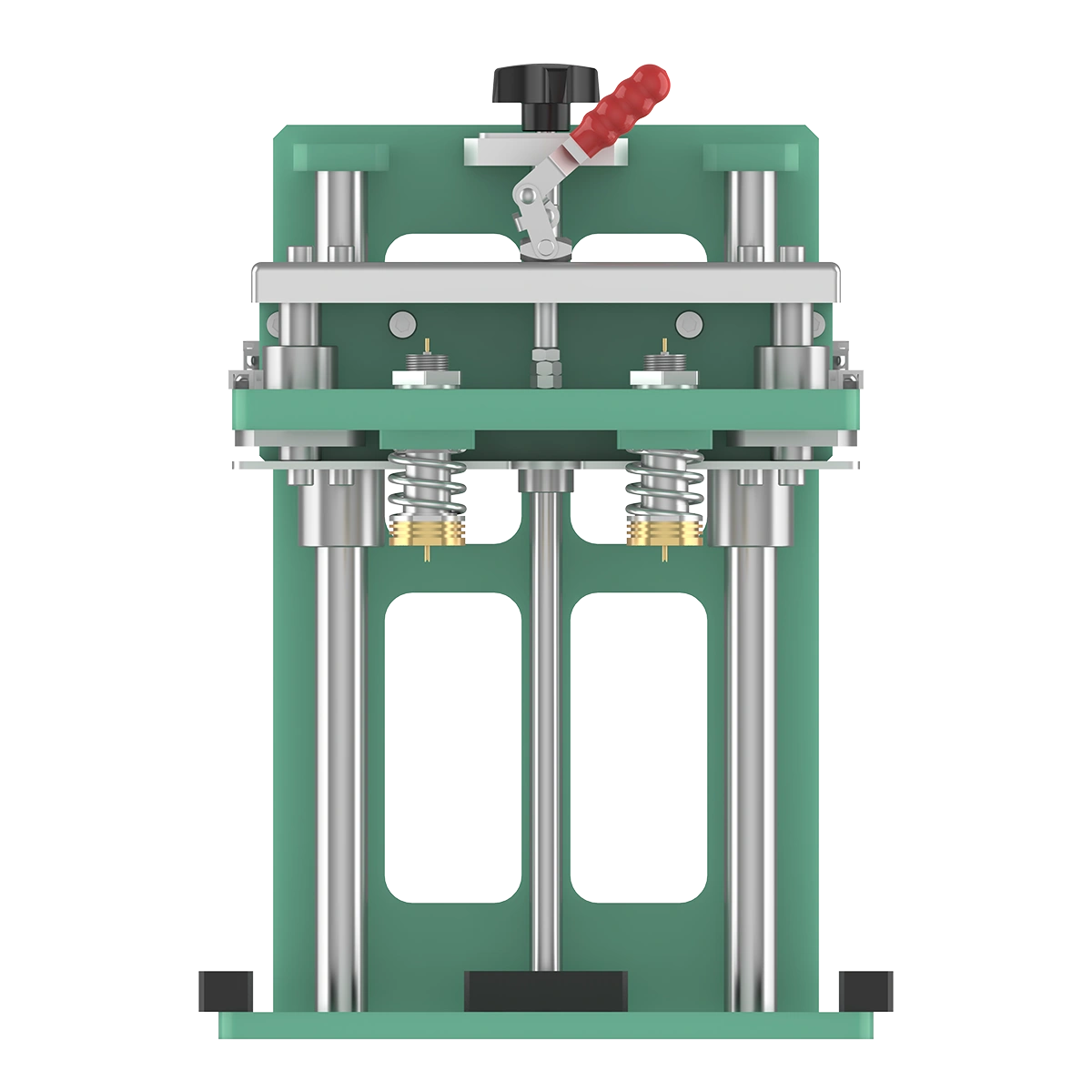

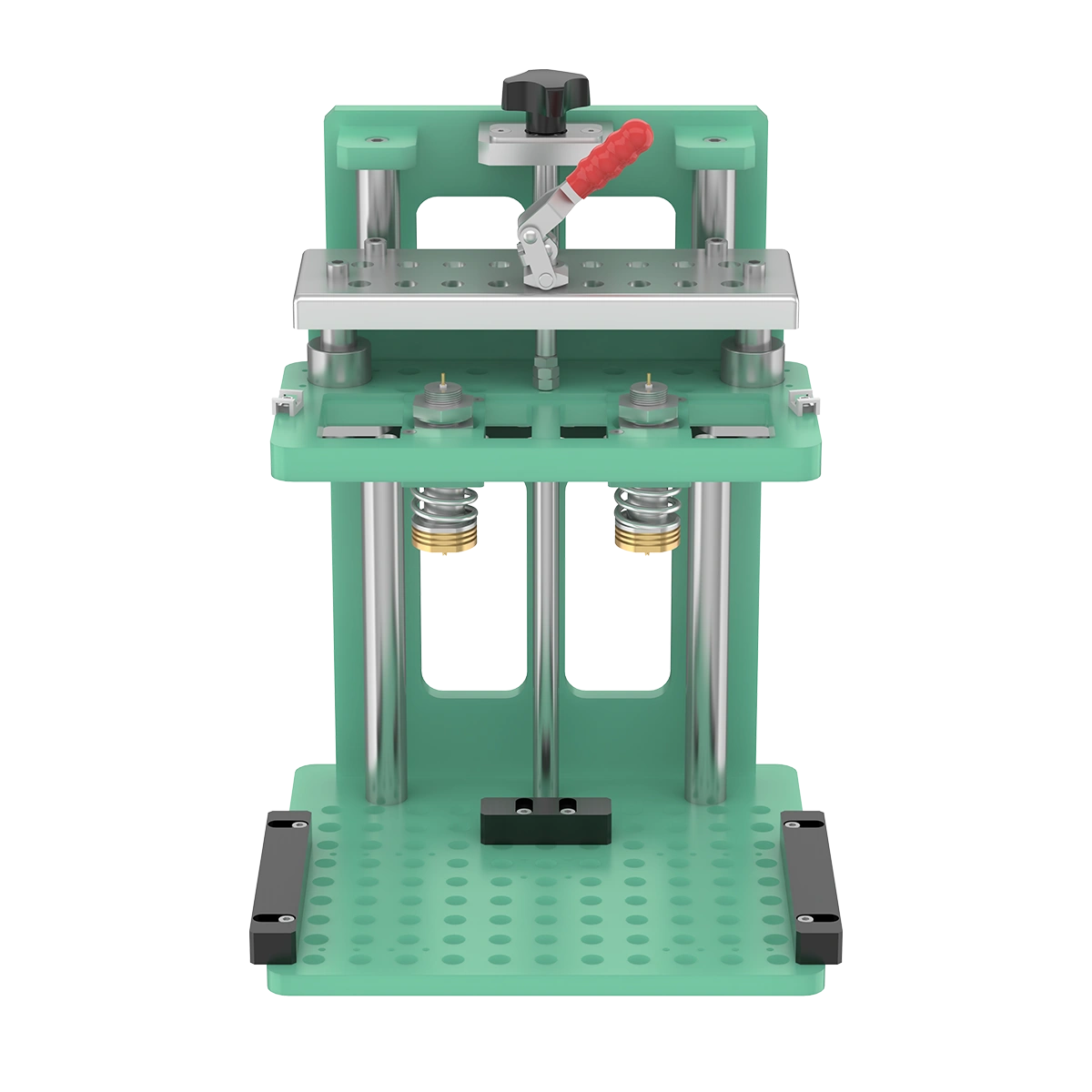

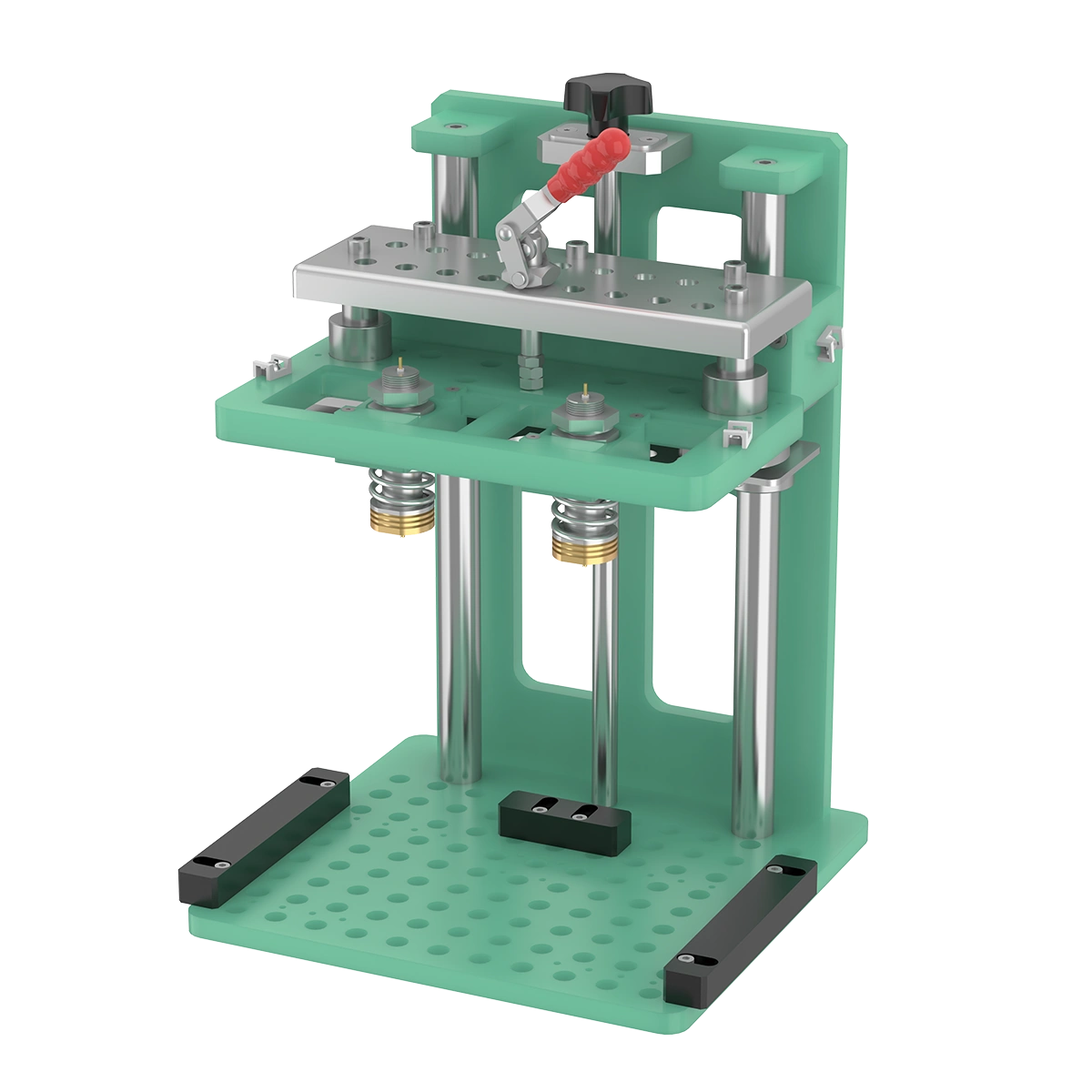

Temperature Chamber-use prismatic cell toggle clamp. Up to 600A Overcurrent Capability, Suitable for Square Battery Performance Testing in Temperature Chambers or Integrated Units.
Features
Tech Specs
Up to 600A Overcurrent Capability, Suitable for Square Battery Performance Testing in Temperature Chambers or Integrated Units.
· The clamp height and tab spacing are adjustable.
· Suitable for a variety of square battery sizes and types, offering a wide range of adaptability.
· Toggle clamps make battery placement and removal convenient and effortless.
· A reinforced base ensures the clamps are stable and will not tip over
. The combination of convenience and stability effectively enhances work efficiency, bringing ease and safety to battery handling operations.
| Equipment name | 600A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PCJ-YZJ-F-WX |
| Current | 600A |
| Wire Terminal | M16 |
| Tabs Distance | 2.0"-6.1" (50-155mm) |
| Battery Size | Length: 2.8"-8.3" (70-210mm) Height: 2.0"-9.8" (50-250mm) Thickness: 0.8"-4.7" (20-120mm) |
| External Size | 9.4"×9.1"×14.6" (240mm×230mm×370mm) |
| Weight | 9kg |
