For testing 500A prismatic batteries.
Features
Tech Specs

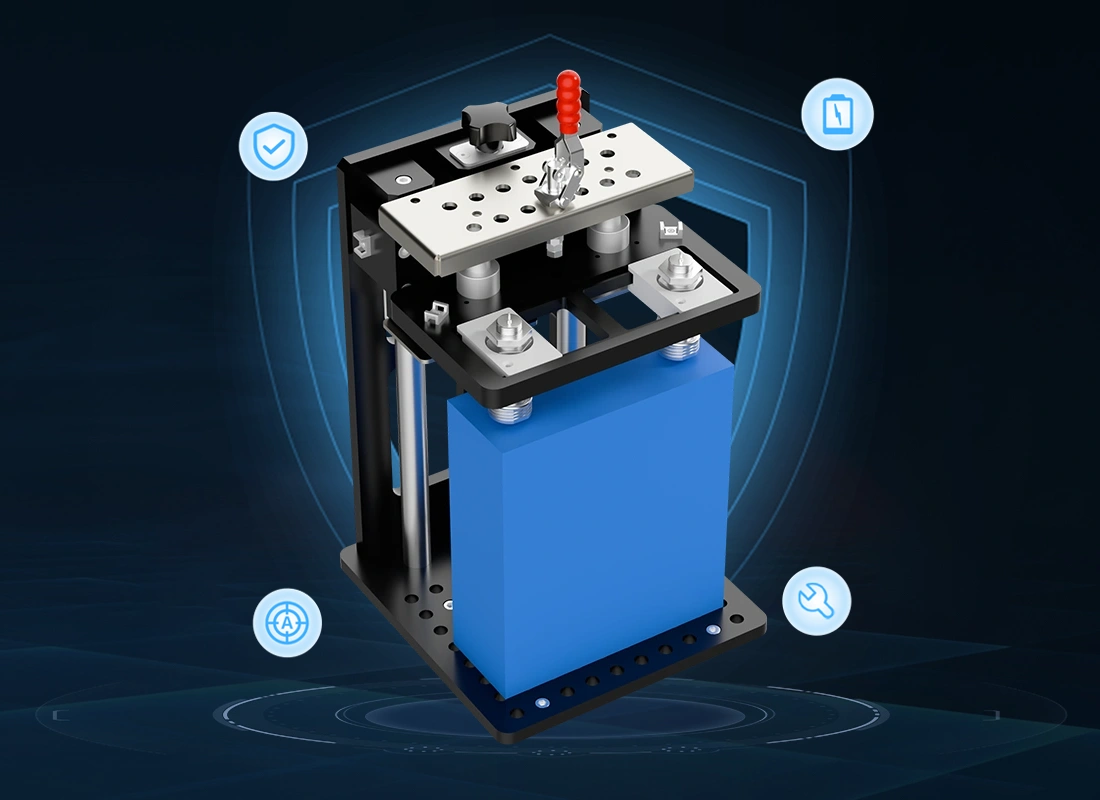

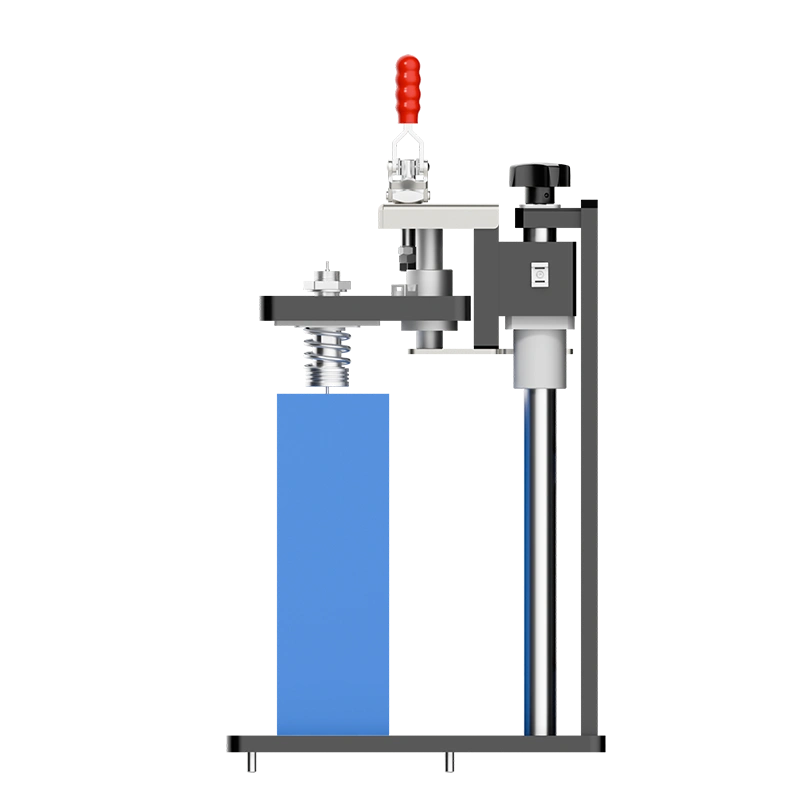

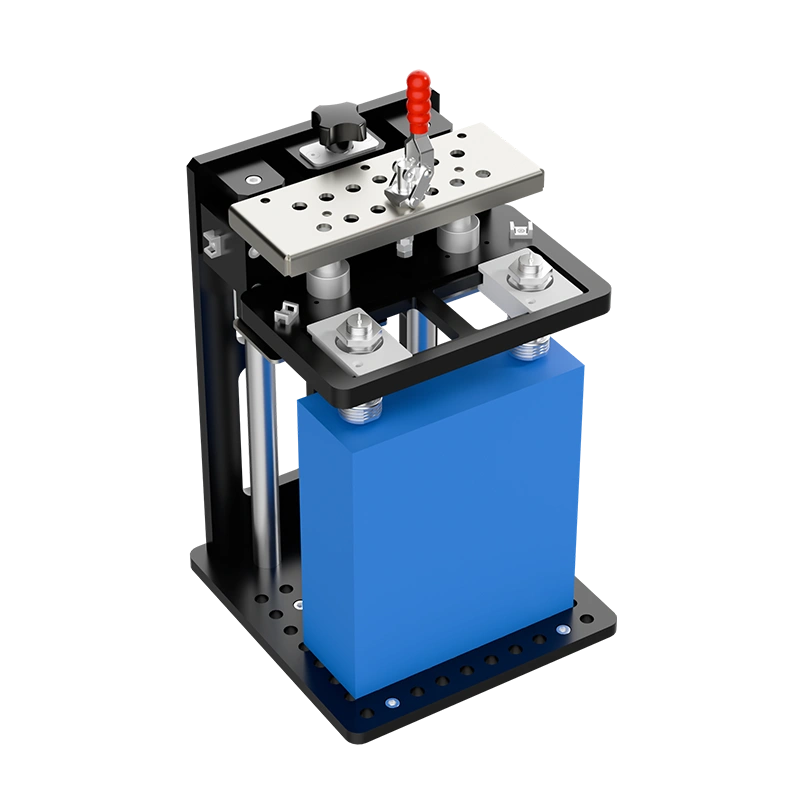

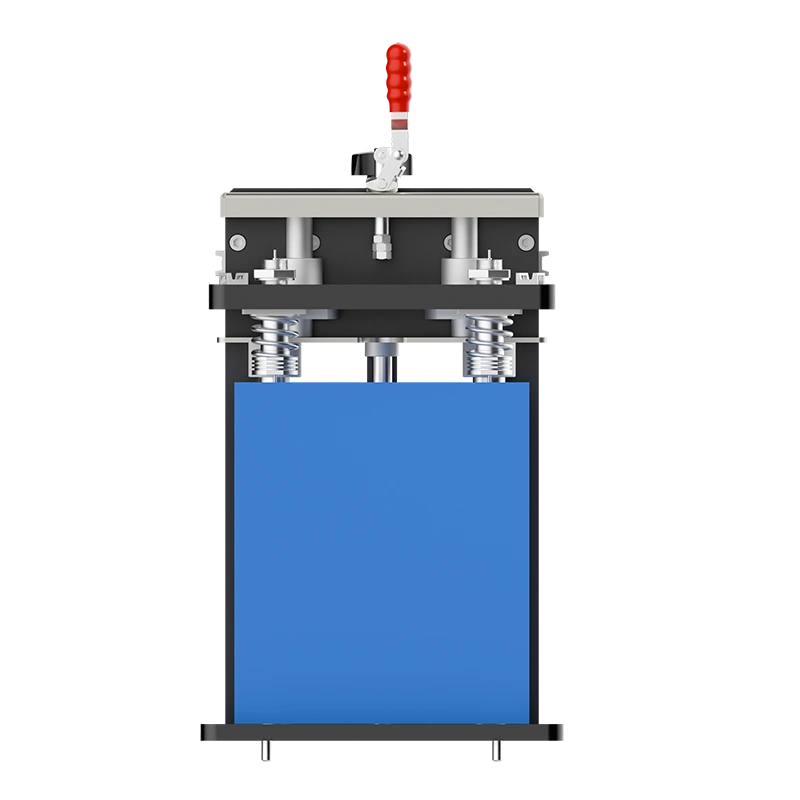

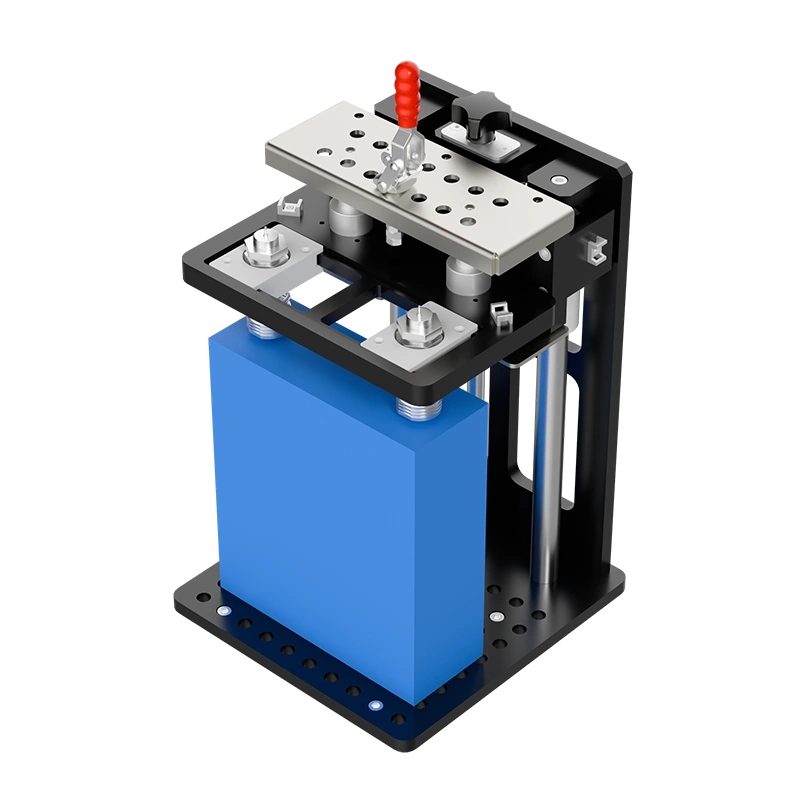

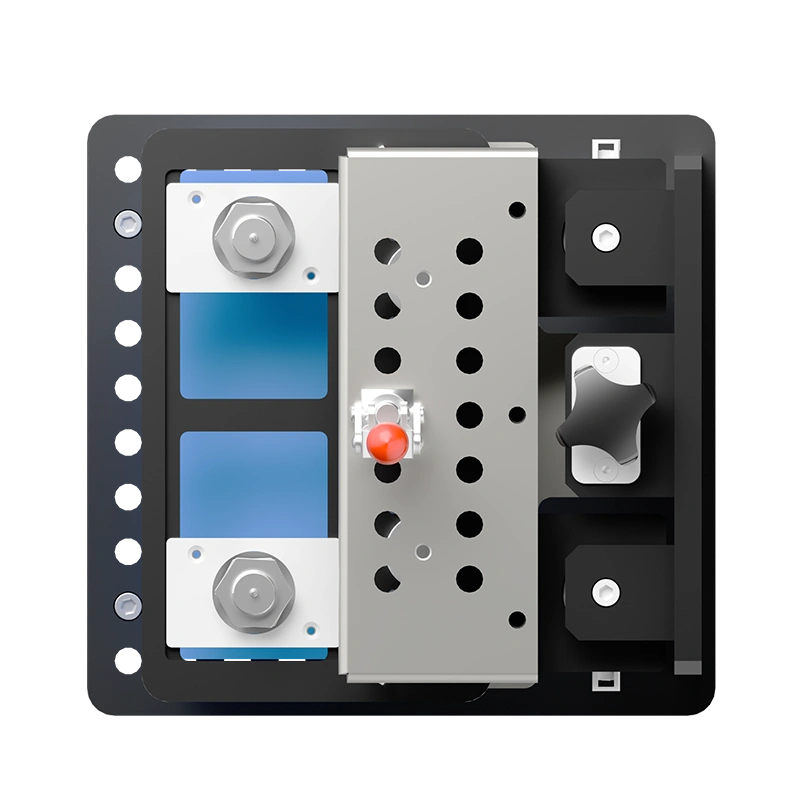

A 500A prismatic battery clamp with an adjustable base plate and tab spacing design to accommodate various battery sizes, offering extensive applicability. The toggle clamp facilitates convenient and effortless battery placement and removal, and the gold-plated probes ensure stable current transmission. It can be used in a temperature chamber.
| Equipment name | 500A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-F-TJ-500A-1CH-LH |
| Current | 500A |
| Battery Size | Length2.0"-8.7" (50-220mm) Width: 0.4"-4.2" (10-106mm) Height: 0.8"-7.9" (20-200mm) |
| Tab Spacing | 2.0"-5.5" (50-140mm) |
| External Size | 8.7"×9.1"×16.7" (220×230×425mm) |
| Weight | 6kg |
| Wire Terminal | M16/M6 |
