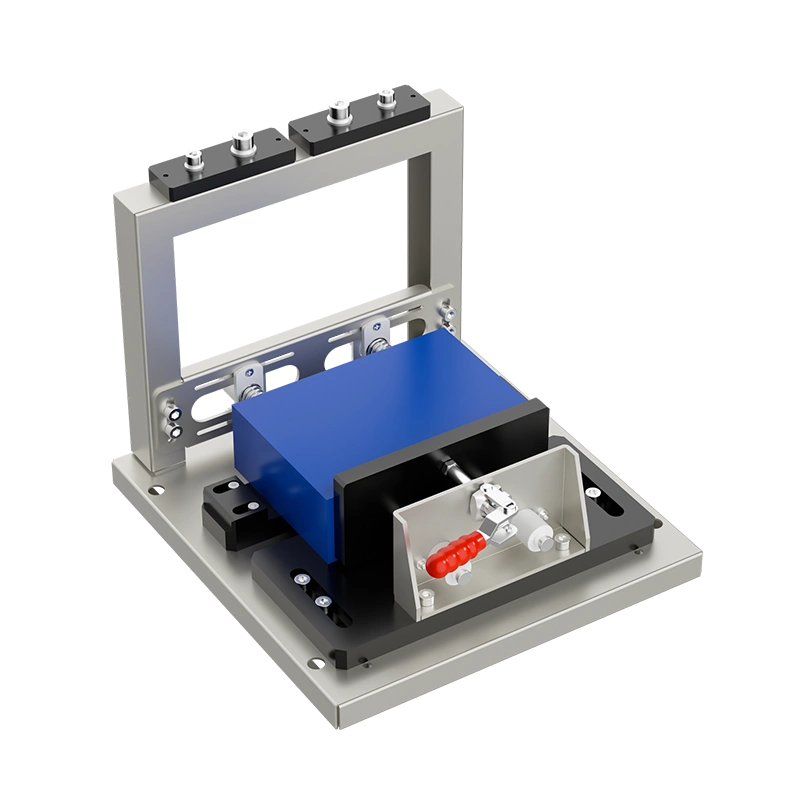

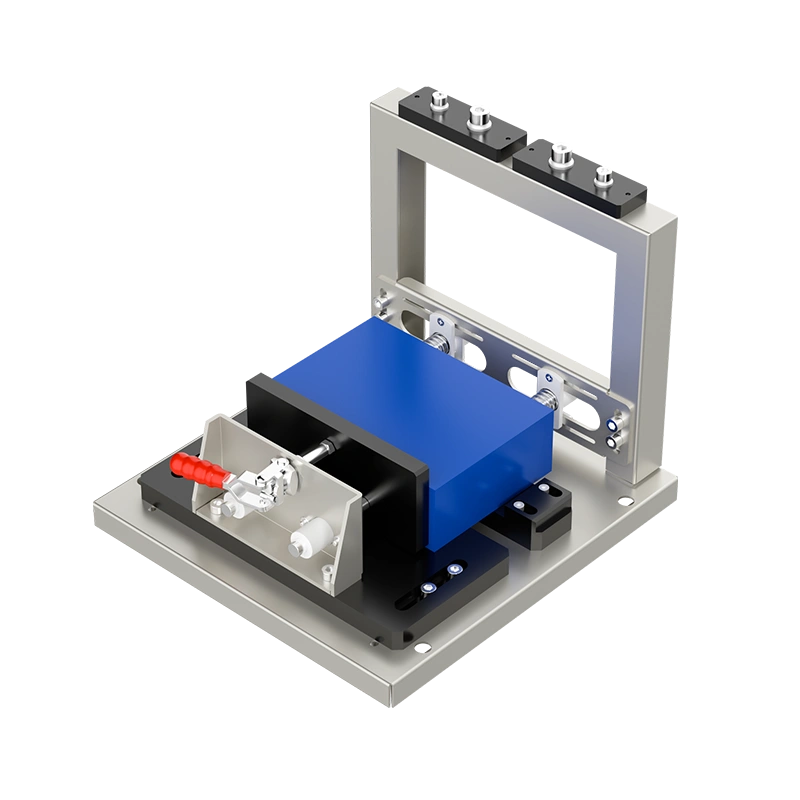

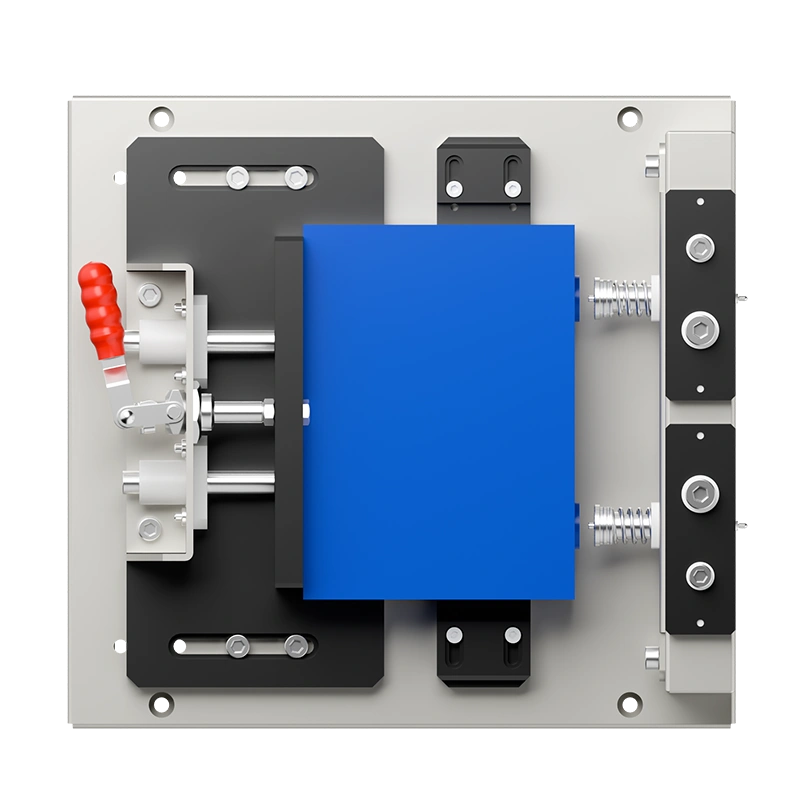

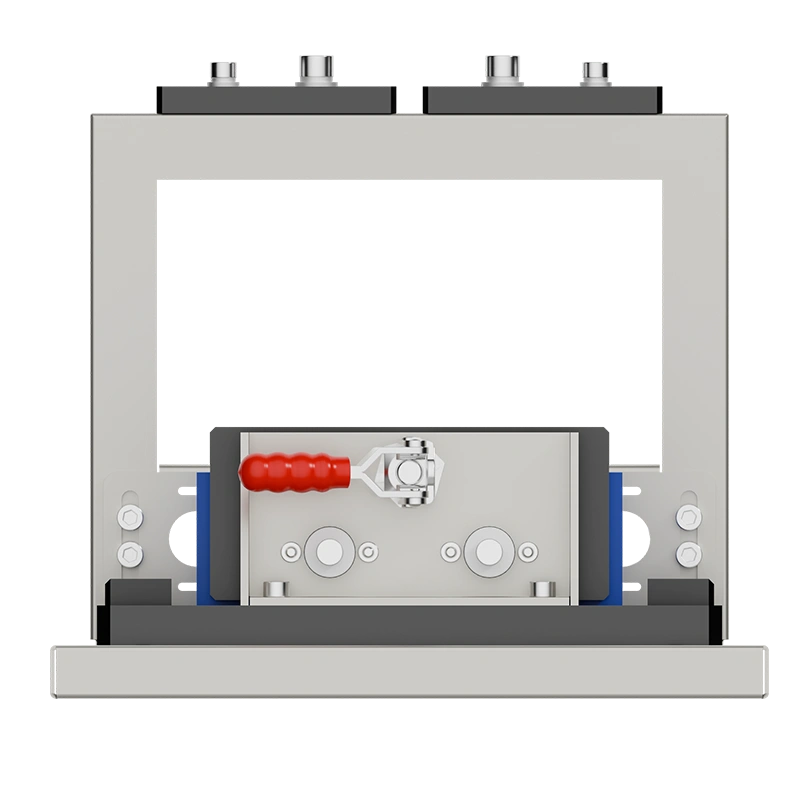

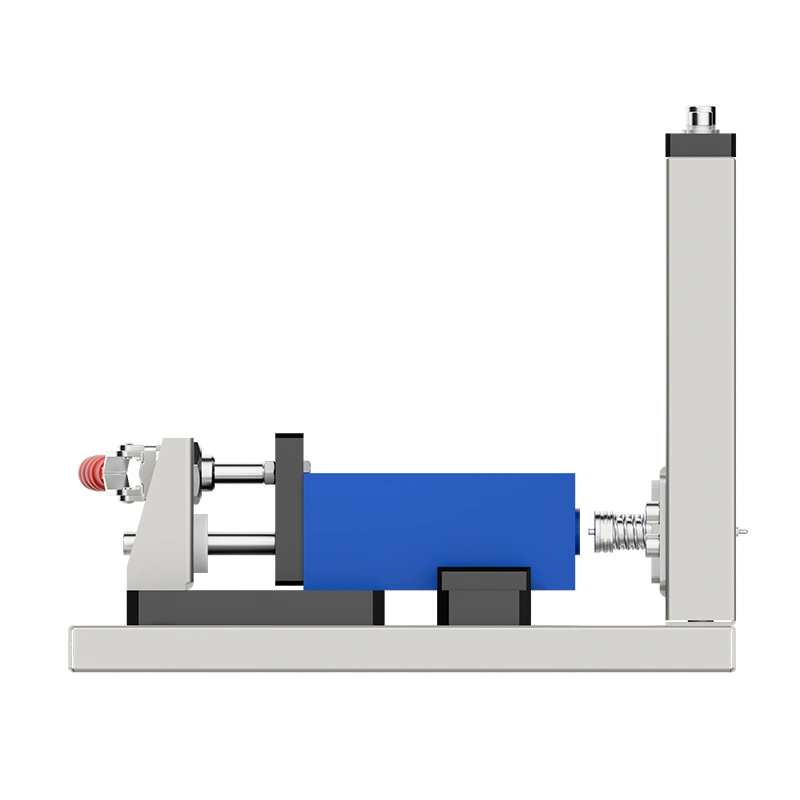

120A square battery testing, convenient handling, efficient testing.
Features
Tech Specs

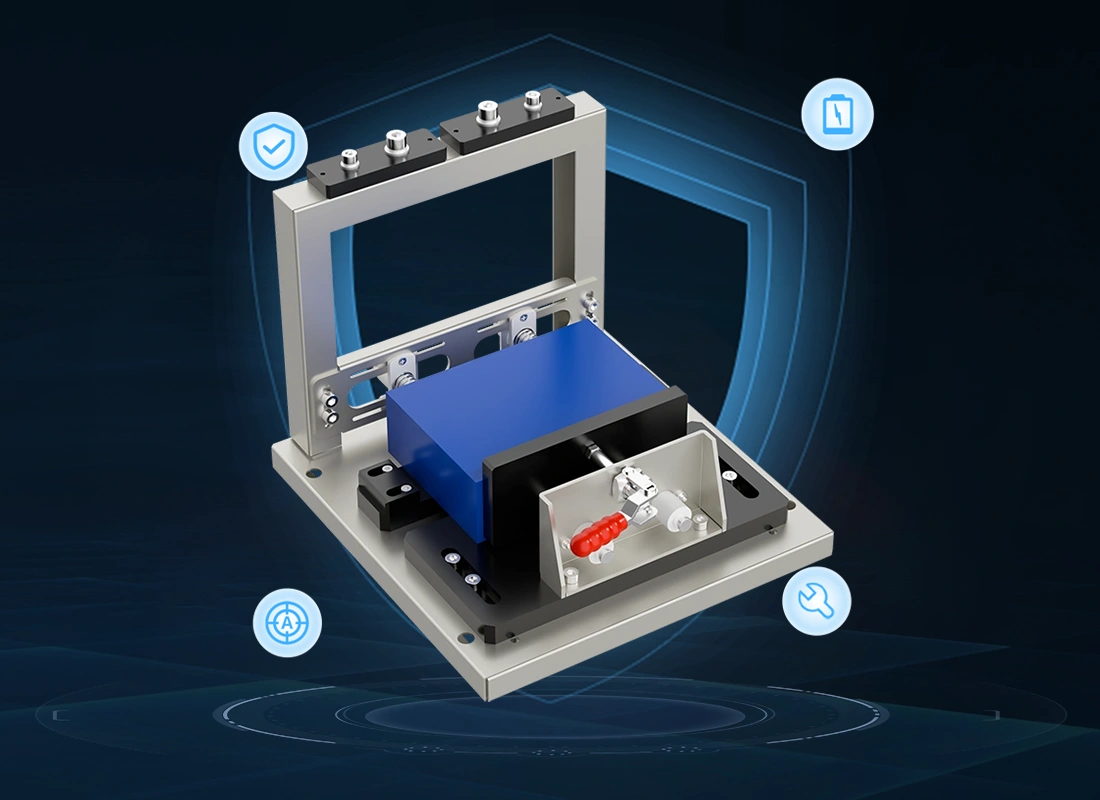

Square Battery Testing Solution.
● Flexible Adaptation: Adjustable battery placement space to accommodate various sizes of square batteries, meeting the diverse testing requirements.
● Stable and Safe: Equipped with a fixed battery rack to ensure stability during testing, ensuring test safety.
● Efficient and Convenient: Elbow clamps make battery testing and storage easy, improving work efficiency.
| Equipment name | 120A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-F-ZJ-120A-1CH-H120 |
| Current | 120A |
| Battery Size | Length: 6.7"-8.8" (170-224mm) Width: 4.3"-7.3" (110-185mm) Height: 0.3"-2.7" (8-68mm) |
| Tab Spacing | 1.6"-6.3" (40-160mm) |
| External Size | 11.4"×10.6"×9.5" (290×270×242mm) |
| Weight | 7kg |
| Wire Terminal | M10/M6 |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
