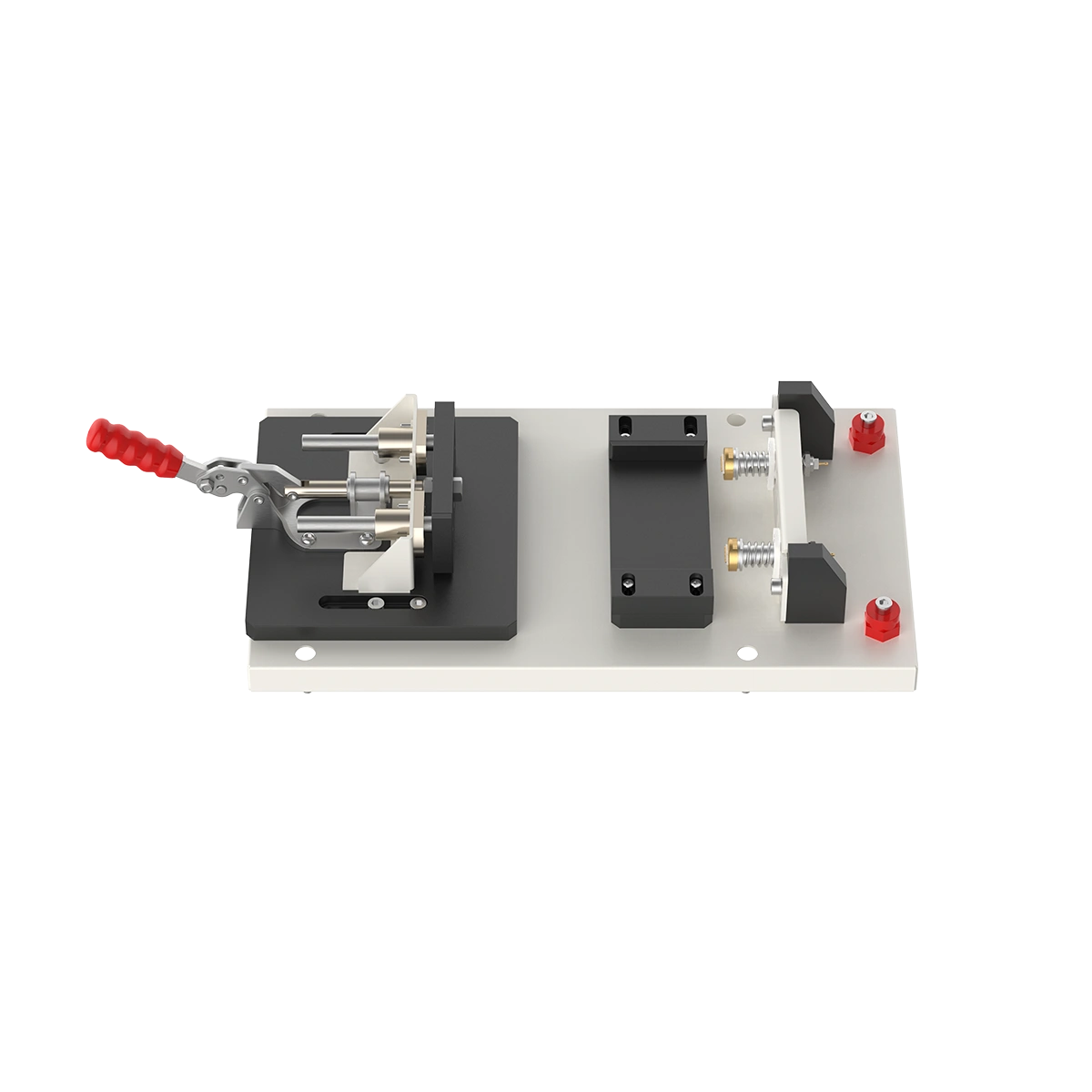

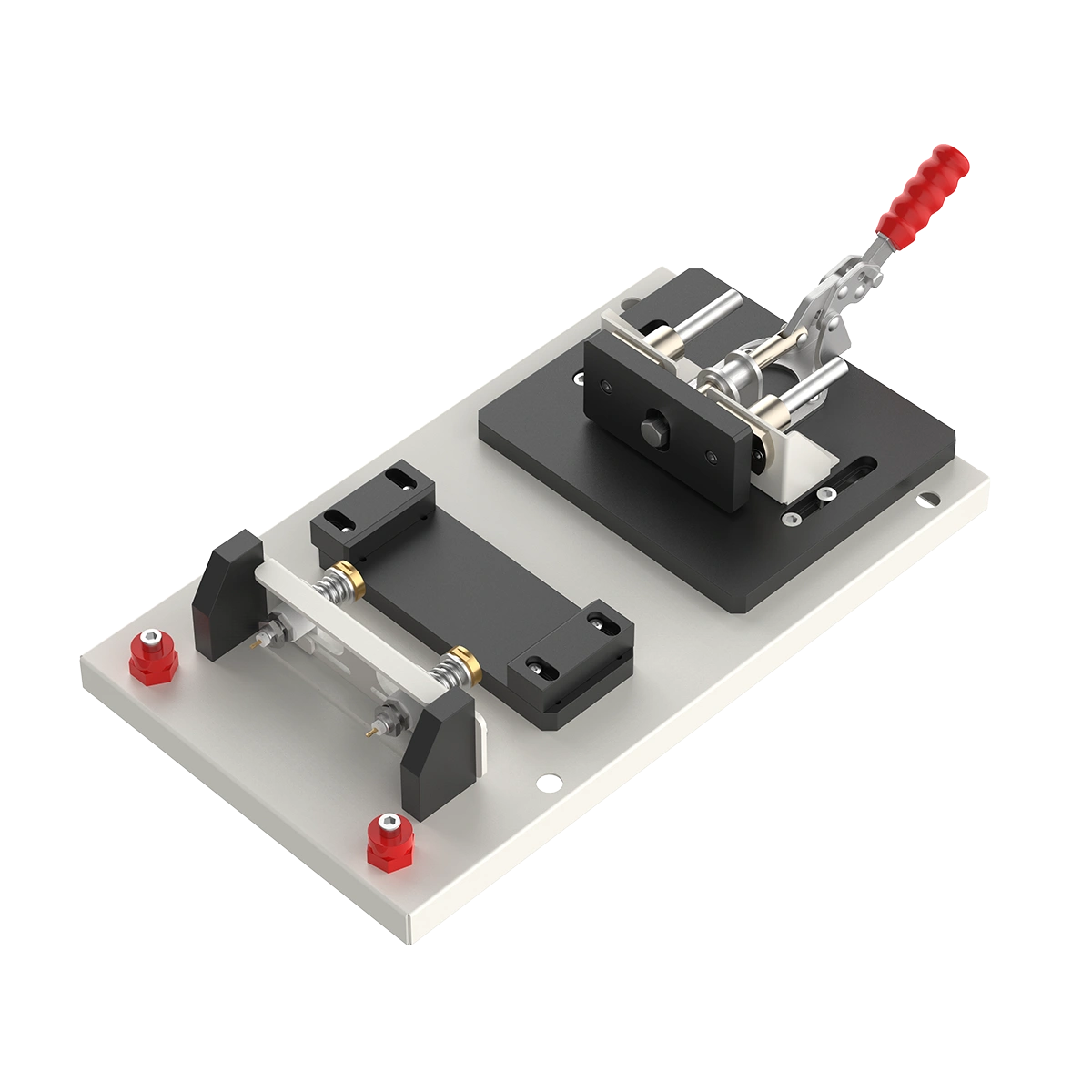

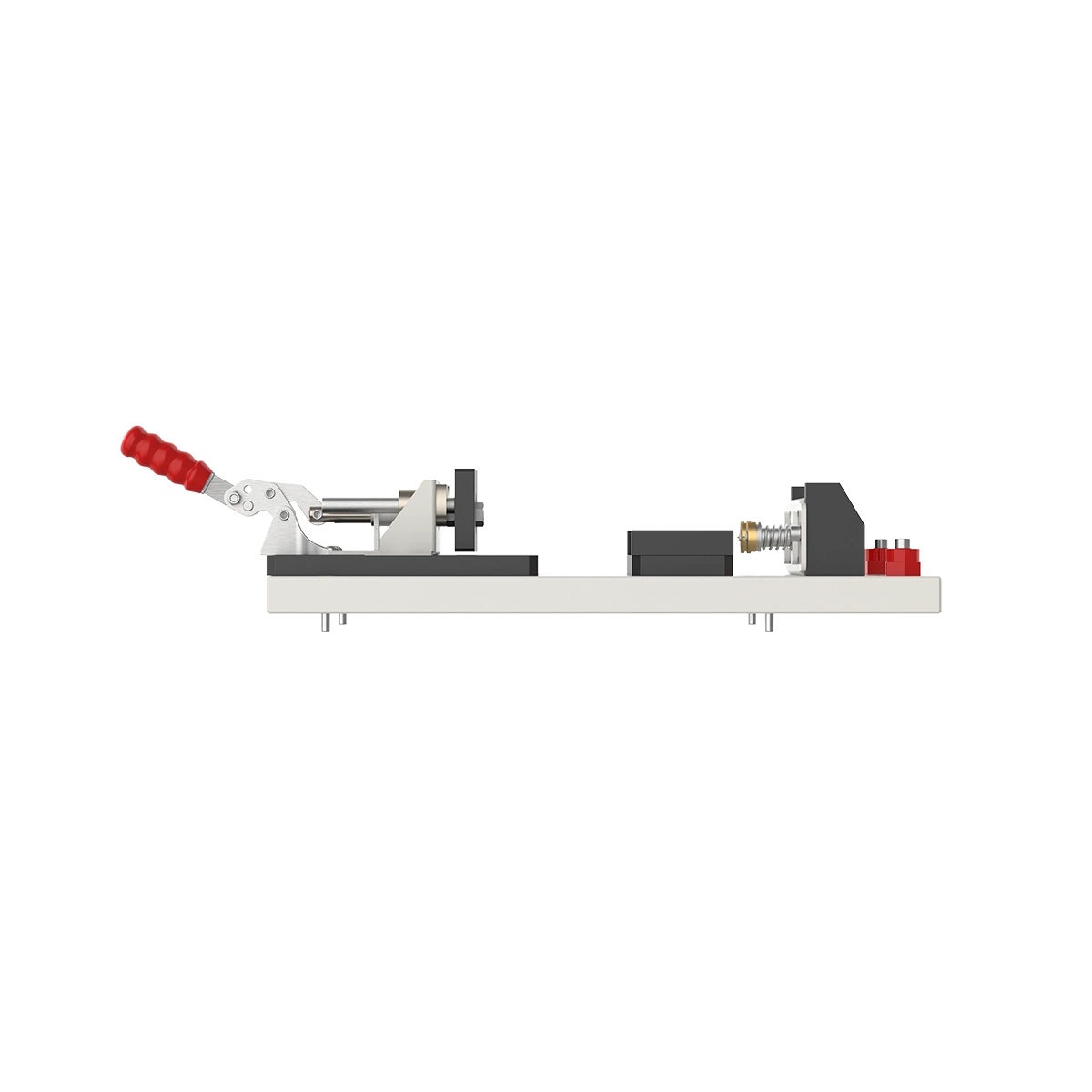

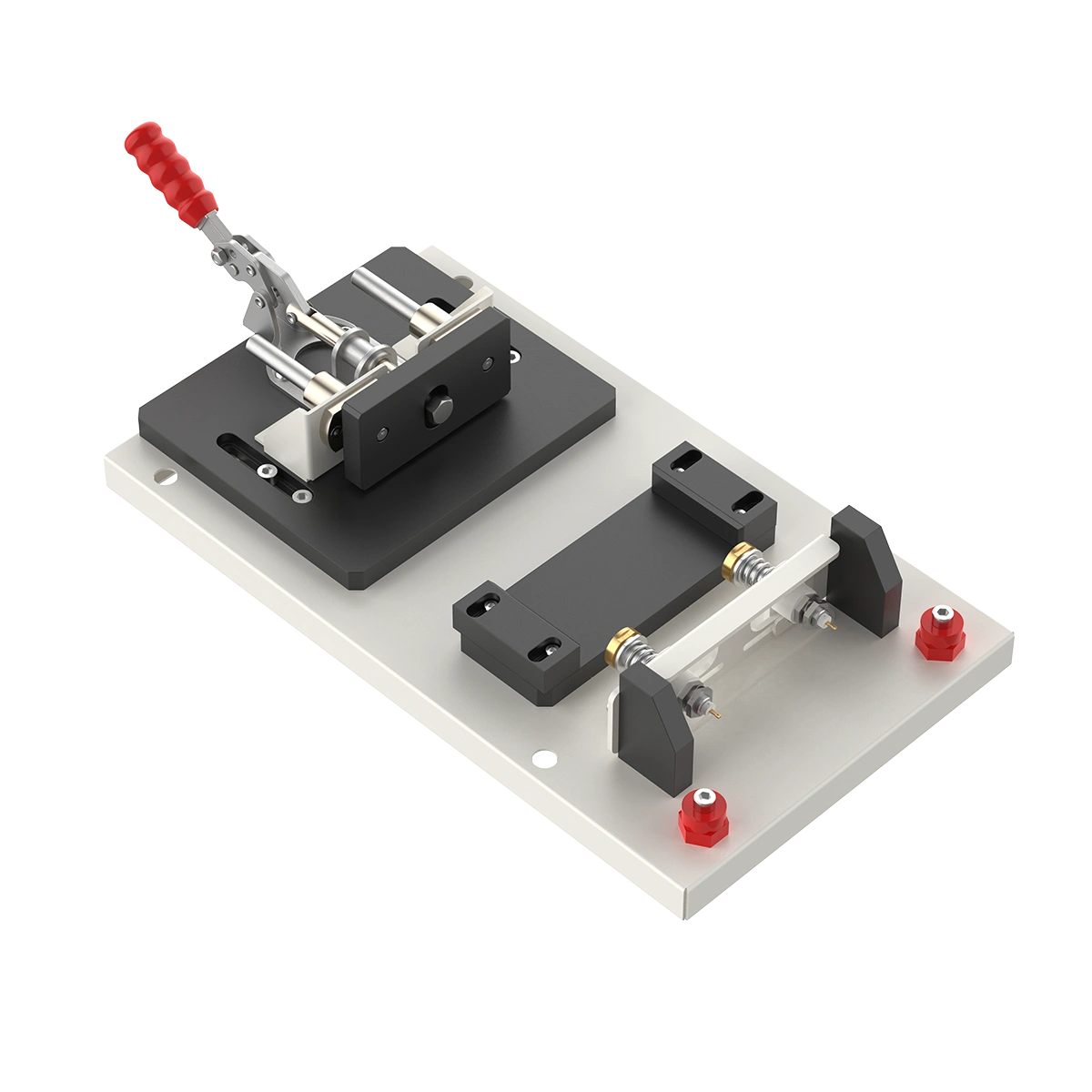

Horizontal use for prismatic cell charging and discharging testing. With a maximum overcurrent of 120A, it can lie flat on the temperature chamber shelf, used for charging and discharging, capacitance, and voltage testing of square batteries.
Features
Tech Specs
With a maximum overcurrent of 120A, it can lie flat on the temperature chamber shelf, used for charging and discharging, capacitance, and voltage testing of square batteries.

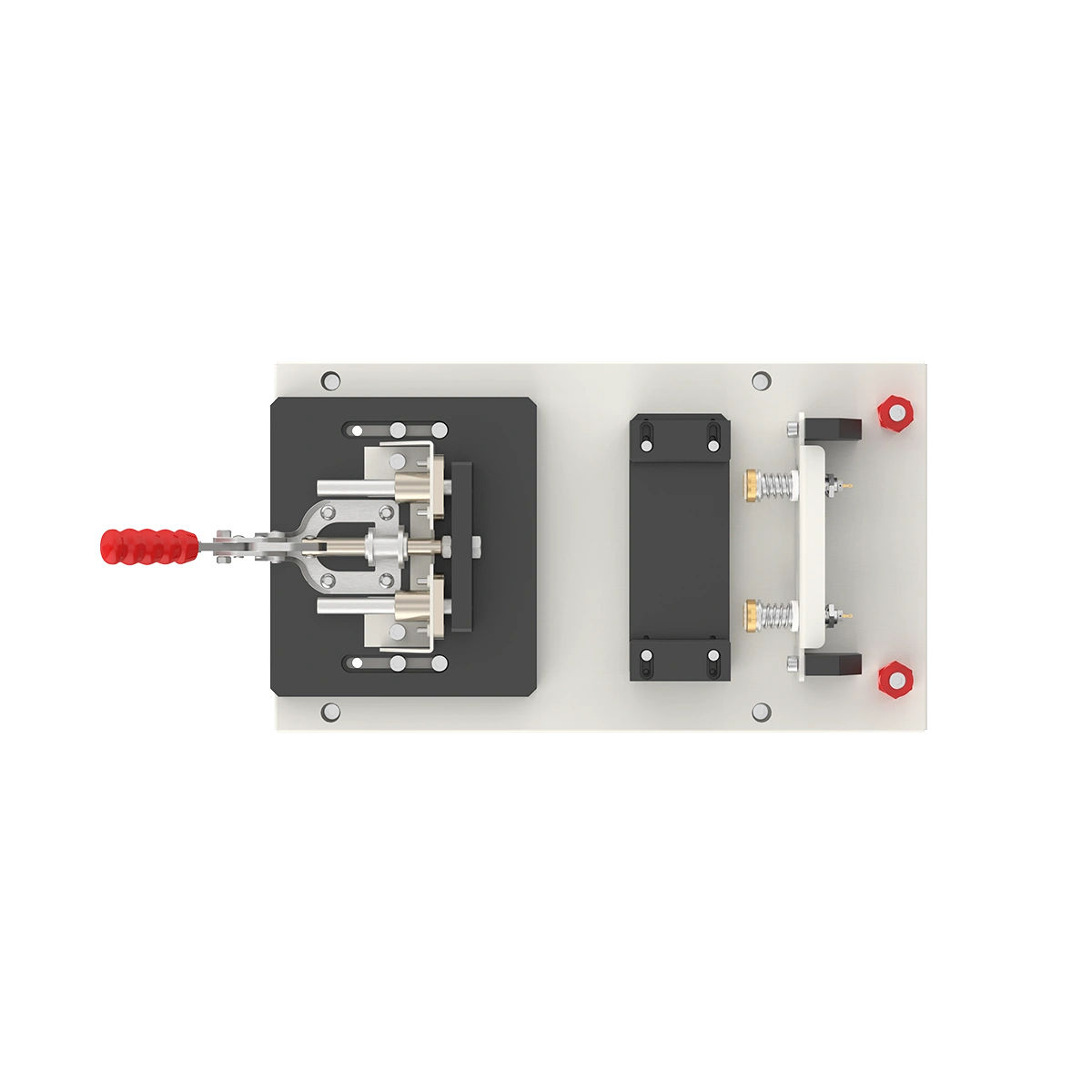

· The center is designed with a positioning block to secure the battery and prevent shifting or falling off, affecting test results.
· Probe spacing is adjustable, with elbow joint clamps for quick and convenient battery placement and removal.
Made of high-quality materials, it is durable and reliable, not easy to damage with long-term use.
| Equipment name | Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-F-ZJ-120A-1CH-LWX |
| Current | 120A |
| Wire Terminal | M10 |
| Tabs Distance | 1.6"-3.2" (40-82mm) |
| Battery Size | Width: 3.9"-6.7" (100-170mm) Thickness: 0.8"-1.8" (20-45mm) Height: 2.8"-7.1" (70-180mm) |
| External Size | 18.8"×8.9"×3.5" (477mm×225mm×90mm) |
| Weight | 5kg |
