For testing 300A prismatic batteries.
Features
Tech Specs

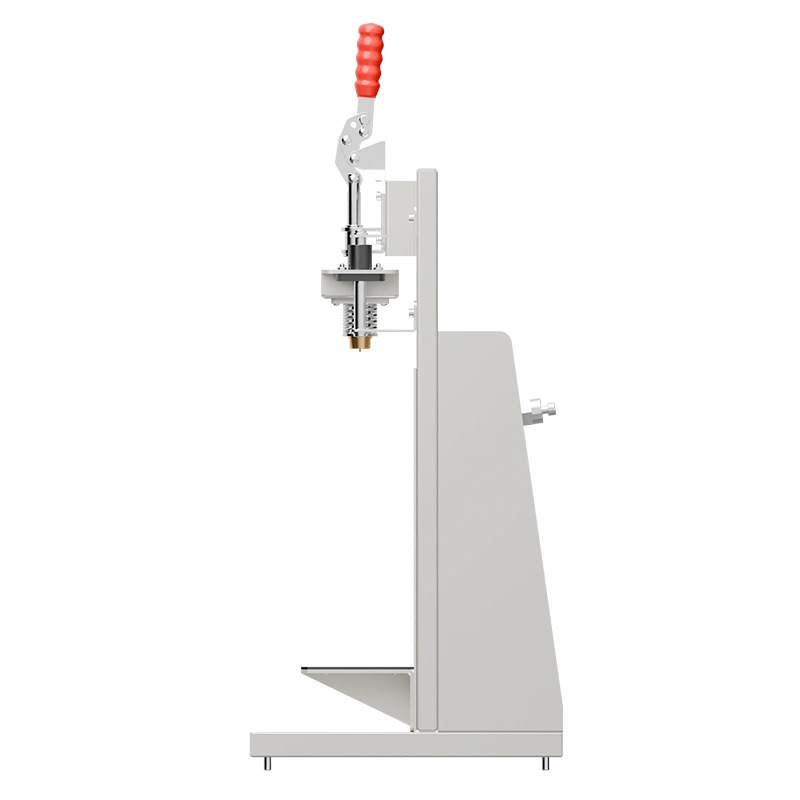

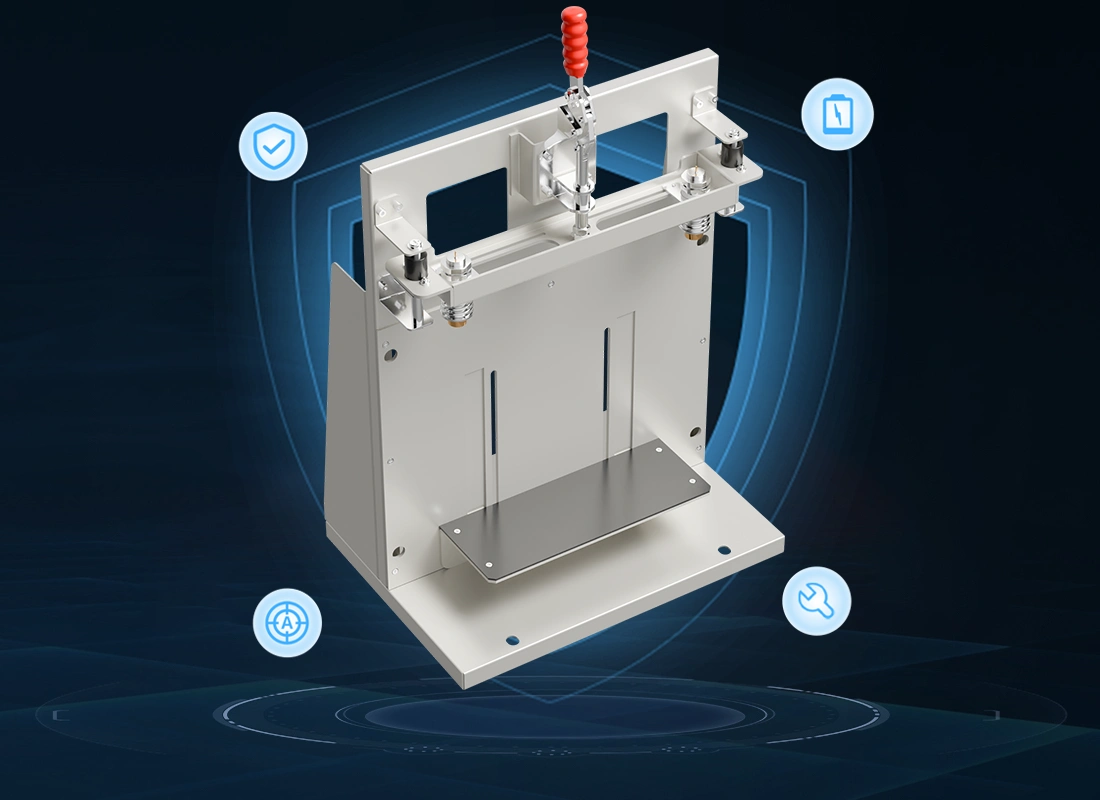

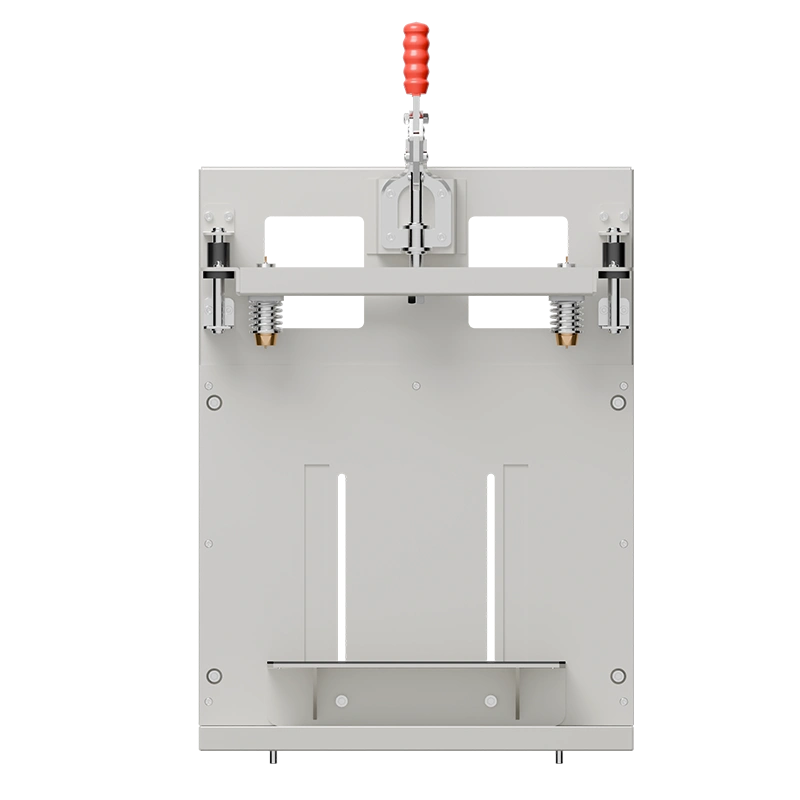

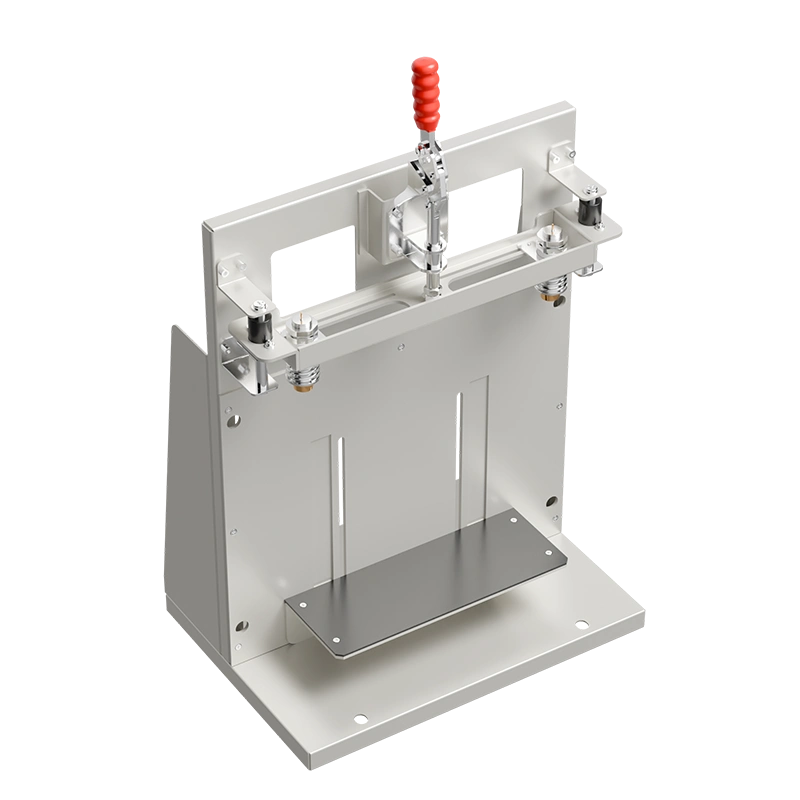

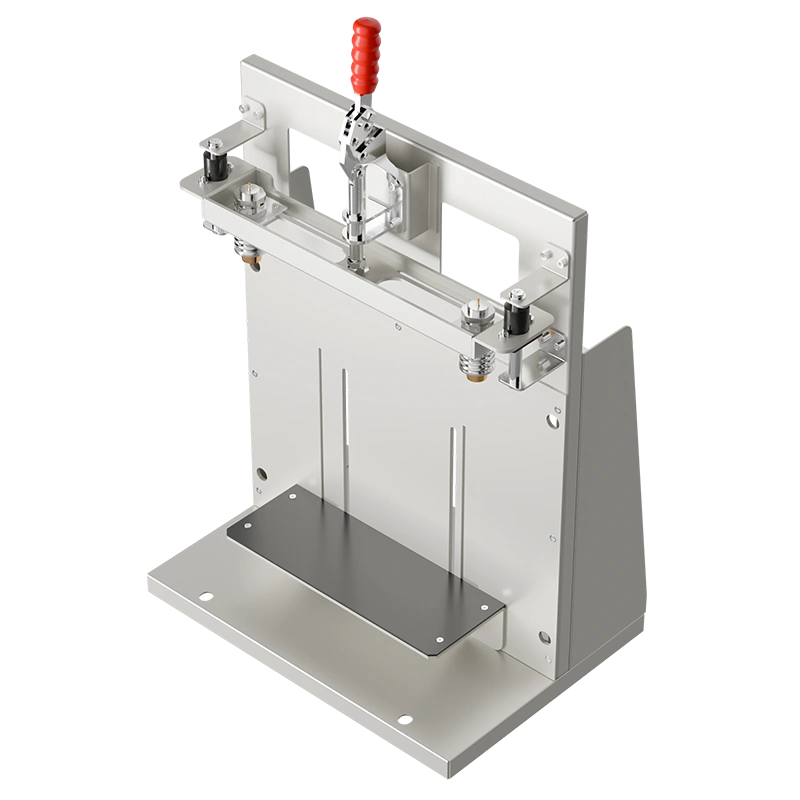

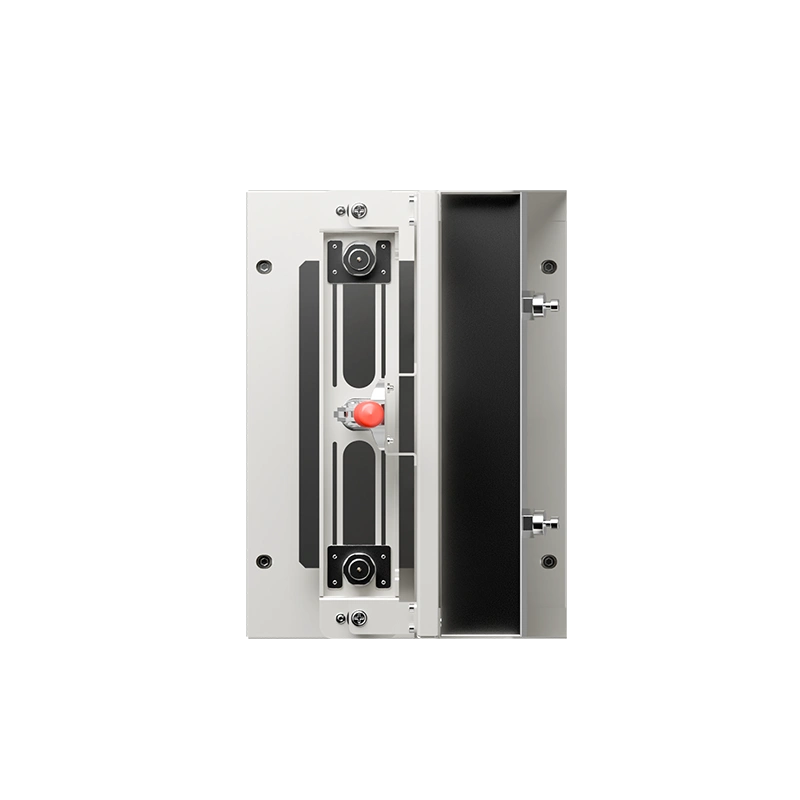

The 300A prismatic battery clamp features an adjustable base plate and tab spacing design, catering to a variety of battery sizes for testing needs, and offers broad applicability. The toggle clamp makes battery placement and removal convenient and effortless, while gold-plated probes ensure stable current transmission. Used with an assembled battery rack, it enables synchronized testing of a large batch of batteries.
| Equipment name | 300A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-F-ZJ-300A-1CH-DCJ |
| Current | 300A |
| Contact Resistance | ≤0.2mΩ |
| Temperature rise testing | ≤25℃ |
| Probe Compression Dimensions | 0.2" (5mm) |
| Probe tip diameter | 0.6" (16mm) |
| Thread Connection | M16 |
| Battery Size | Length: 2.8"-137.8" (70-350mm) Width: 0.8"-3.4" (20-86mm) Height: 1.8"-8.7" (45-220mm) |
| External Size | 13.8"×9.8"×23.6" (350×250×600mm) |
| Weight | 14kg |
| Wire Terminal | M6 |
