For testing 60A prismatic batteries.
Features
Tech Specs

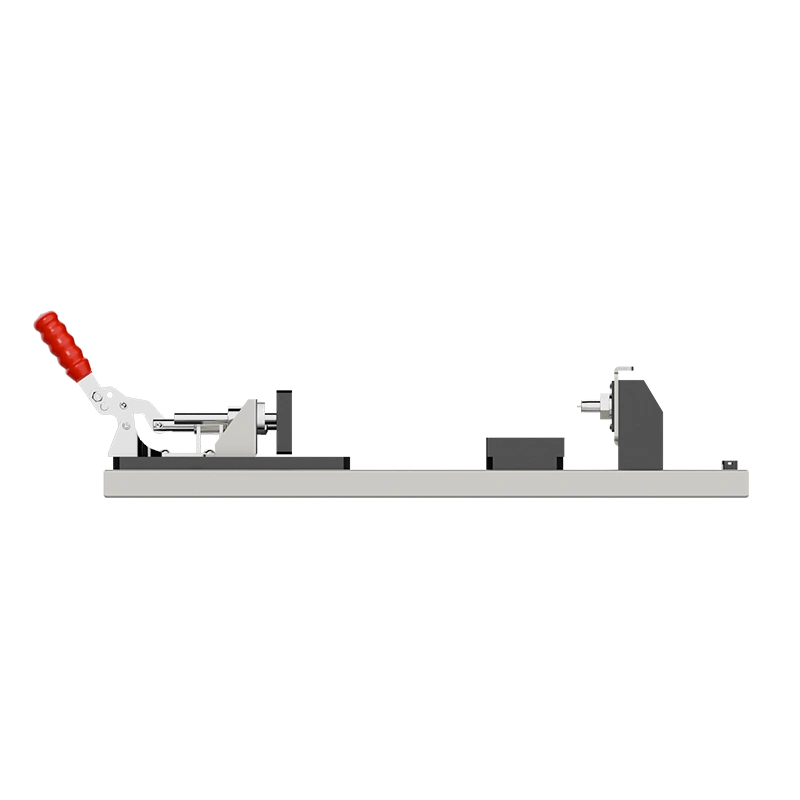

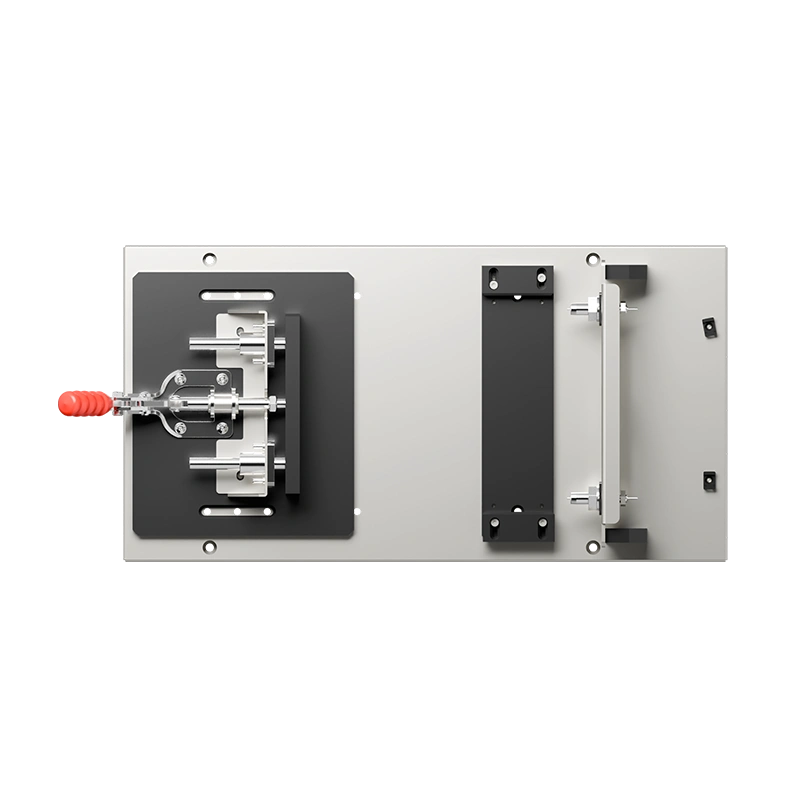

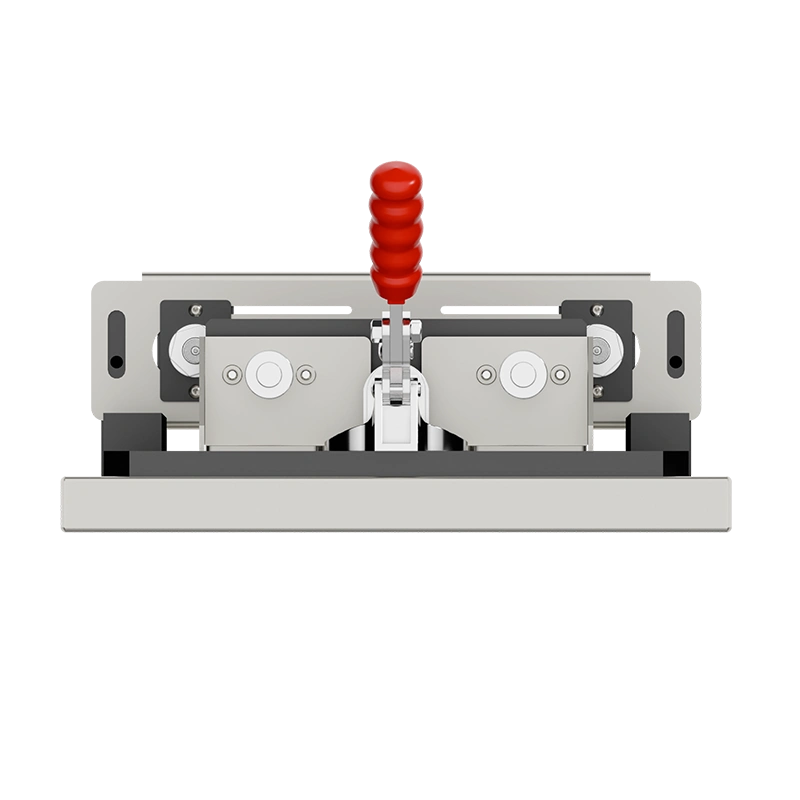

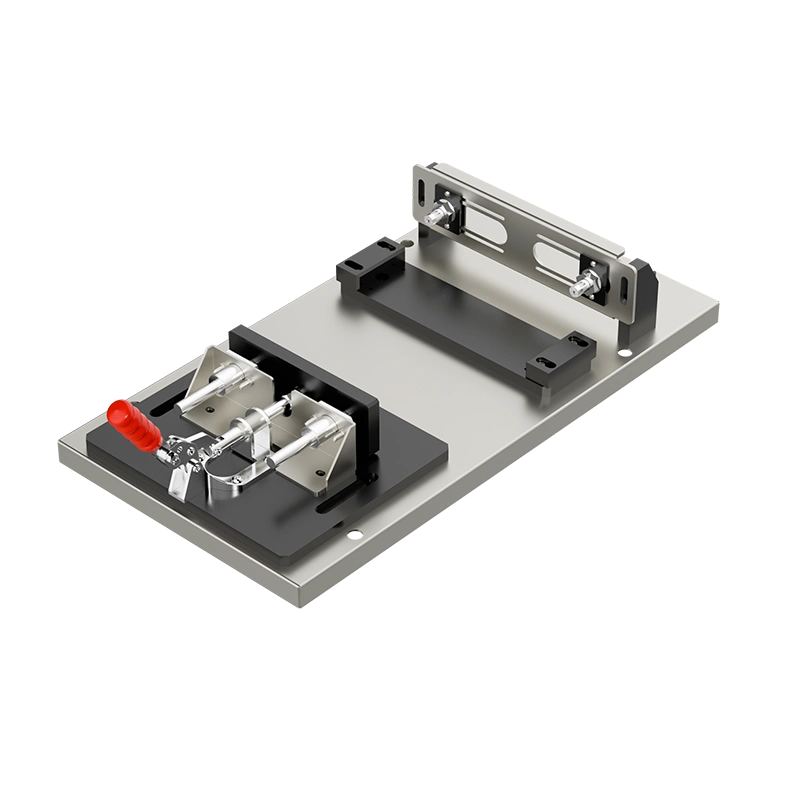

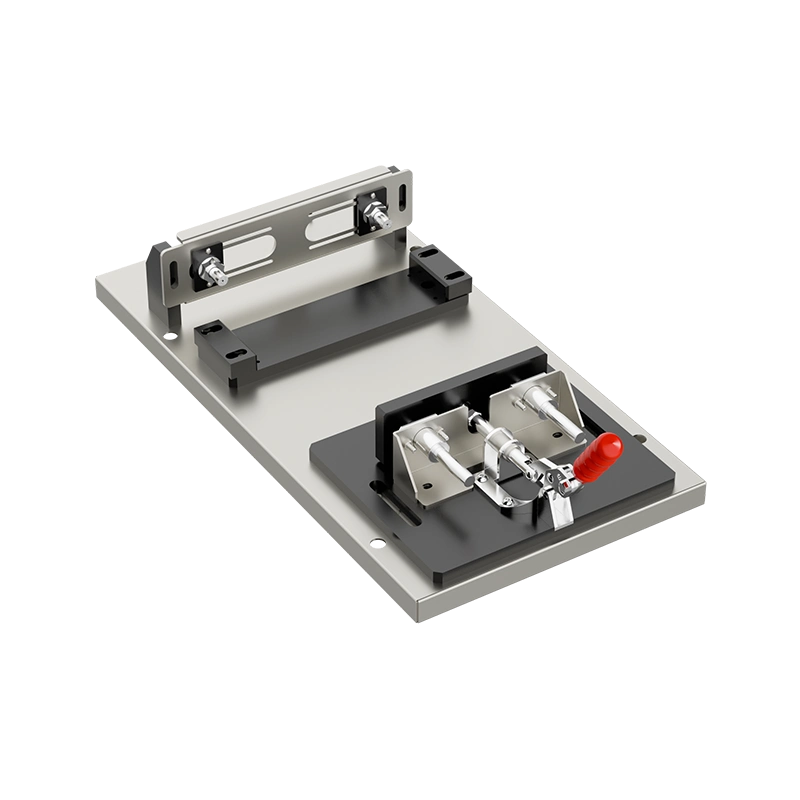

For testing 60A prismatic batteries, it can be fixed on a temperature chamber tray to conduct battery performance tests at different temperatures. The toggle clamp makes battery placement and removal easy and effort-saving, and gold-plated probes ensure stable current transmission.
| Equipment name | 60A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-F-ZJ-60A-1CH-LP |
| Current | 60A |
| Battery Size | Length: 6.9" (175mm) Width: 2.8" (72mm) Height: 8.1" (205mm) |
| Tab Spacing | 2.8"-5.1" (70-130mm) |
| External Size | 23.6"×10.4"×6.2" (600×264×158mm) |
| Weight | 9kg |
| Wire Terminal | M9 |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
