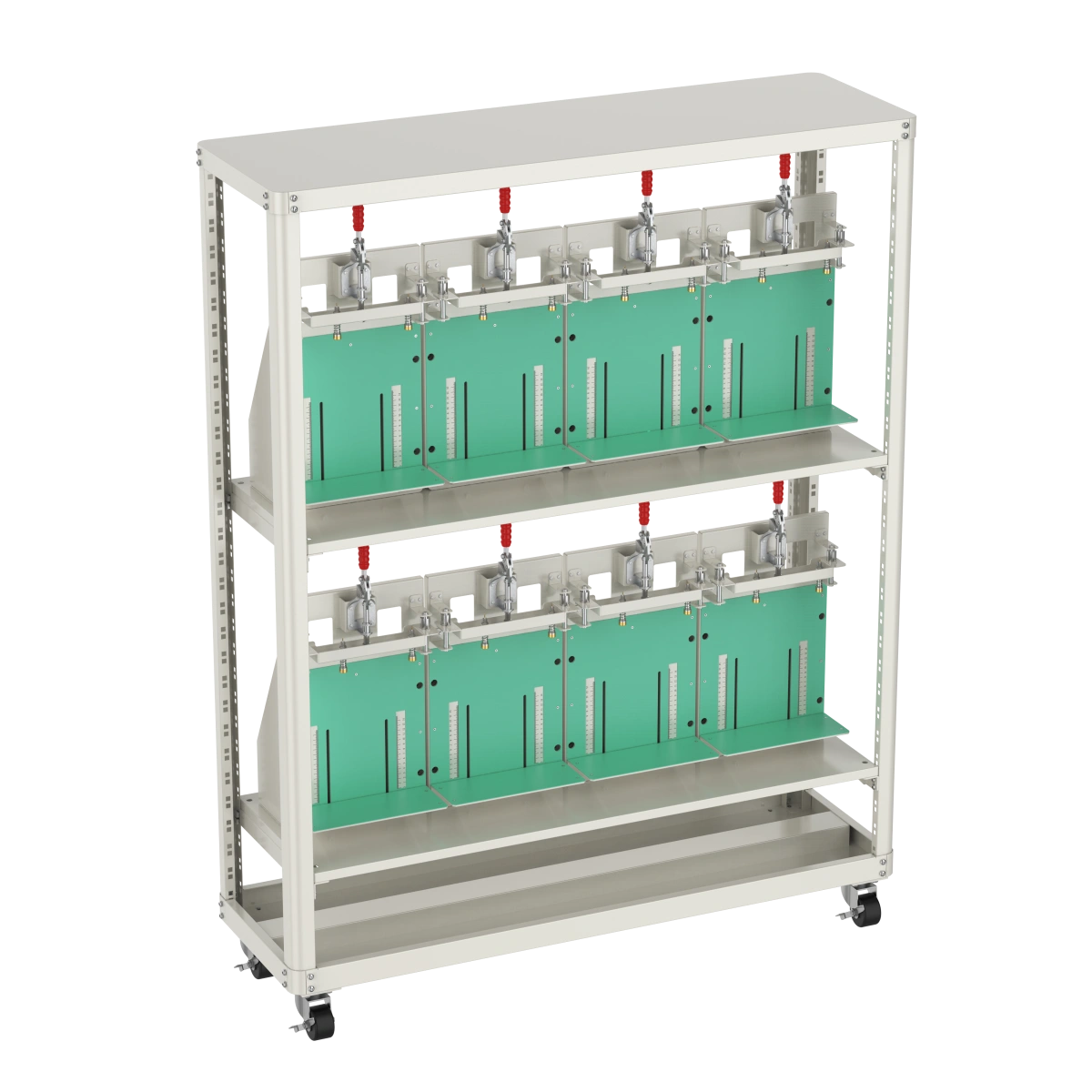

For prismatic cell testing. Integrated with charging and discharging equipment, the BTS system monitors battery status, enabling efficient bulk battery testing. Customizable up to 8 batteries with a maximum test current of 60A.
Features
Tech Specs
Resources

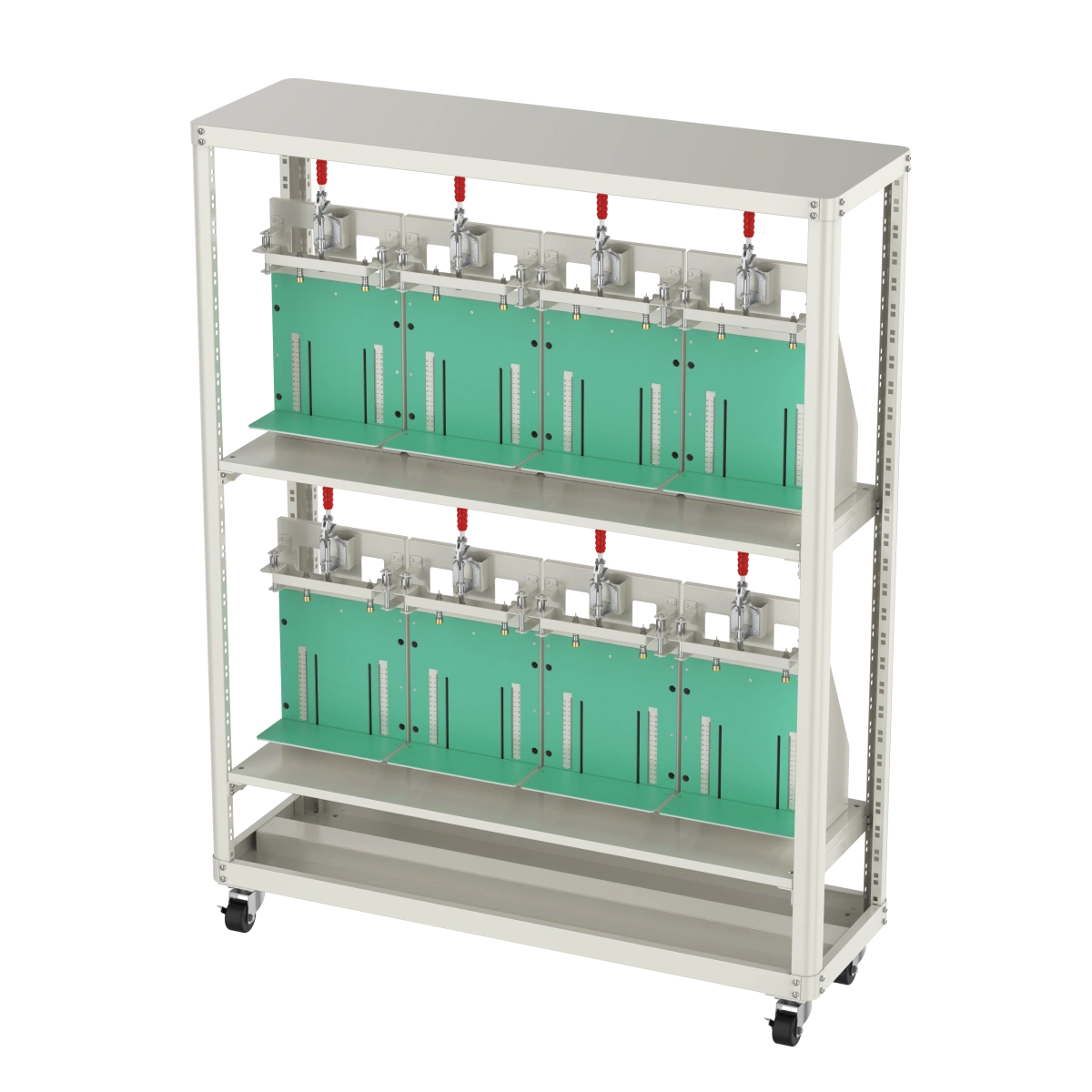

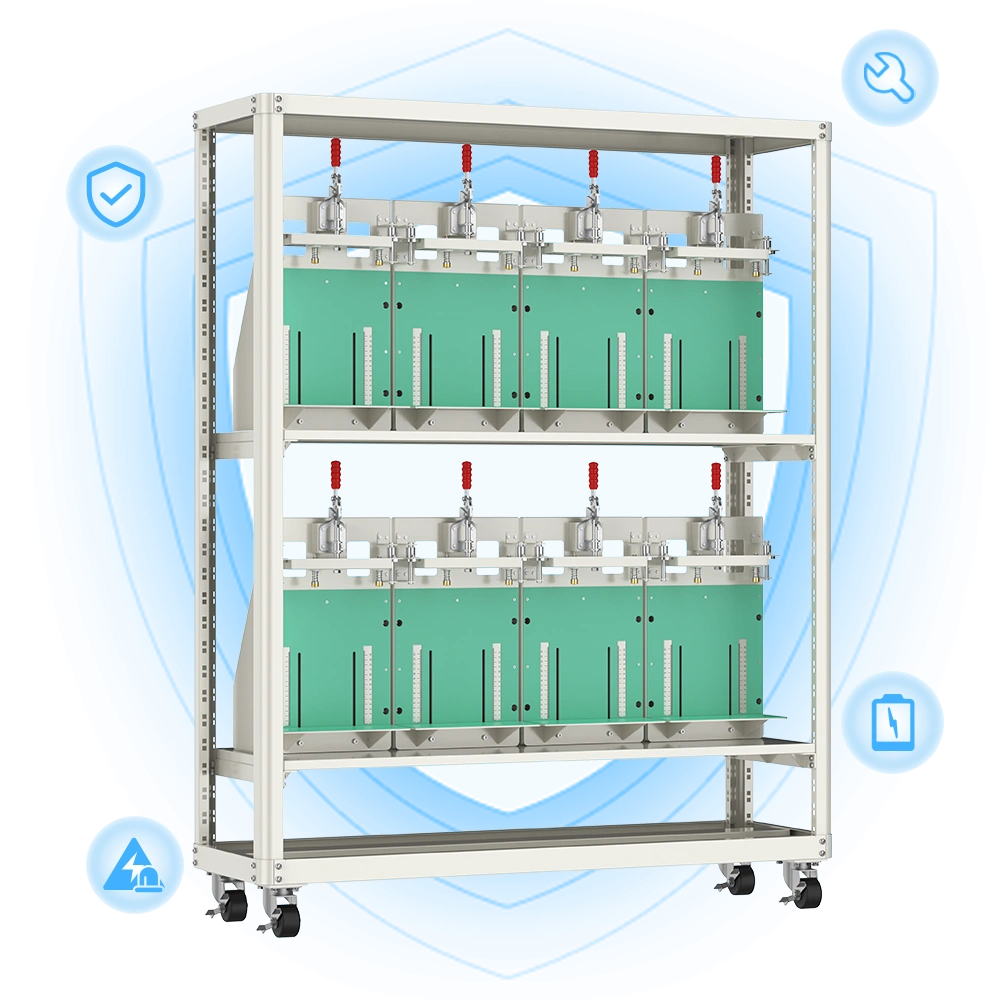

· Integrated with charging and discharging equipment, the BTS system monitors battery status, enabling efficient bulk battery testing.
· Customizable up to 8 batteries with a maximum test current of 60A.

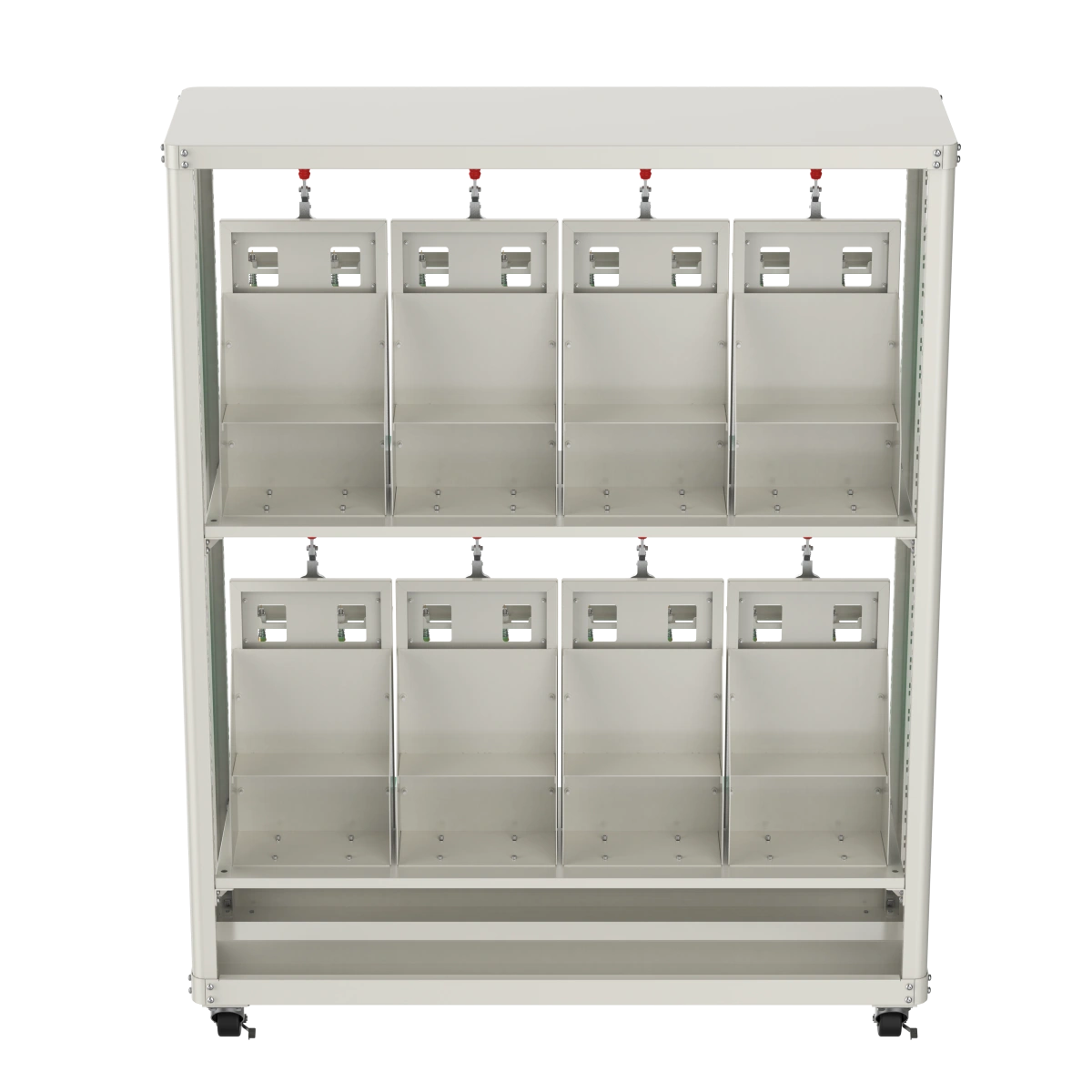

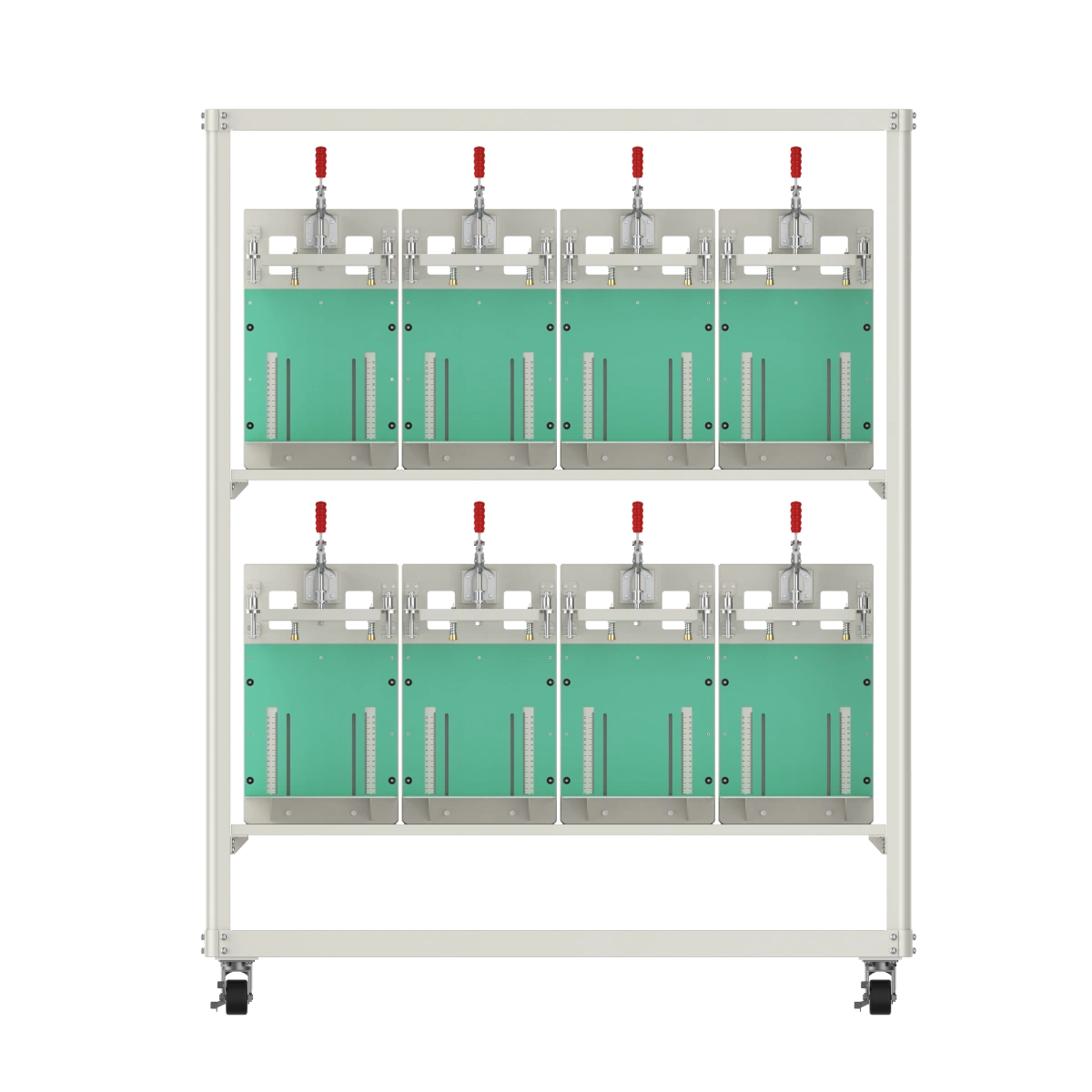

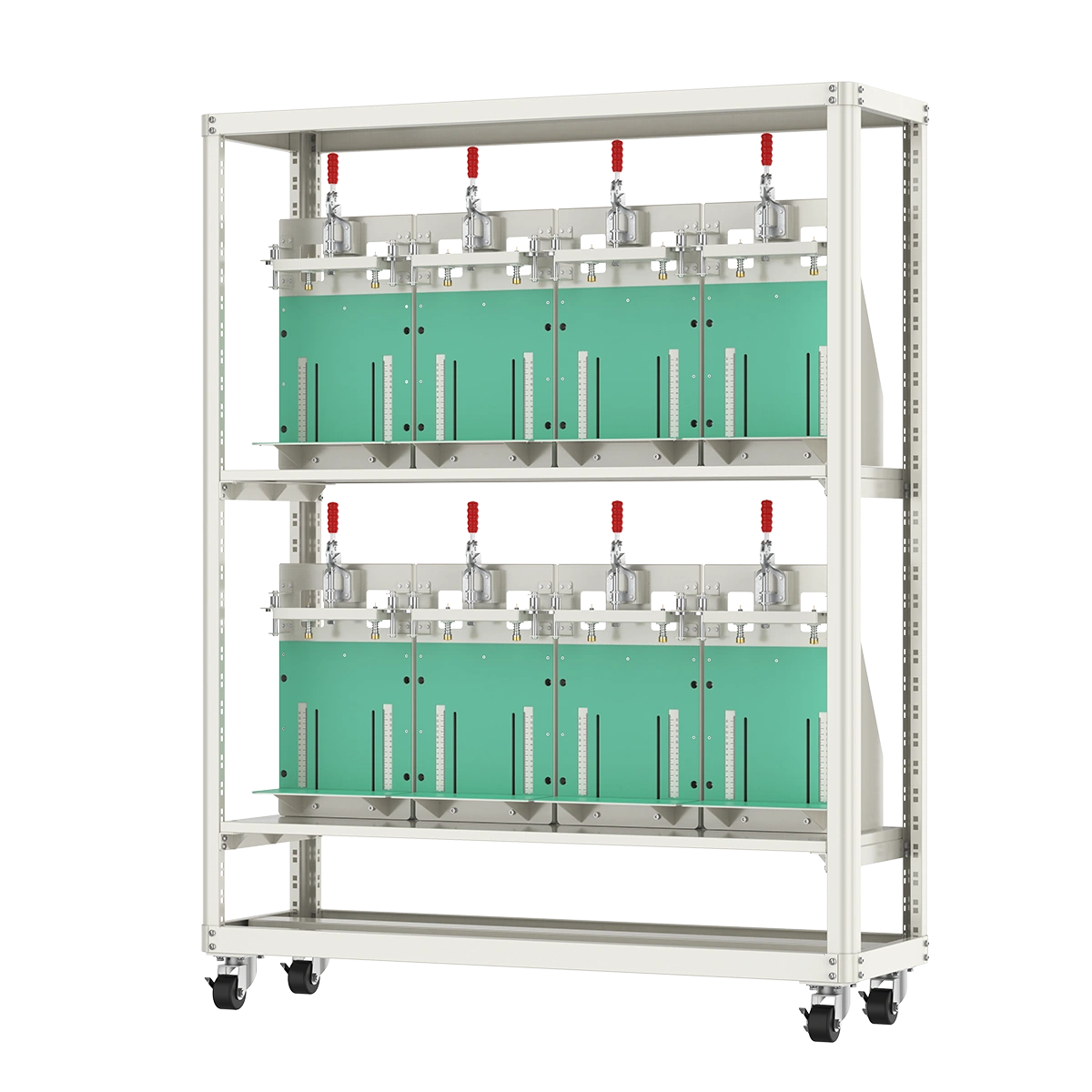

· The bottom tray and positive/negative probes are adjustable to accommodate various battery specifications.

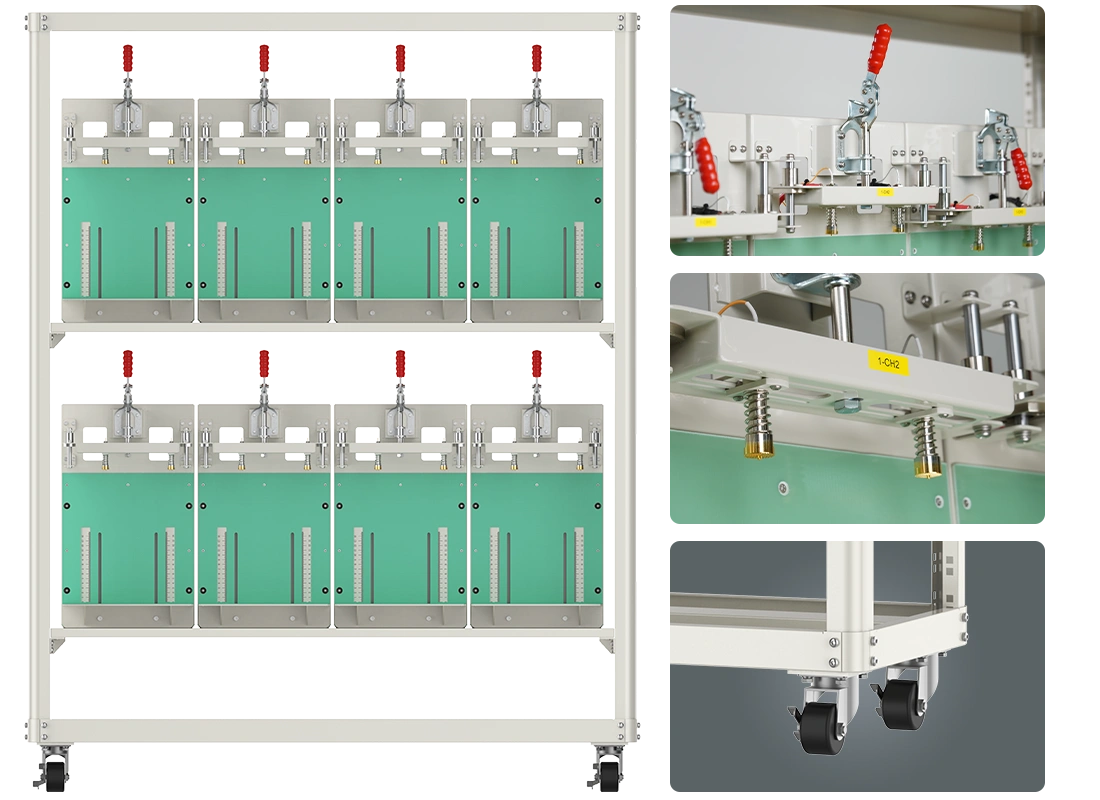

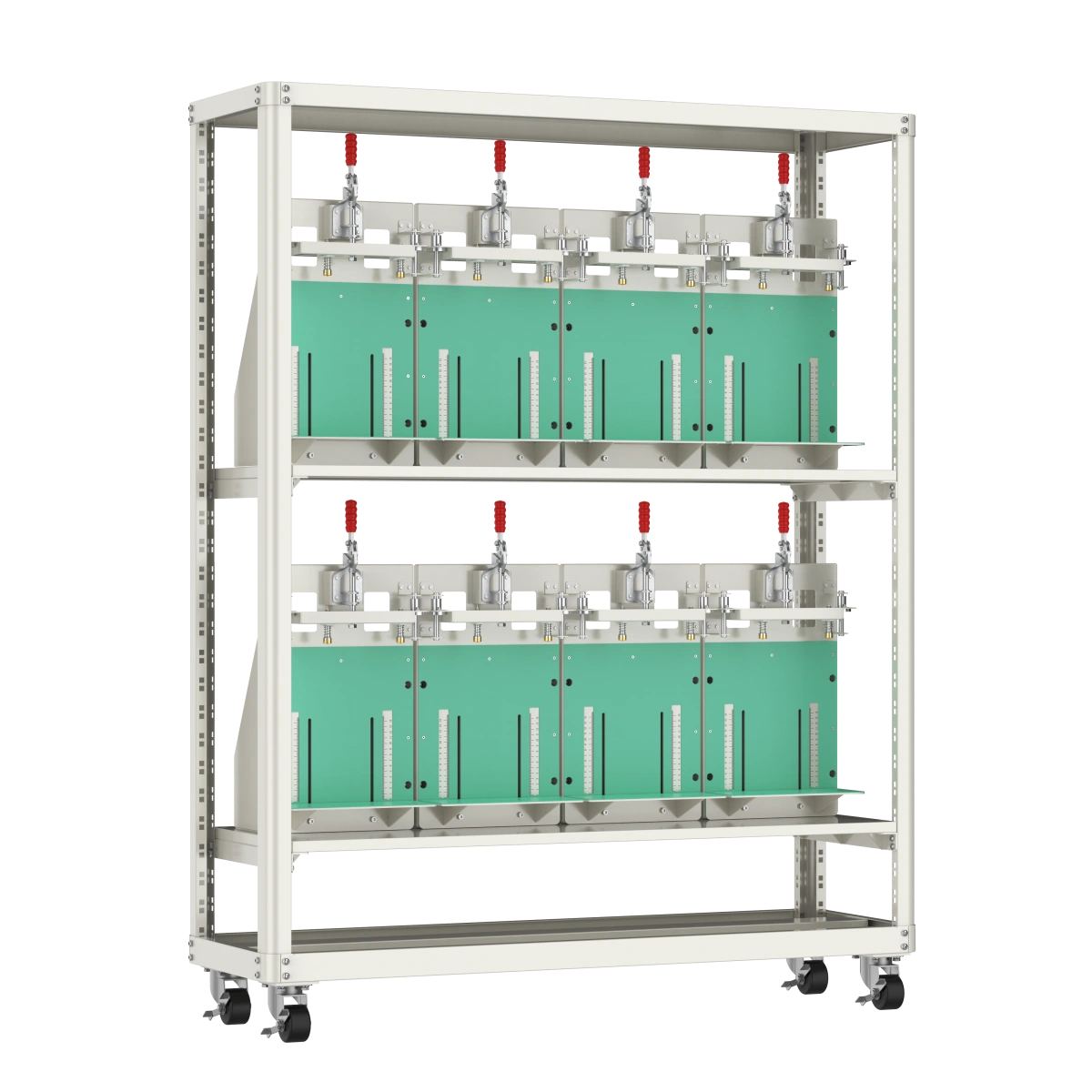

· Elbow joint clamp design allows for easy placement and removal, increasing work efficiency and providing a comfortable experience.

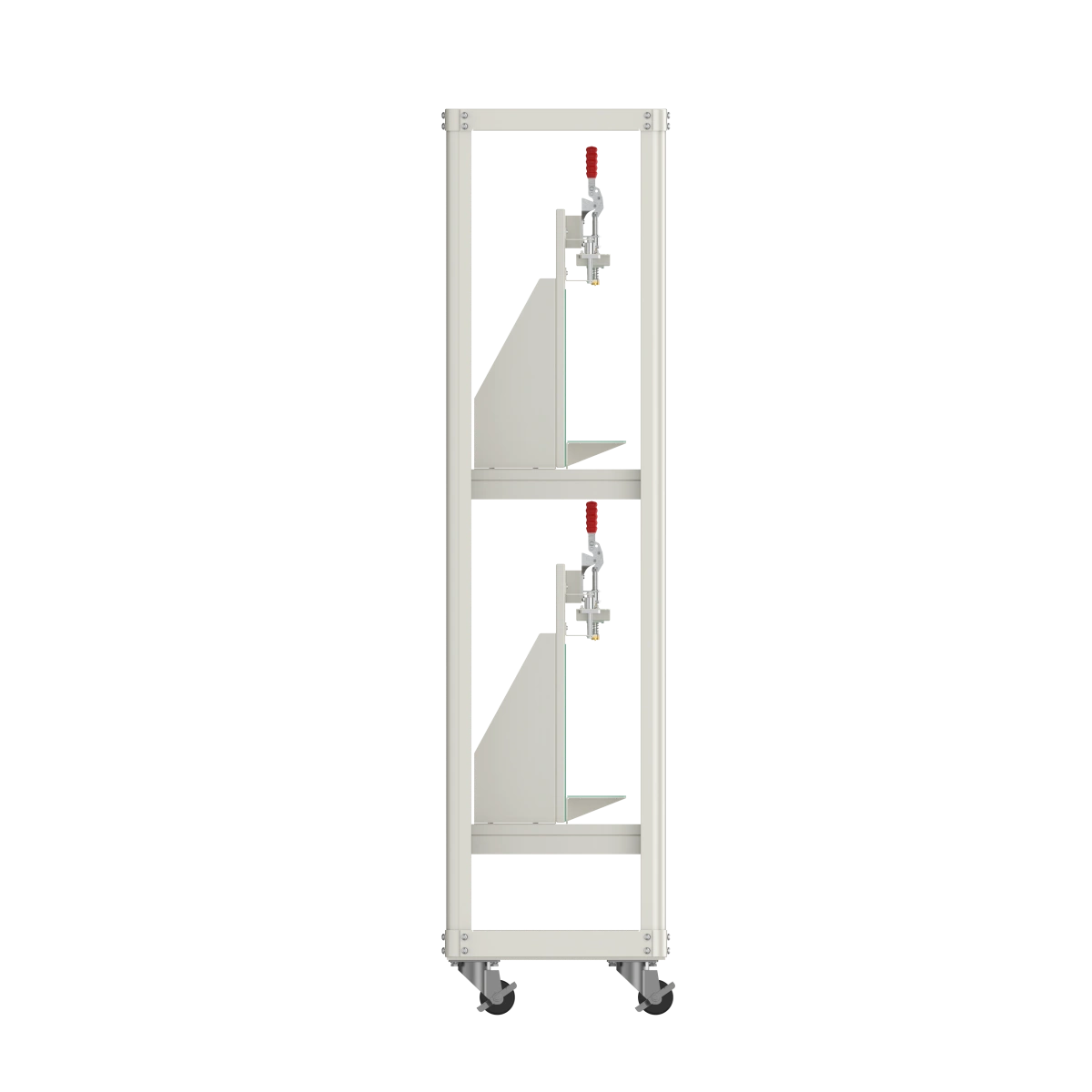

· Omnidirectional wheels rotate 360°, with secure lock latches for positioning.
Battery Size:
Length: 2.0"-11" (50-280mm)
Width: 0.6"-4.2" (15-107mm)
Height: 2.4"-10.0" (60-255mm)

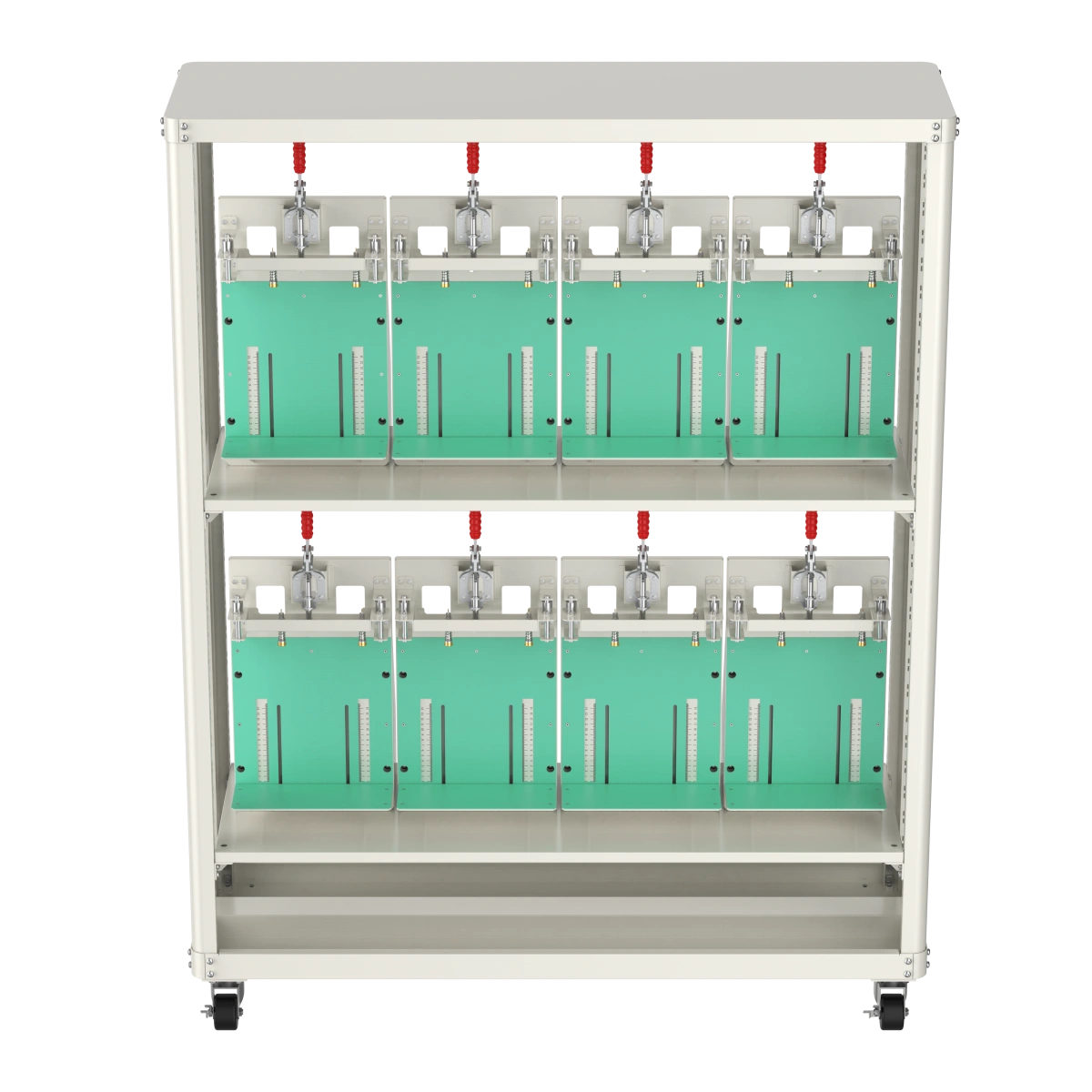

· The tray is enhanced with a fiberglass epoxy insulation board to prevent current leakage risks.

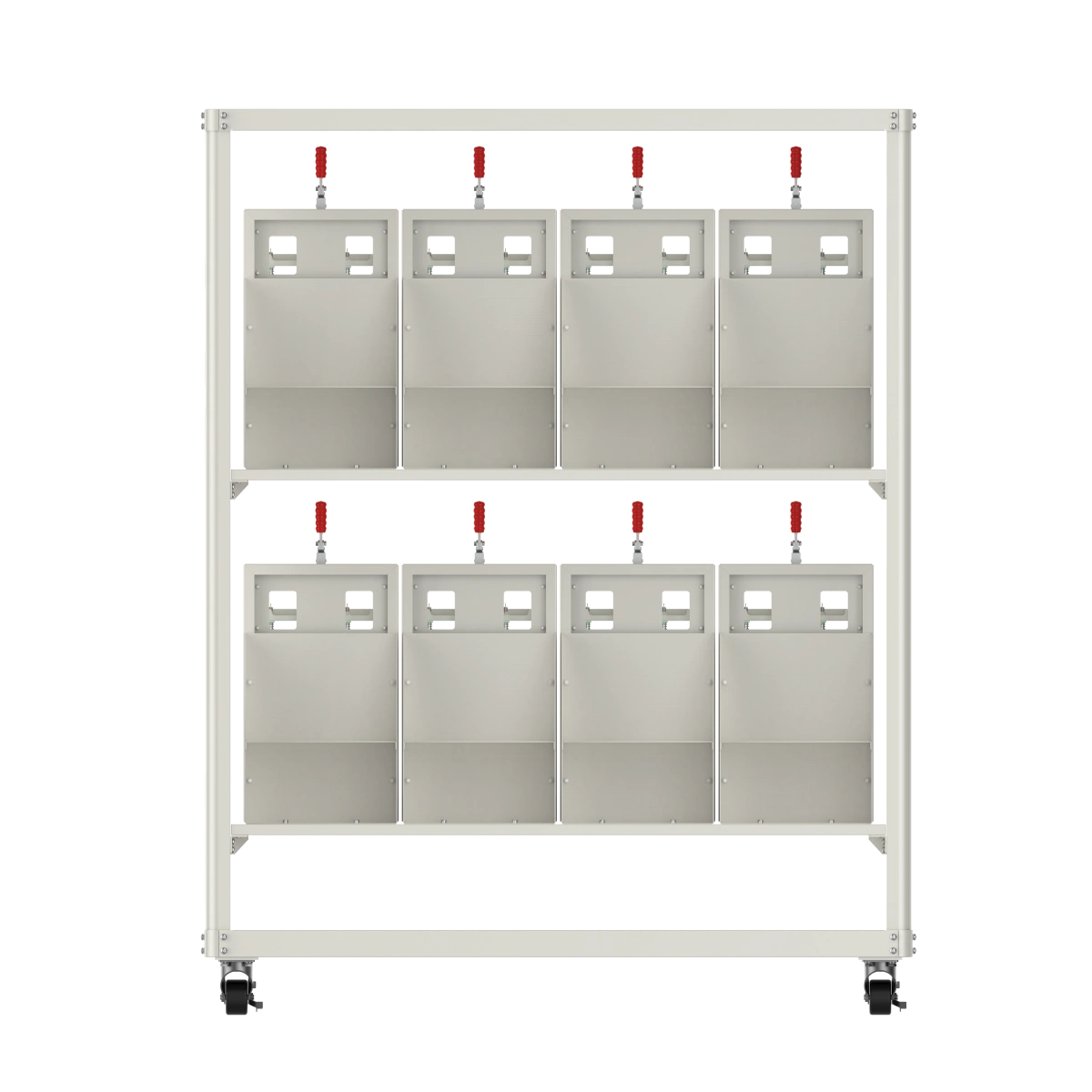

· Batteries are securely fixed and connected to maintain stable positions during testing.
· Gold-plated probes on the surface to improve conductivity.
| Equipment name | 60A Prismatic Cell Rack |
|---|---|
| Model | PDCJ-F1-ZJ-60A-8CH-S1 |
| Current | 60A |
| Prode Model | P103-12-F-SF-60A |
| Wire Terminal | M9 |
| Tabs Distance | 1.9"-7.3" (48-185mm) |
| Battery Size | Length: 2.0"-11" (50-280mm) Width: 0.6"-4.2" (15-107mm) Height: 2.4"-10.0" (60-255mm) |
| Number of Channels | 8CH |
| Battery Holder Size | 11.2"×11.0"×23.8" (284mm×279mm×605mm) |
| External Size | 51.2"×16.0"×65.7" (1300mm×407mm×1670mm) |
| Weight | 195kg |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
