Used for power cylindrical battery cell performance testing, formation, and capacity grading.
Features
Tech Specs

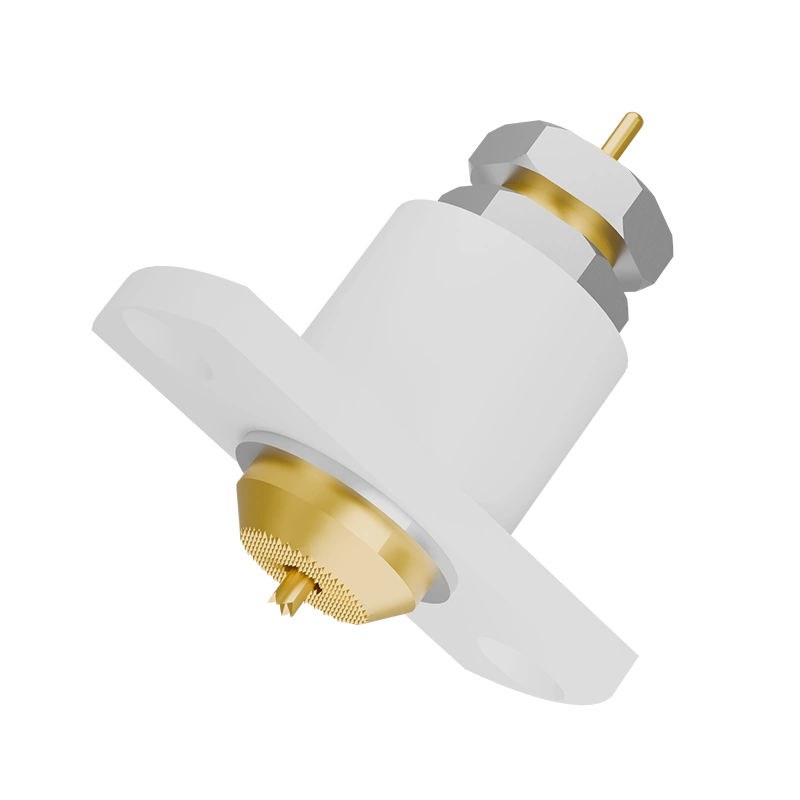

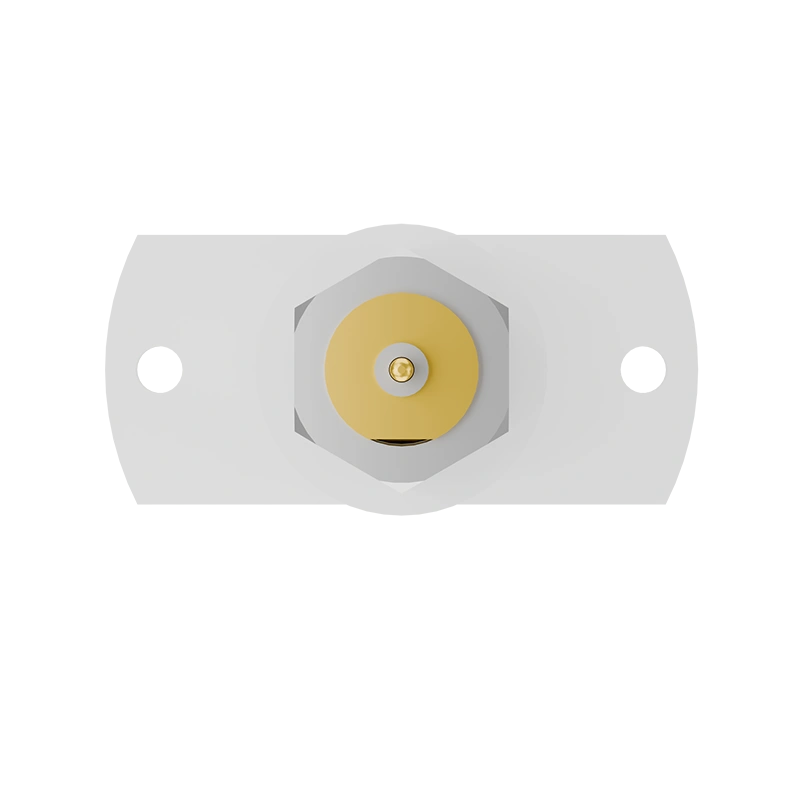

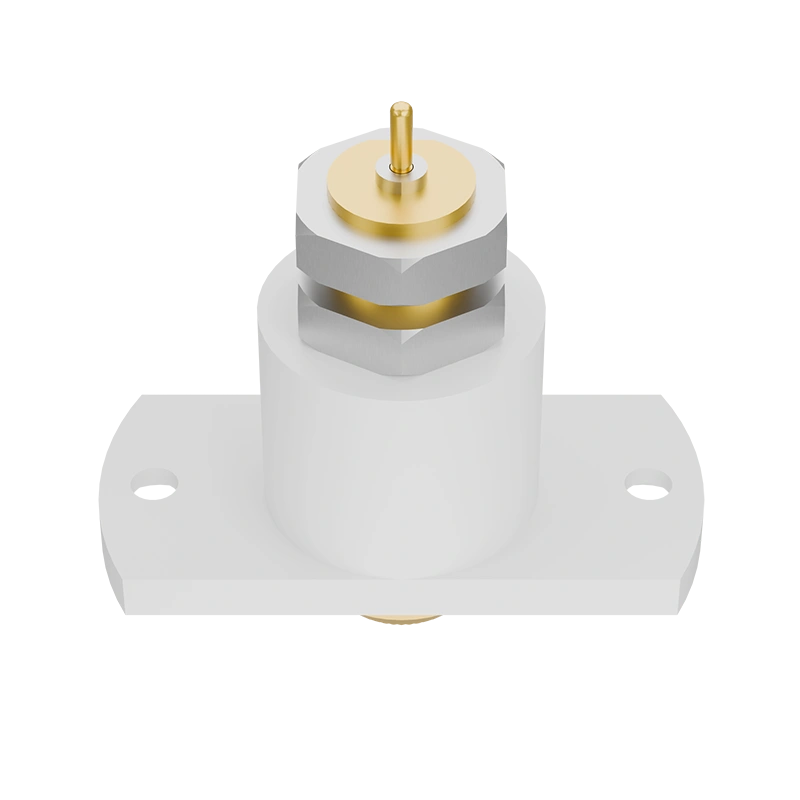

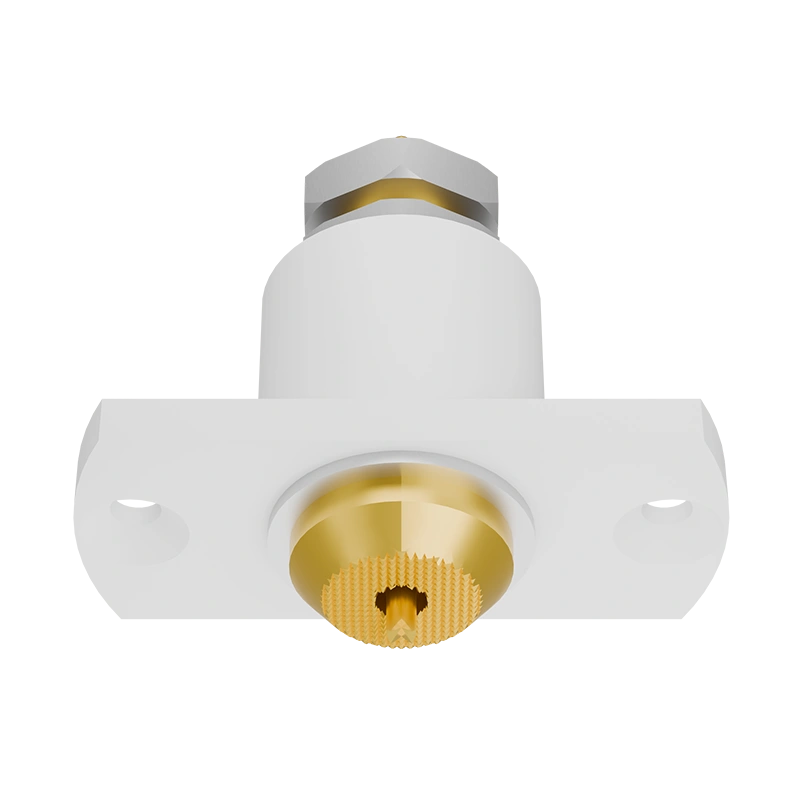

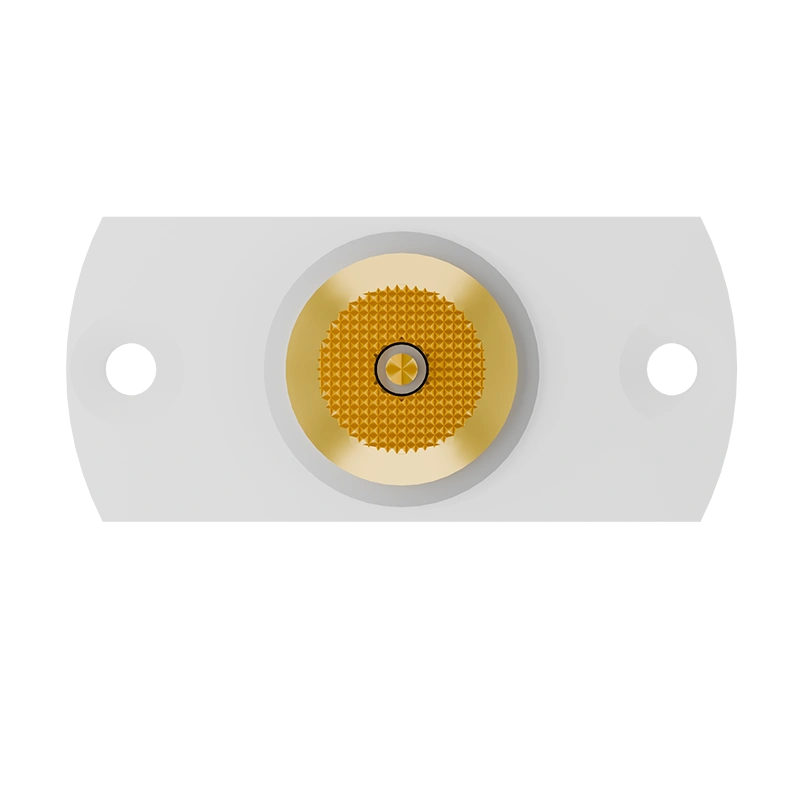

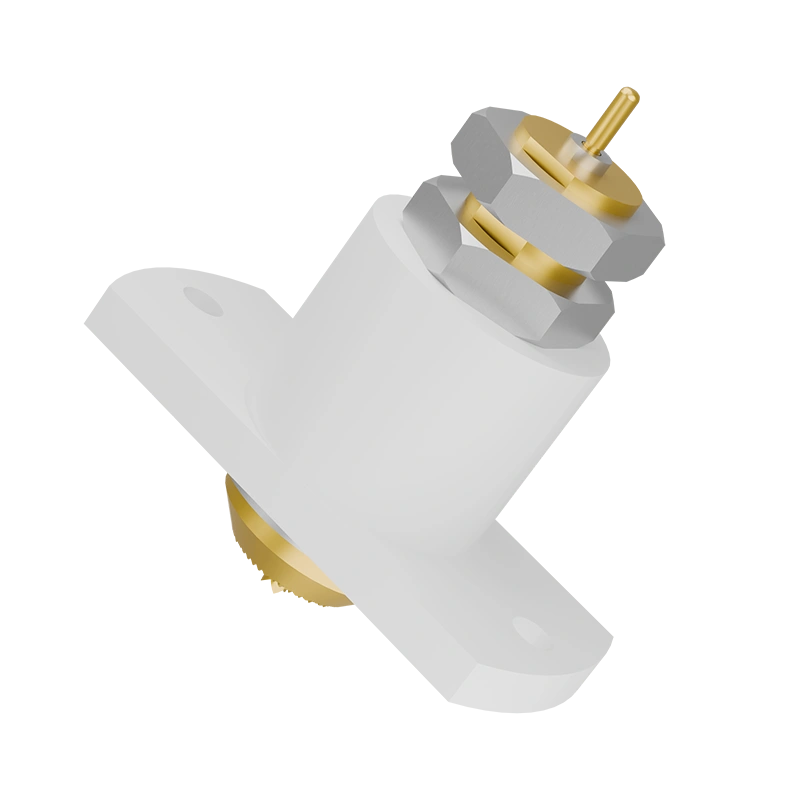

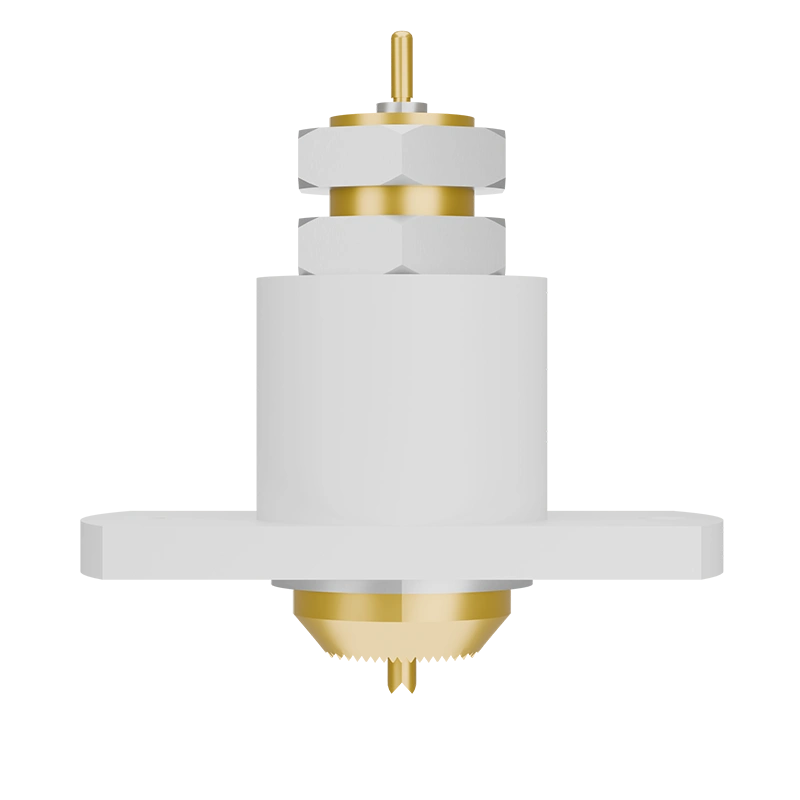

Combined with the A703-TZ-100A-T positive probe, it is used for testing 100A cylindrical batteries, detecting parameters such as voltage and current, and performing battery performance testing, formation, and capacity grading.

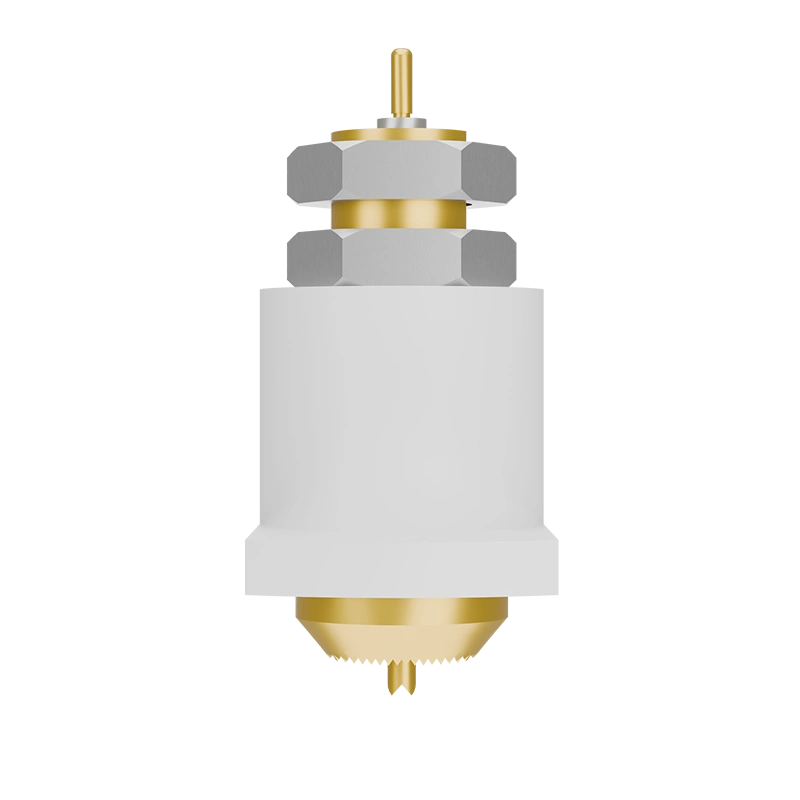

| Equipment name | 100A Negative Probe |
|---|---|
| Model | A703-TZ-100A |
| Current | 100A |
| Probe Head Diameter | 0.43"(11mm) |
| Terminal | M10 |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
