Used for cylindrical battery performance testing, formation, and capacity grading.
Features
Tech Specs

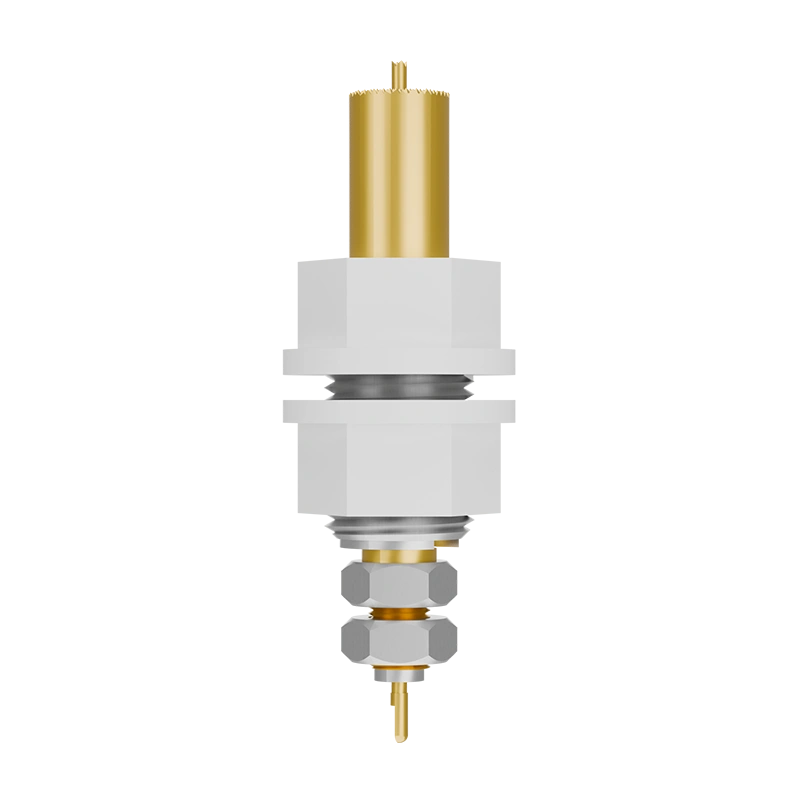

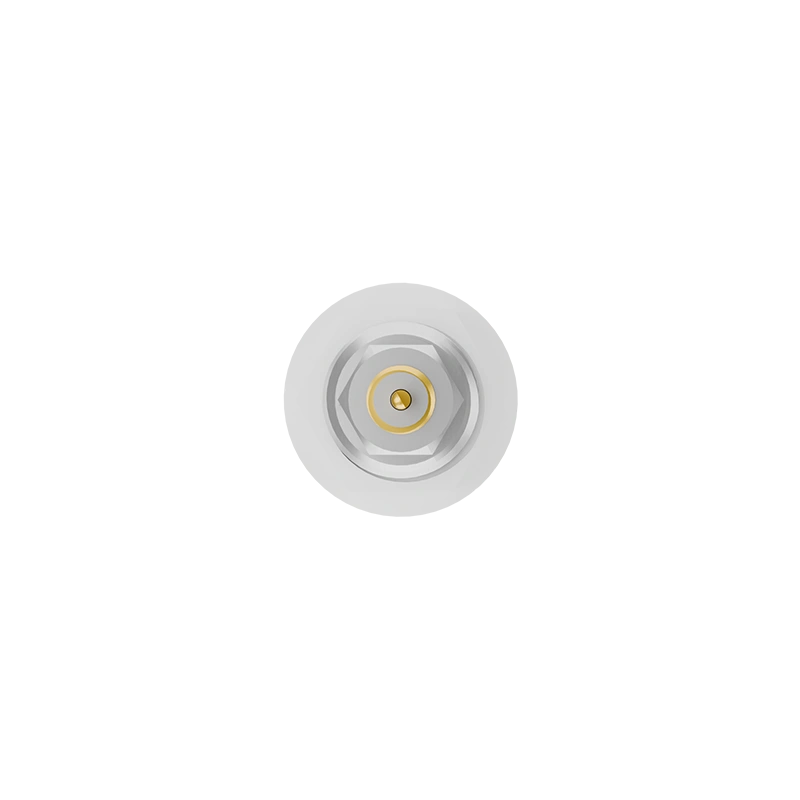

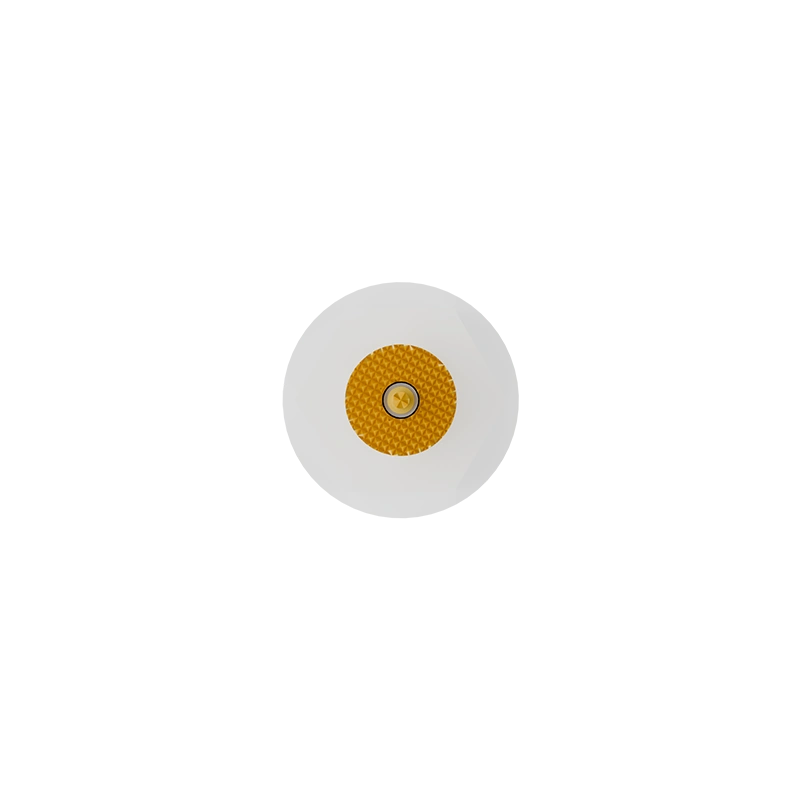

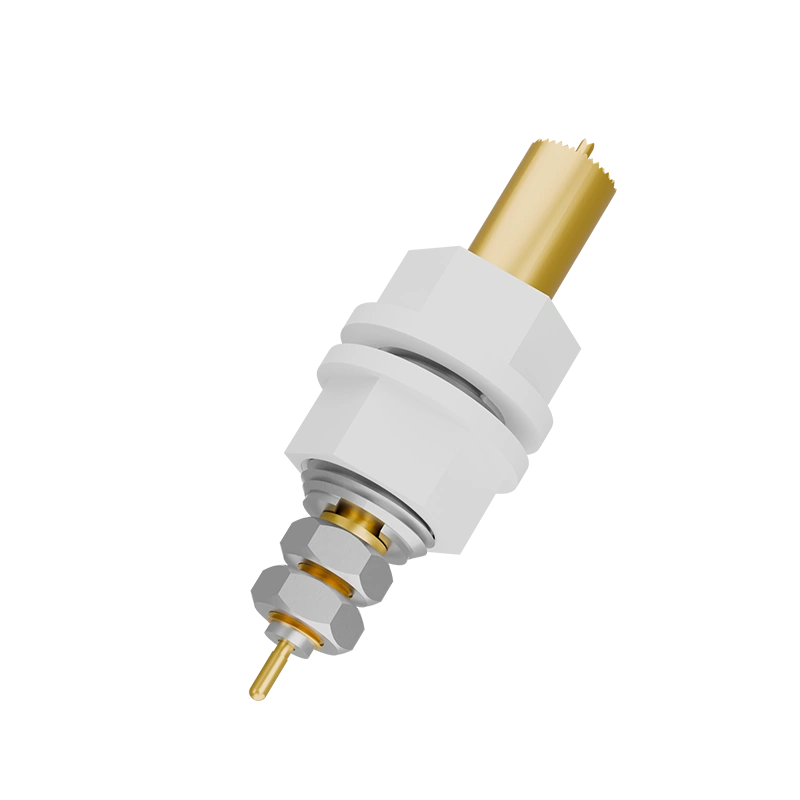

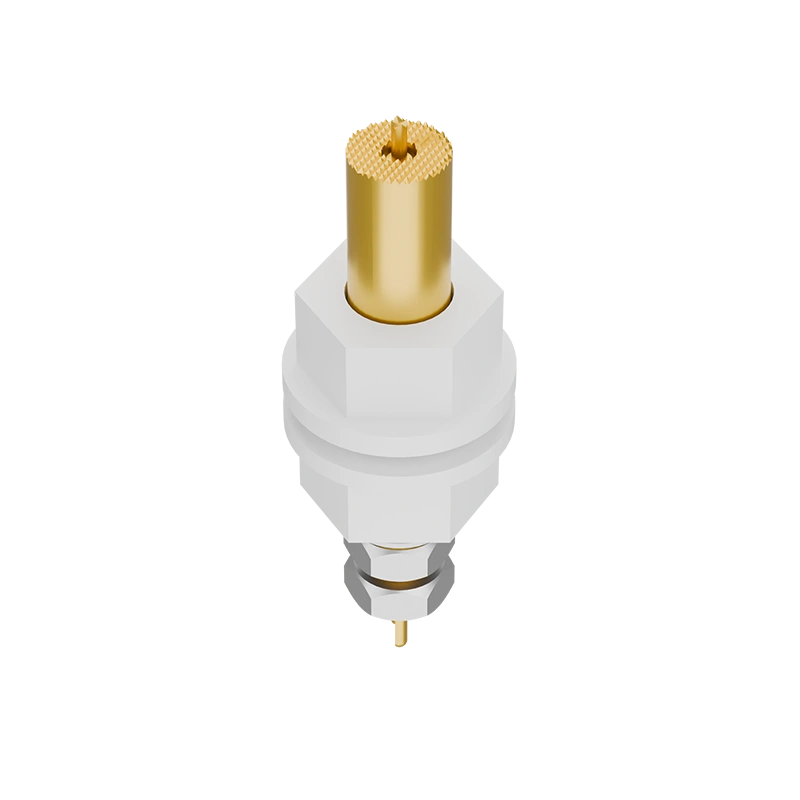

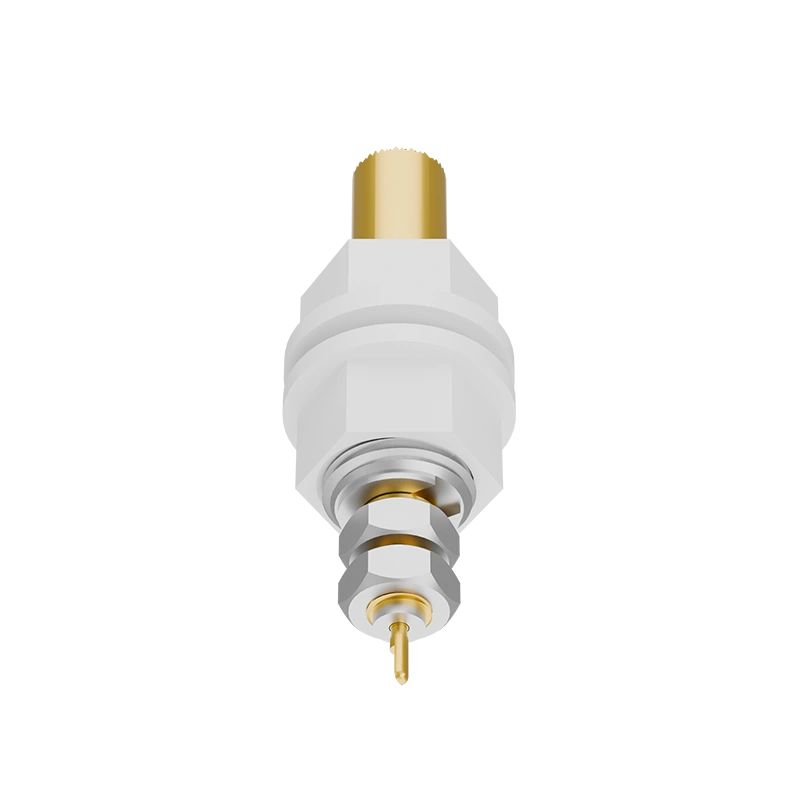

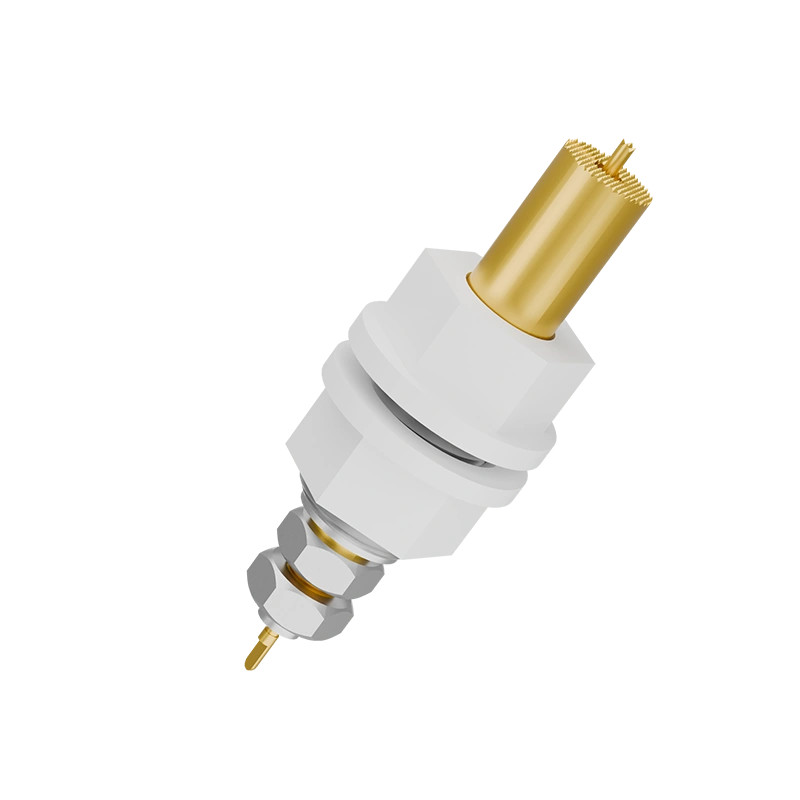

The positive probe with a spring ensures a stable connection between the probe and the battery. Combined with the A703-TZ-30A negative probe, it is used for testing 30A cylindrical batteries, detecting parameters such as voltage and current, and performing battery performance testing, formation, and capacity grading.
| Equipment name | 30A Positive Probe (with Spring) |
|---|---|
| Model | A703-TZ-30A-T |
| Current | 30A |
| Probe Head Diameter | 0.31"(8mm) |
| Terminal | M5 |
