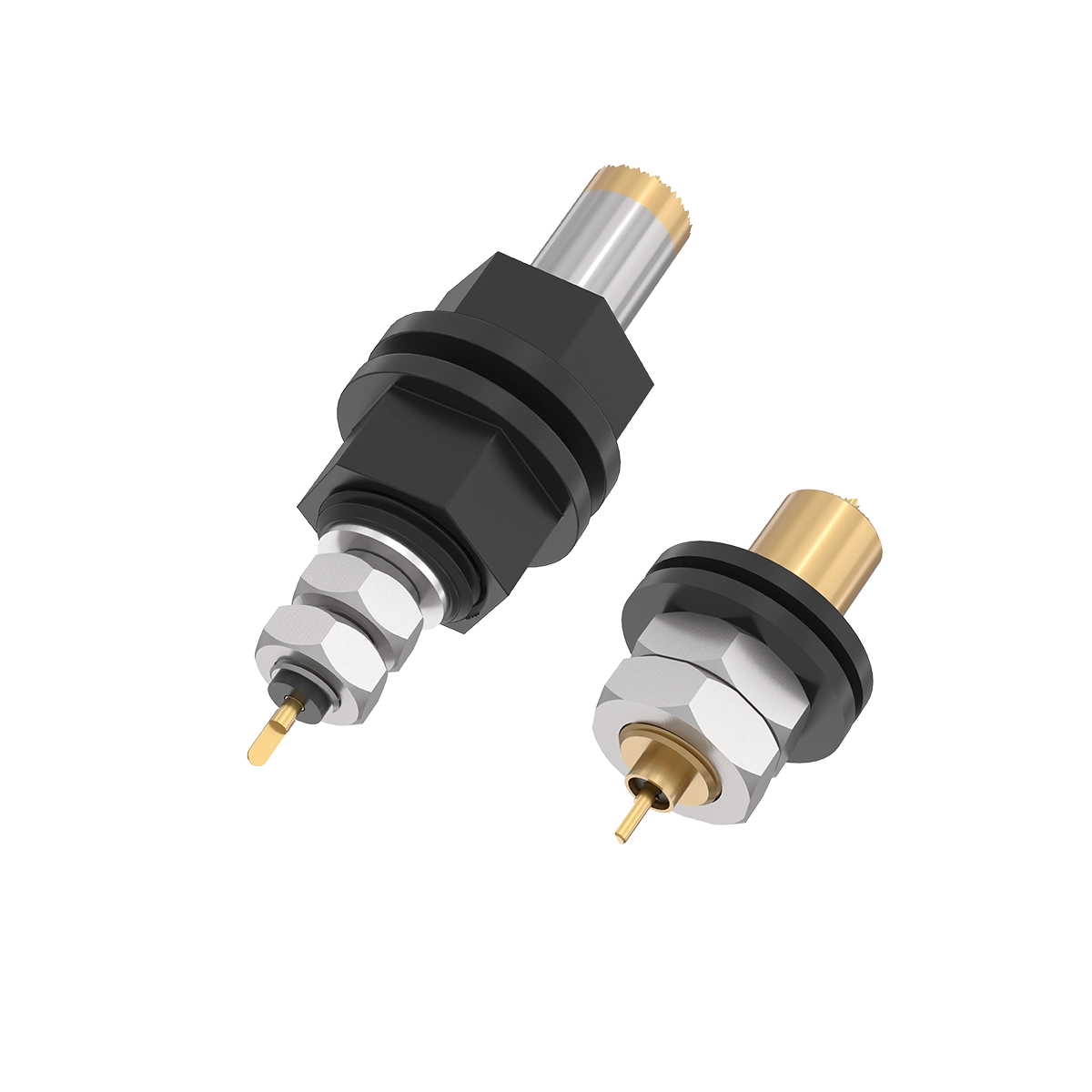

Battery internal resistance sorting test probes.
| Model | P103-12-TZ-LK-TDU-30A-Z-001 | P103-12-TZ-LK-TDU-30A-F-001 |
| Nut | M5 | M8 |
| Probe Length | 2.14″(54.3mm) | 1.28″(32.5mm) |
| Current | ≤30A | |
| Contact Resistance | ≤1mΩ | |
| Spring force | Voltage probe spring force: 200g, Overall spring force: 2.5kg | |
| Heat Resistant | 302℉(150℃) | |
| Fire Resistance Rating | V0 | |

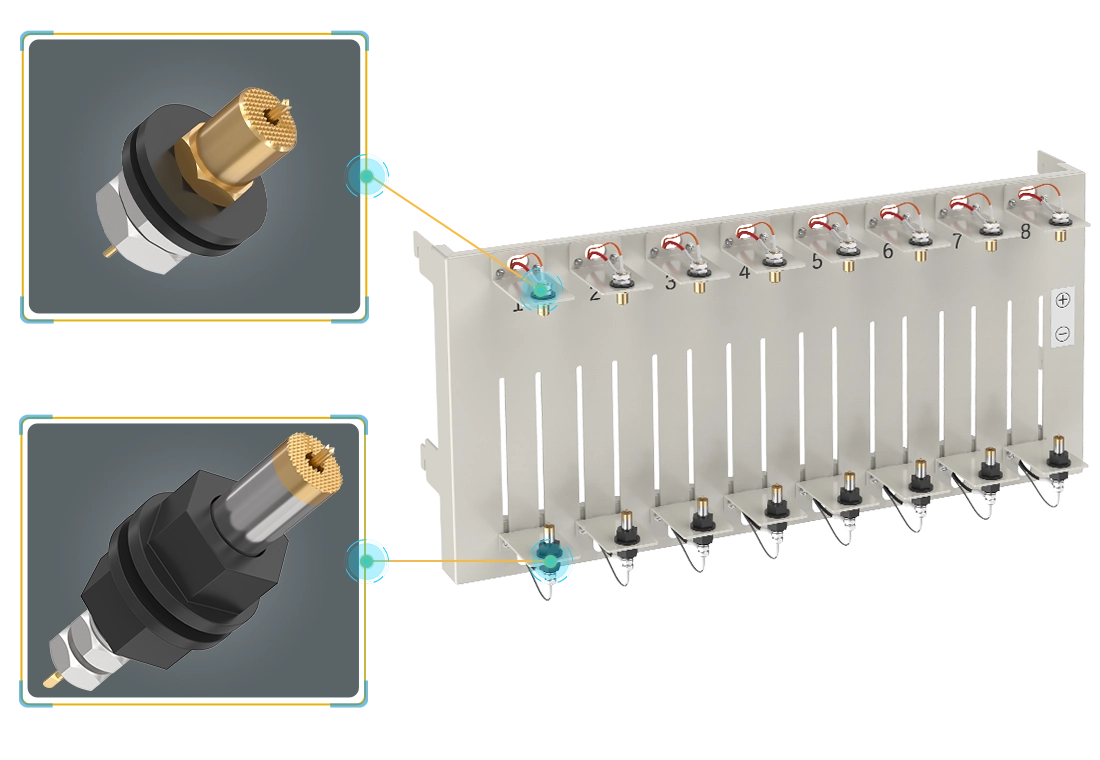

The fine-tuning feature of the top voltage probe ensures a more uniform contact force, guaranteeing the accuracy of measurements. The overall 2.5kg spring force design provides a solid guarantee for continuous and stable data collection.
Efficient cylindrical battery probes, designed for precise capacity sorting and internal resistance testing. They offer stable contact to ensure the accuracy and repeatability of test data, optimizing the assessment of battery performance.
The probe's internal resistance is less than 1mΩ, ensuring efficient and stable current transmission. The gold-plated surface treatment not only enhances conductivity but also improves corrosion resistance, ensuring reliability for long-term use.

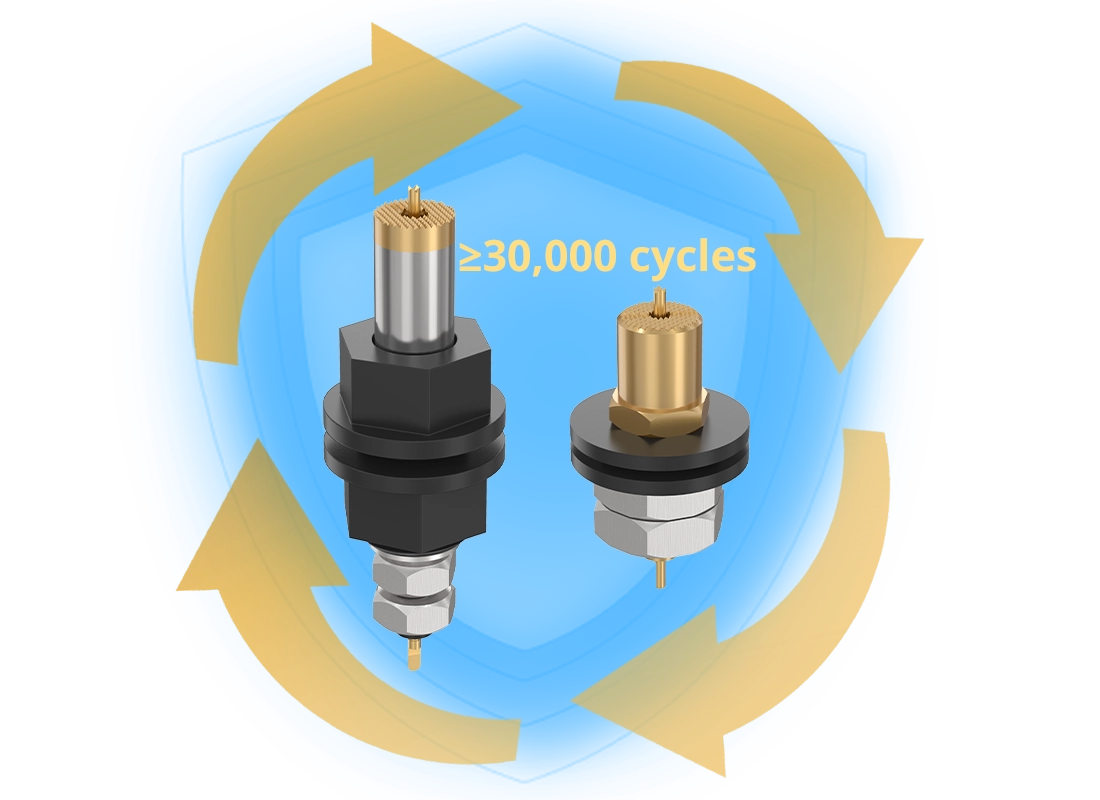

The probe structure is designed to exceed 30,000 cycles of service life, demonstrating excellent durability. At the same time, it can withstand temperatures up to 150℃, ensuring performance is unaffected in extreme environments.
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
