Used for testing 30A cylindrical batteries with terminals on the same side.
Features
Tech Specs

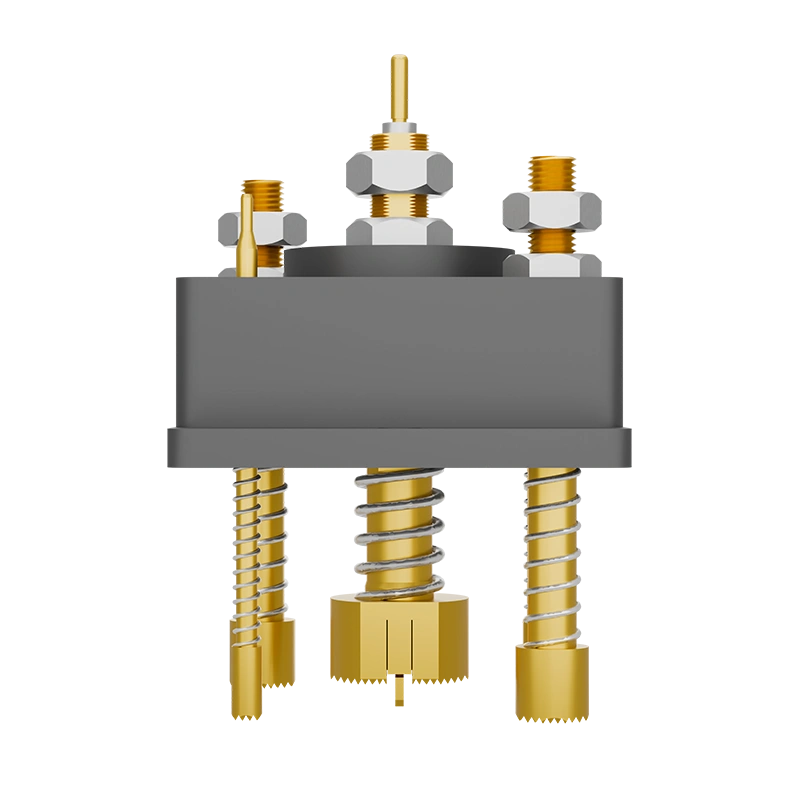

The probe with a spring ensures a stable connection between the probe and the battery. When assembled with an elbow joint clamp, it is used for testing 30A batteries with terminals on the same side, detecting parameters such as voltage and current, and performing battery performance testing, formation, and capacity grading.
| Equipment name | 30A Homopolar Probe |
|---|---|
| Model | P103-12-Y-LK-4630A-01 |
| Current | 30A |
| Probe Head Diameter | 0.47"(12mm) |
| Terminal | M6/M4 |
