Used for flammability test of lithium batteries or battery packs.
Features
Tech Specs

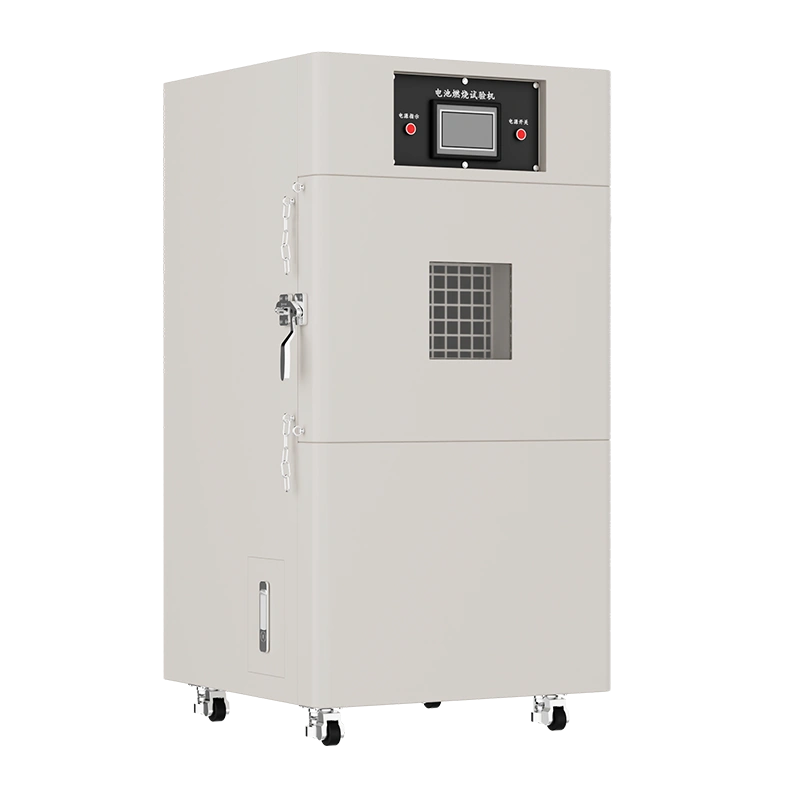

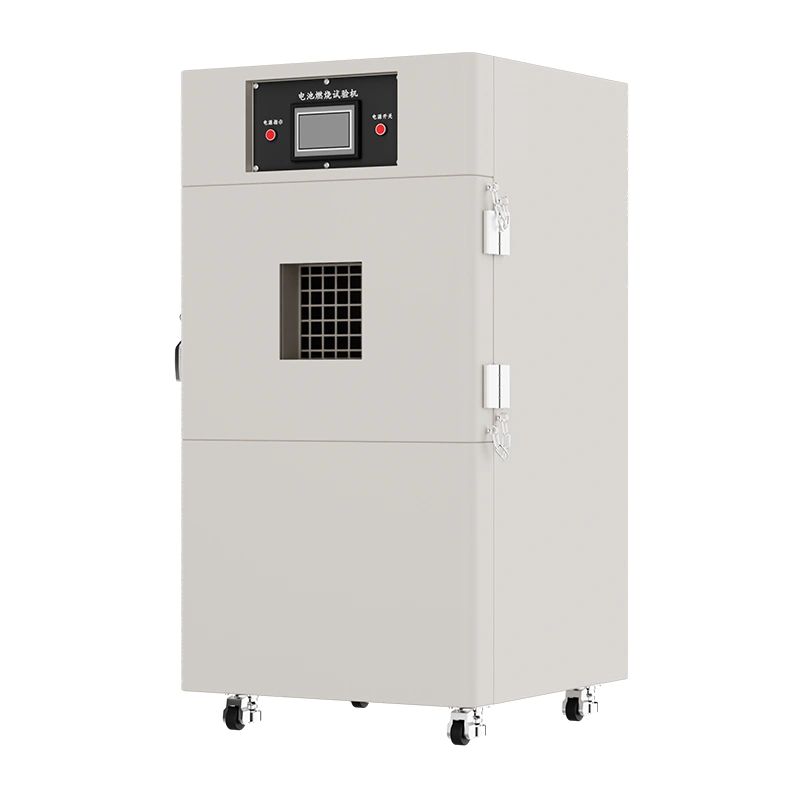

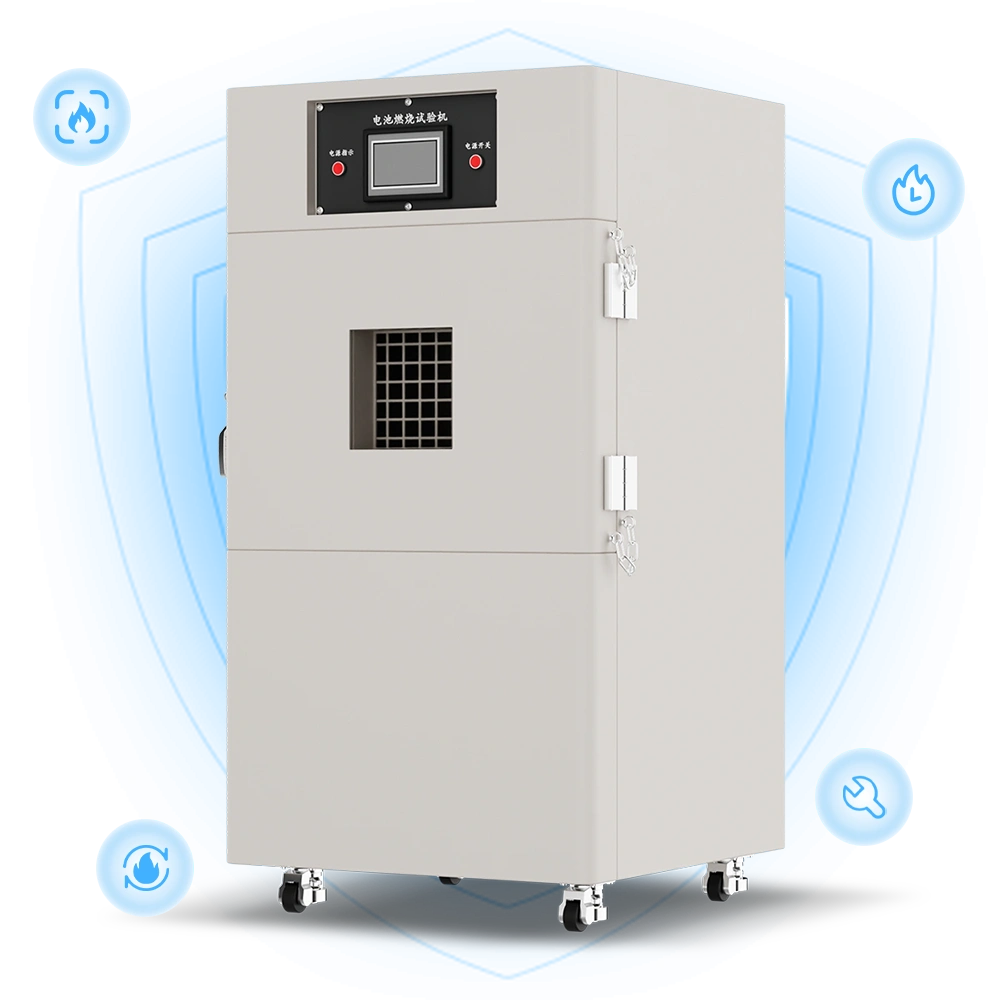

The Battery Combustion Tester 6008C is used to heat the sample until the battery explodes or burns out, and to time the combustion process to evaluate the safety performance of the battery under abnormal conditions.

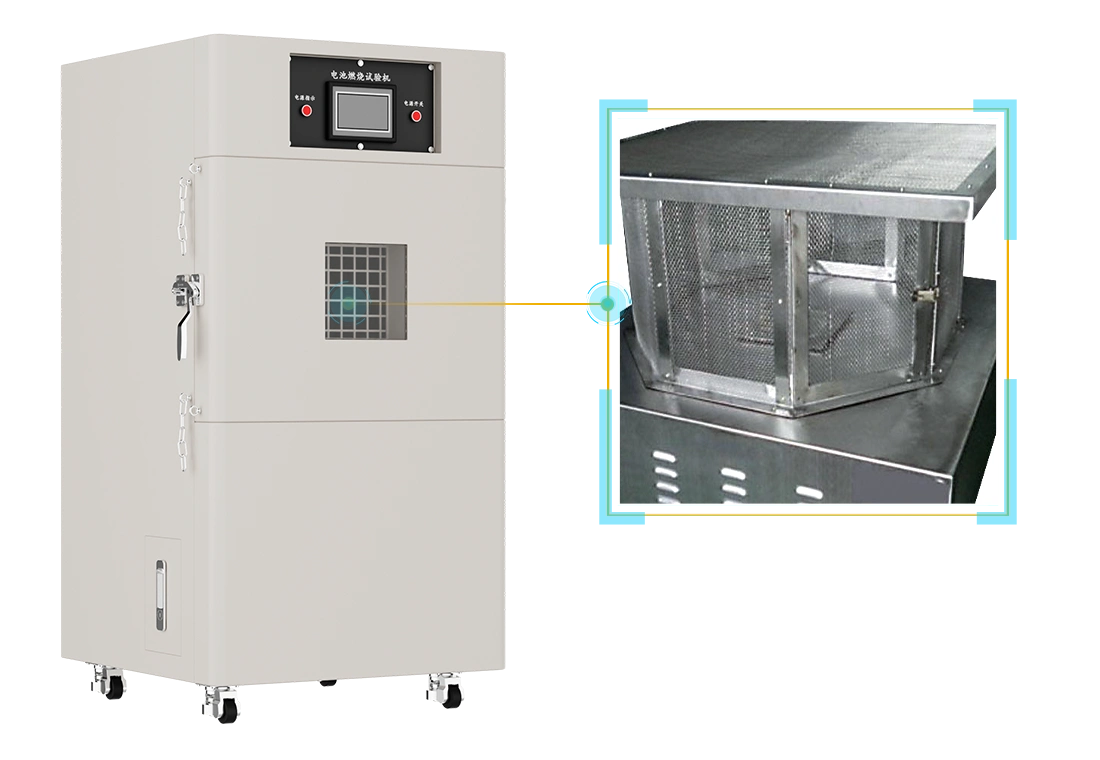

The test screen is woven with stainless steel wire of diameter 0.02"(0.43mm), containing 20 grids per inch; the octagonal cover is woven with aluminum wire of diameter 0.01"(0.25mm), containing 16-18 grids per inch, and is detachable and replaceable.
Using methane or liquefied petroleum gas as fuel, the Bunsen burner has automatic ignition, simple operation, adjustable flame application time, and adjustable flame height.

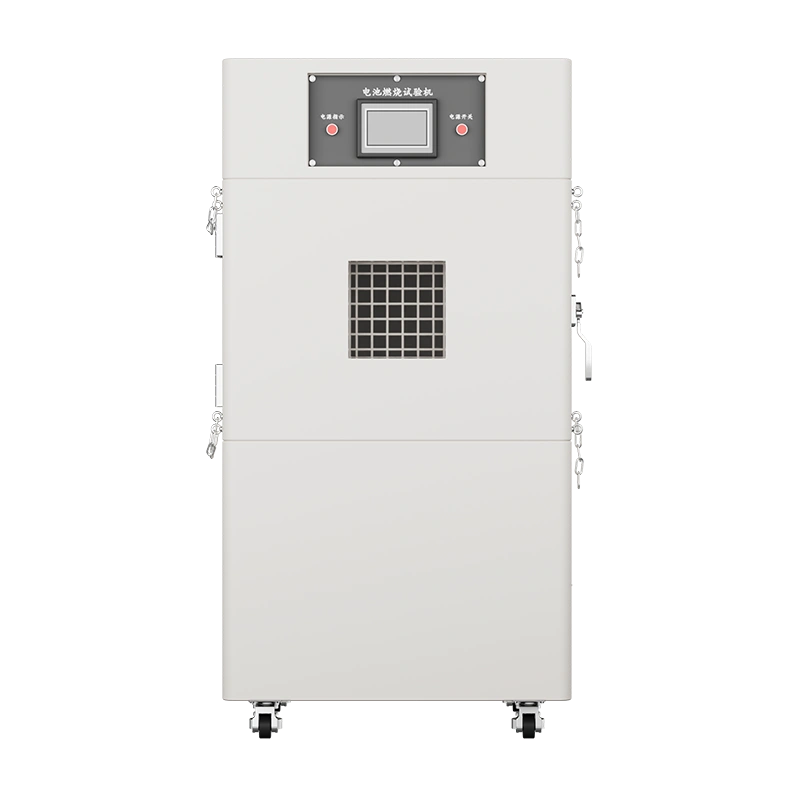

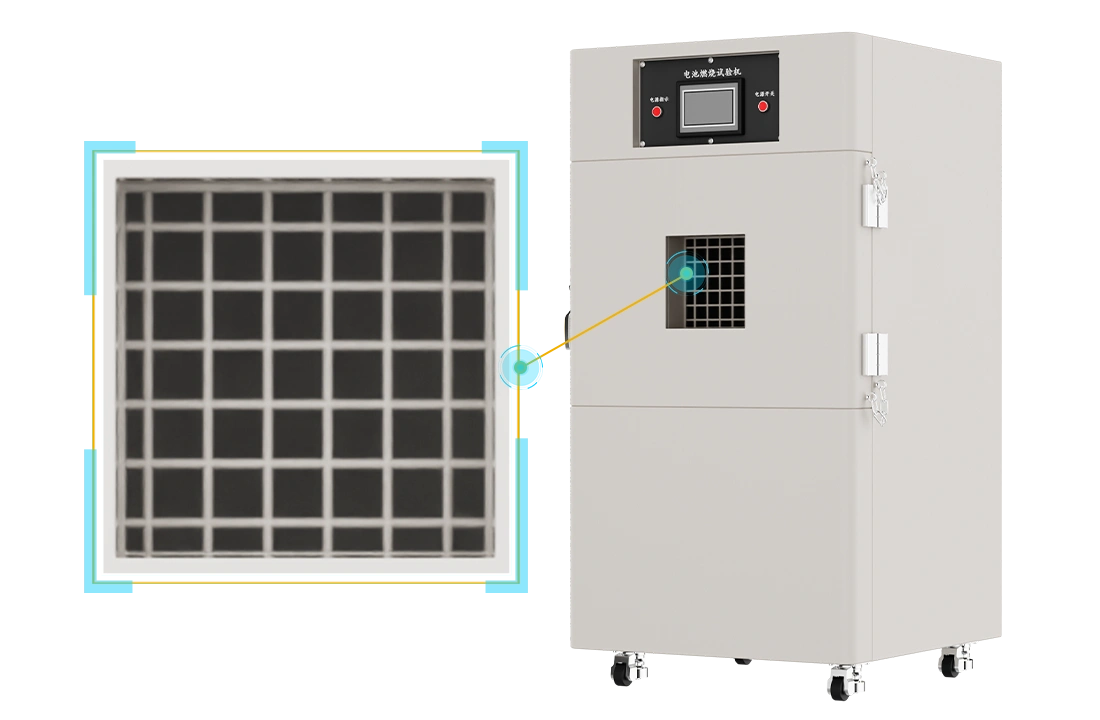

The box front is equipped with a safety observation window, using double 5mm thick tempered glass for easy observation of the product status during testing. The door is welded with a protective mesh to prevent items from flying out in case of battery explosion.

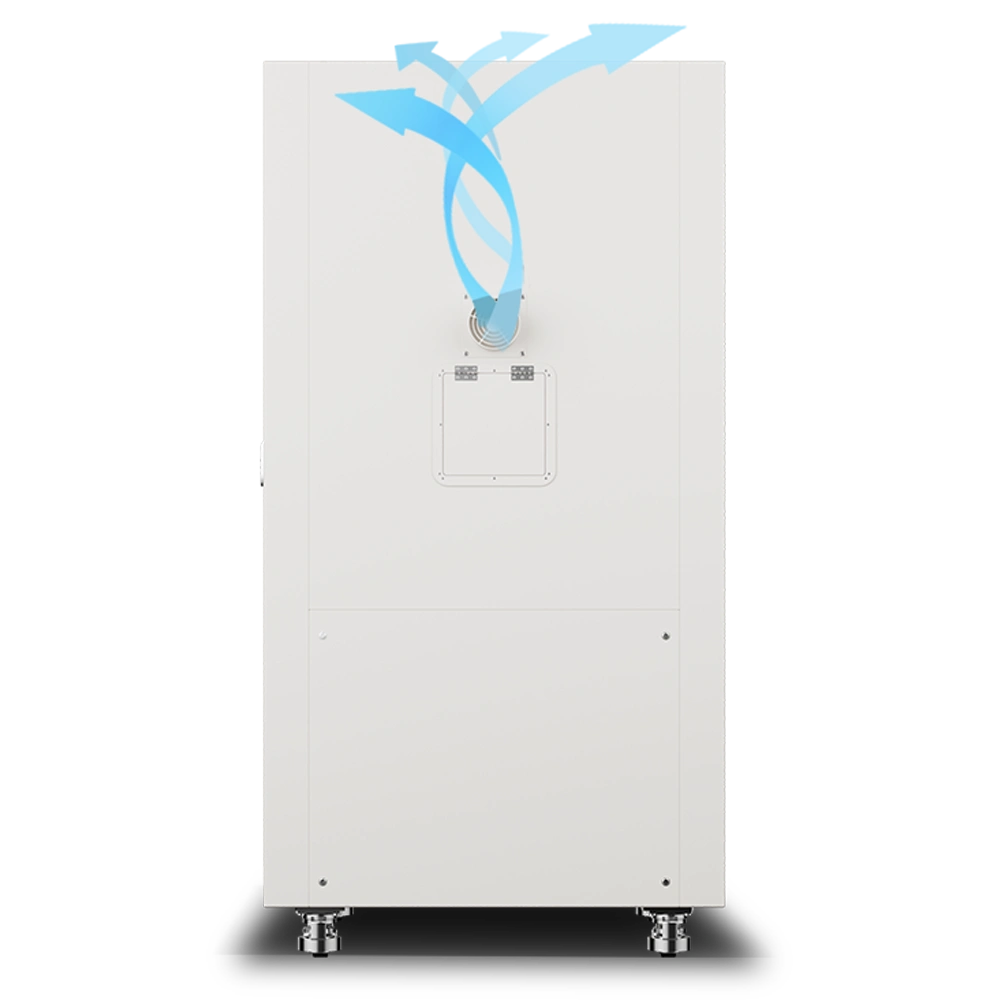

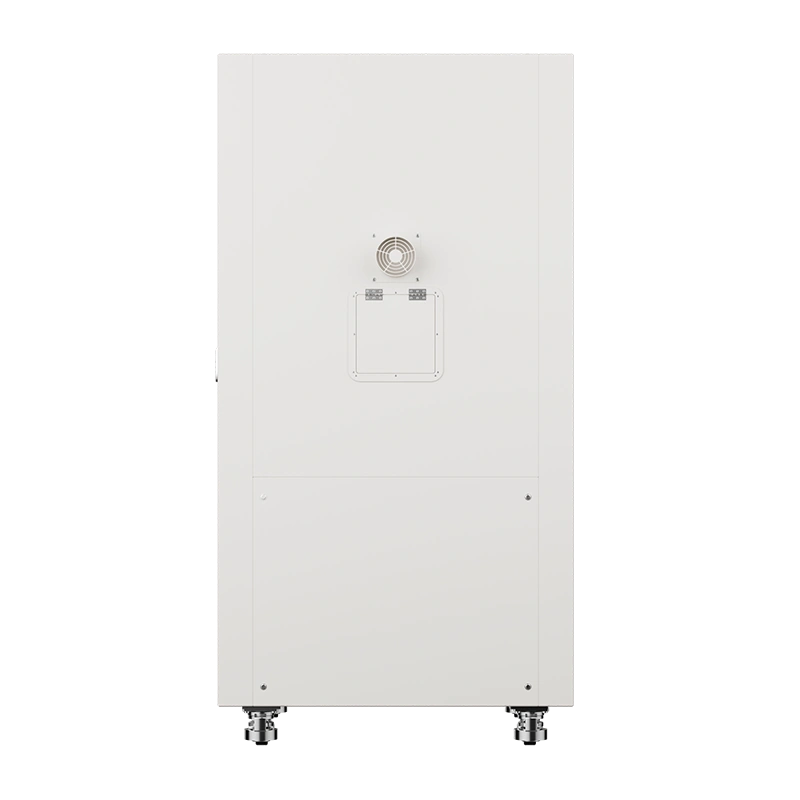

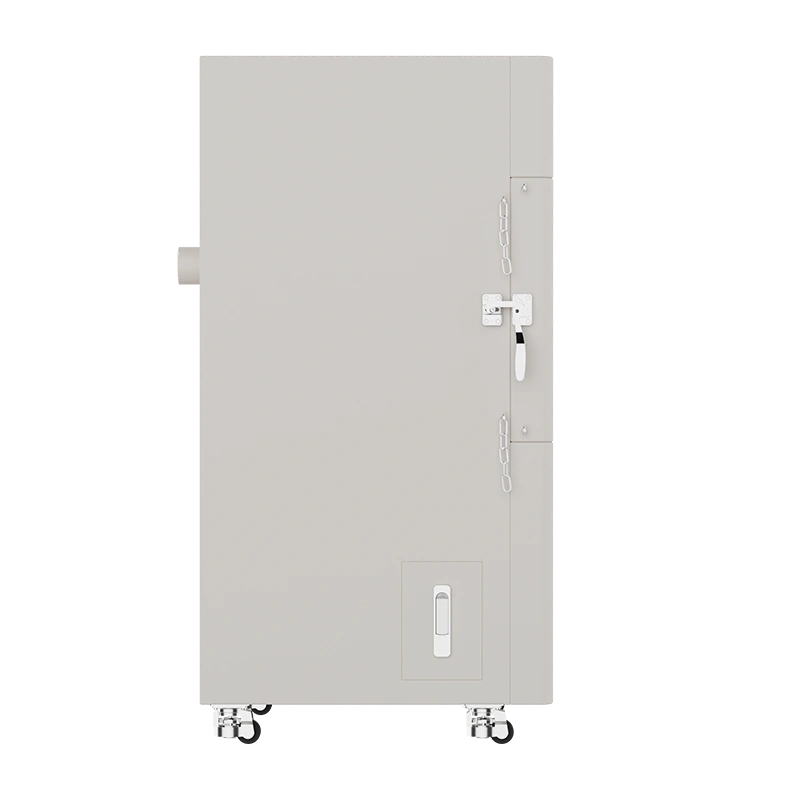

The box is reinforced and the outer box is made of high-quality cold-rolled steel sheet spray-painted for durability. The inner box is made of stainless steel for corrosion resistance. The box back side is equipped with exhaust fans and external exhaust interfaces to effectively exhaust smoke and pressure to ensure experimental safety.

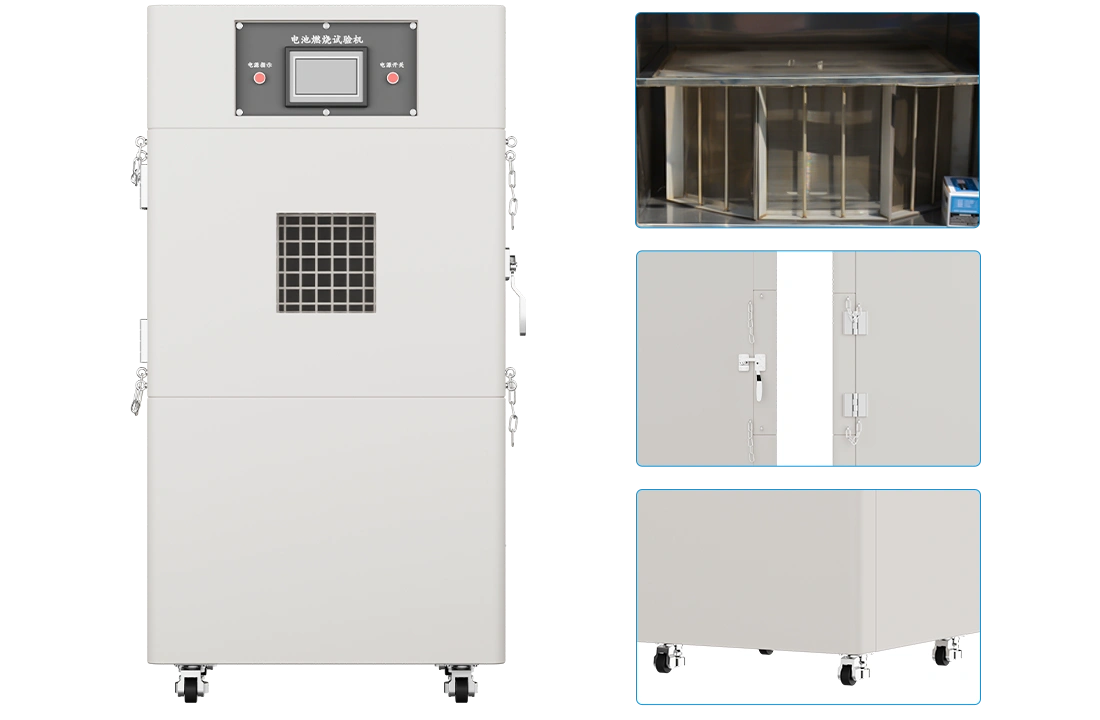

Battery Combustion Tester 6008C emphasizes detailed design, not only has a refined appearance, but also has complete functions and is easy to use. Every detail has been carefully considered to provide a better user experience.
Clear control panel: fully functional, easy to operate, and convenient to use.
Mechanical door lock: prevents the pressure inside the box from increasing and causing the door to open automatically.
Removable casters: equipped with brakes for easy movement and positioning.
Silicon sealing strip: corrosion-resistant and heat-resistant, effectively isolates heat exchange between the inside and outside of the box.
| Equipment name | Battery Combustion Tester 6008C |
|---|---|
| Internal Size (WxDxH) | 29.5" × 29.5" × 19.7" (750x750x500mm) |
| External Size (WxDxH) | 35.4" × 35.4" × 65.0" (900x900x1650mm) |
| Bunsen Burner | The inner diameter of the pipe mouth is 0.38" (9.5mm) and about 3.9" (100mm) long |
| Test Round Hole | φ 4.0" (102mm) |
| Flame to Network Screening Height | 1.5" (38mm) |
| Power | AC 220V 50Hz 200W |
| Weight | 160kg |
