The battery drop tester 6001C is used for controlled battery drop testing, with height control and explosion-proof features to ensure safety during testing. It incorporates multiple explosion-proof features to ensure comprehensive experimental safety. The design includes a pressure relief outlet that effectively releases internal pressure, reducing potential explosion risks.
Features
Tech Specs

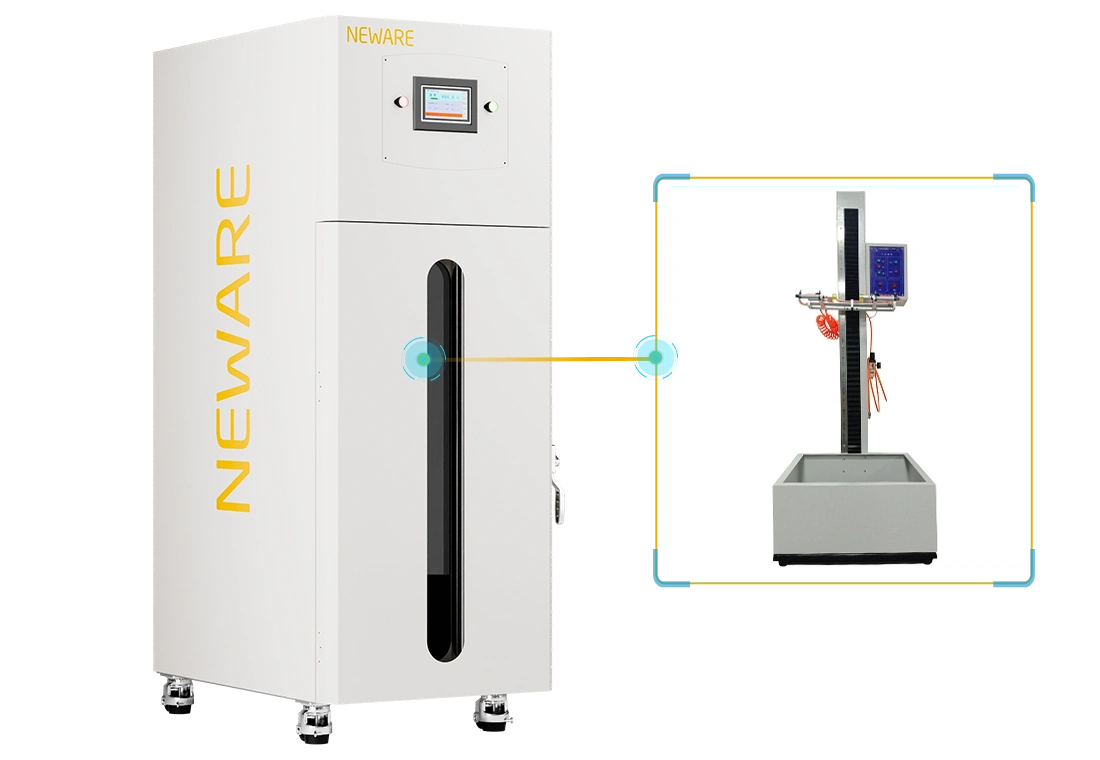

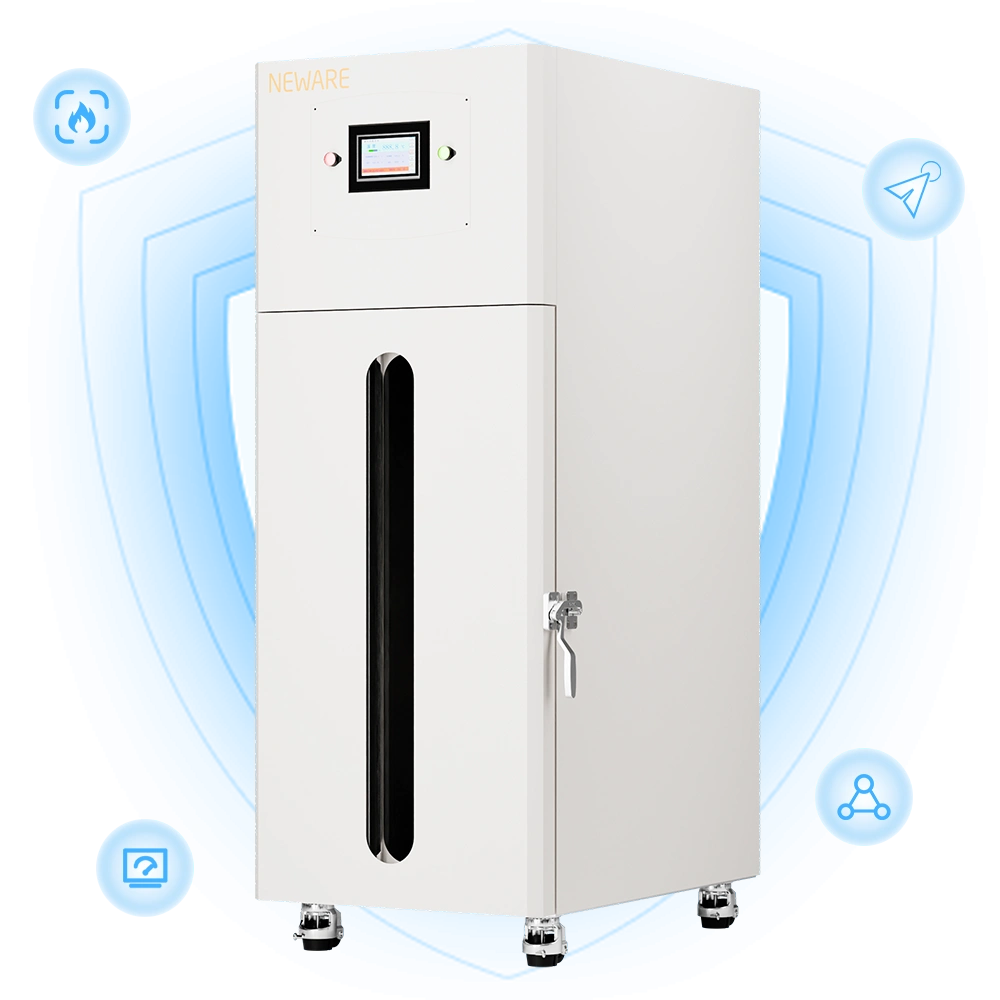

The battery drop tester 6001C incorporates multiple explosion-proof features to ensure comprehensive experimental safety. The design includes a pressure relief outlet that effectively releases internal pressure, reducing potential explosion risks. Additionally, the fully enclosed explosive-proof device with chain-locked explosion-proof doors prevents energy diffusion within the chamber, providing additional protection measures.
The drop height can be adjusted and comes with a height scale, allowing precise control over battery drop height. With features like electric reset, controlled drop, and electric lifting functions, our equipment enables smart testing with just one-click operation.
With a hydraulic cushioning device and a single-arm double-column structure, our design not only effectively reduces the impact on the test product but also provides excellent stability and reliability. It allows for easy placement of the test product, making the entire testing process convenient and efficient.
Widely used for free fall testing of small consumer electronic products and components, testing the safety of batteries during multi-angle drops, and also has explosion-proof features to ensure experimental safety.

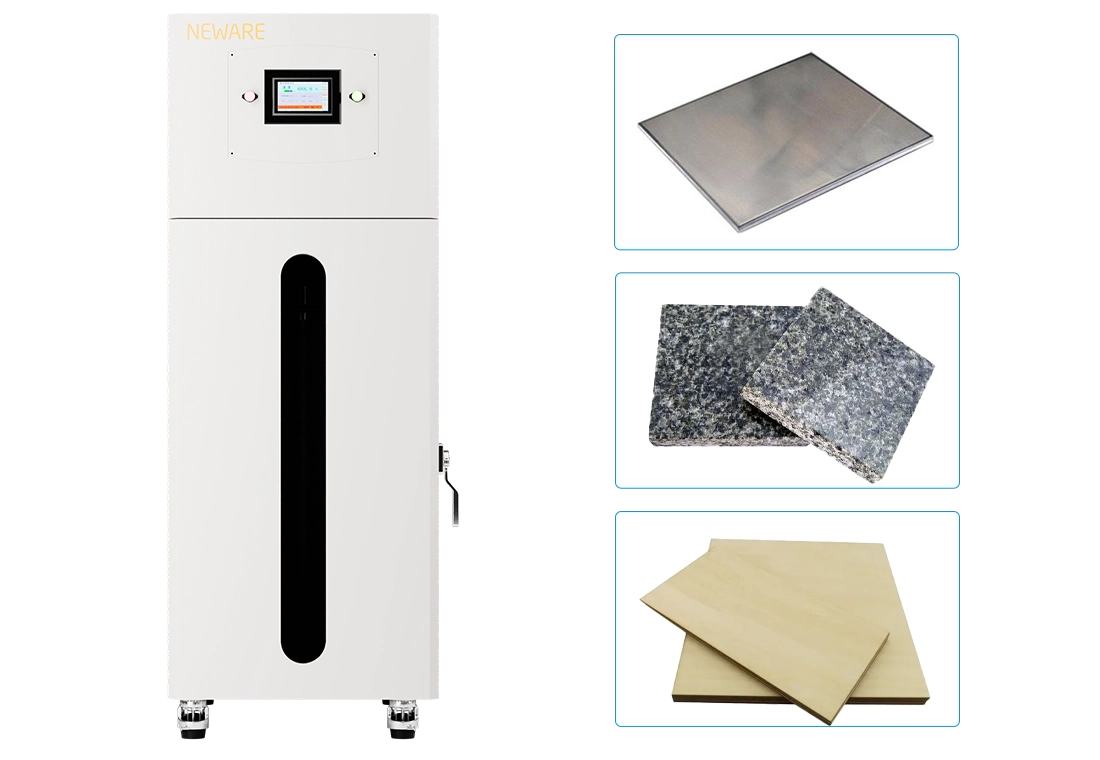

We offer various options for drop floors, including steel plate, acrylic board, and marble board, ensuring there is one that meets your needs. Our comprehensive coverage includes testing from all sides, edges, and angles, complying with various test standards to ensure a thorough evaluation of reliability and safety.
| Equipment name | Battery Drop Tester 6001C |
|---|---|
| Drop Height | 11.8"~59.1"(300~1500 mm Adjustable) |
| Test Load | 0～3kg |
| Maximum Specimen Size (W×D×H) | 7.9" × 7.9" × 7.9" (200 x 200 x 200mm) |
| Drop Panel Size (W×D×H) | 23.6" × 27.6" × 0.4" (600 x 700 x 10mm Core steel plate) |
| Size (W×D×H) | 27.6" × 35.4" × 70.9" (700 × 900 × 1800mm) |
| Weight | About 250kg |
| Power | 0.75KW |
| Falling method | Pneumatic fall |
| Lifting method | Electric lifting |
| Operating power | 220V 50Hz |
| Safety device | Pressure relief port, explosion-proof door chain, etc |
| Operating air pressure | ＜1mpa |

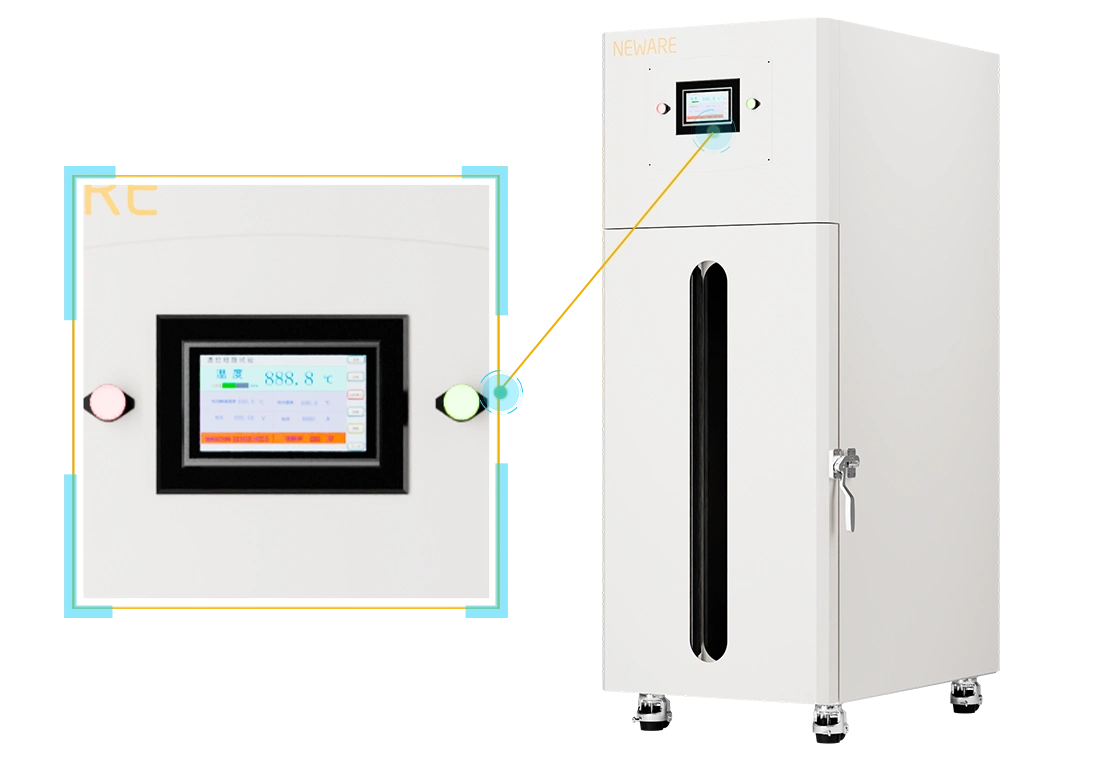

| Control the display mode | PLC touch screen |
