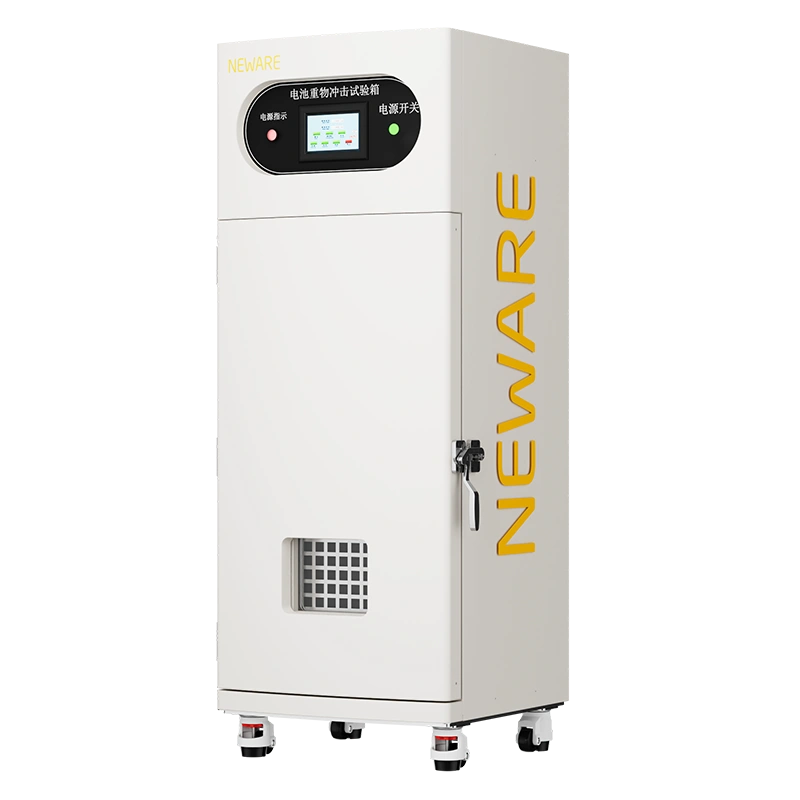

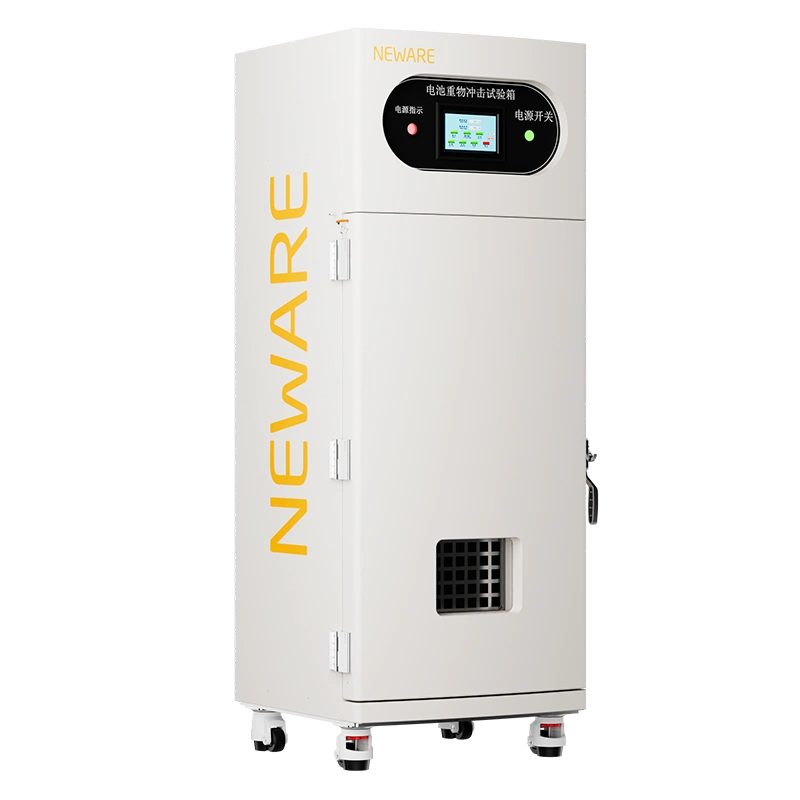

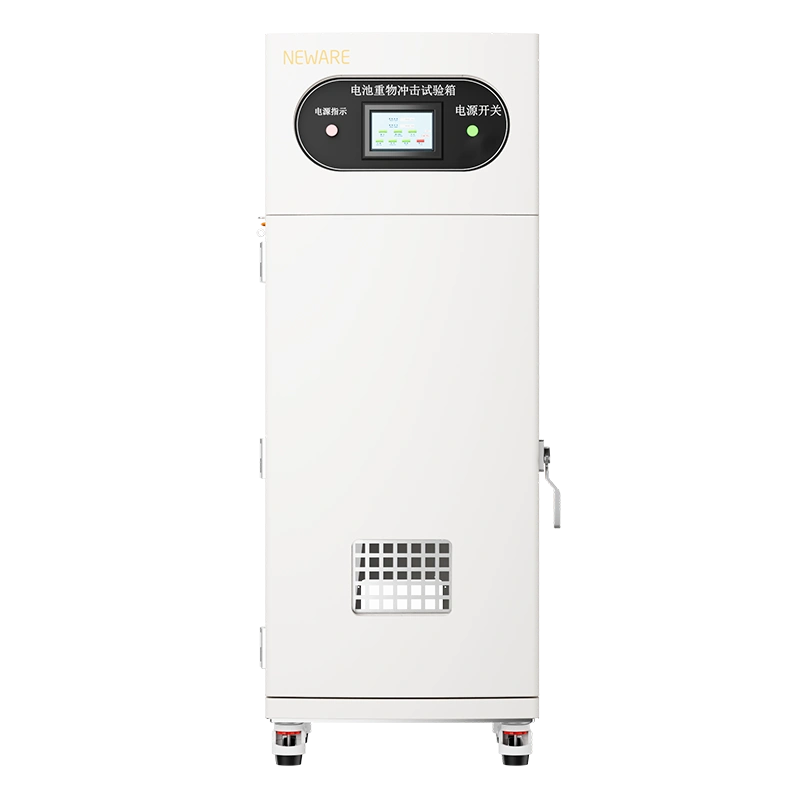

Used for conducting heavy impact testing on batteries and various small electronic products
Features
Tech Specs
The safety performance of batteries is comprehensively tested from different heights, different weights, and different force areas. The experiments are conducted according to regulations, and the batteries should not catch fire or explode.
Comprehensive Testing
Efficient Exhaust
Adjustable Height
Electric Lift

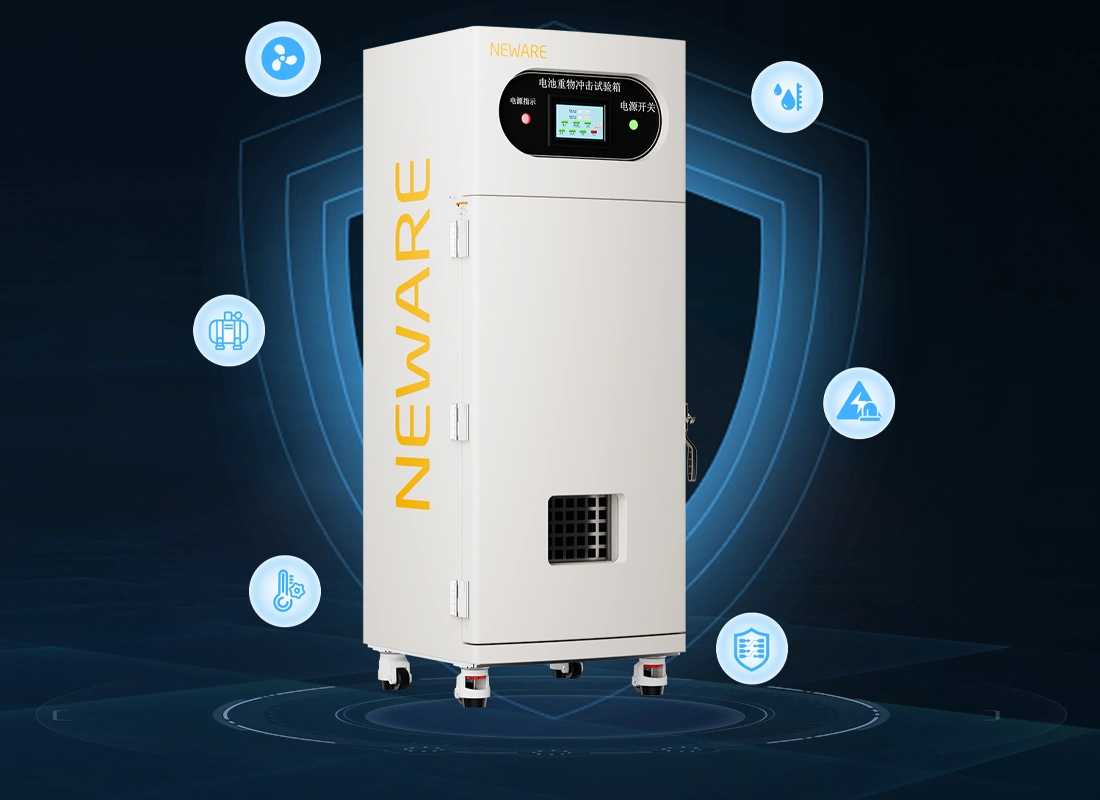

The Battery Heavy Material Impact Test Machine 6010C uses a multi-height, multi-weight, and multi-force area testing protocol to comprehensively evaluate battery safety performance. It verifies battery compression, impact resistance, and wear resistance capabilities from various perspectives, ensuring battery reliability and safety under various extreme conditions.

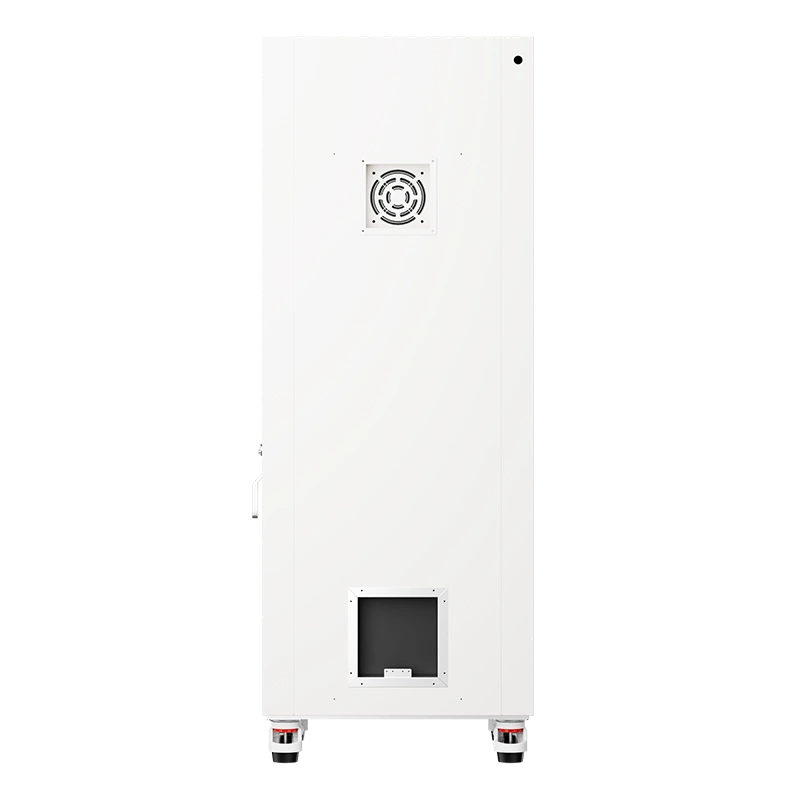

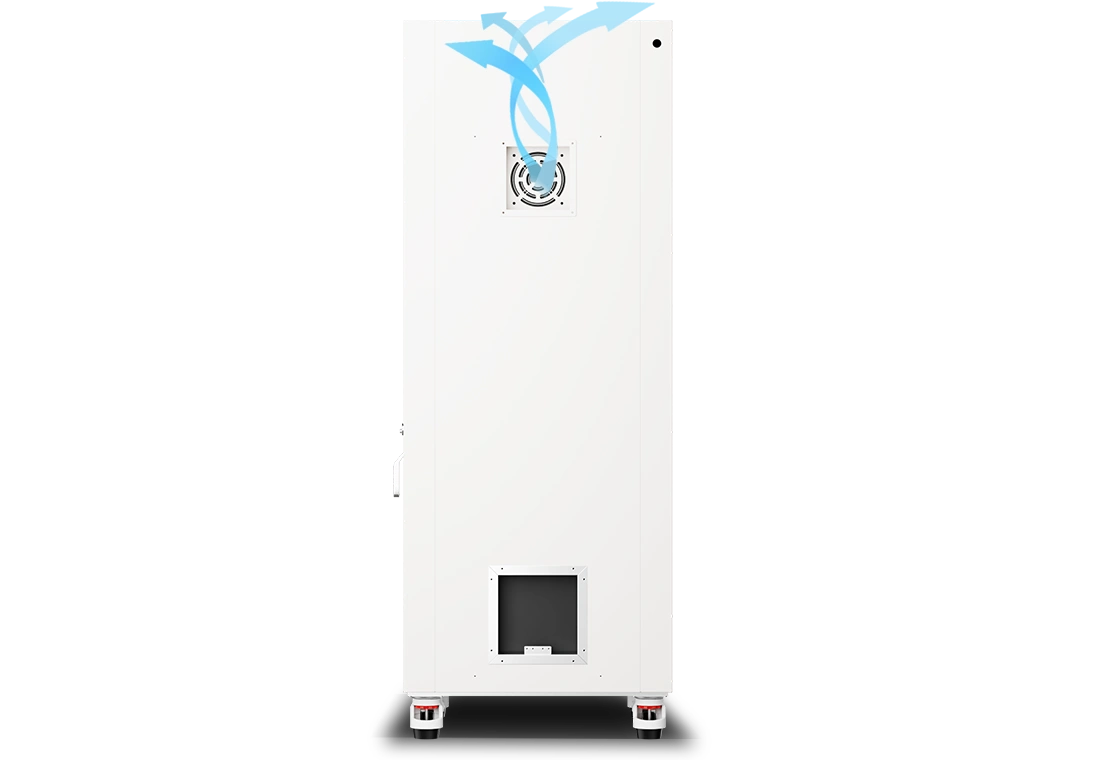

The exhaust port is designed with a diameter of 4.7"(120mm) and comes with a 4.3"(110mm) outer exhaust guide tube, allowing easy connection to laboratory high-power exhaust fans. This not only improves exhaust efficiency, but also ensures comfortable and safe experimental conditions.

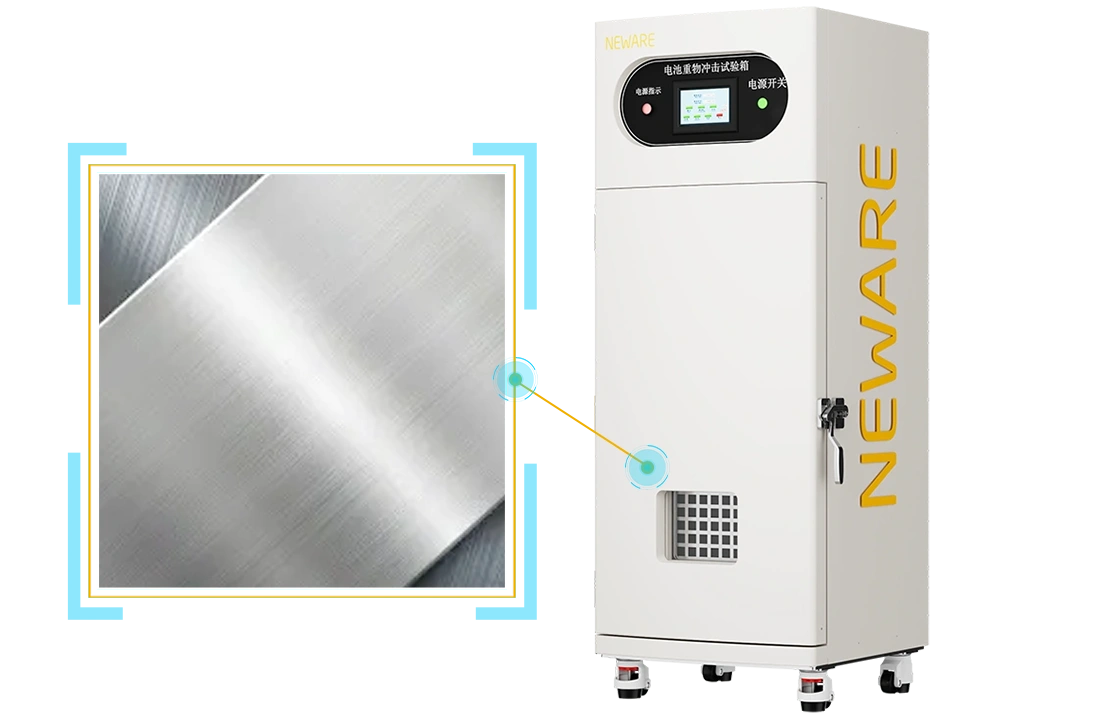

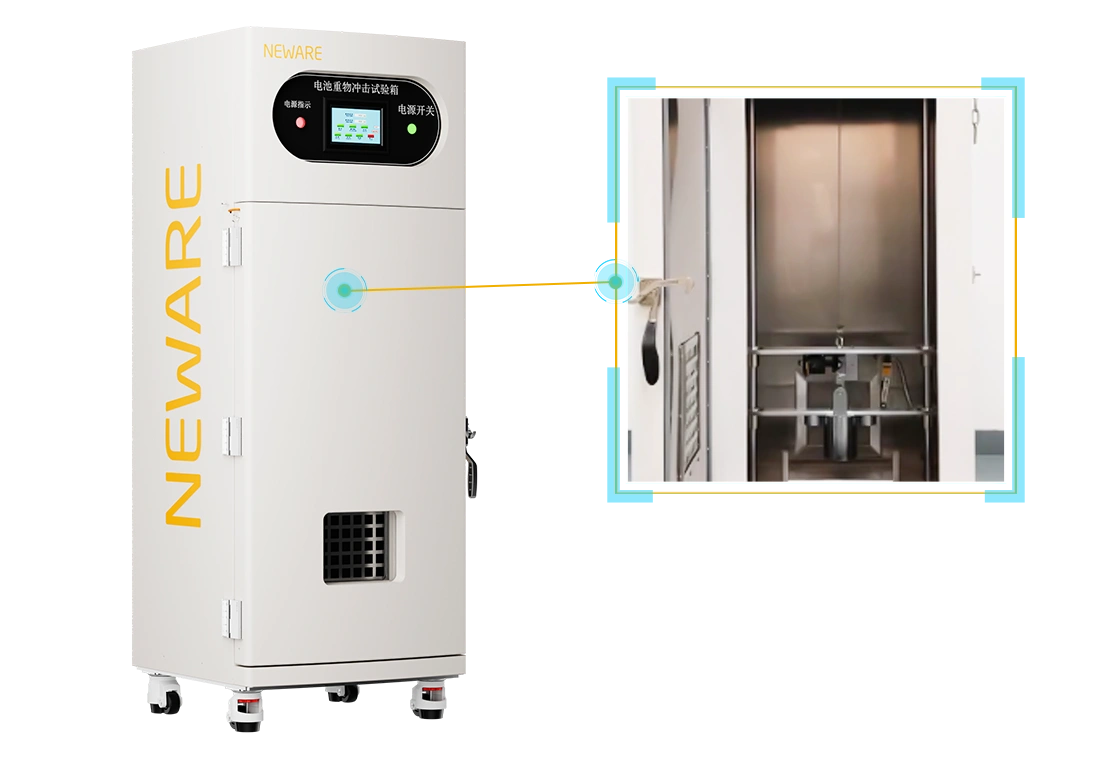

The outer chamber is precision-crafted from 0.06"(1.5mm) thick cold-rolled steel, featuring a beautiful paint finish. The door is designed as a single door with double layers, equipped with silicone foam sealing strips that are heat-resistant, corrosion-resistant, easy to clean, and offer excellent insulation. The bottom of the box interior is made of 1.2mm thick stainless steel plate with a Teflon fiberglass cloth applied, offering exceptional heat resistance, corrosion resistance, and easy cleanliness.
The test machine has a comprehensive safety protection system, including pressure relief devices and explosion-proof chains, which can effectively reduce losses caused by accidents. It also has over-temperature protection systems and multiple circuit protection measures to comprehensively ensure the safe use of products and equipment.
| Equipment name | Battery Heavy Material Impact Test Machine 6010C |
|---|---|
| Fall ball weight | 9.1kg±0.1kg (Optional option: 10kg) |
| Shock height | From 0 to 1000 mm is adjustable |
| Height display | By the controller display, accurate to 1mm |
| Height error | ±5mm |
| Impact mode | Lift the drop ball to a certain height and release it, the drop ball falls freely in the vertical direction without tilting or shaking |
| Display mode | The PLC touch screen displays the parameter values |
| Horizontal bar diameter | 15.8±0.2mm (5 / 8 inch) steel bar (vertically in the middle of the battery, heavy objects. On the steel bar remains parallel to the bottom of the square battery) |
| Internal box material | Stainless steel plate, thickness 1.2mm, 1 / 3 with adhesive tape, high temperature resistance, Corrosion-proof insulation is easy to clean |
| External box material | Cold-rolled plate baking paint treatment, the thickness of 1.5mm |
| Air outlet | Located on the back of the box, φ150mm, external diameter exhaust air guide tube, convenient for external laboratory. |
| Box door | Single door and double door, open toughened glass observation window, cold pull door lock, box door and silicone foam |
| Pressure relief and explosion proof | At the back of the box, when the box causes the box due to abnormal working condition. When the internal pressure increases sharply, or the short circuit of the structural battery explodes, resulting in too large pressure in the box. When the pressure relief port is automatically opened to relieve the destructive pressure in the box and reduce the pressure pair. The impact of the box door is easy to open and restore with the pressure discharge port, and the seal is good |
| Gate lock | Gate switch, unable to test run when the test box door is open |
| Visual window | 250×200mm (20mm thick tempered explosion-proof glass) |
| Test box area | 600×500×1200mm (W×D×H) |
| Up and down the impact surface | Stainless steel sheet and plate |
| Lift way | Electric lift |
| Outline dimension | 750×800×1800mm (W×D×H) |
| Power supply | AC220V 50Hz 700W |
| Weight | 250kg |
