Simulate the squeezing or pricking of various batteries during use, transportation, and storage.
Features
Tech Specs
Suitable for 30Ah or less 3C battery testing, driven by a hybrid servo motor with a force range of 1~20kN. It comes standard with battery squeezing heads and needle clamping fixtures, facilitating squeezing and needle testing of various batteries. The squeezing area is >20cm², and the needle speed is adjustable from 0.1~40mm/s.

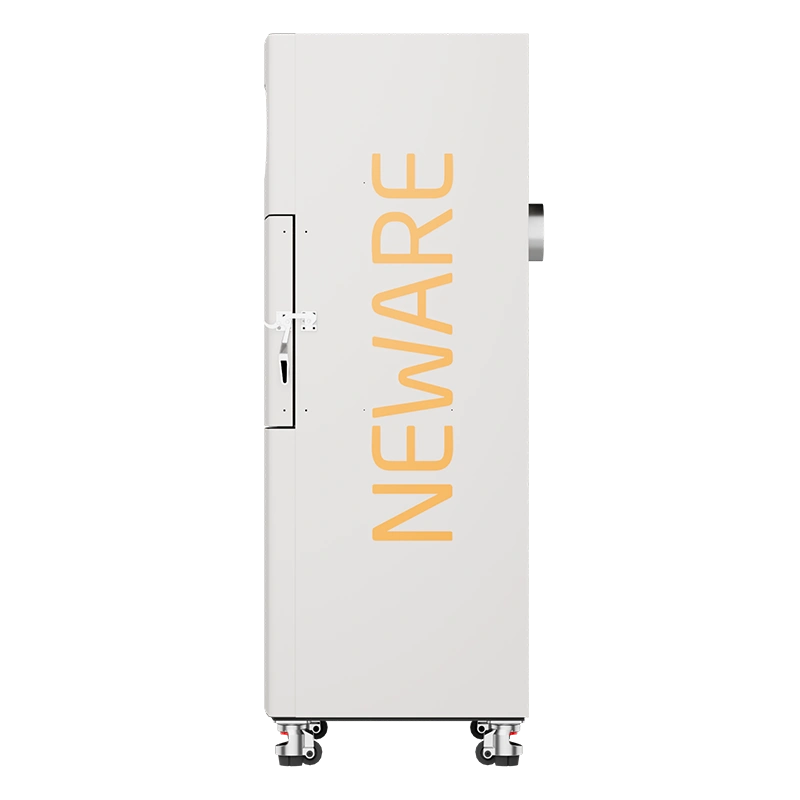

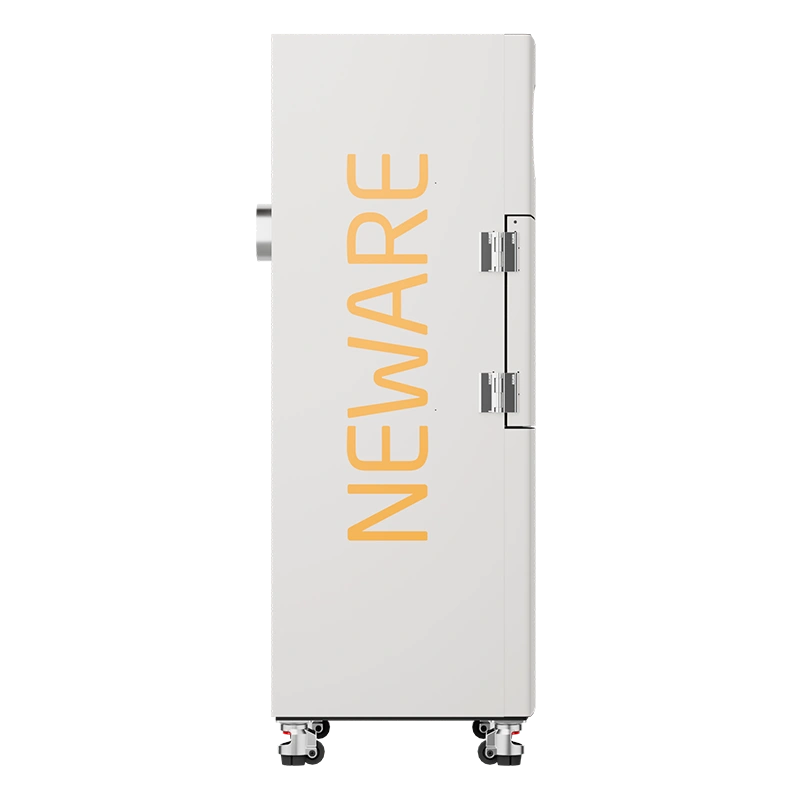

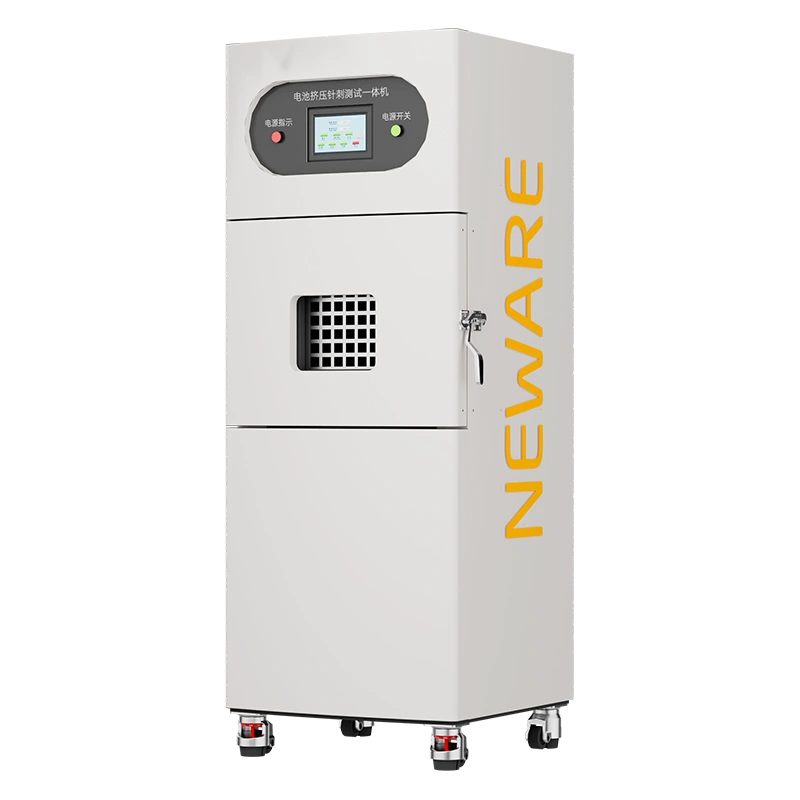

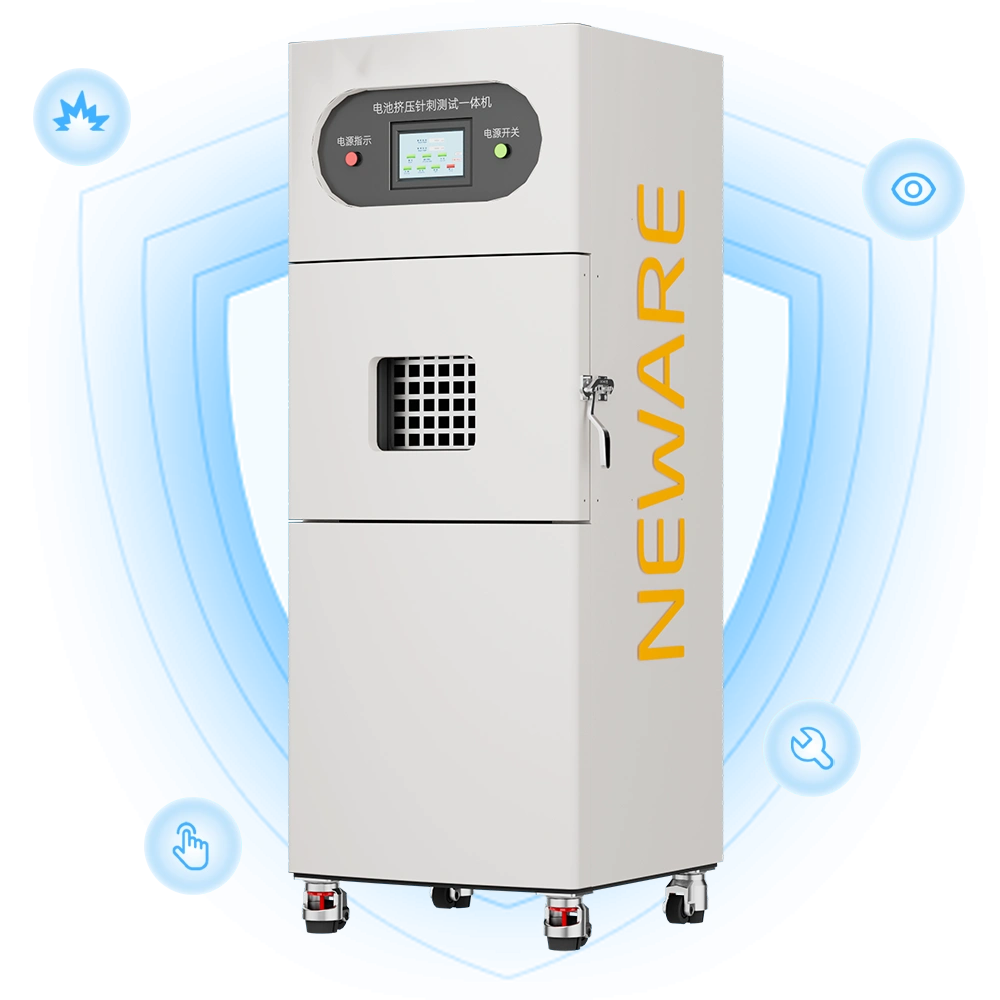

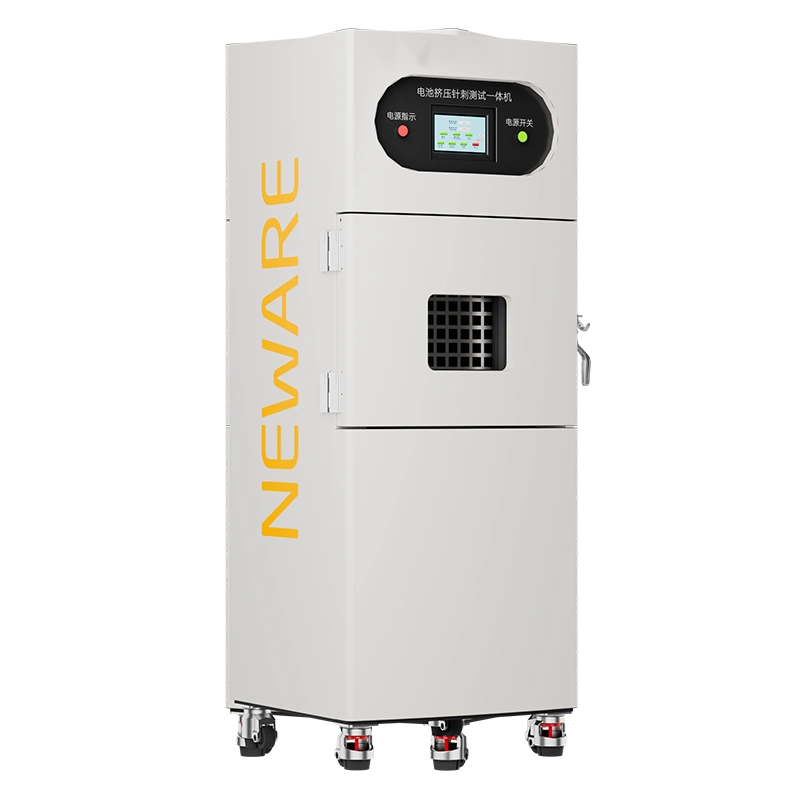

The Battery Puncture and Crush Tester 6012C focuses on detailed design, with exquisite appearance, comprehensive functions, and convenient operation. Every detail has been carefully considered to provide a better user experience.
Precision fixtures: Equipped with battery compression head and needle prick fixture made of stainless steel, easy to replace.

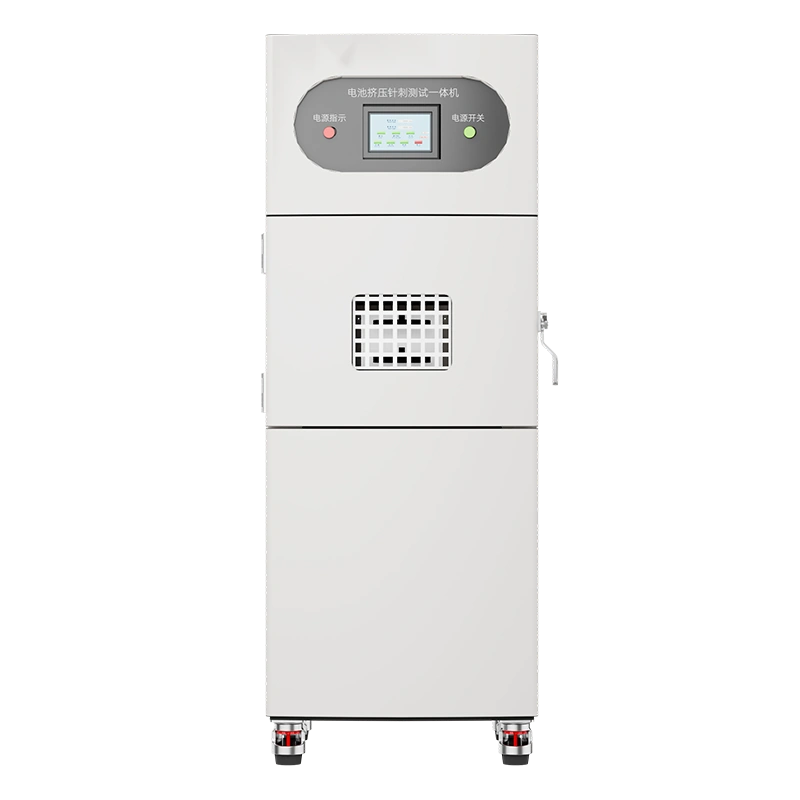

Clean control panel: Simple and clear, with one-button startup and a power indicator switch.
Customizable opening: The box can be customized with a round testing hole for easy passage of test cables.
Bottom casters: The base is equipped with 4 swivel casters with brakes, easy to move or fix.

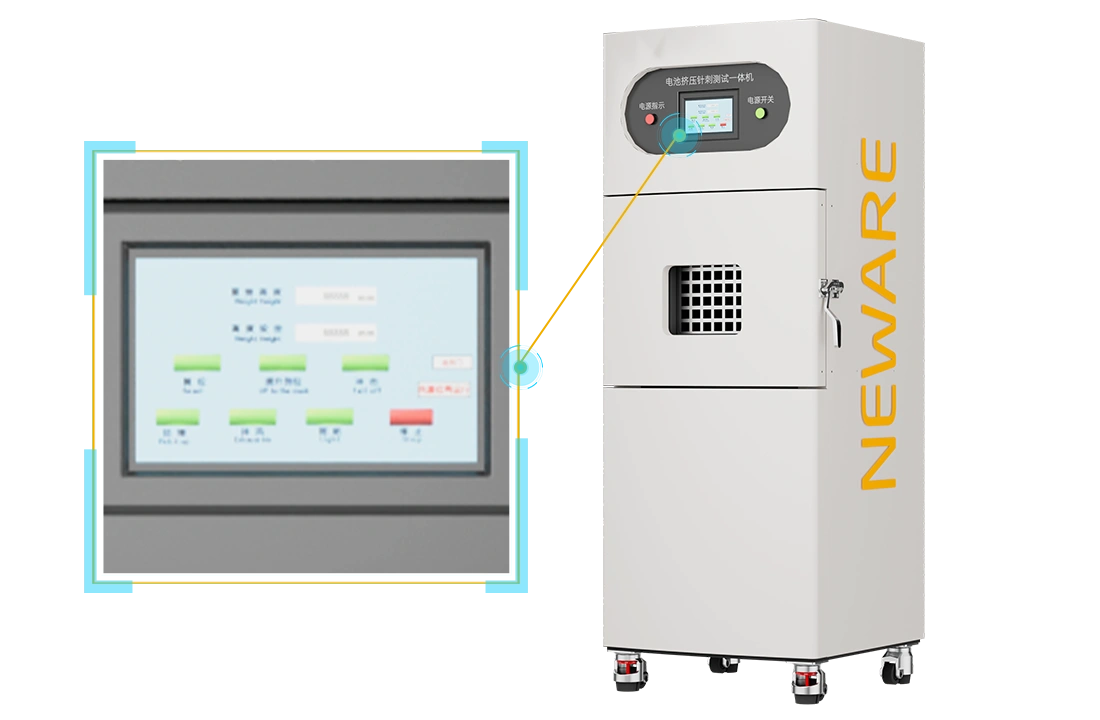

With PLC touchscreen display, operation is clear at a glance, and convenient to control. The squeezing/needling time, squeezing pressure, and needle speed can be set, and real-time parameter changes are displayed, allowing comprehensive control of the experimental process. This is a true battery testing device that helps you easily complete various tests and keep battery performance under wraps.

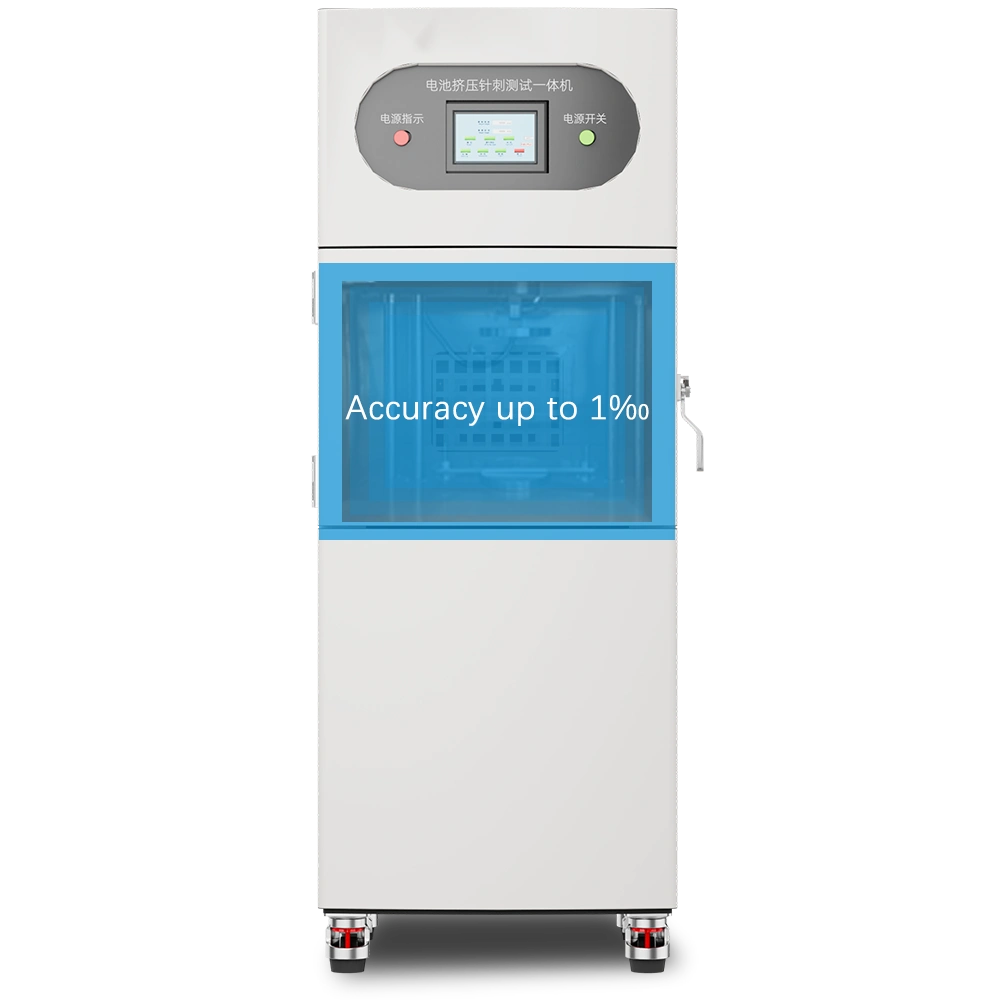

Equipped with high-precision pressure sensors that measure with accuracy up to 1‰, providing precise data feedback for experiments, enabling closed-loop automatic control, greatly improving experimental accuracy and reliability, and enhancing experimental precision.
Improved safety protection devices, fully ensuring the safe use of products and equipment.

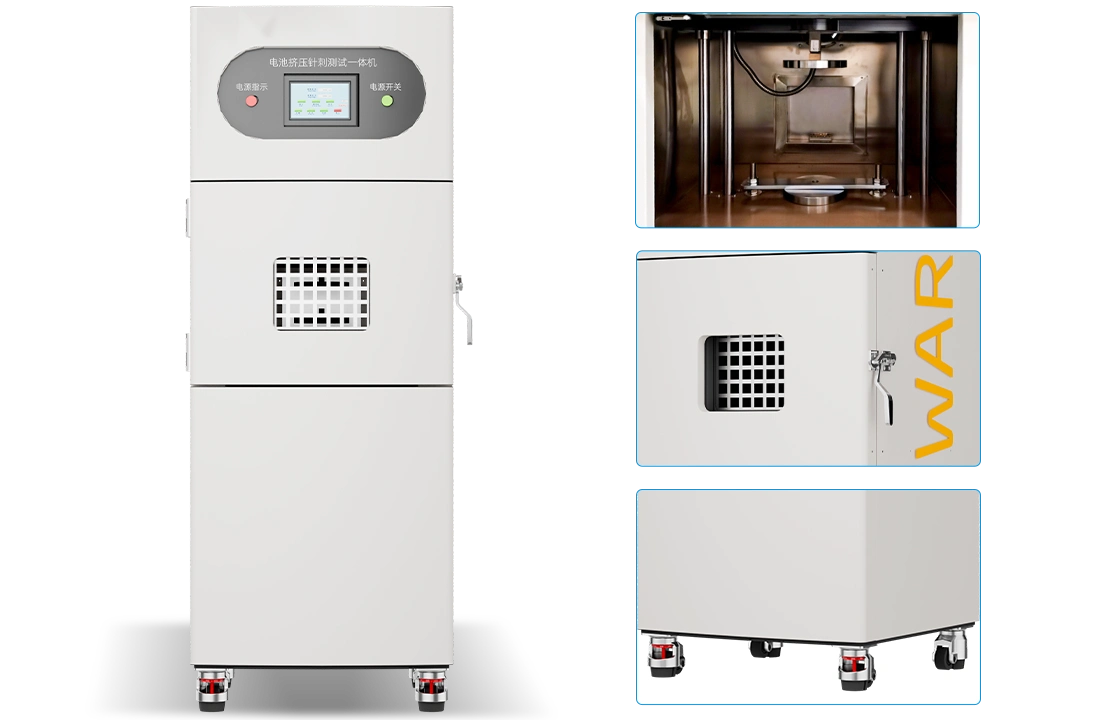

Premium material: External high-grade cold-rolled steel with painted finish, internal SUS304 stainless steel with silicone gasket.
Enhanced explosion protection: Explosion-proof door lock, pressure relief doors with chain guards.
Window for observation: Internal lighting and protective mesh to prevent contents from flying out during explosions.

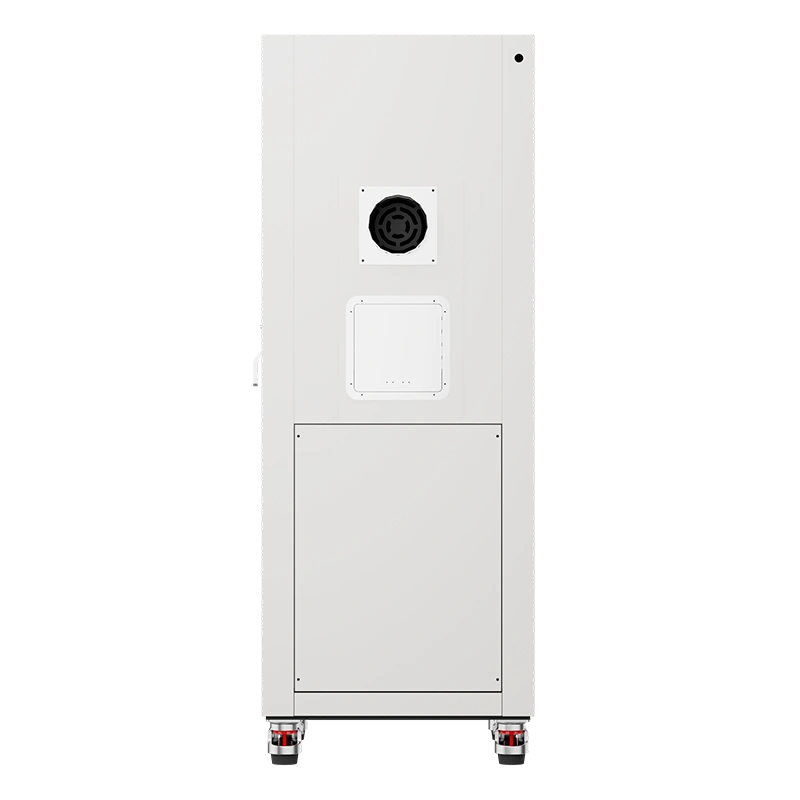

Automatic pressure relief: Rear panel features automatic explosion-proof pressure relief.
The extrusion direction of the extrusion test should follow the following rules. The battery should only be extruded once, and it is considered to be qualified if it does not explode or catch fire.
● Touch screen control
● Explosion-proof material
● Safety visualization
● Easy to operate
| Equipment name | Battery Puncture and Crush Tester 6012C |
|---|---|
| Test Area (W×D) | 9.8" × 11.8" (250×300mm) |
| External Size (WxDxH) | About 29.5" × 29.5" × 70.9" (750×750×1800mm) |
| Force Value Range | 1 ~ 20 kN (Adjustable) |
| Force Measurement Accuracy | 0.10% |
| Squeeze the Trip | 11.8" (300mm) |
| Needle Stroke | 7.9" (200mm) |
| Needle Spike Force Value | 1～300kg |
| Force Values are Shown | The PLC touch screen display |
| Voltage Collection | Voltage range: 0-100V Acquisition rate: 200ms Acquisition channel: 1 channel accuracy:±0.2%F.S（0~100V） |
| Temperature Collection | Temperature range: 0℃ to 1000℃ K type thermocouple Acquisition rate: 200ms Acquisition channel: 1 channel Accuracy:±2℃ |
