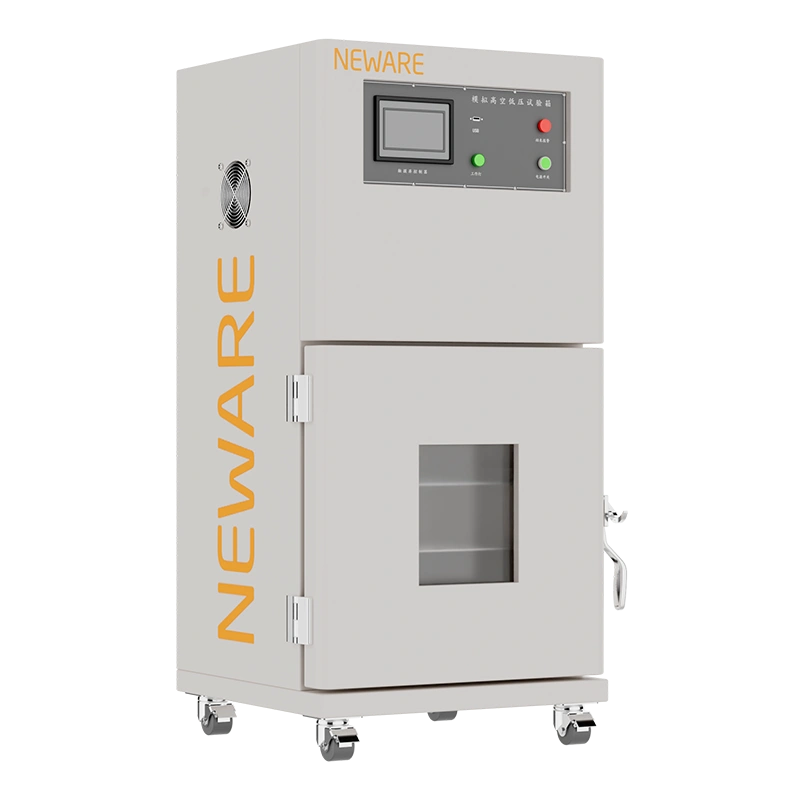

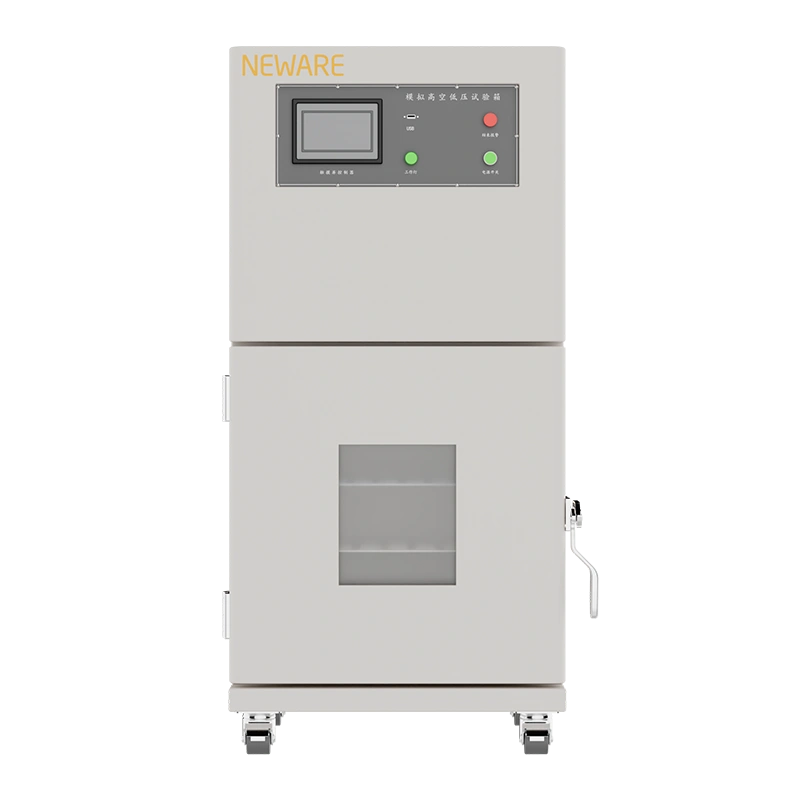

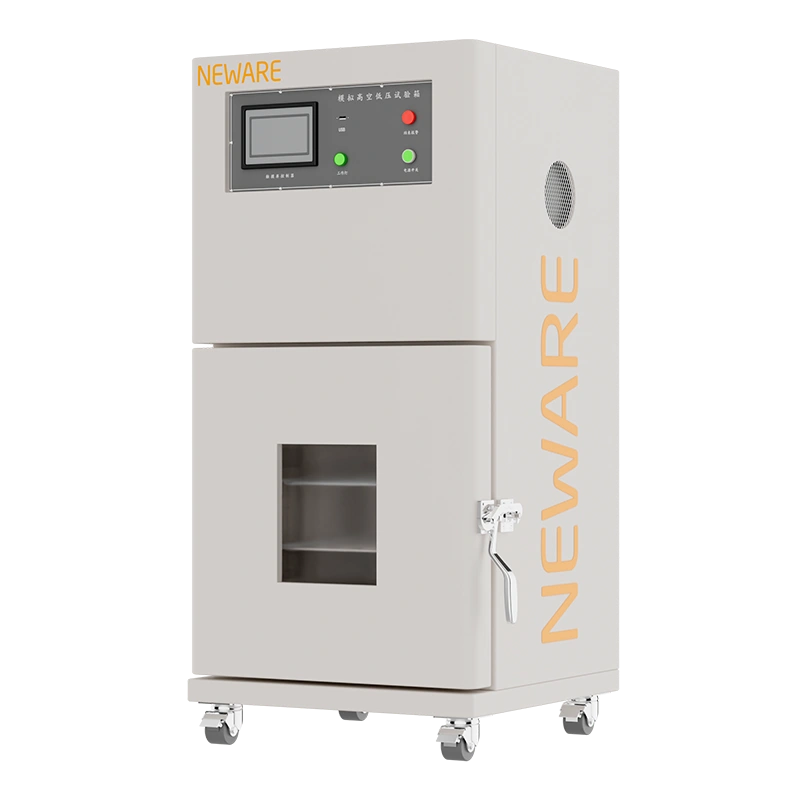

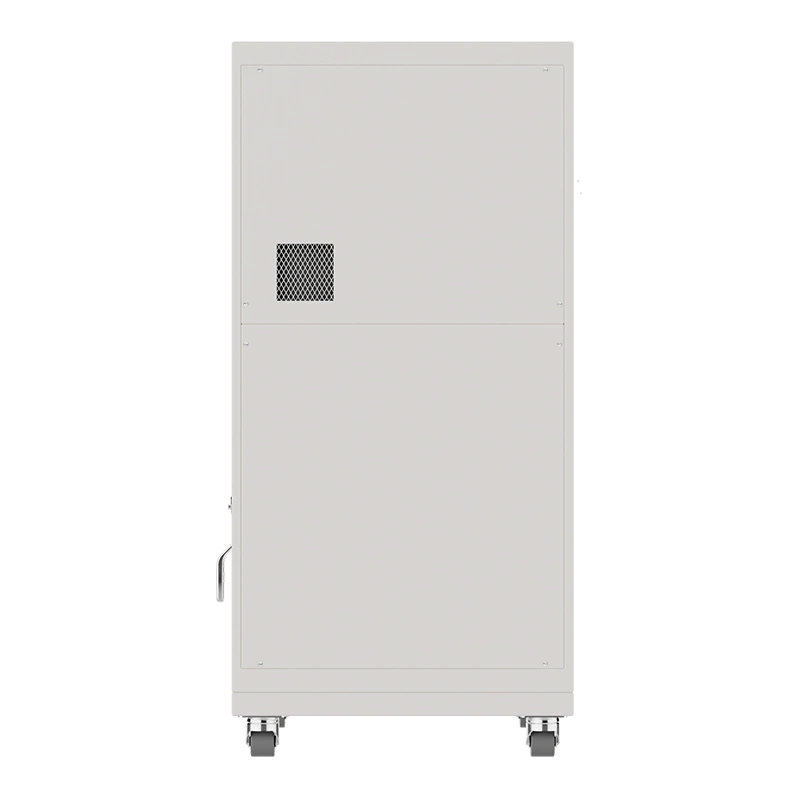

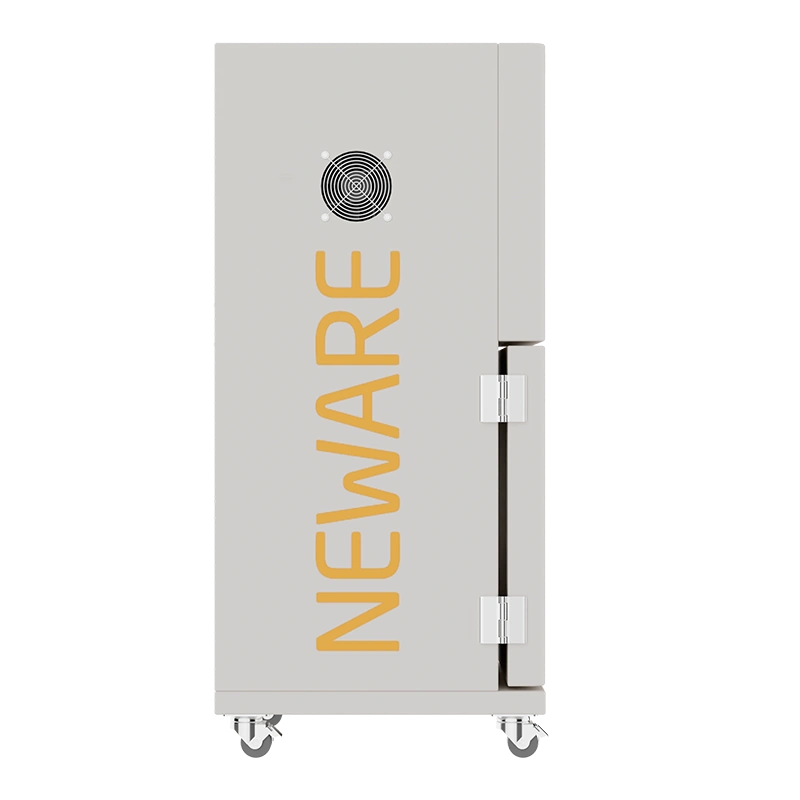

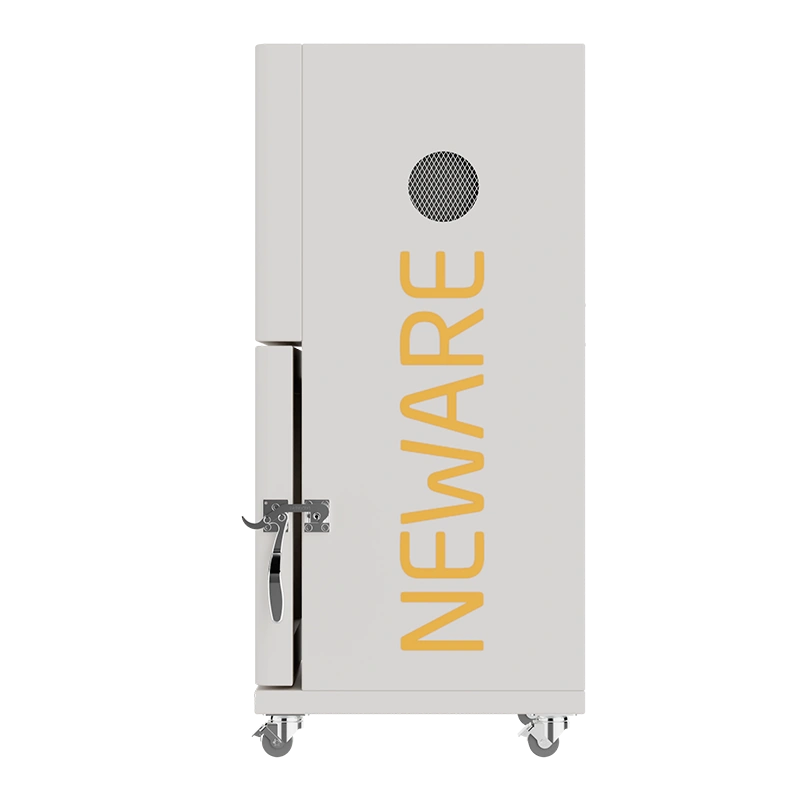

Simulation of high altitude low pressure test chamber 6004C is used to simulate high-altitude low-pressure environments and test the safety performance of batteries in low-pressure environments.
Features
Tech Specs
The battery high-altitude low-pressure simulation test chamber 6004C is used to simulate high-altitude low-pressure environments and test the safety performance of batteries in low-pressure environments.
● Low air pressure range: 5.0KPa~101.3KPa
● Control accuracy: ±0.5kPa(≤5kPa), ±1KPa (5KPa～40KPa), ±2KPa(40KPa～80KPa)
● Pressure relief rate: 15KPa/min±3.0KPa
● Leakage rate under vacuum pressure holding: 0.8KPa/h

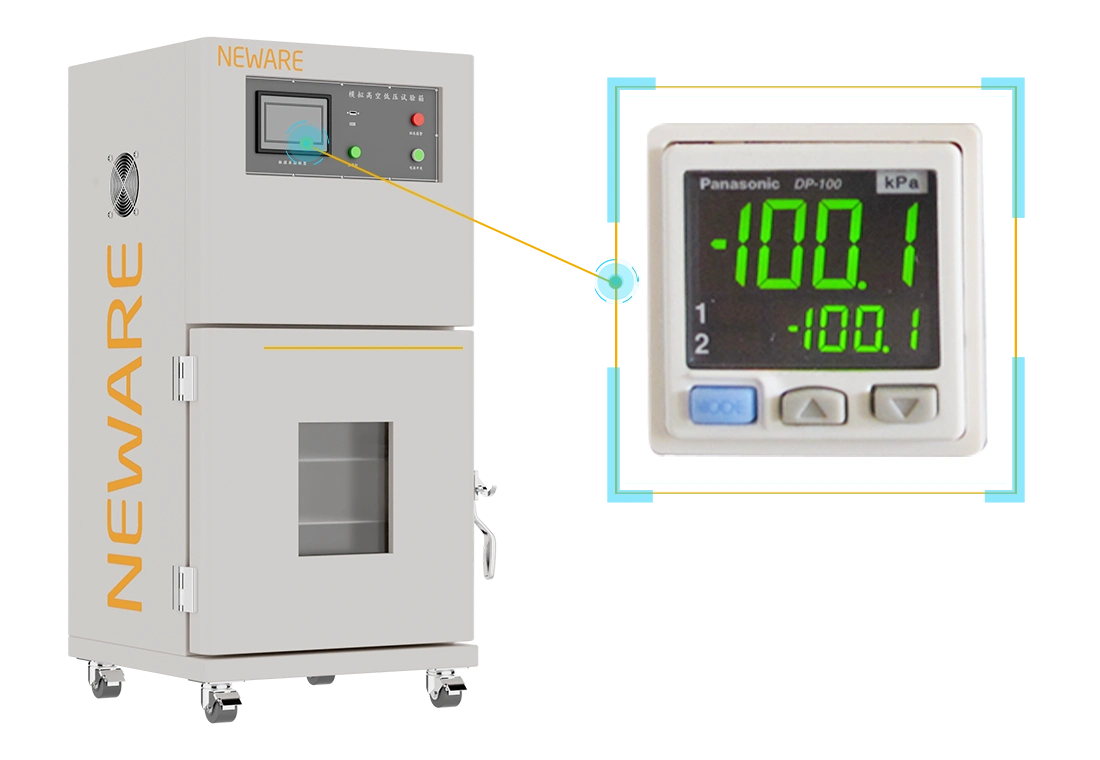

The pressure sensor with diffused silicon is used to sense vacuum with high sensitivity and fast response, which can real-time monitor the change of vacuum and provide powerful support for testing.

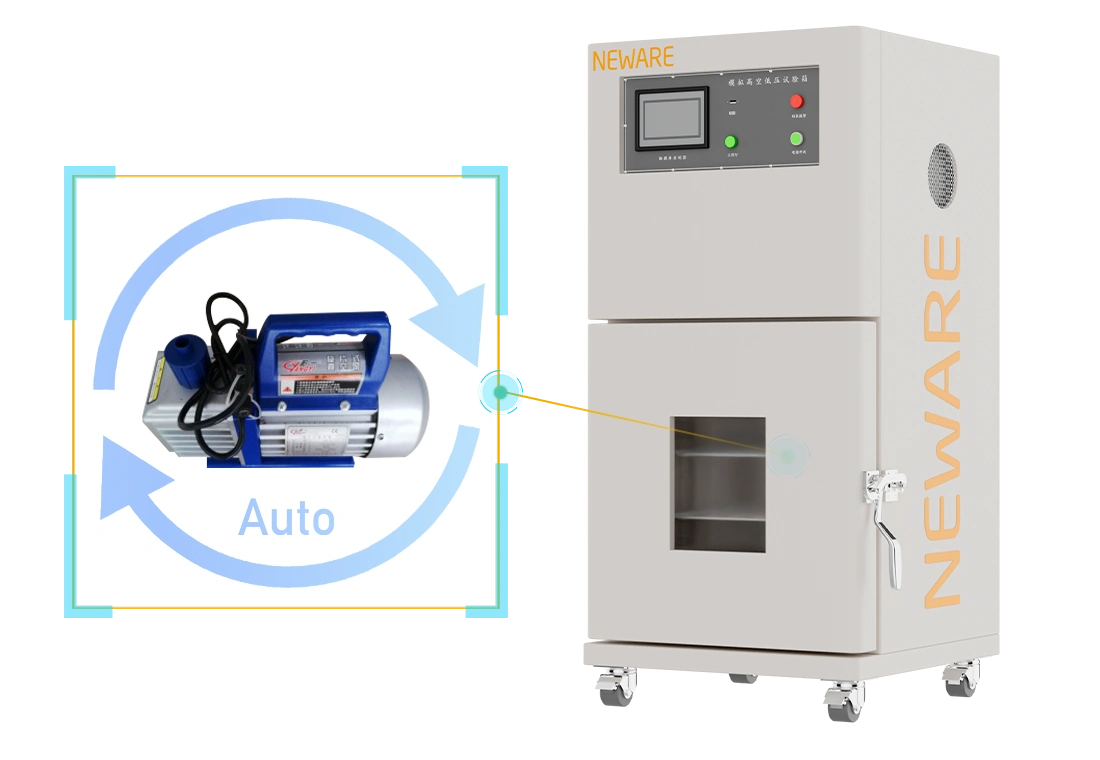

The fully automatic vacuum control device allows for the automatic completion of the vacuum process simply by placing the product inside and activating the vacuum function. It eliminates the need for manual intervention, significantly enhancing work efficiency and safety.
When the pressure exceeds the preset safety limit, this device automatically halts the vacuum operation and initiates pressure relief protection. This safety feature ensures the safety of the equipment and products, preventing potential risks associated with excessive pressure.

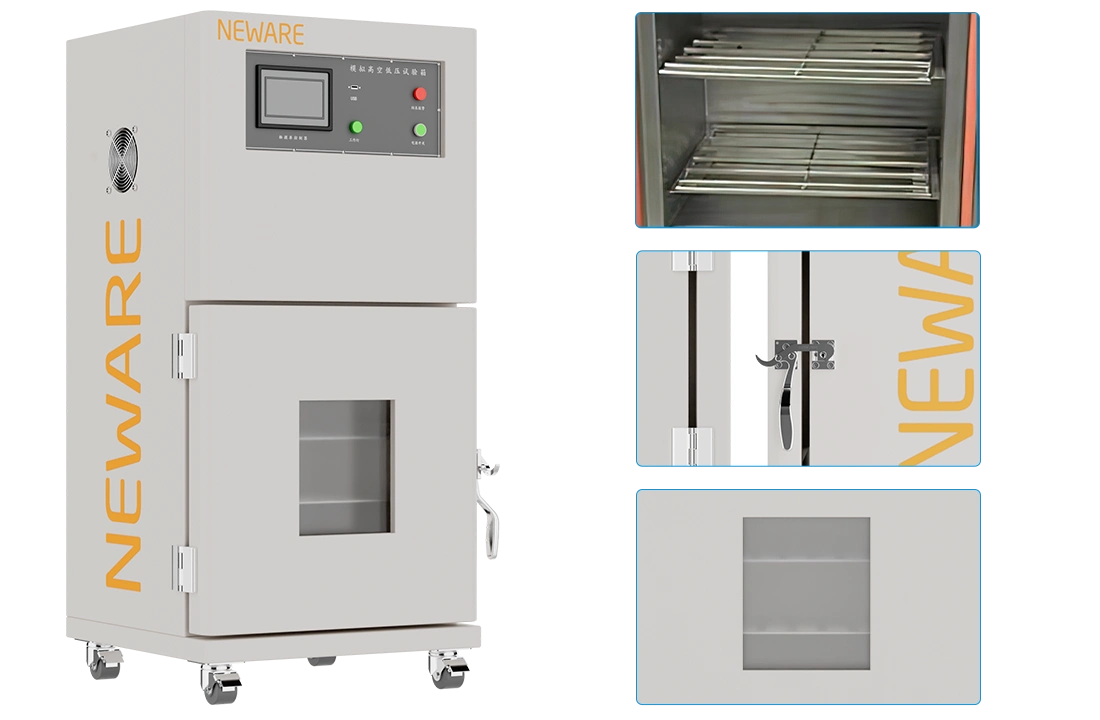

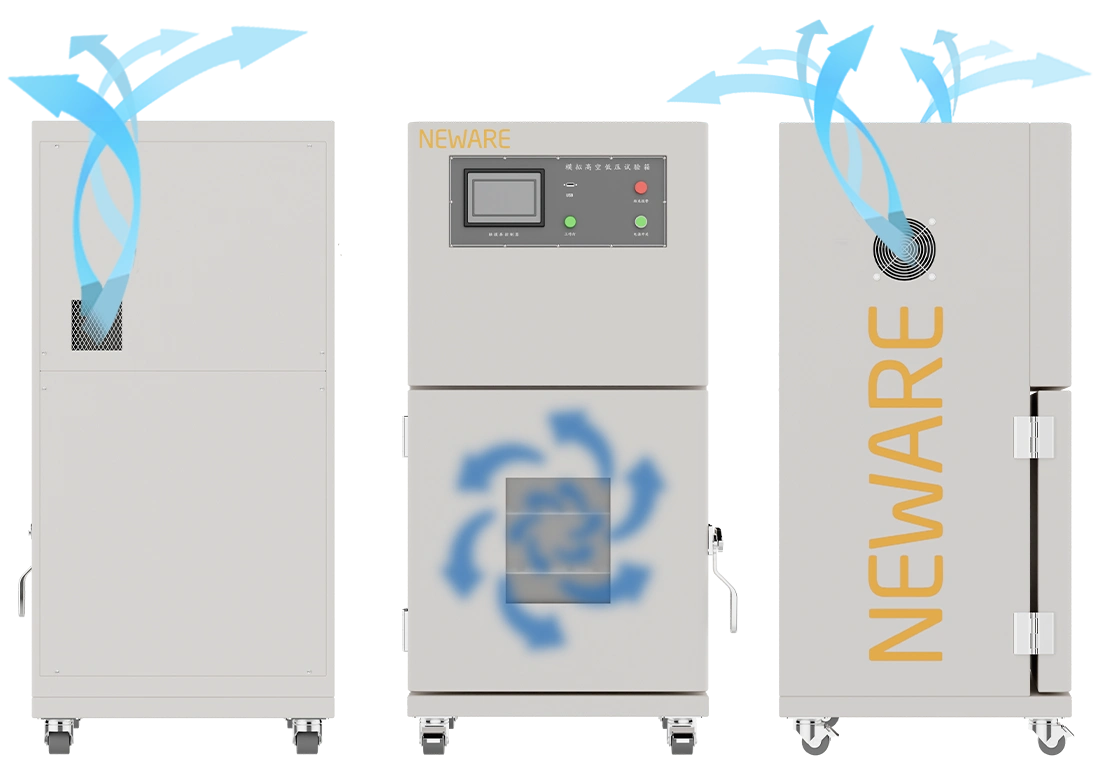

Expertly crafted from high-quality materials, this robust and durable enclosure ensures stable operation in various environments. Detailed design considerations cater to diverse testing needs, providing exceptional support for experiments.
Inner Material: 0.16"(4.0mm) thick stainless steel industrial plate with internal reinforcement for vacuum operation without deformation.
Outer Material: Cold-rolled steel plate, 0.05"(1.2mm) thick, powder coated for extra durability.
Window: 0.75"(19mm) tempered glass window offering a clear view.
Insulation Material: Rock wool enhances the equipment's thermal insulation.
| Equipment name | Simulation of High Altitude Low Pressure Test Chamber 6004C |
|---|---|
| Internal Size (W×D×H) | 19.7" × 19.7" × 19.7" (500 x 500 x 500mm) |
| External Size (W×D×H) | 31.5" × 29.5" × 58.3" (800×750×1480mm) |
| Low Pressure Range of the Aircraft Station | 5.0 KPa~101.3KPa |
| Lowest Pressure | 5.0KPa |
| Control Accuracy | ± 0.5 kPa (at 5 kPa), ± 1 KPa (at 5 KPa ~ 40 KPa), ± 2 KPa (at 40 KPa ~ 80 KPa) |
| Pressure Discharge Rate | 15KPa/min±3.0KPa |
| Vacuum Pressure-Retaining Leakage Rate | About 0.8 KPa per hour |
| Vacuum Pump Noise | Within 75DB |
| Machine power supply | 220V/50Hz 7A 1.5KW |
| Circuit protection system | Ground-based protection, fast insurance, etc |
| Weight | About 250kg |
