Measure the voltage of the battery to assess the charging status and performance of batteries.
| CV-NW-DCQ-20V | Range | 20mV, 200mV, 2V, 20V |
| Accuracy | ±0.001% | |
| CV-NW-DCQ-2000V | Range | 2V, 20V, 200V, 2000V |
| Accuracy | ±0.005% |
The voltmeter plays a crucial role in the battery testing process.
● By measuring the voltage response of the battery under different load conditions, technicians can assess the health and performance of the battery, such as capacity, internal resistance, and energy efficiency.
● Measure the open-circuit voltage of the battery to determine its state of charge.
● During the charging and discharging process of the battery, monitor the voltage in real time to ensure that the battery operates within a safe range.

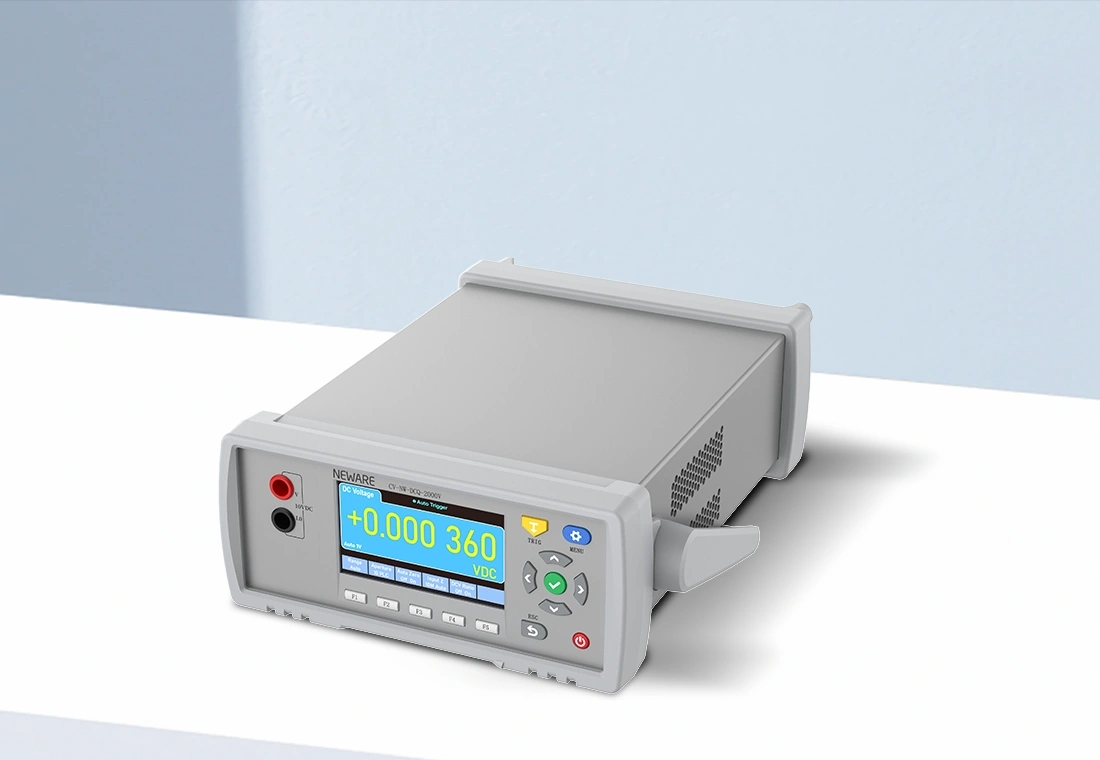

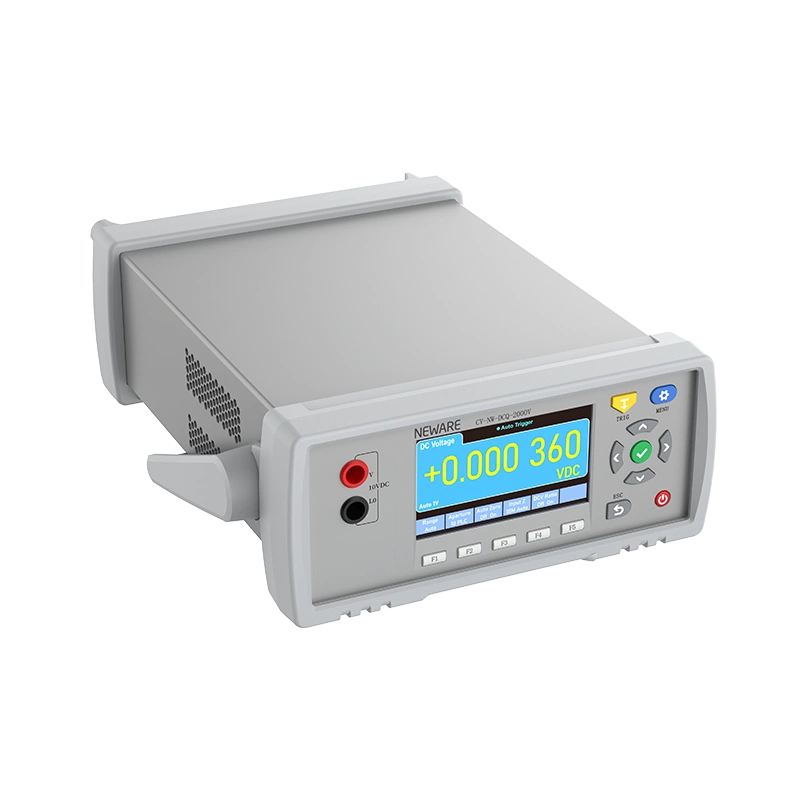

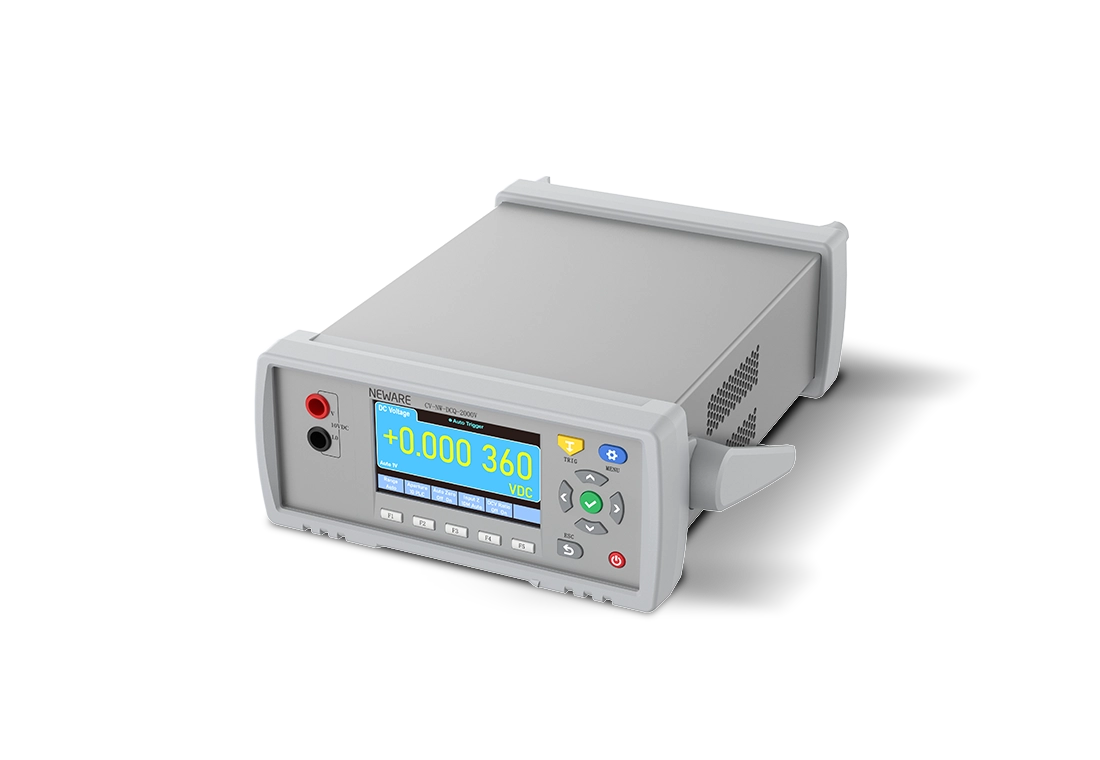

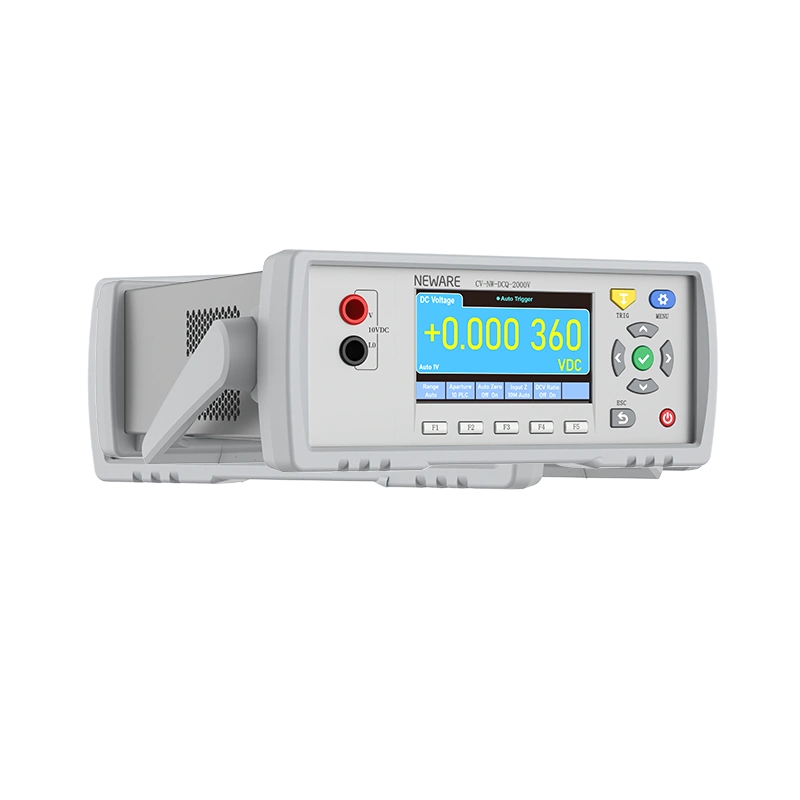

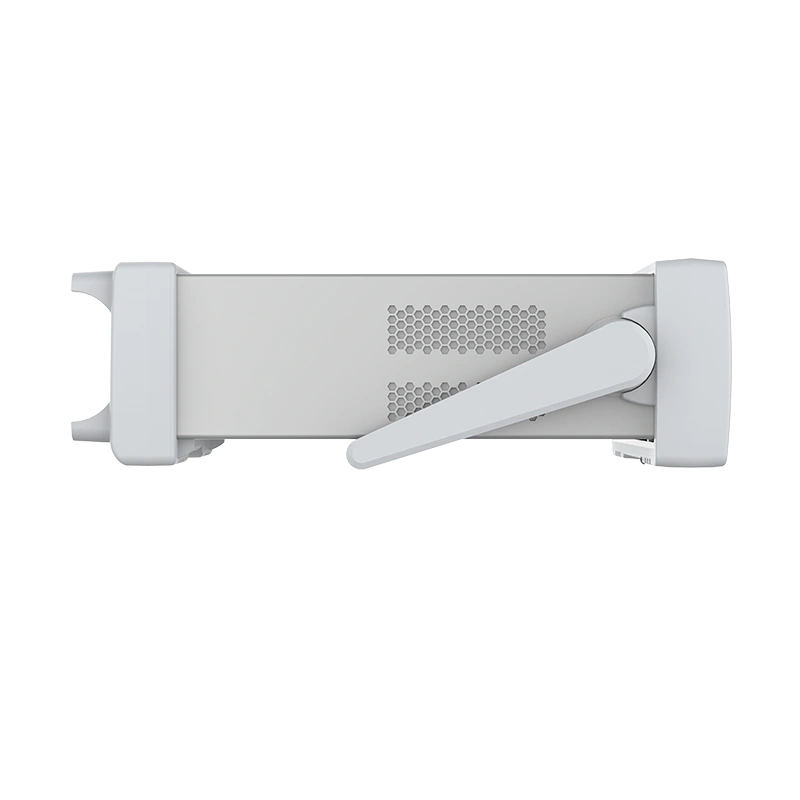

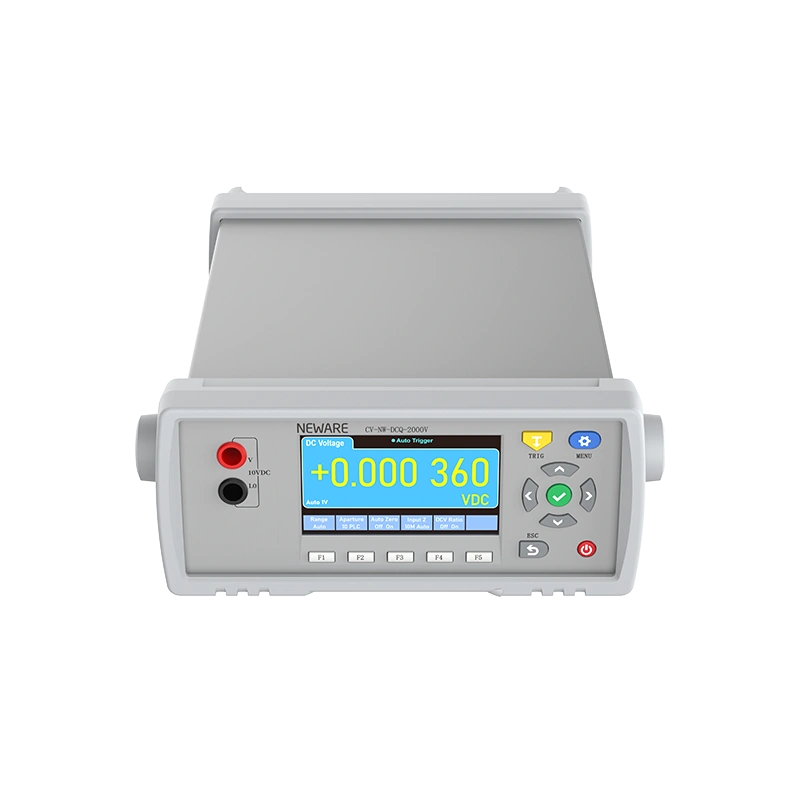

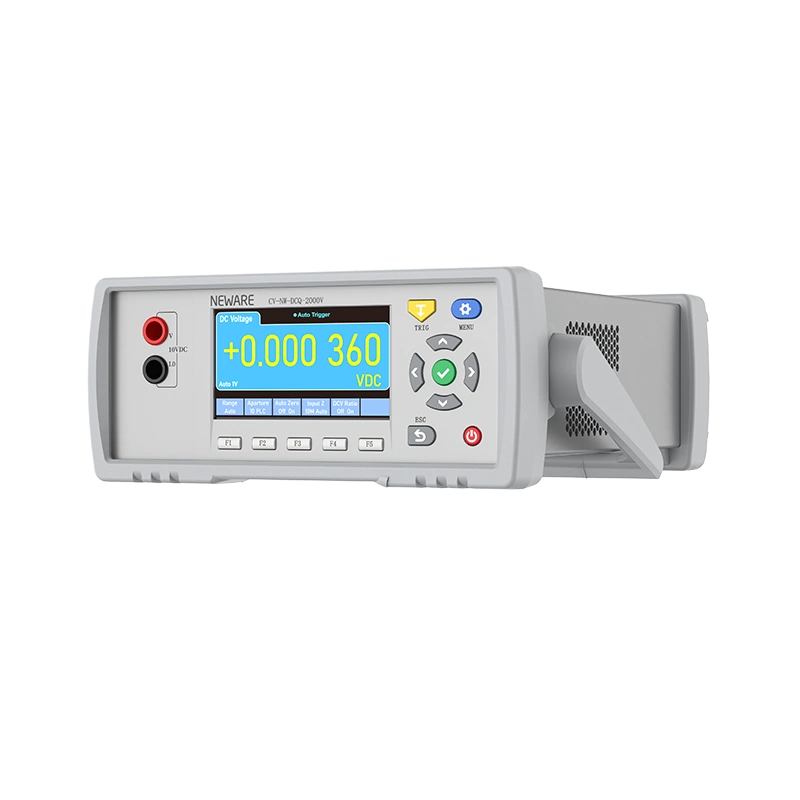

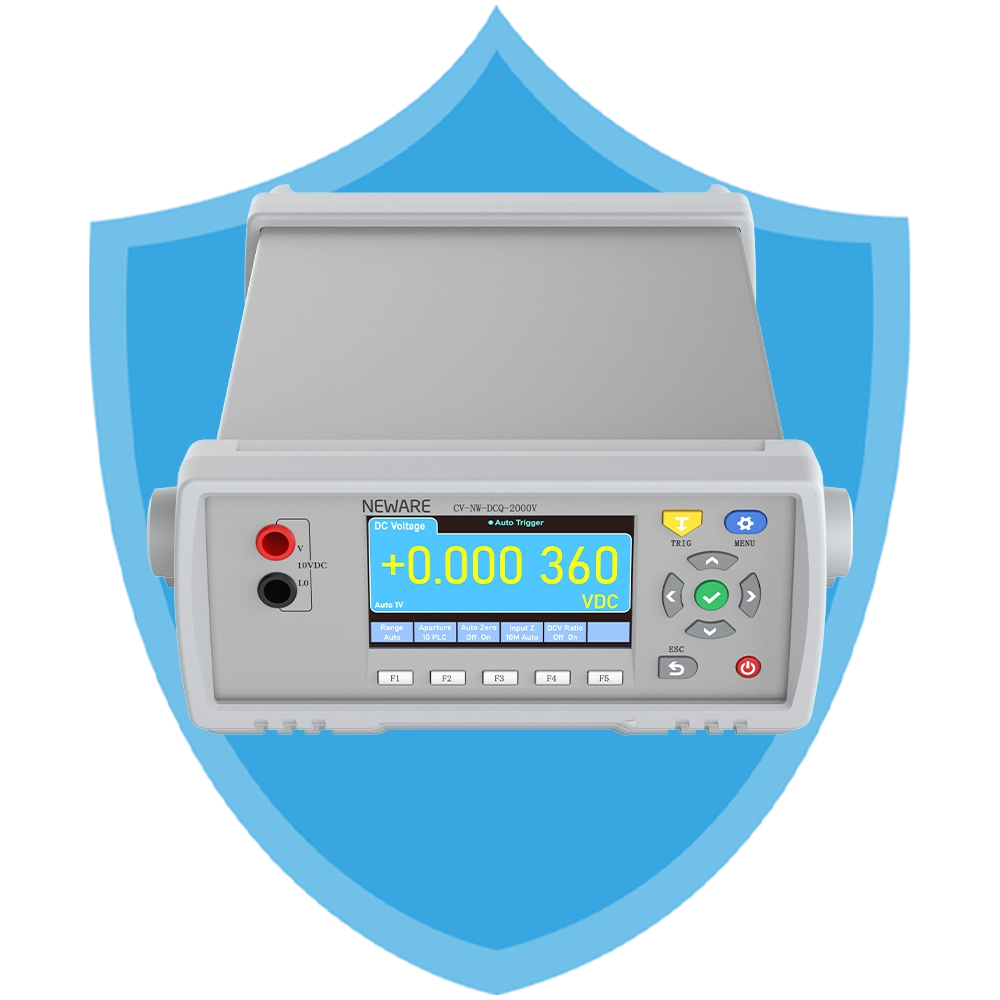

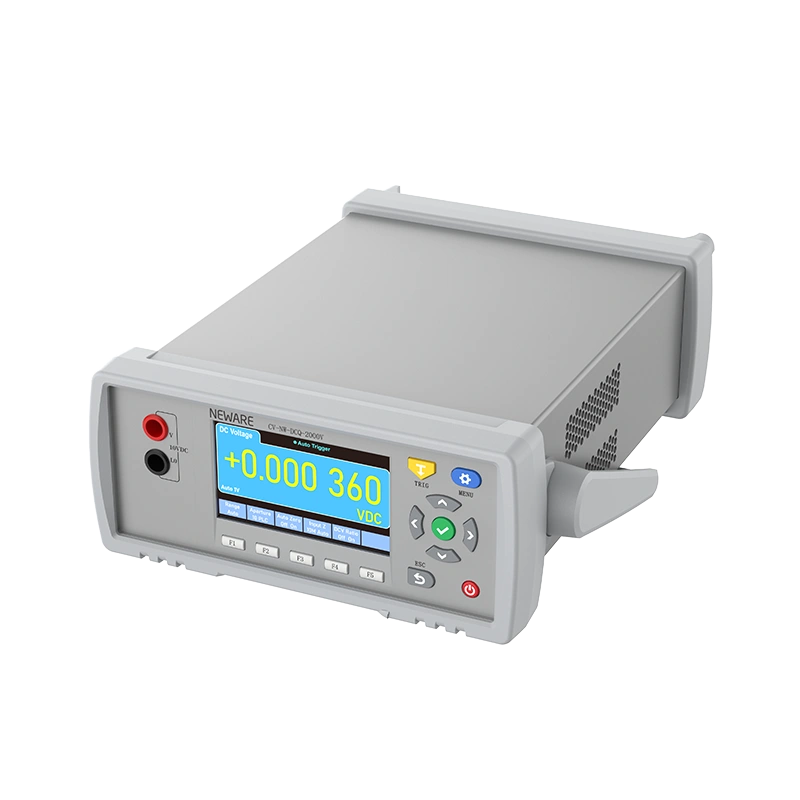

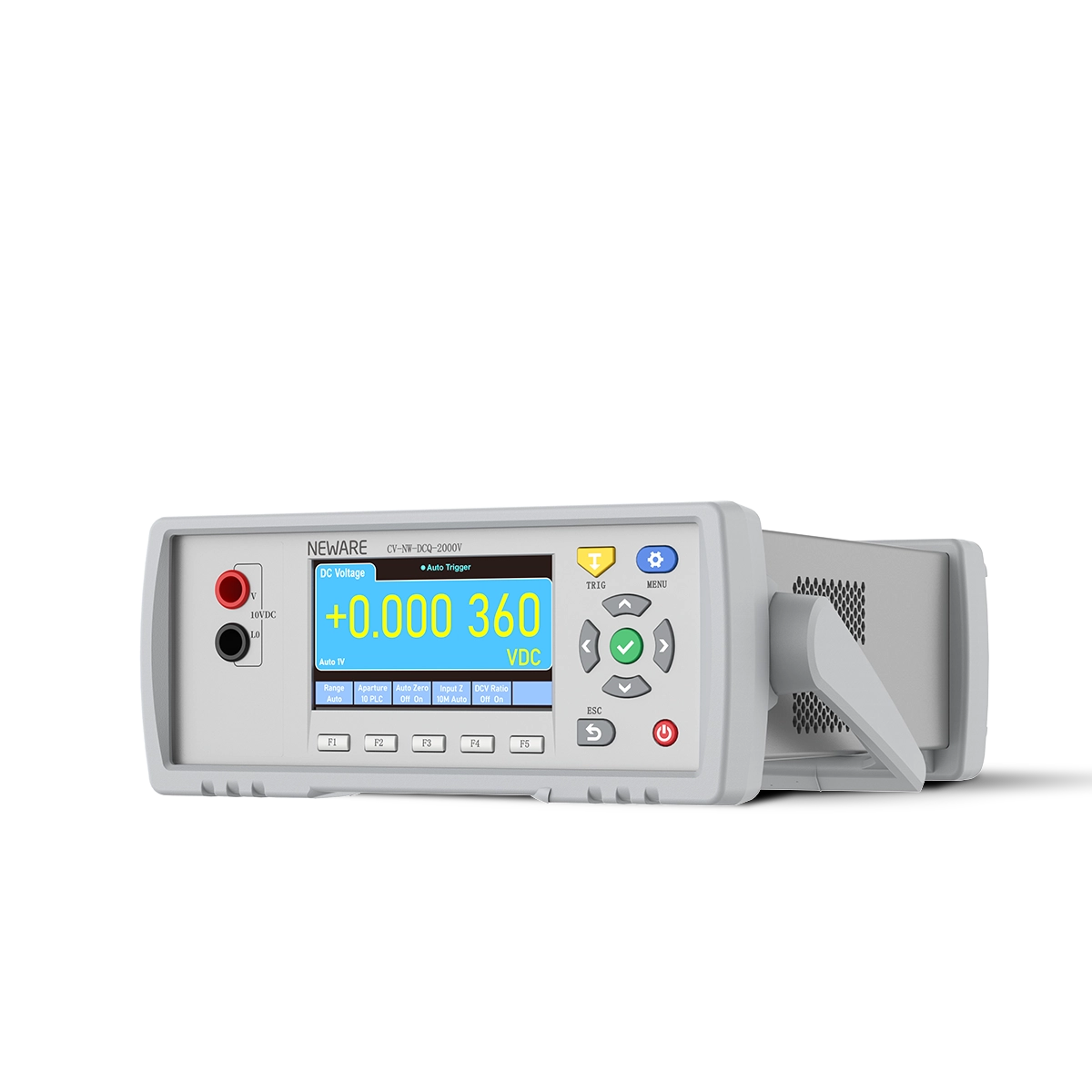

The voltmeter not only has precise measurement capabilities but also features user-friendly design, making operation more convenient and easy to use. With a large LCD screen, intuitive user interface, and various function options, it's easy to harness the full potential of the instrument. The intuitive interface design simplifies the operation process, allowing for quick access to measurement results. The compact body and portable design make it easy to carry to any workplace.
Measures voltage with extremely high accuracy and precision, meeting the demands for high precision and reliability in various voltage measurement and calibration applications, providing users with high-quality voltage measurement solutions.
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
