Sweeping robot batteries must comply with safety standards such as IEC 62133-2, UL 2595 and UL 62133 to ensure that hazardous conditions such as overheating, short circuit or explosion do not occur during charging and use. The battery should have good stability and reliability to ensure that the robot maintains good performance after a long period of use.

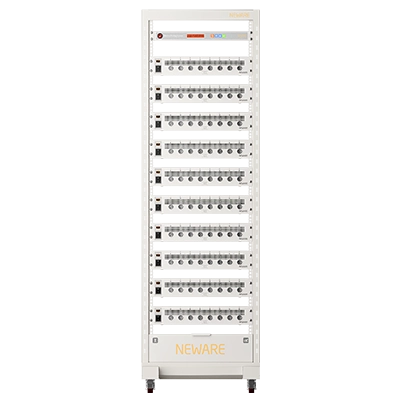

NEWARE's CT/CE-4000 and CT/CE-8000 series for 3C battery testing system can provide the current and voltage ranges required for vacuum robot battery testing, with a variety of charging and discharging modes to meet battery testing needs, while focusing on user experience, featuring an intuitive operation interface and powerful data processing capabilities, making battery testing smooth and convenient.
● Endurance test: simulate actual usage scenarios to test the battery life on the vacuum robot.
● Multifunctional test: equipped with a variety of testing functions, it conducts charging and discharging cycle tests, constant current charging and discharging, constant voltage charging and discharging, internal resistance tests, etc., to deeply analyze battery performance and enhance the energy density and cycle stability of the battery.
● Safety test: conduct overcharging, over-discharging, short circuit, and thermal stability tests on the product to assess the safety performance of the battery under extreme conditions, providing a basis for the safe design of the battery.
Developed specifically for high-precision testing needs, it provides accurate and reliable test data, offering high-precision testing capabilities for batteries, accurately capturing subtle changes in the battery charging and discharging process at the microsecond level, thereby comprehensively evaluating the performance of the battery under different operating conditions.
● High-precision testing: the multi-range design ensures the accuracy of the test, helping to solve problems such as battery performance degradation and life prediction.
● Battery health assessment: it can help users assess the health of the vacuum robot battery by analyzing the designed capacity and the fully charged capacity, determining whether the battery needs to be replaced.
● SMBus communication function: equipped with battery communication capabilities, it can monitor the status of the vacuum robot battery in real-time, providing immediate information.

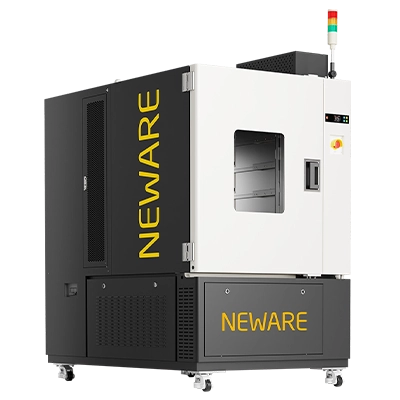

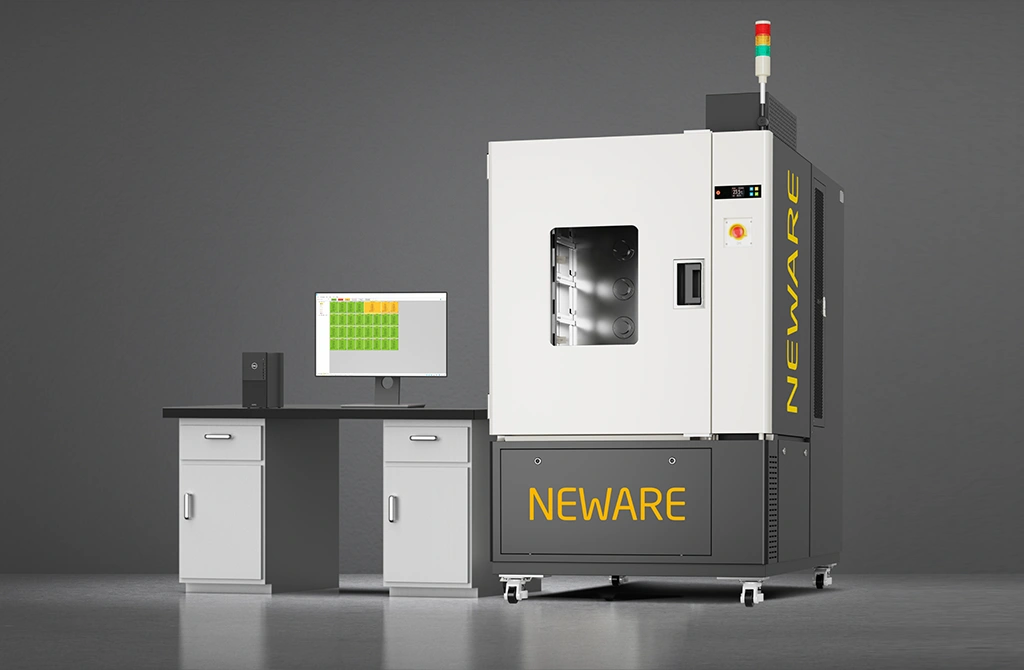

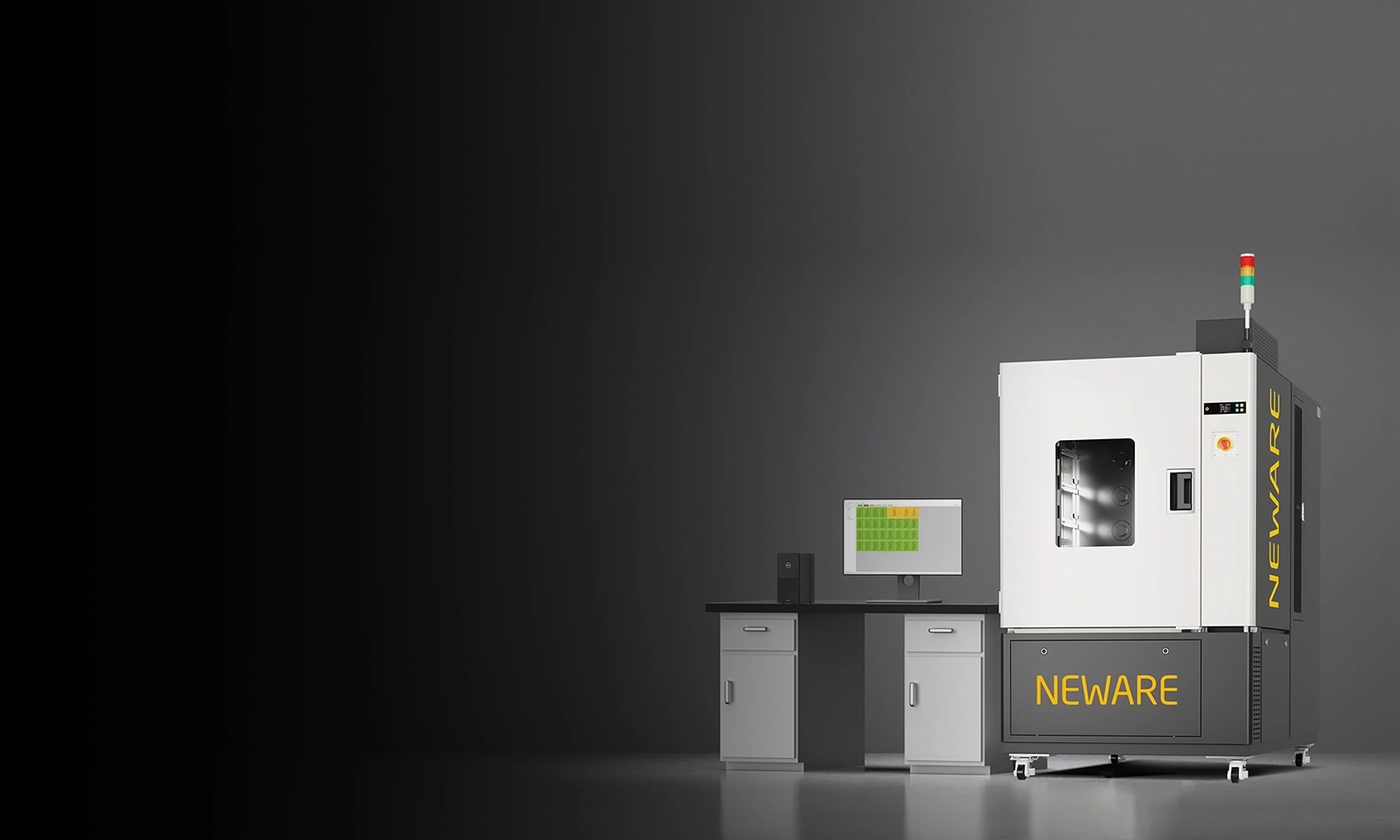

The integrated charging and discharging testing system with environmental testing provides a constant temperature environment or high and low temperature environments for battery testing, simulating the use of vacuum robots in daily home environments to ensure the stability and reliability of the batteries.
● Simulate high and low temperature environments: assess the adaptability and durability of the battery under extreme temperature changes, which is essential to ensure that the vacuum robot can work properly in different seasons and regions.
● Improve space utilization: the internal space of the integrated machine can be specified to meet the needs of batch battery testing, with a single device capable of performing a variety of tests.
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
