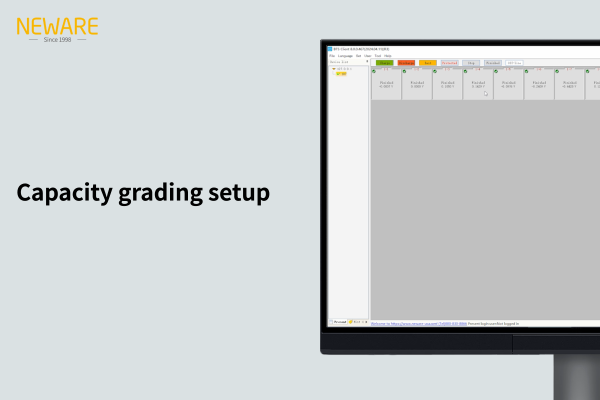

Capacity grading setup

Latest updated: Dec 22, 2023
Video recording version: 8.0.0.483, BTS 8.0

Today's demonstration of grading setup.


  • First, open the BTS8.0 software.

  • Click "Set", click "Process type settings".

  • Select "Cap.grading".

  • The left process type is our selected process type.

  • The right side is the optional process type.

  • Select the type we need, click "<" to complete the selection.

  • If you need to select all the process types on the right side, click "<<".


That is all about this topic.Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
