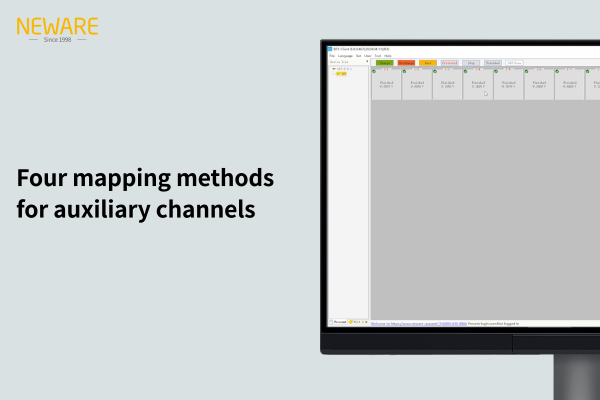

Four mapping methods for auxiliary channels

Latest updated: Dec 22, 2023
Video recording version: 8.0.0.483, BTS 8.0

We will demonstrate the 4 ways of mapping auxiliary channels today.


  • First open the BTS8.0 software.

  • Right-click the channel, select "Reset mapping" to access the reset mapping page.

  • The first type is default mapping.

  • Right-click, select "Aux CH default mapping", select "Average mapping",and click "Save mapping".

  • The second is priority mapping, which operates as above.

  • After em ptying the interface and maping the main channel,right-click, select "Aux CH default mapping", select "Priority mapping",and click "Save mapping".

  • The third type is customized mapping.

  • After clearing the interface and mapping the main channel,right-click and select "Aux CH default mapping",select "Customize" and enter the desired value.

  • Just right click and select "Save mapping".

  • The 4th type is drag-and-drop mapping.

  • After clearing the interface,find the desired auxiliary channel on the left side.

  • Click drag and drop to the right side and save it.


That is all about this topic.Thanks for watching!

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
