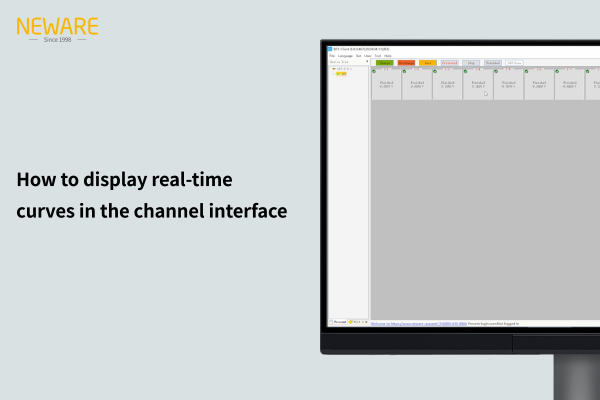

How to display real-time curves in the channel interface

Latest updated: Mar 22, 2025
Video recording version: 8.0.0.483, compatible with BTS 8.0 software.

Today,we will demonstrate how to display real-time curves for channels that are currently being tested on the main interface.


  • After opening the BTS software, to display real-time curves for the channel under test, click on the "Display settings" option in the bottom right corner.

  • Check the box next to "Real-time curve" and you will be able to see the screen displaying the real-time curves.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
