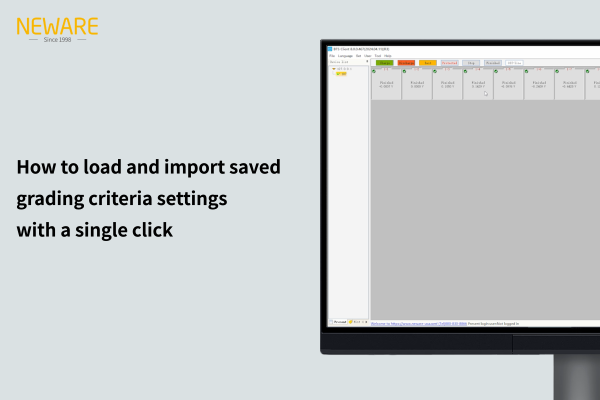

How to load and import saved grading criteria settings with a single click

Latest updated: Dec 15, 2023
Video recording version: 8.0.0.516, compatible with BTS 8.0 software.

Here is an explanation on how to import previously saved grading criteria settings.


  • Open the BTS software.Click on the icon in the top right corner and select "Grading" to open the grading interface.

  • Once in the grading interface, right-click anywhere on the screen.

  • Select "Load template" to open the previously saved grading criteria settings.

  • The imported grading criteria settings will now be applied and visible in the grading interface.


That wraps up the entire demonstration. Thanks for watching.

This operation video tutorial is applicable to the following products:
● CT-4000 Battery Testing System Series (CT-4008Q-5V100mA, CT-4008Q-5V6A-S1, CT-4008Q-5V6A-164, CT-4008Q-5V12A-S1, CT-4008Q-5V12A-164, etc.)
● CE-6000 Battery Testing System Series (Cell, Module, Pack, etc.)
● CT/CTE-8000 Battery Testing System Series (CT-8002Q-5V100mA, CTE-8008-5V200A, etc.)
● All-in-One Battery Testing System Series (WHW-25L-S-16CH, WIHW-200-160CH-B, WHW-100L-2-160CH, WHW-500L-5V6A80CH-380V, WGDW-380L-2-40BFC-5V600A8CH, etc.)
